AR54.10-P-0003SX Disconnect/Connect Battery Ground Line
AR54.10-P-0003SX Disconnect/Connect Battery Ground Line
AR54.10-P-0003SX Disconnect/Connect Battery Ground Line

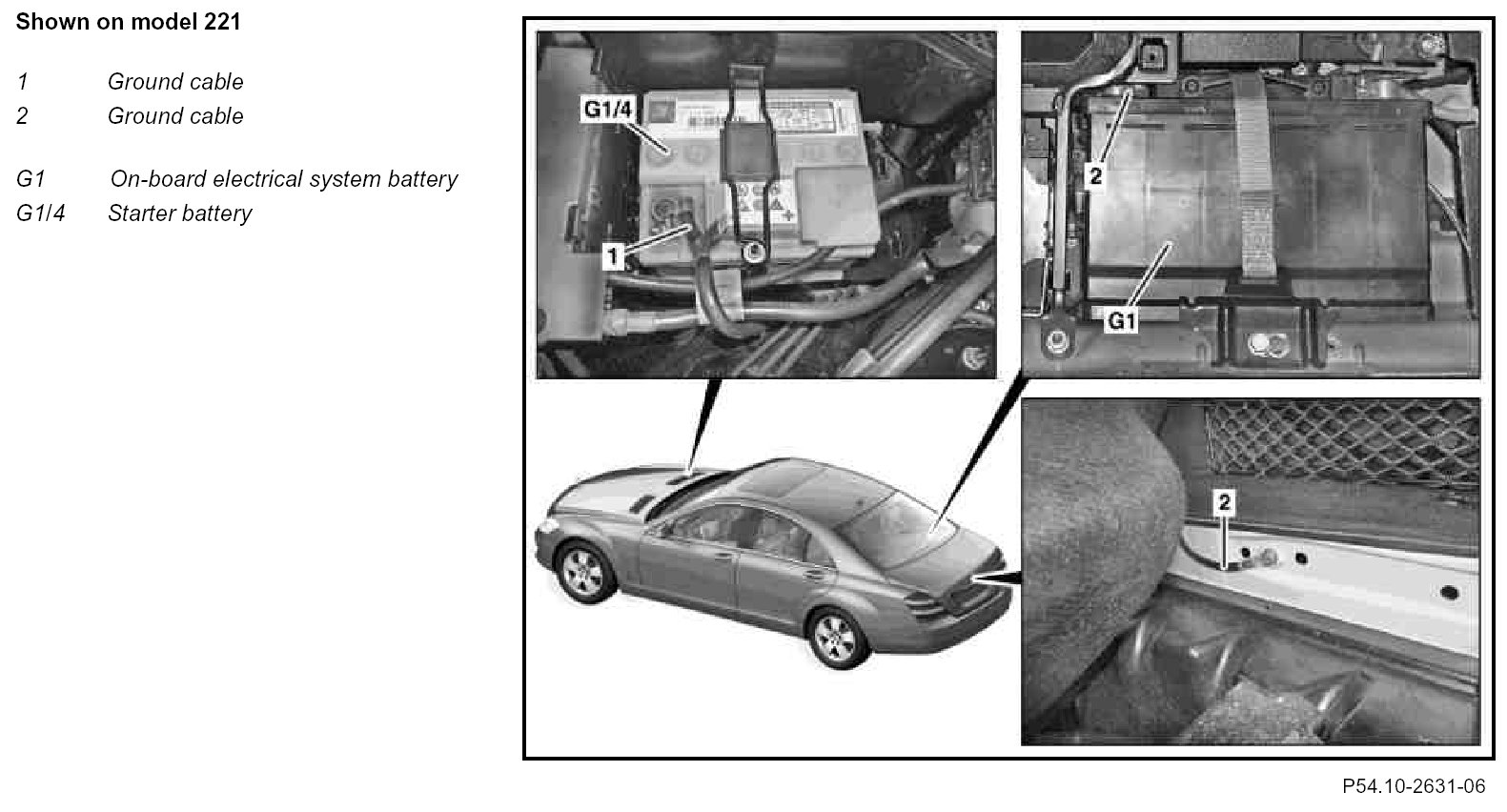

Component Identification:

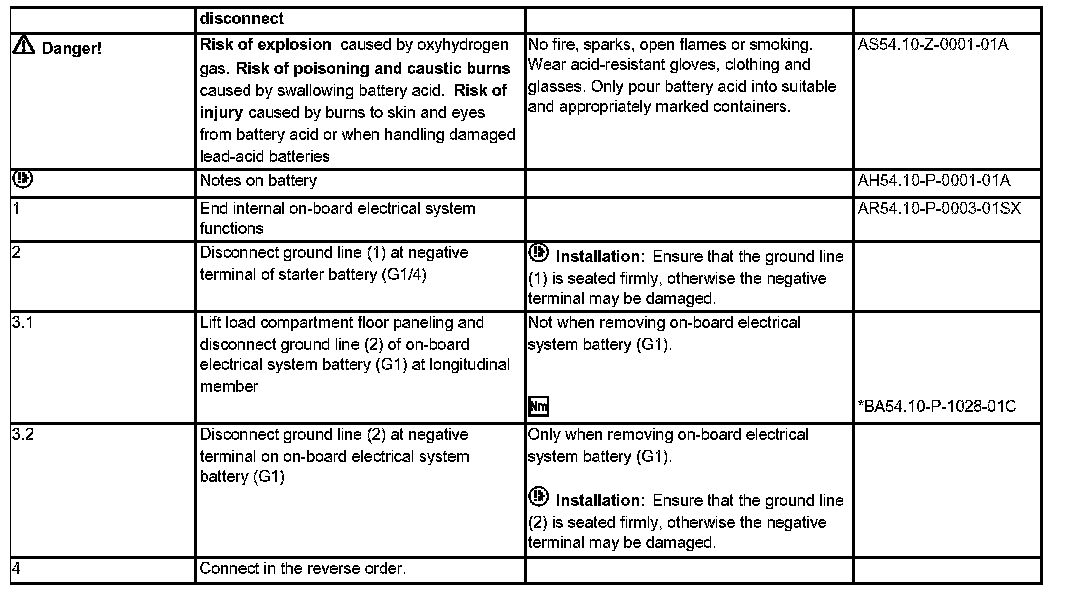

Steps 1 - 4:

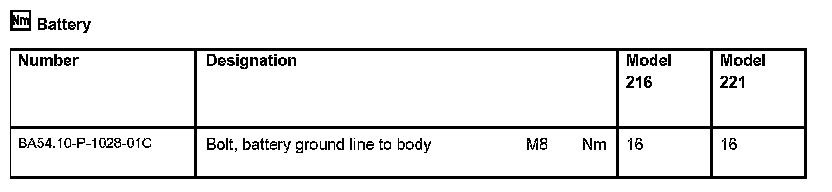

Battery:
