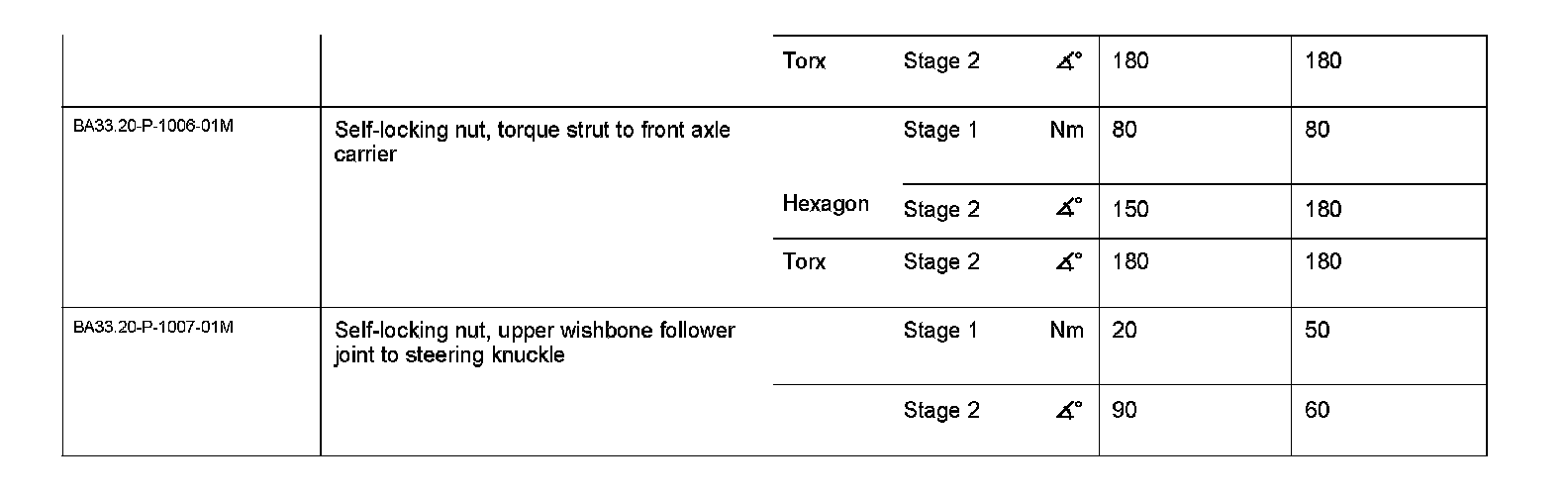

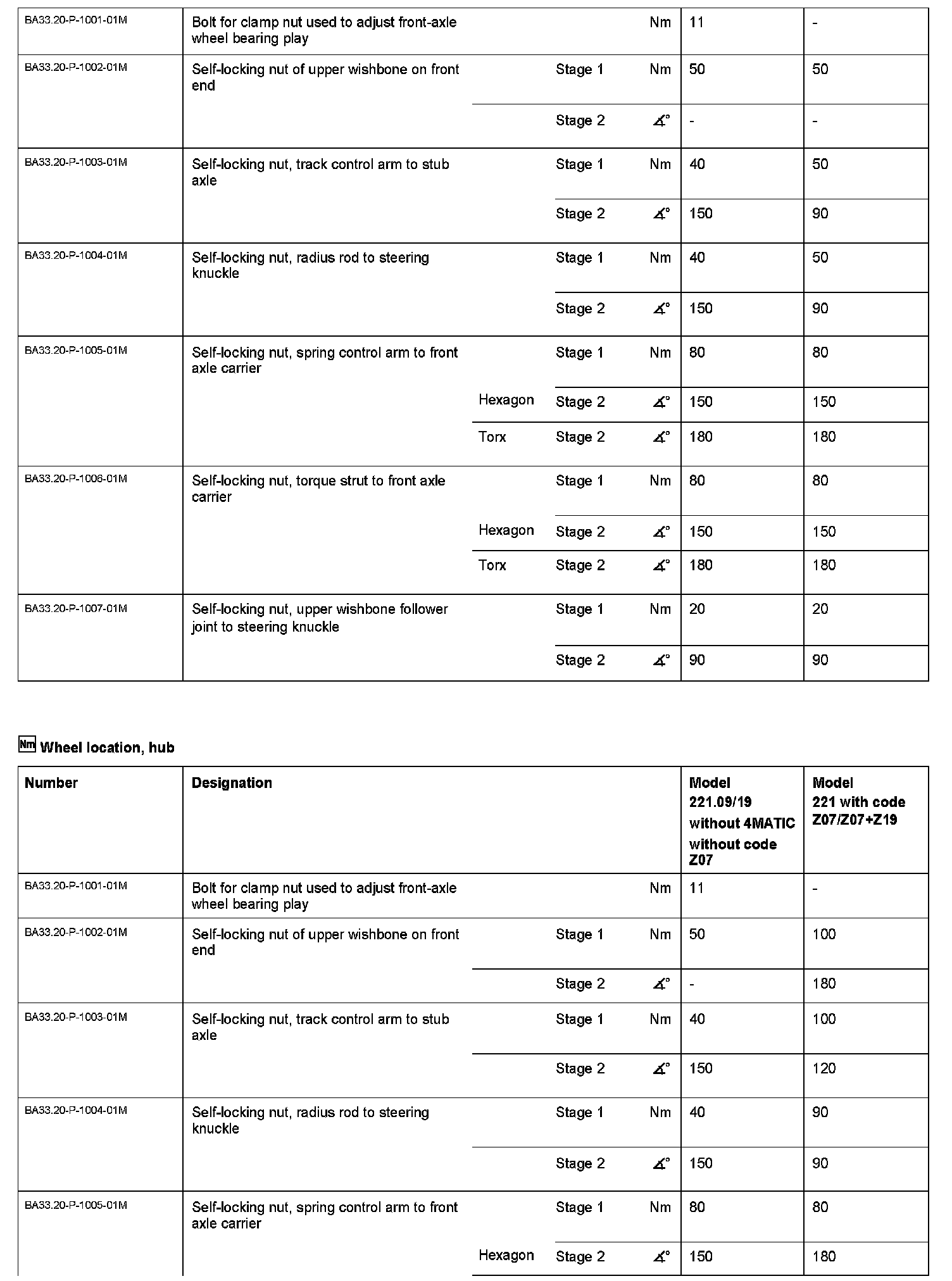

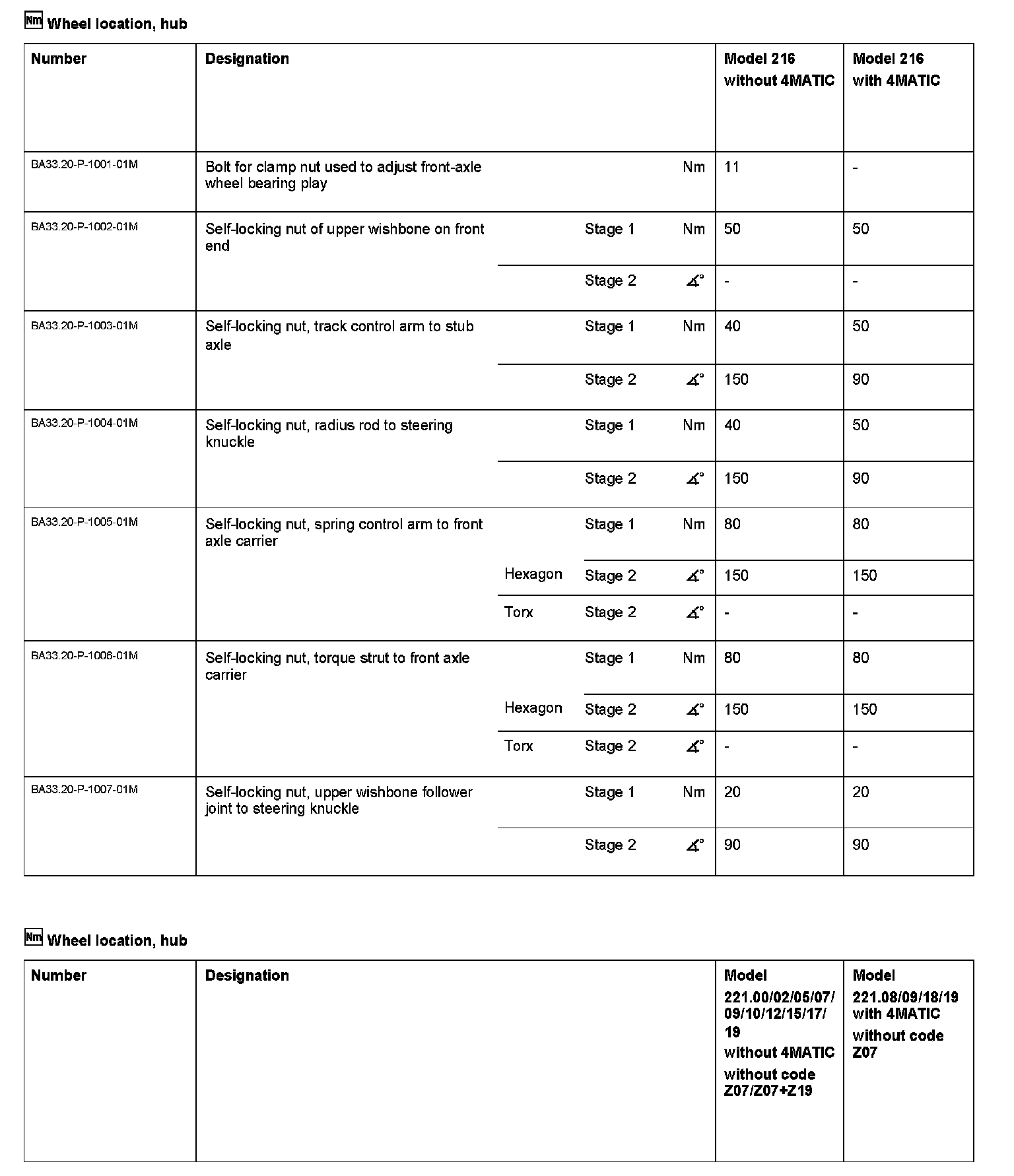

BA33.20-P-1000-01M Wheel Location, Wheel Hub
BA33.20-P-1000-01M Wheel Location, Wheel Hub
BA33.20-P-1000-01M Wheel Location, Wheel Hub
Model 216, 221
