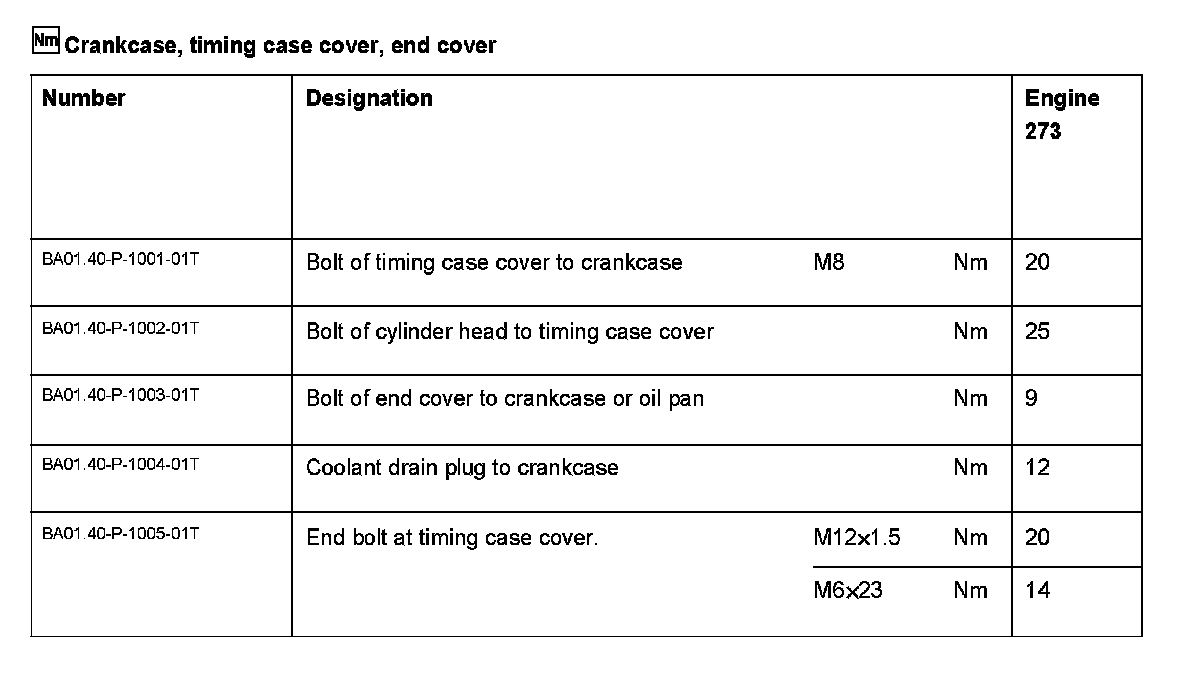

BA01.40-P-1000-01T Crankcase, Timing Case Cover, End Cover
BA01.40-P-1000-01T Crankcase, Timing Case Cover, End Cover
BA01.40-P-1000-01T Crankcase, Timing Case Cover, End Cover
ENGINE 273
