Head Rest: Service and Repair
AR91.16-P-1770SC Removing Rear Head Restraint

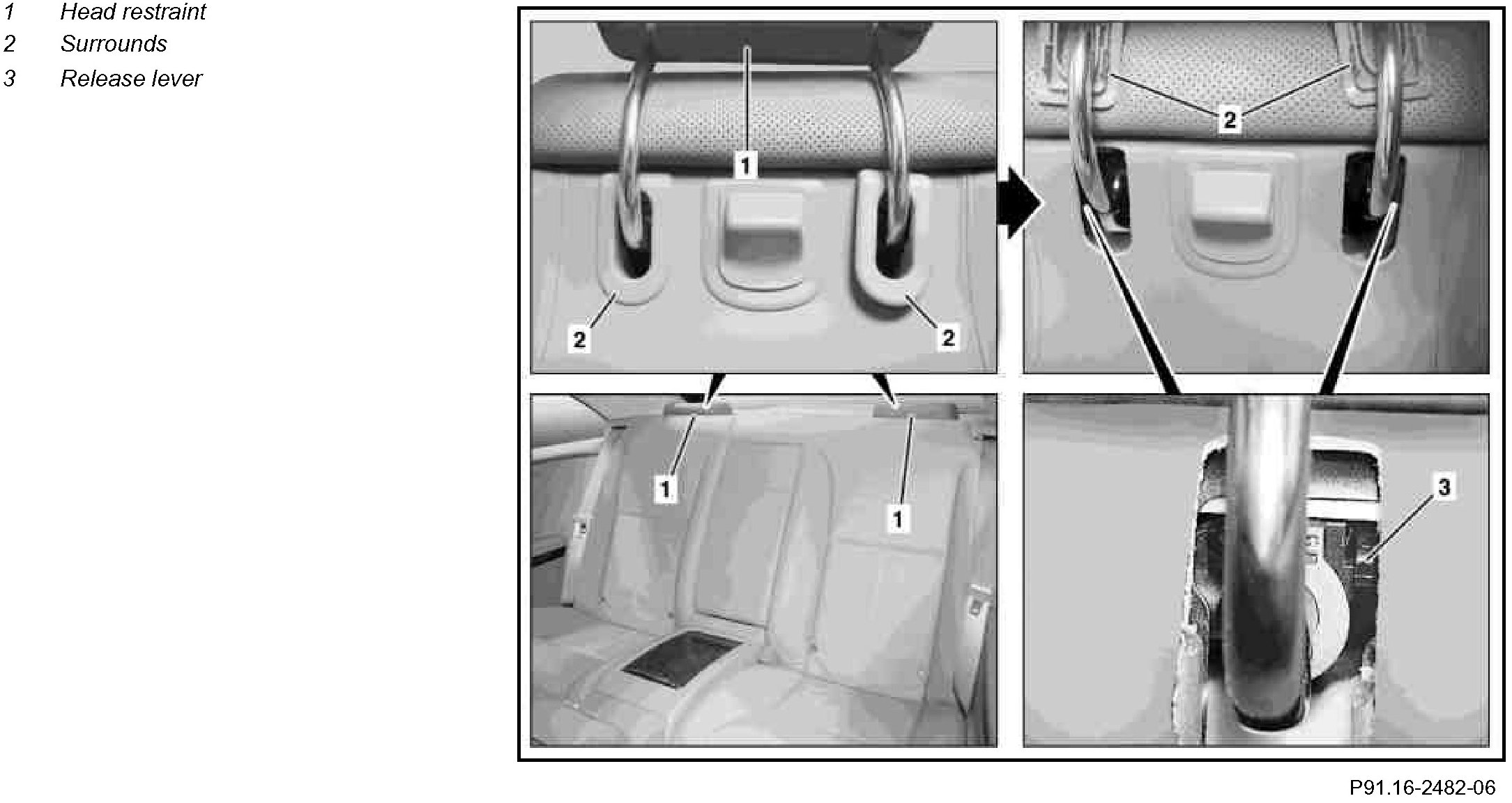

Component Identification:

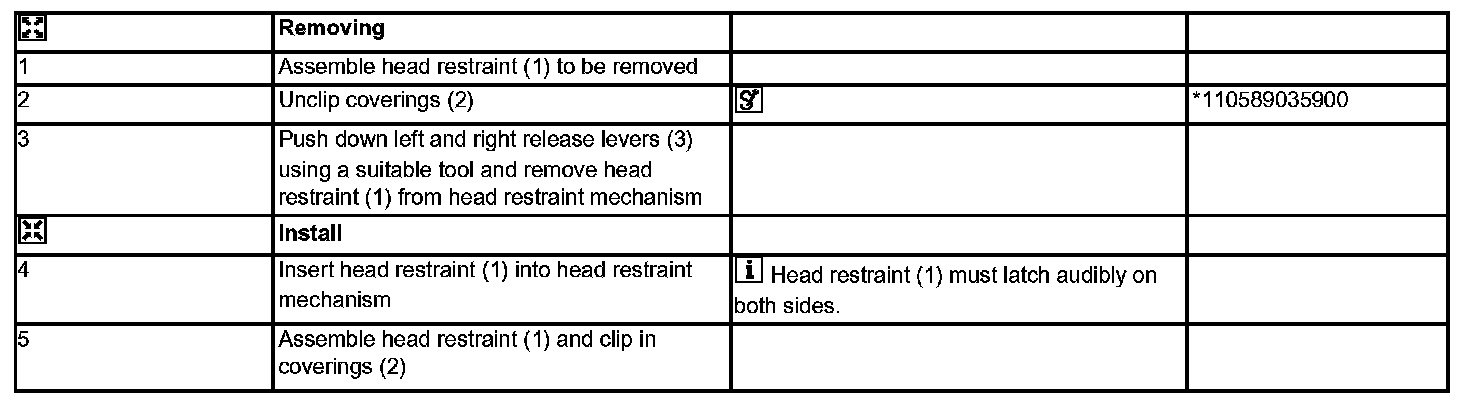

Steps 1-5:
Special Tool:
