Fuel Pressure Regulator: Service and Repair
AR47.20-P-5714SX Remove/Install
Fuel Filter
With Pressure Regulator

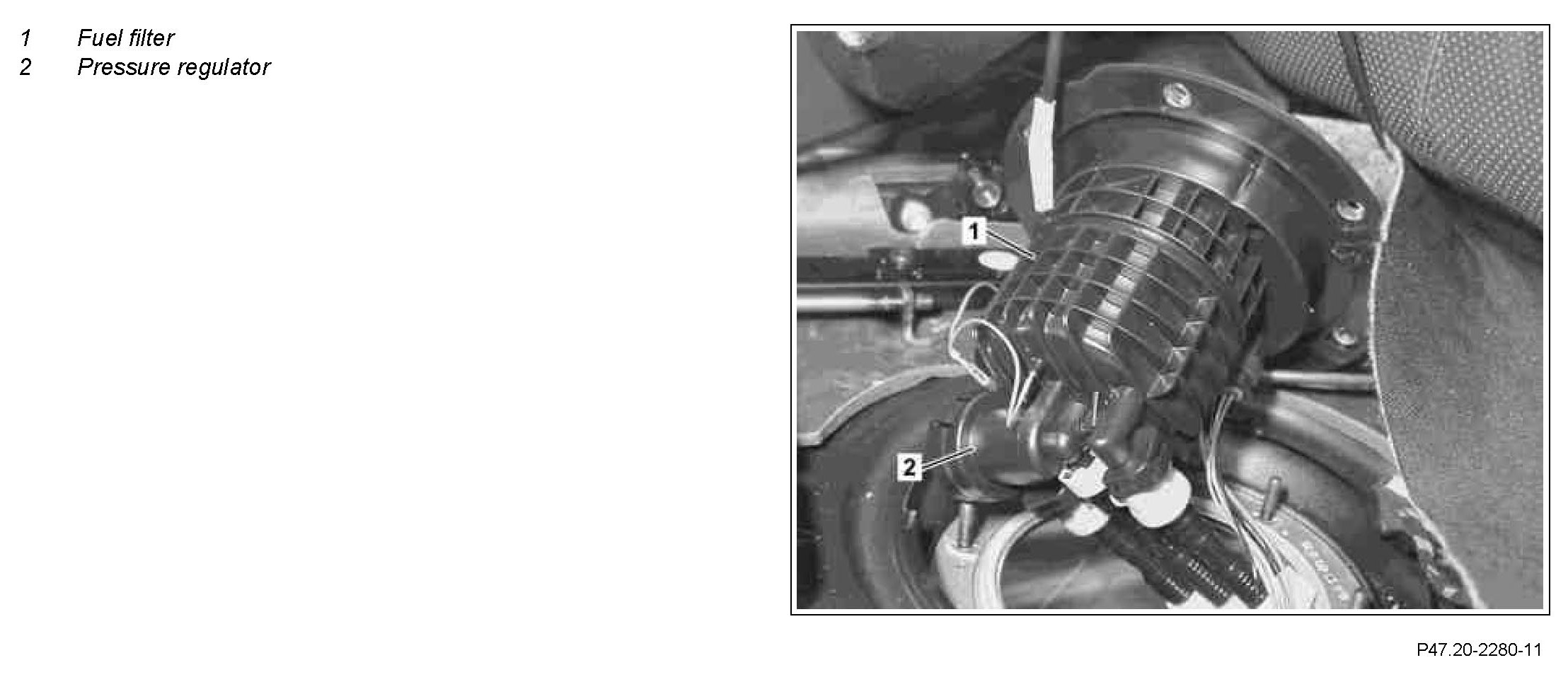

Component Identification:

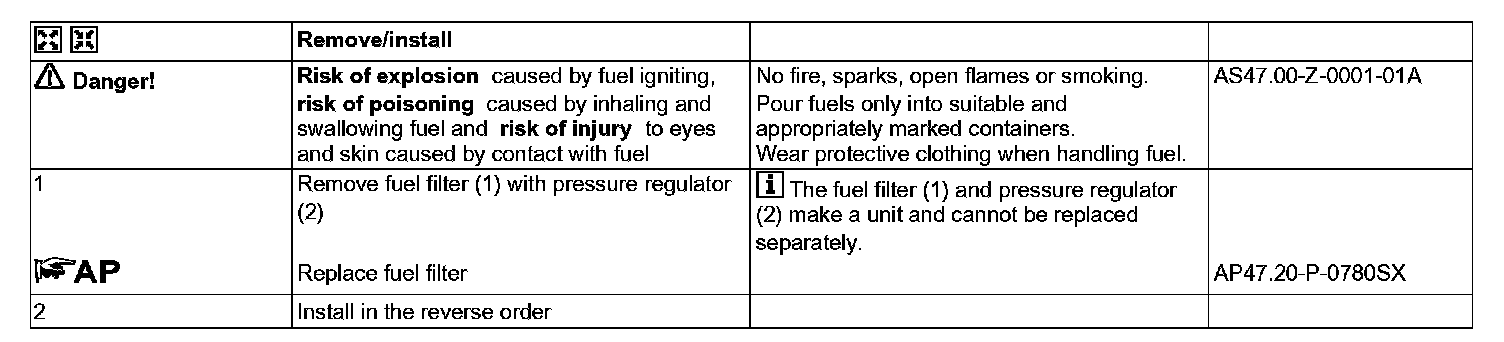

Steps 1 - 2:
