Air Diverter Valve: Service and Repair
AR14.30-P-7200SX Remove/install air shutoff valve

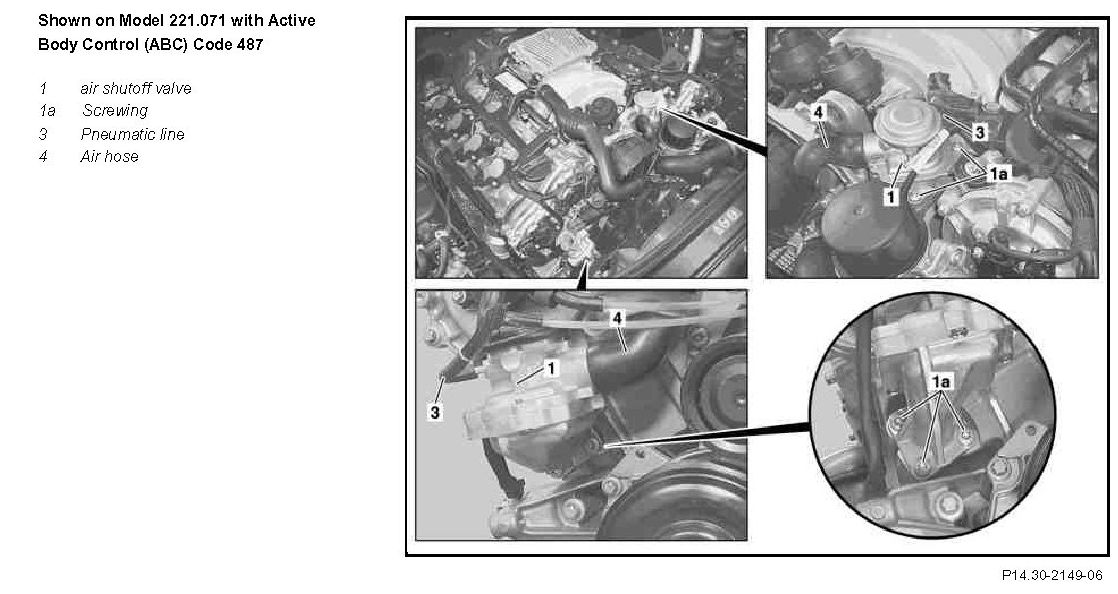

Component Identification:

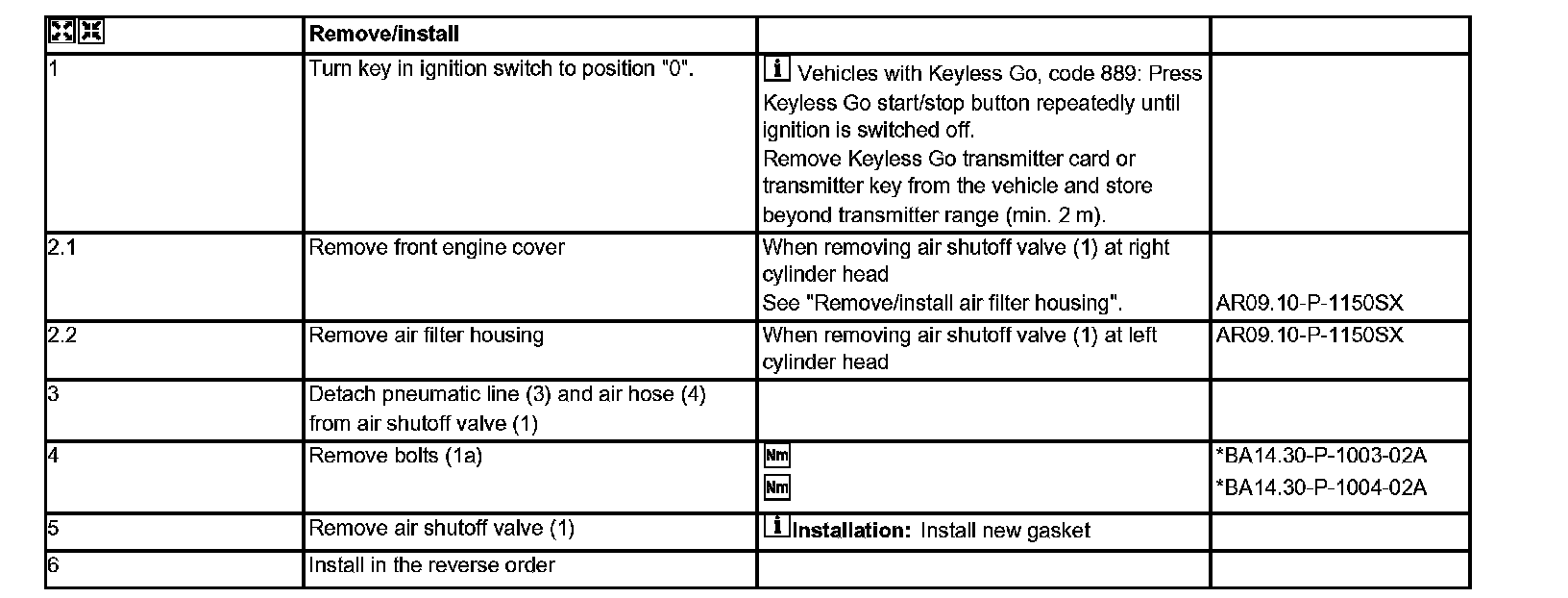

Remove/install Steps 1-6:
Air shutoff valve:
