AP18.00-P-0101SX Engine oil and filter change

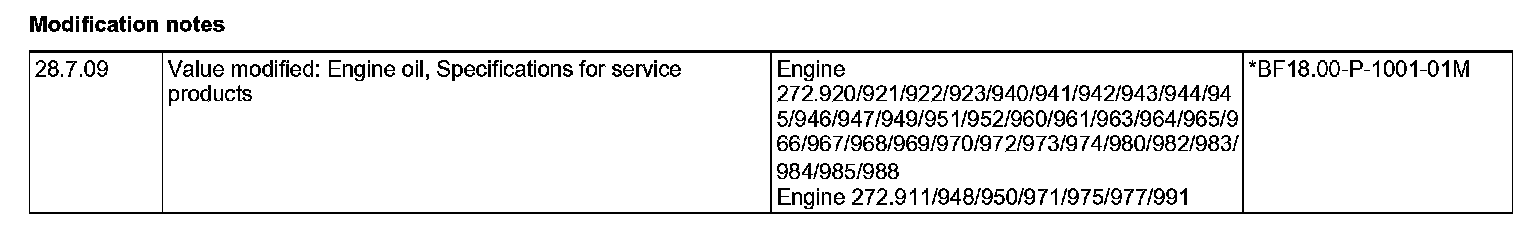

Modification notes:

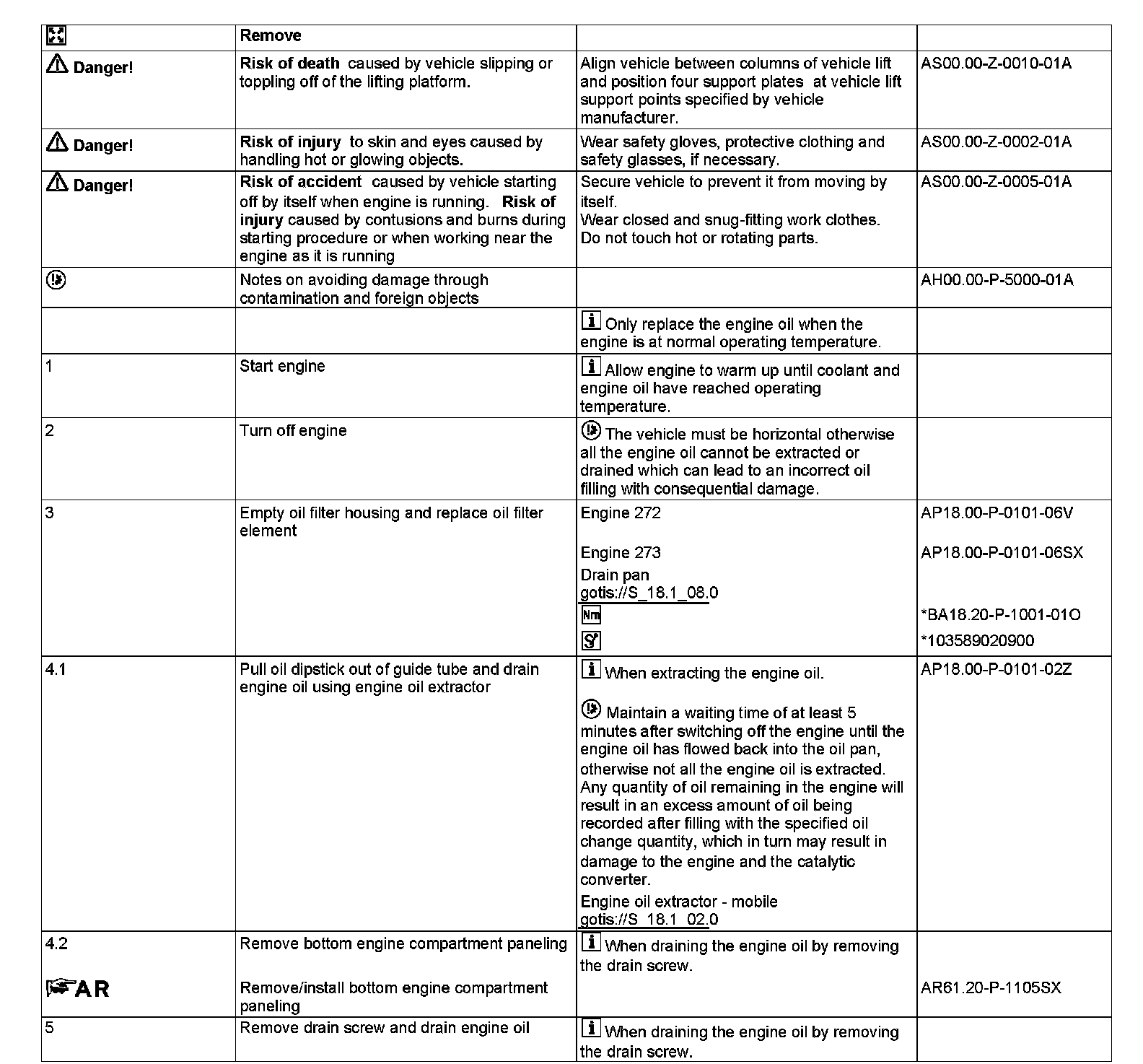

Steps 1-5:

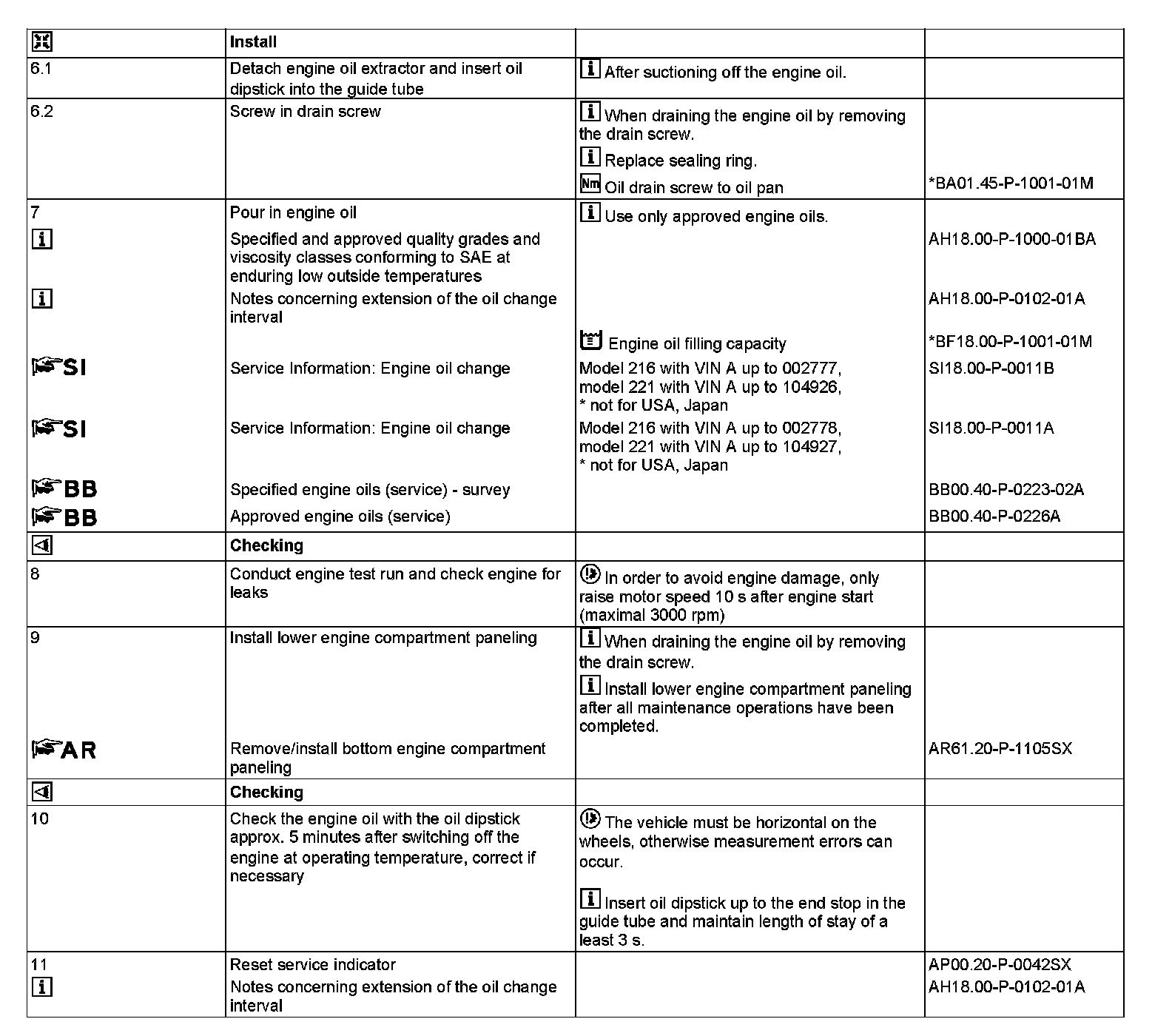

Steps 6.1-11:
Oil filter:

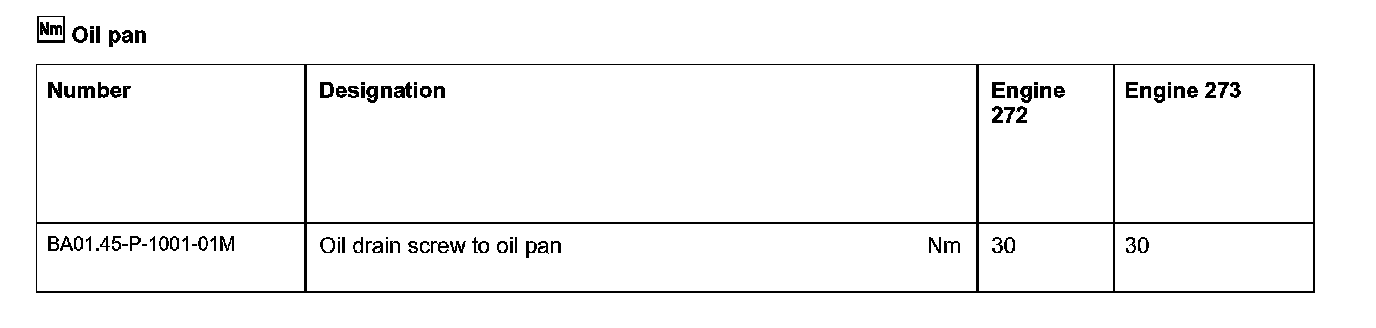

Oil pan:

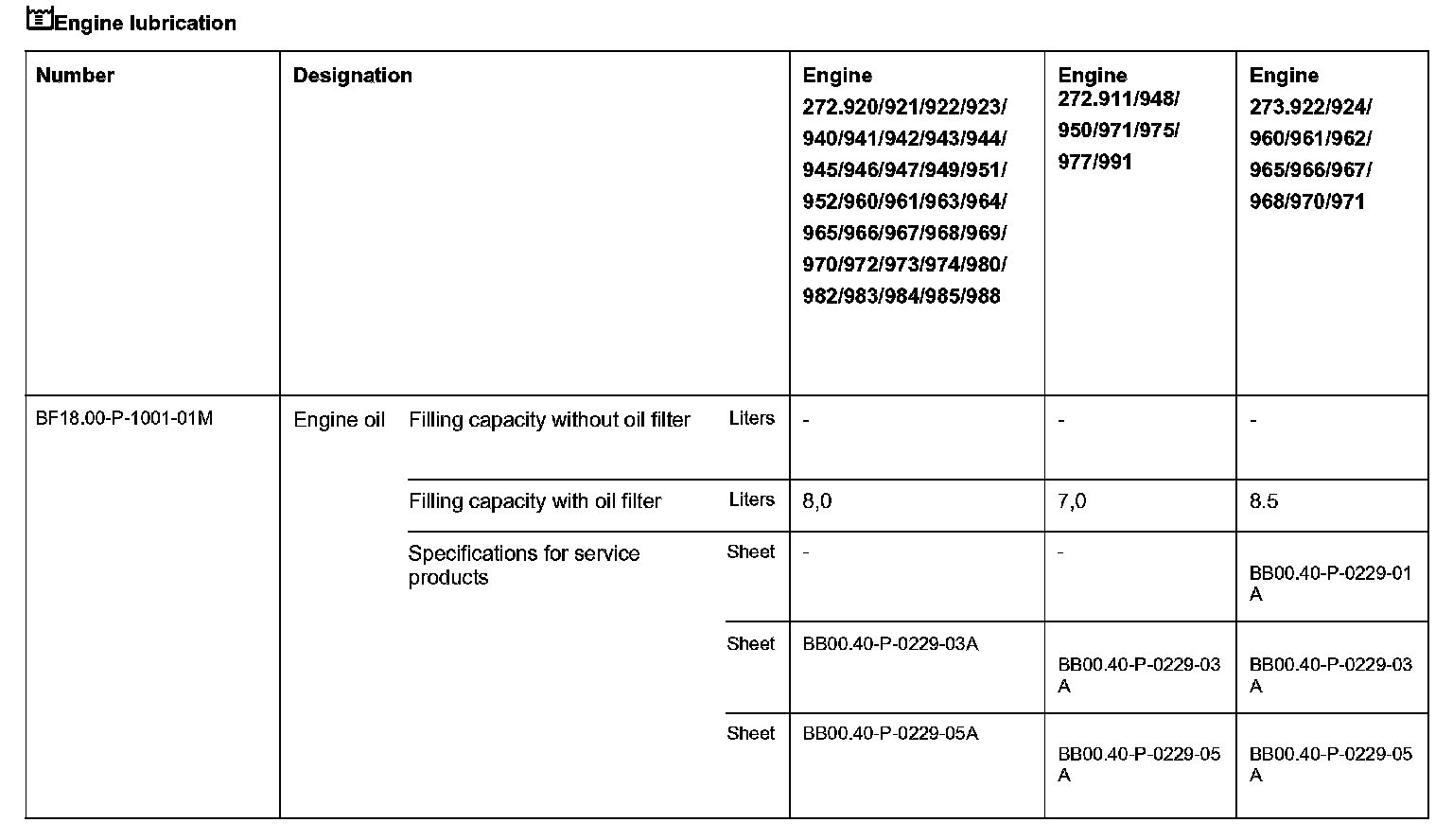

Engine lubrication:

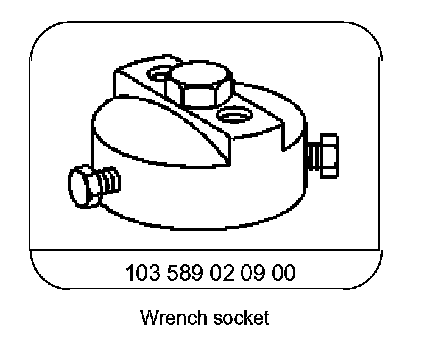

Special Tools:
