Removal and Replacement
AR83.30-P-5200SX Remove/Install AC Housing

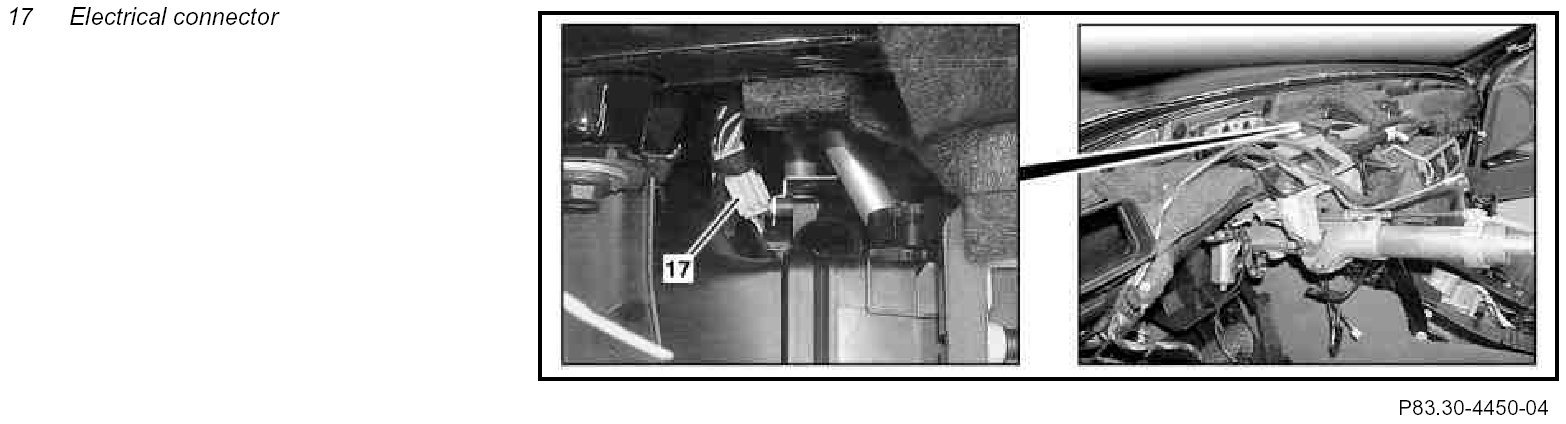

Component Identification:

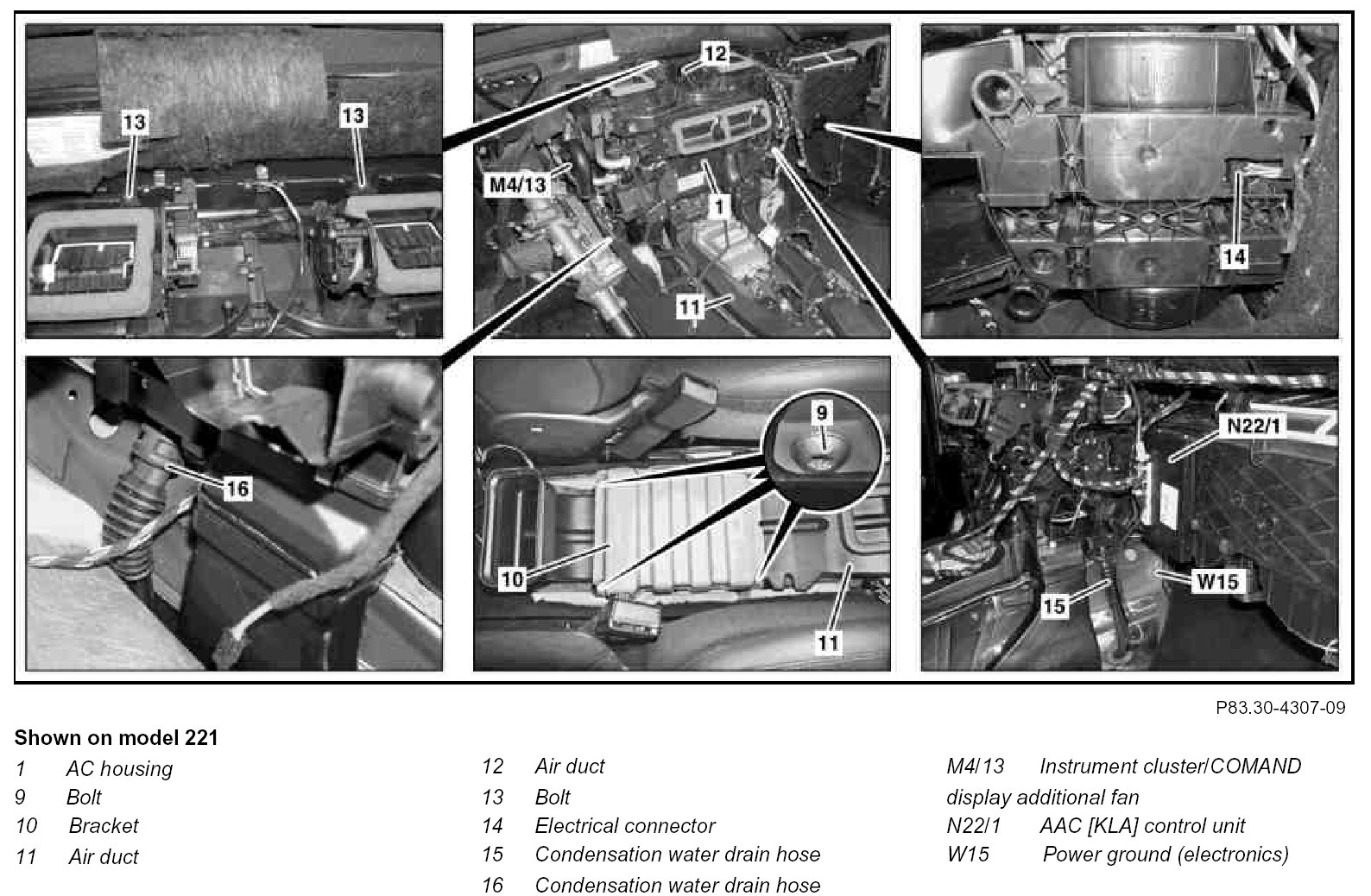

Component Identification:

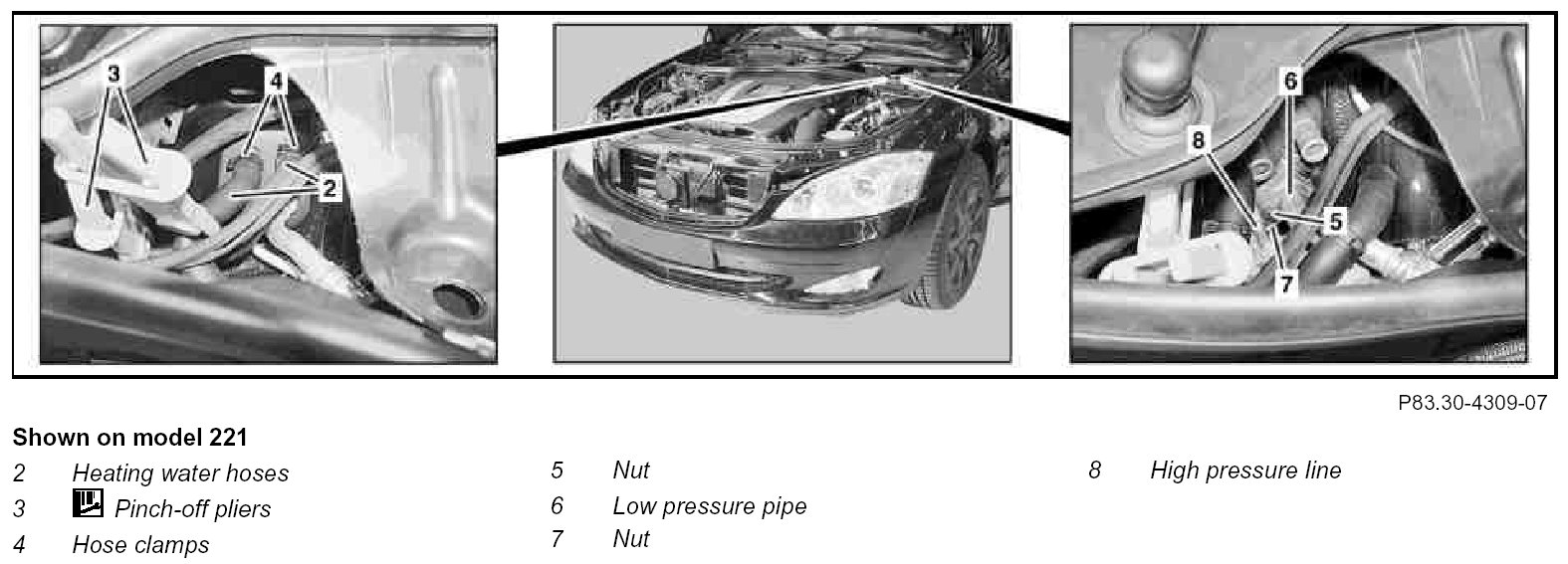

Component Identification:

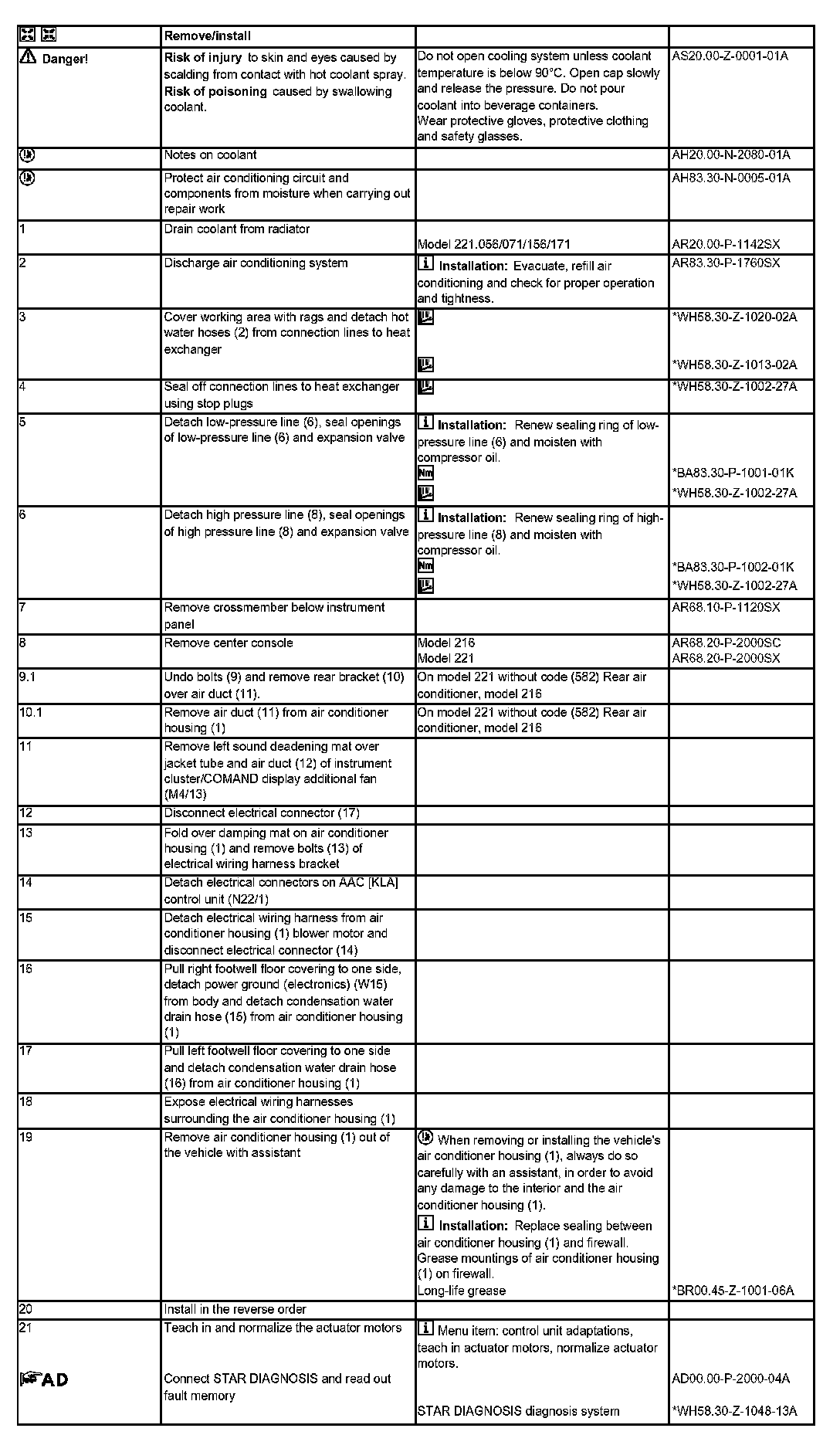

Steps 1 - 21:

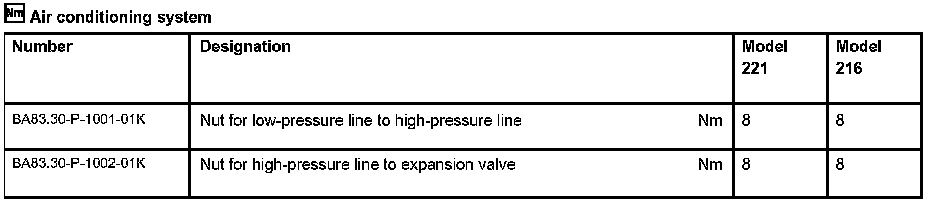

Air Conditioning System:

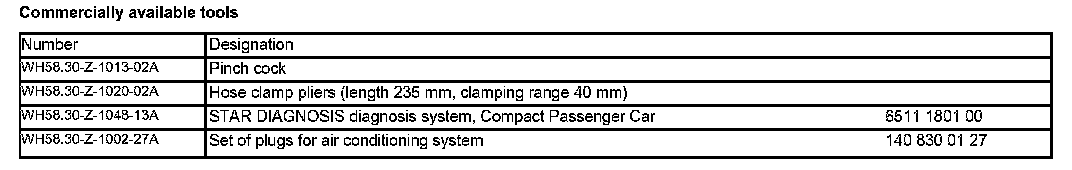

Commercially Available Tools:
Repair Materials:
AR83.30-P-5200SX Remove/Install AC Housing
