Radiator: Service and Repair
AR20.20-P-3865SX Remove/install radiator

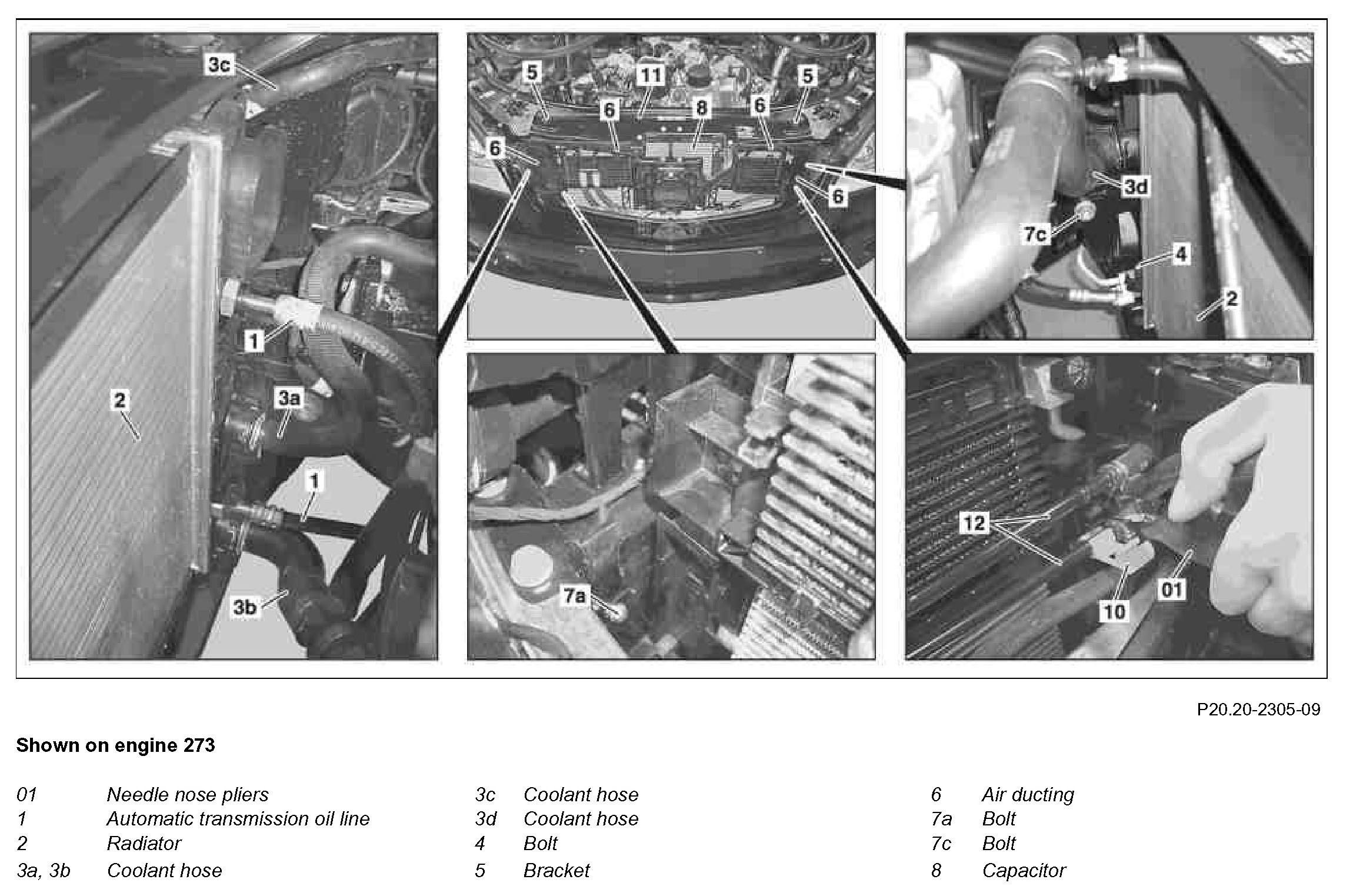

Component Identification:

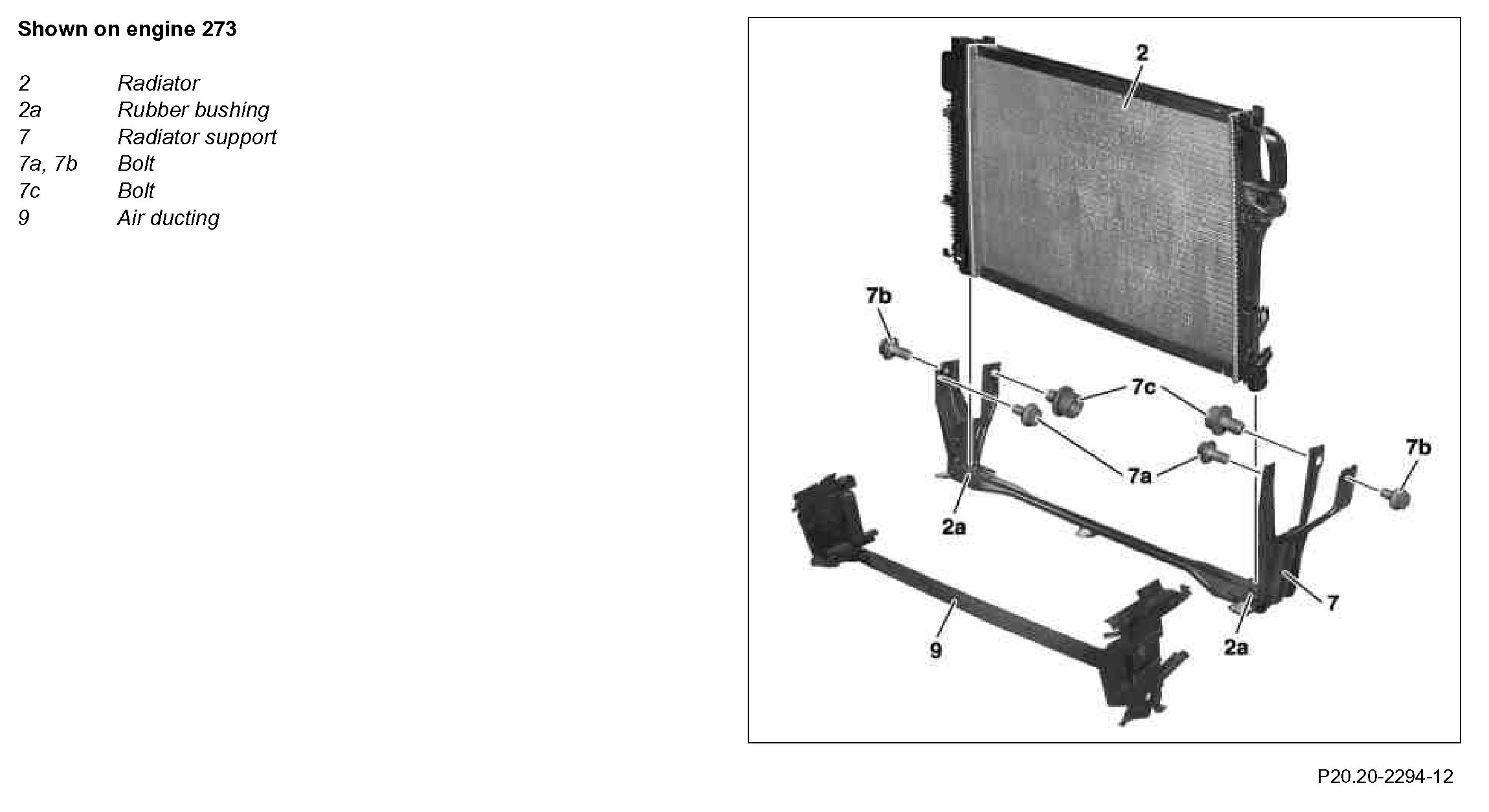

Component Identification:

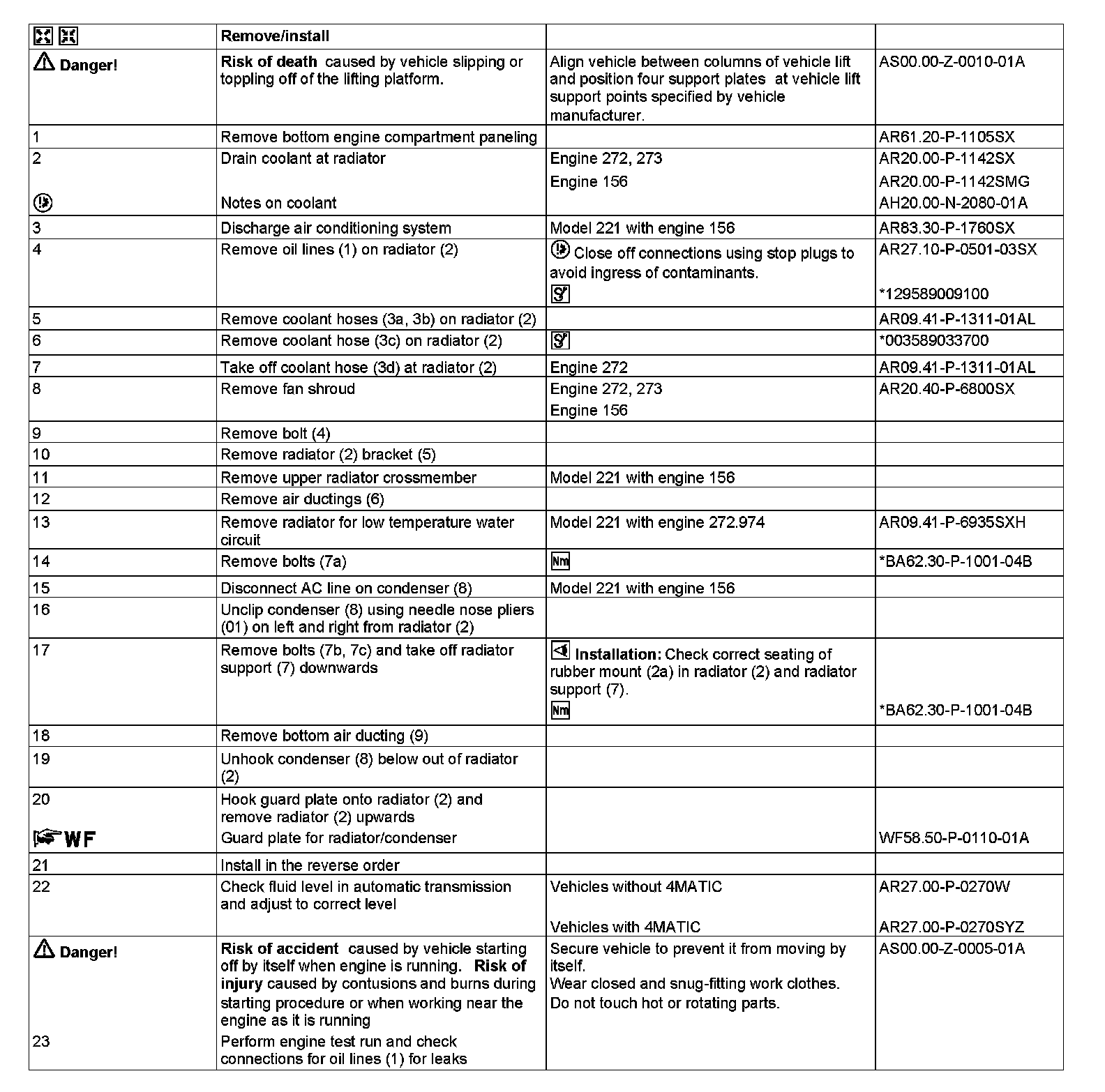

Steps 1-23:

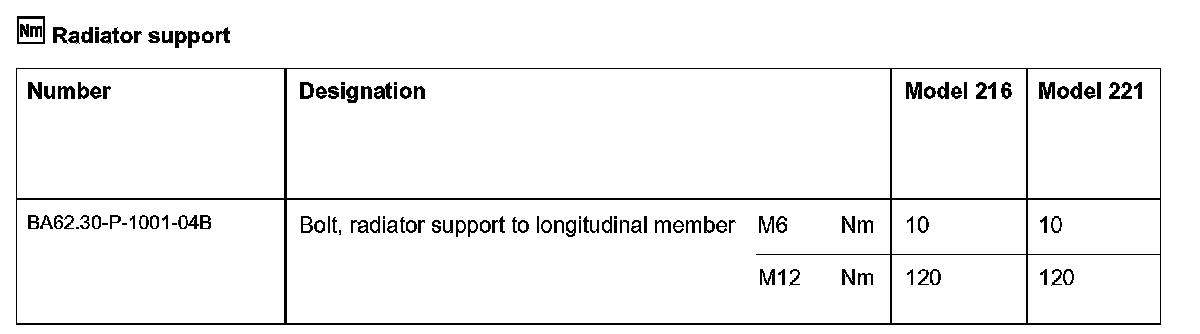

Radiator support:

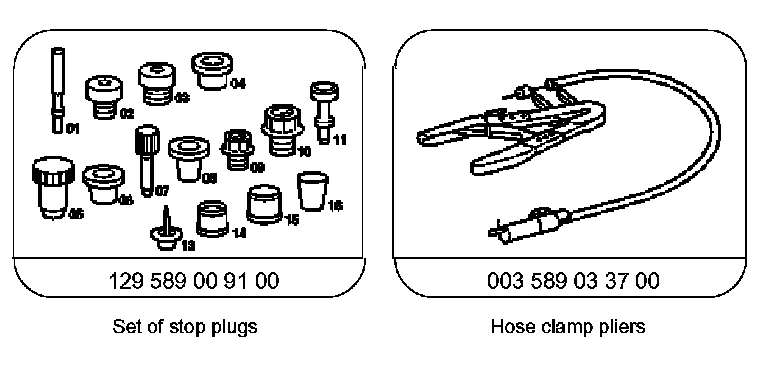

Special Tools:
