Seat Latch Cable: Service and Repair
AR91.10-P-1480SC Remove And Install Bowden Cable For The Easy Entry Feature

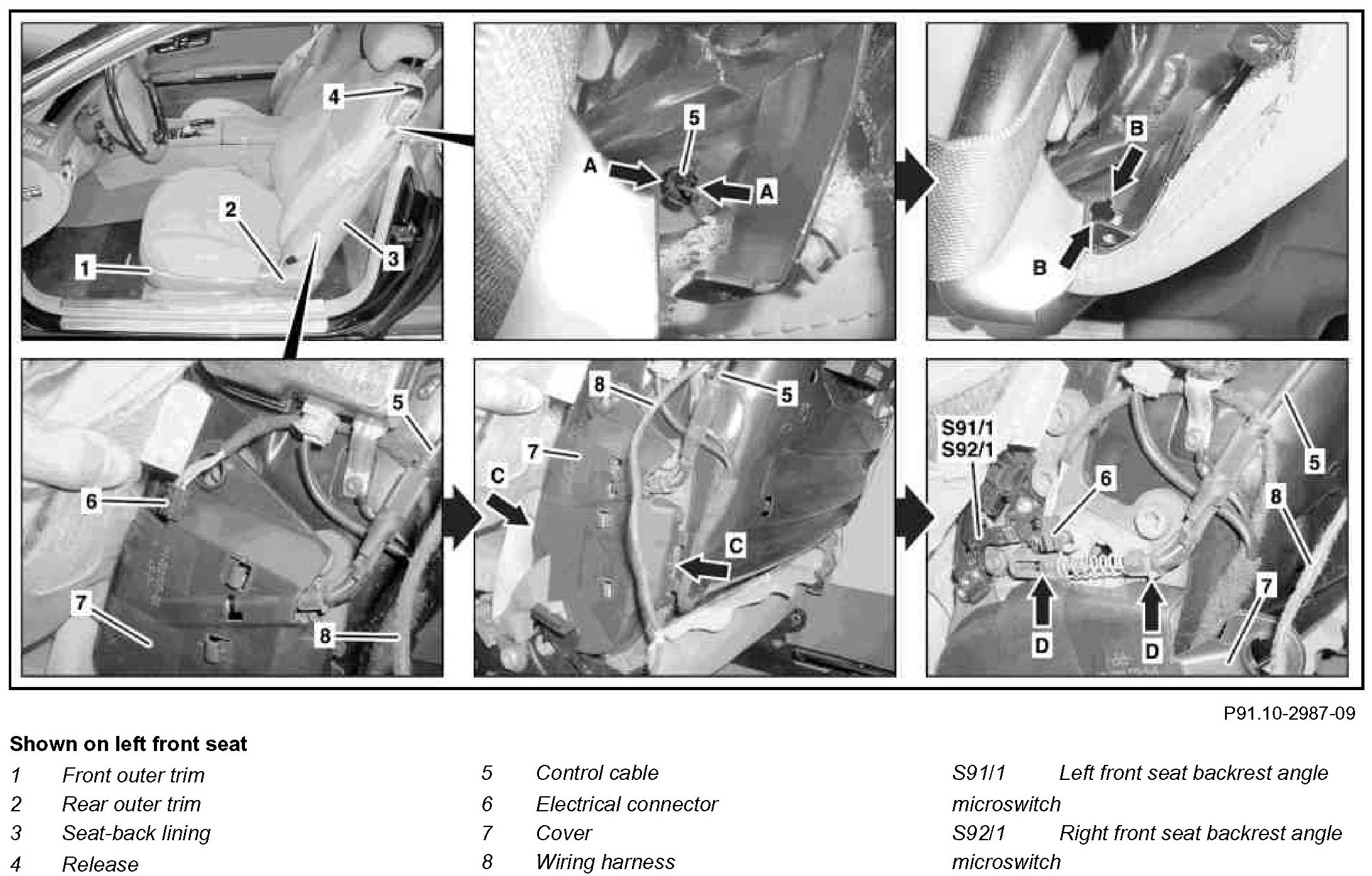

Component Identification:

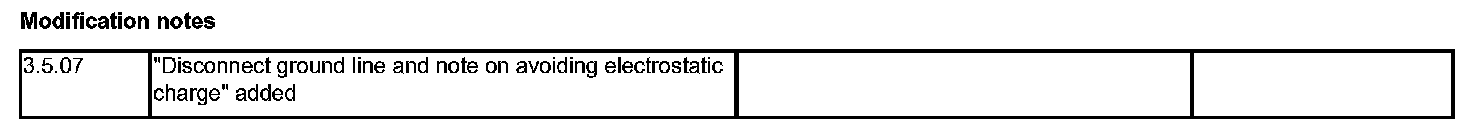

Modification Notes:

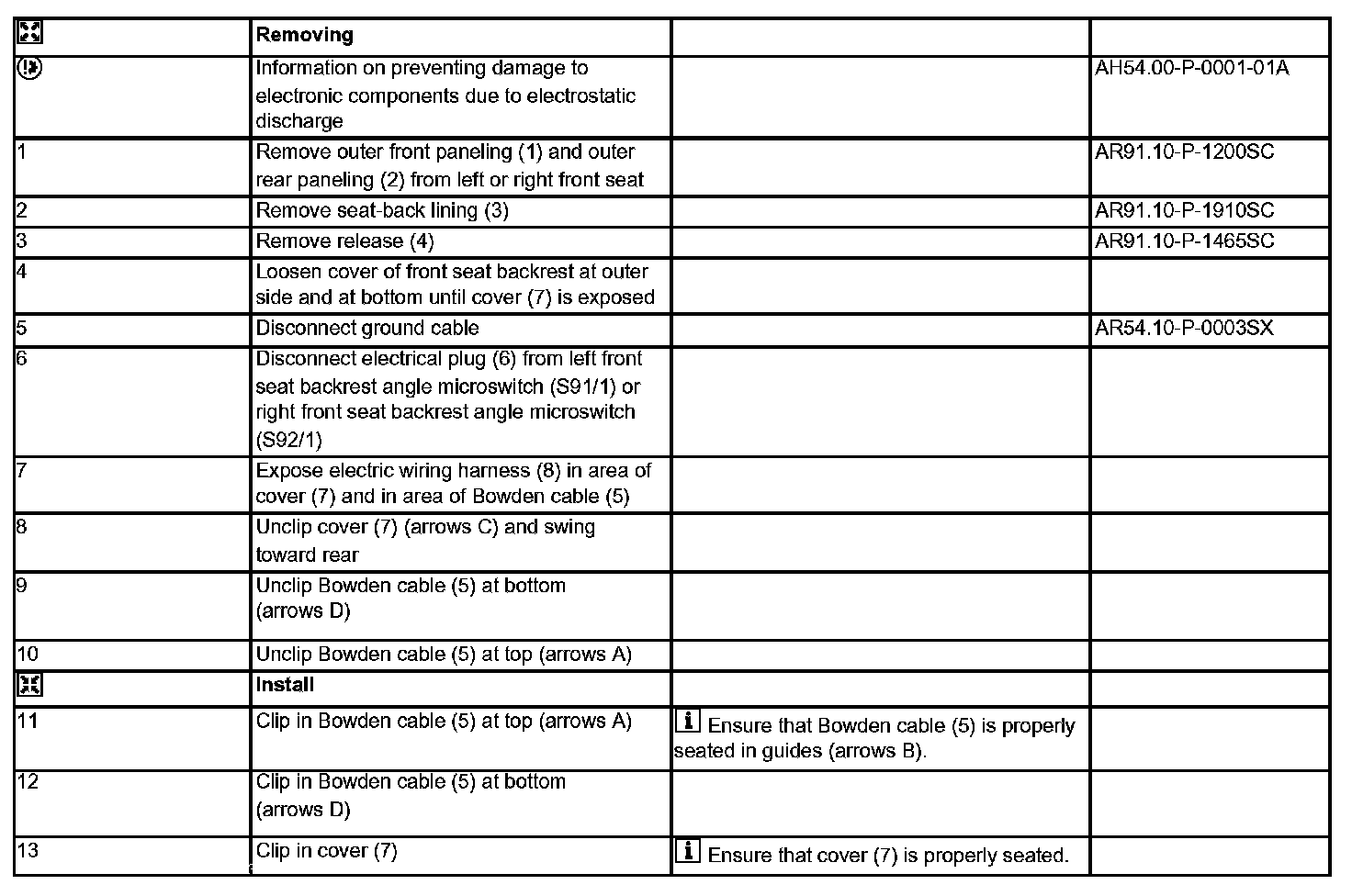

Steps 1-13:

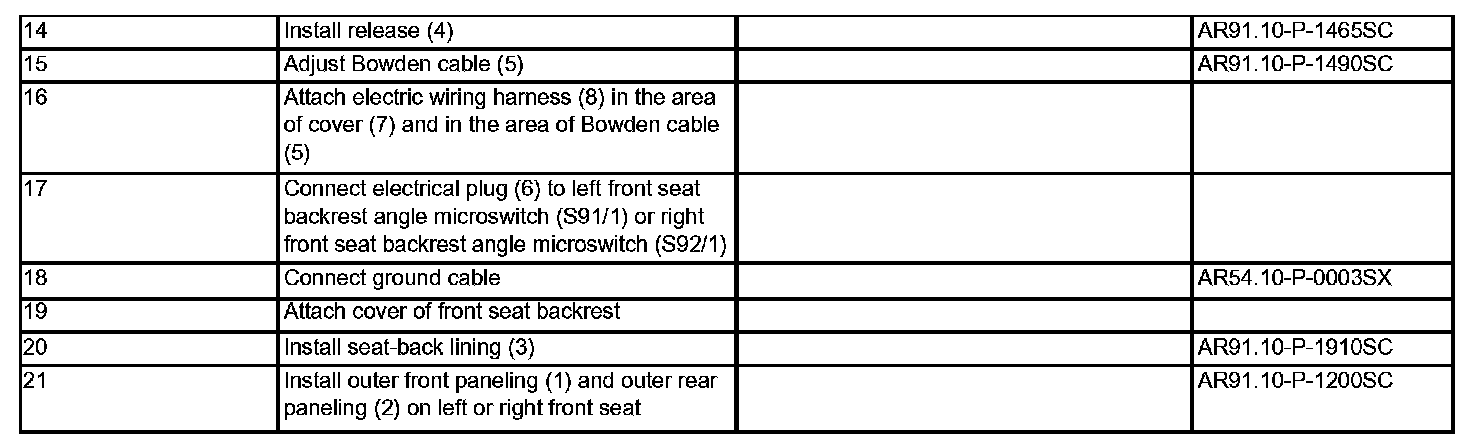

Steps 14-21:
