Mercedes Benz
>>
2009
>>
CL 550 4MATIC (216.386) V8-5.5L (273.961)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Accessory Control Display
>>
Service and Repair
>>
AR82.85-P-7429SX Remove/Install COMAND Display
AR82.85-P-7429SX Remove/Install COMAND Display
AR82.85-P-7429SX Remove/Install COMAND Display

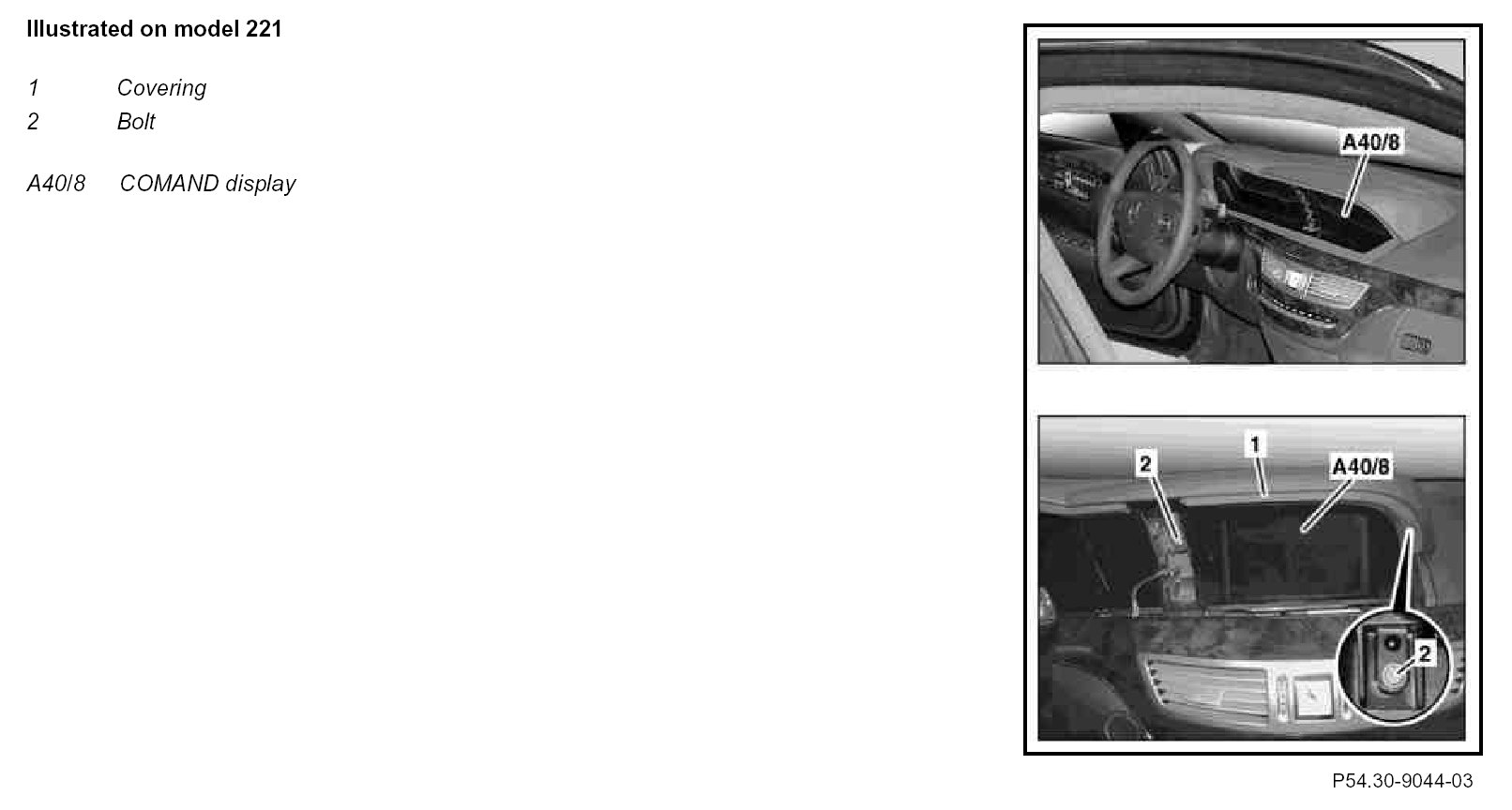

Component Identification:

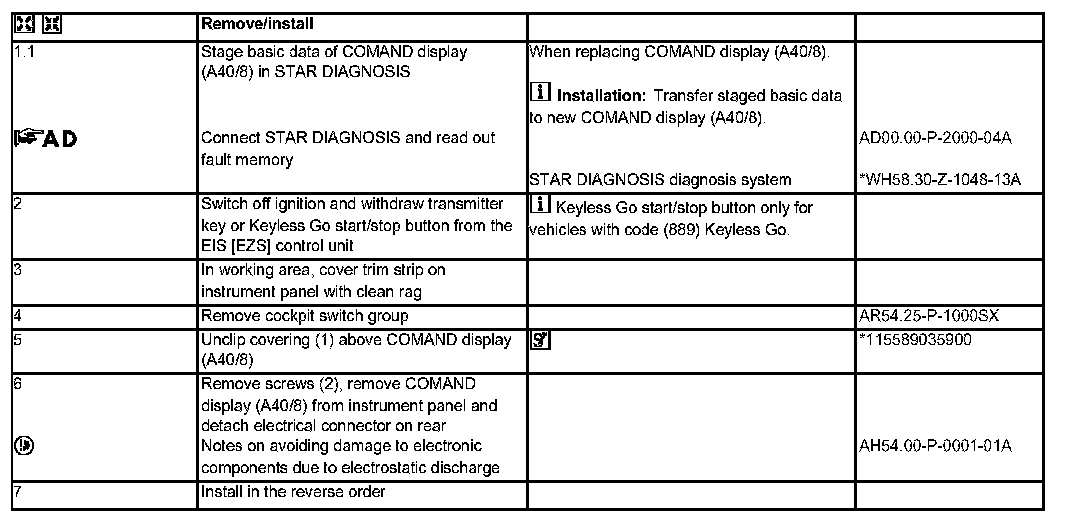

Steps 1.1 - 7:
Special Tools:

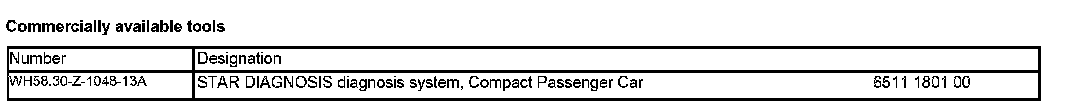

Commercially Available Tools:
