AR35.20-P-0119RBS Remove/Install Spring Control Arm



AR35.20-P-0119RBS Remove/install spring control arm
- with CODE (P99) Special model "AMG Black Series"

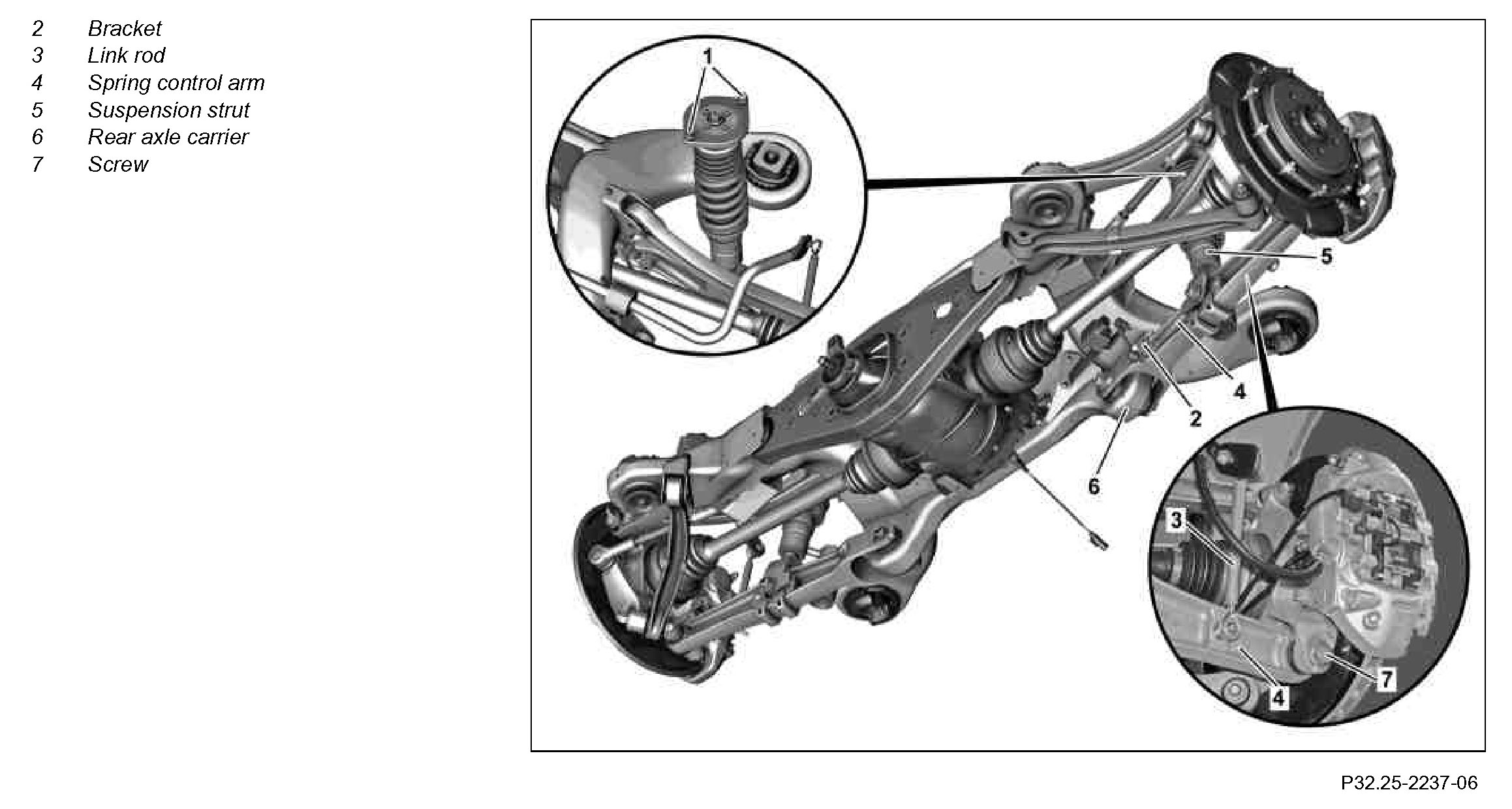

Component Identification:

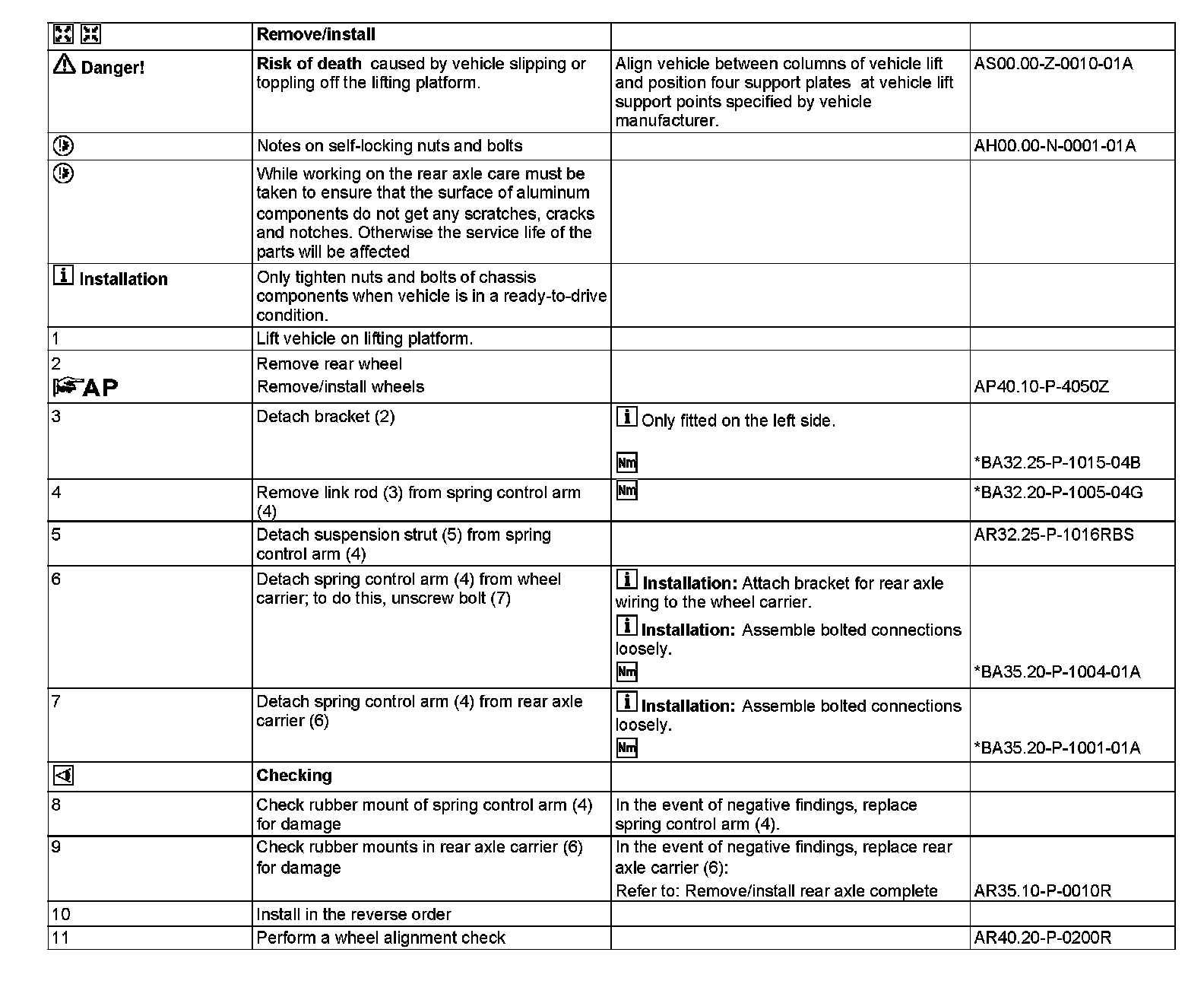

Steps 1-11:

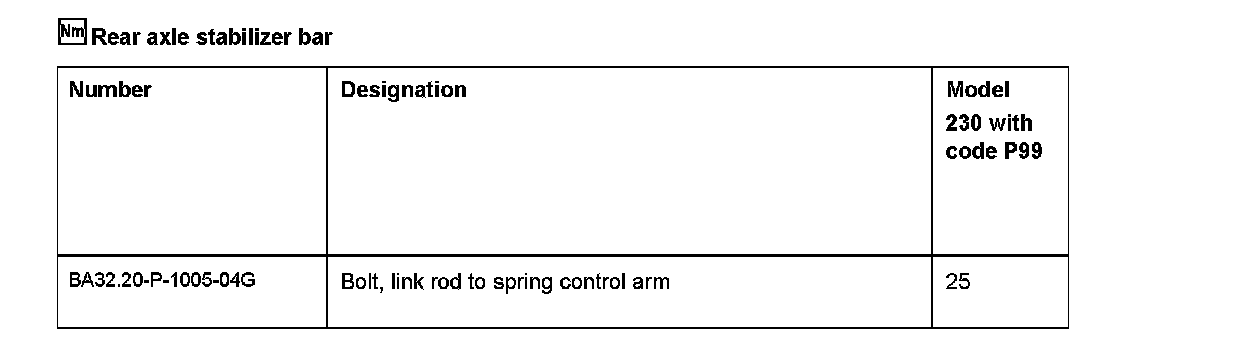

Rear axle stabilizer bar:

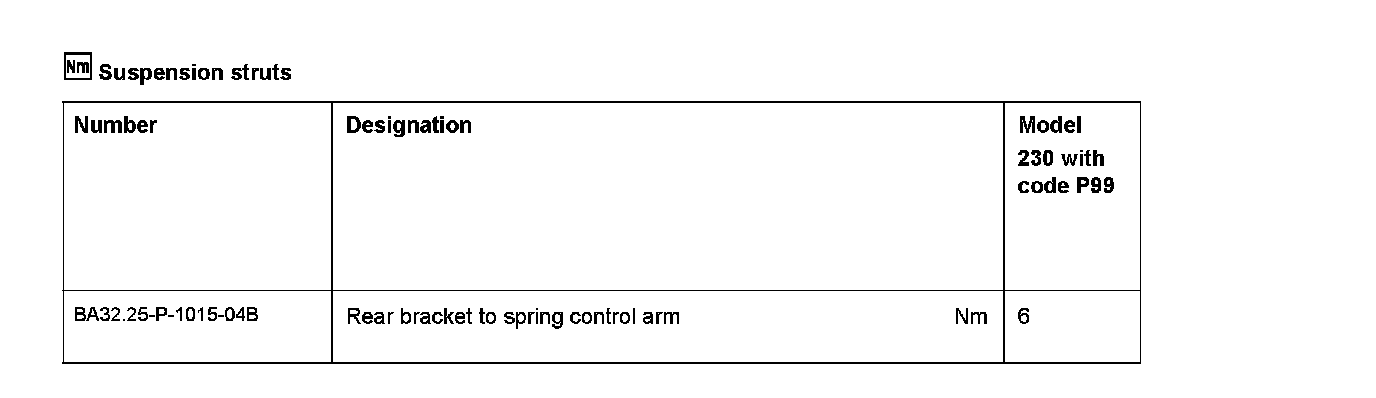

Suspension struts:




Spring control arm:
