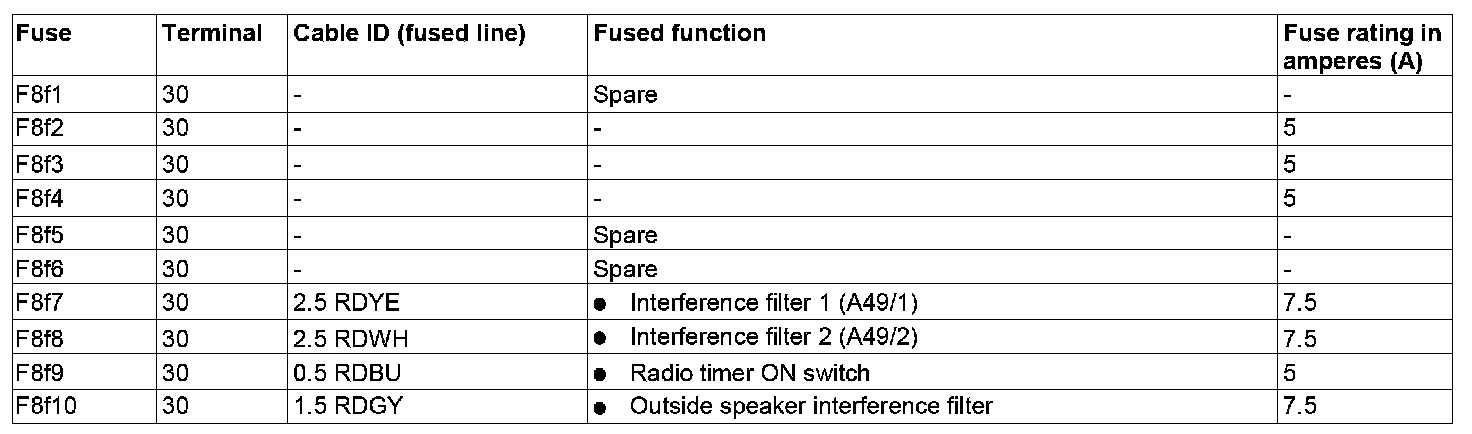

GF54.15-P-1256-20SXS Fuse Assignment of Additional Fuse Holder II

GF54.15-P-1256-20SXS Fuse Assignment Of Additional Fuse Holder II
- with CODE (Z07) Top protection
- up to model year 08

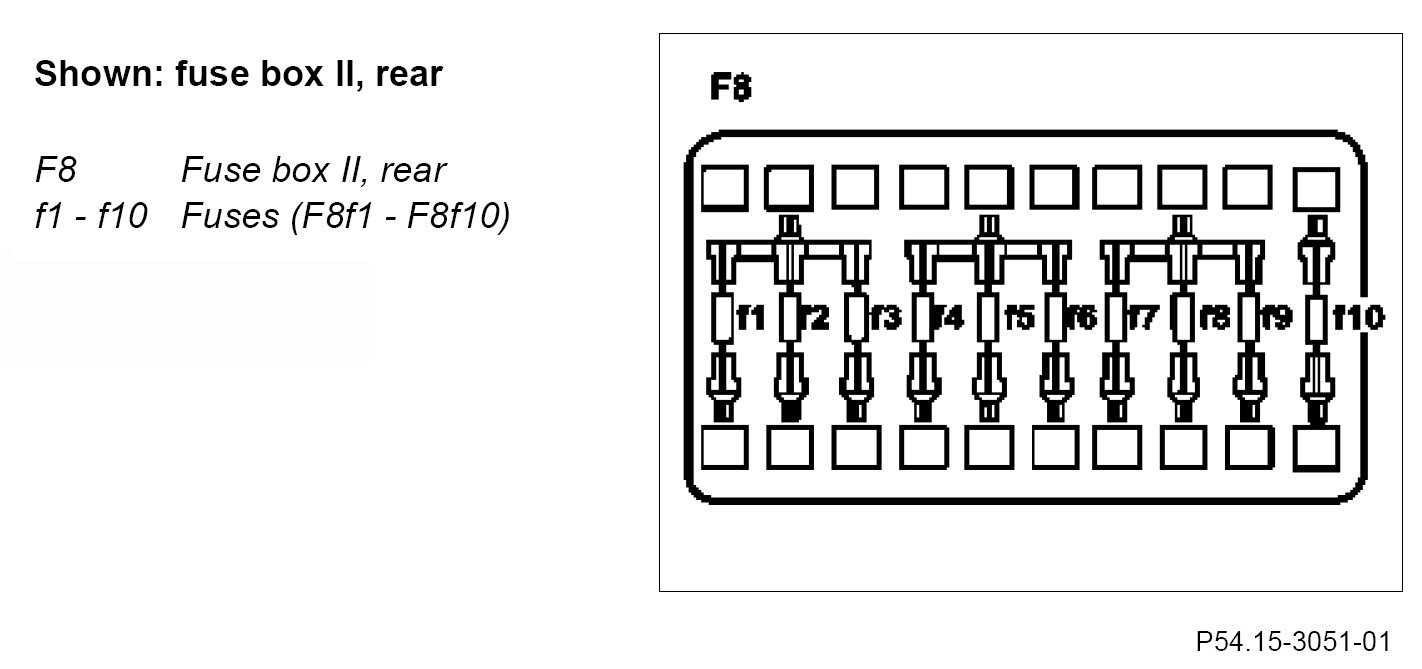

Component Identification:

The fuse box II, rear is located under the rear shelf in the luggage compartment.
