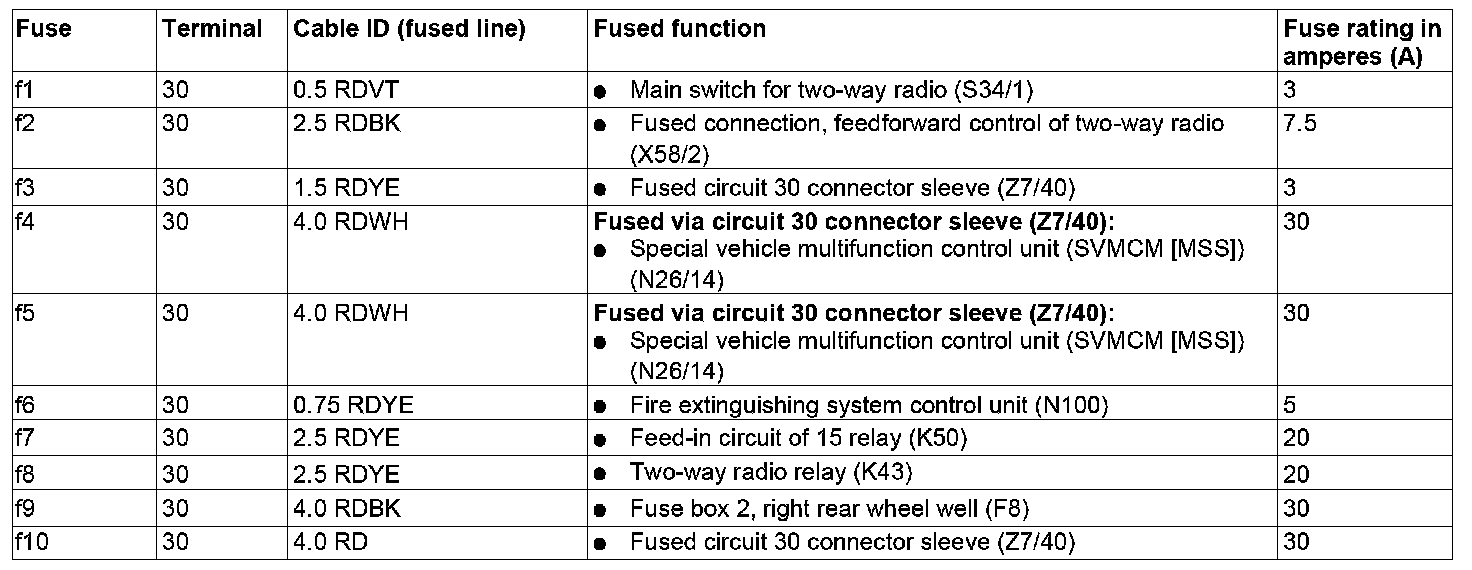

GF54.15-P-1256-19SXS Fuse Assignment of Additional Fuse Box I

GF54.15-P-1256-19SXS Fuse Assignment Of Additional Fuse Box I
- with CODE (Z07) Top protection
- up to model year 08

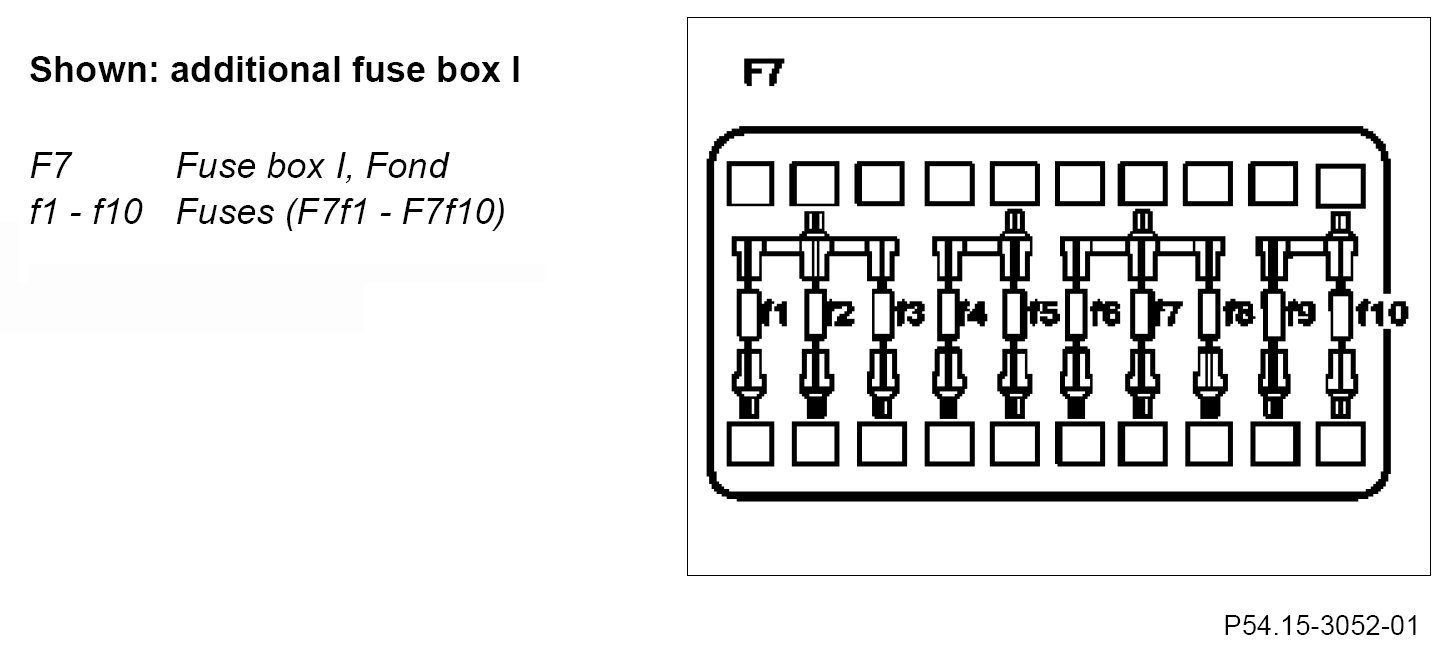

Component Identification:

Fuse box I, rear is located in the luggage compartment under the rear shelf.
