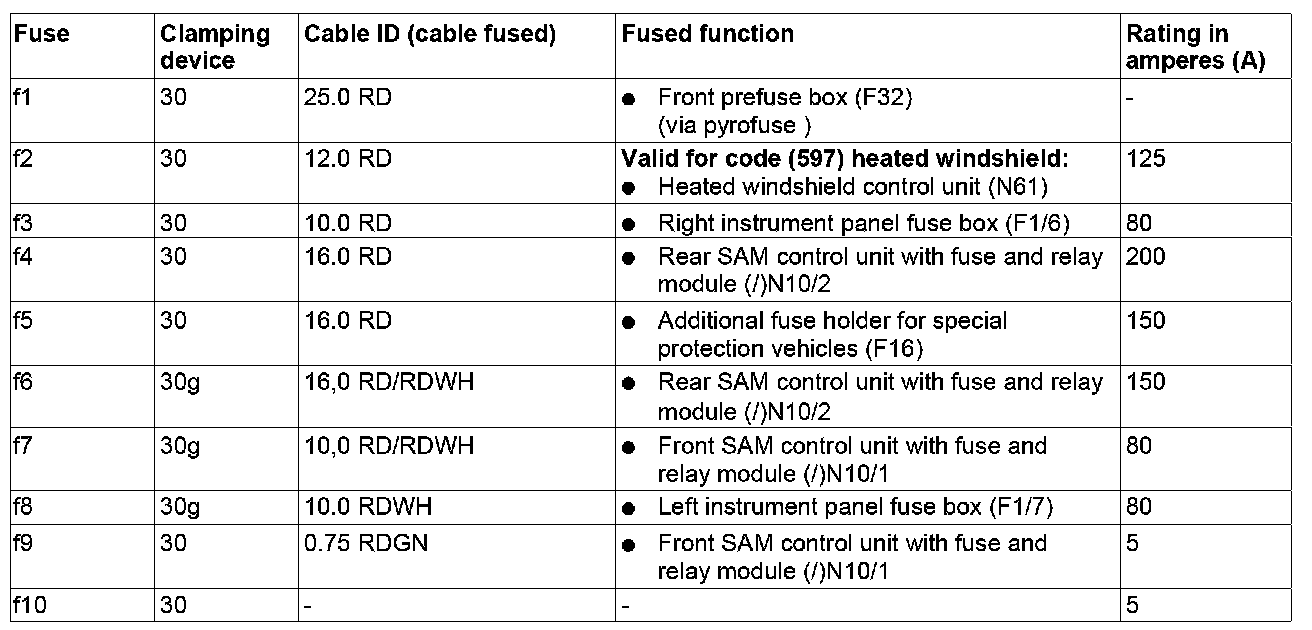

GF54.15-P-1256-17SXS Fuse Assignment of the Vehicle Power Supply Control Unit



GF54.15-P-1256-17SXS Fuse Assignment Of The Vehicle Power Supply Control Unit
- with CODE (Z07) Top protection
- up to model year 08

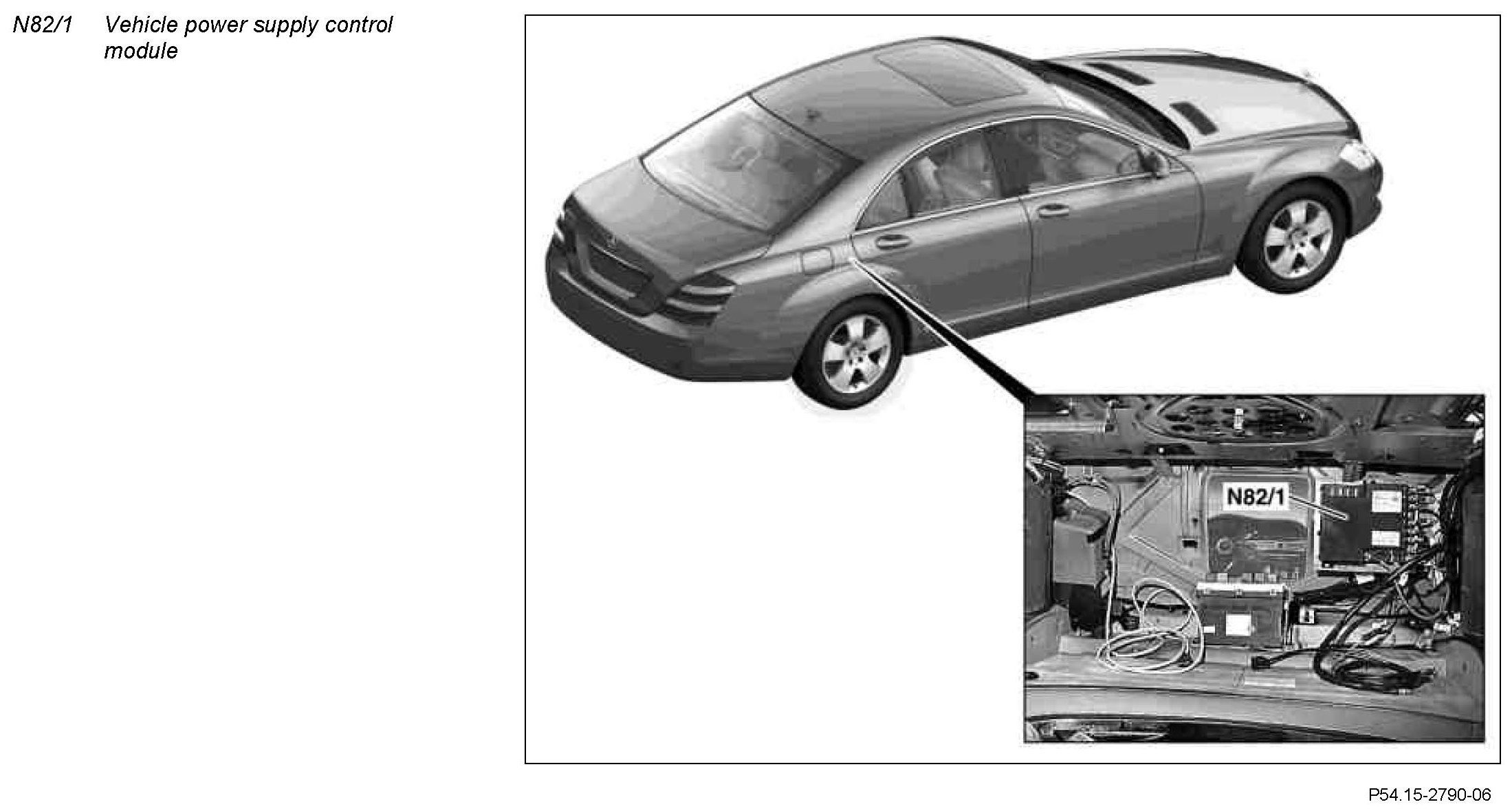

Component Identification:






The vehicle power supply control unit is located in the luggage compartment on the rear seat backrest.
