Towing Module: Service and Repair

AR31.19-P-1300SX Removing And Installing Trailer Recognition Control Unit
- with CODE (550) Trailer hitch

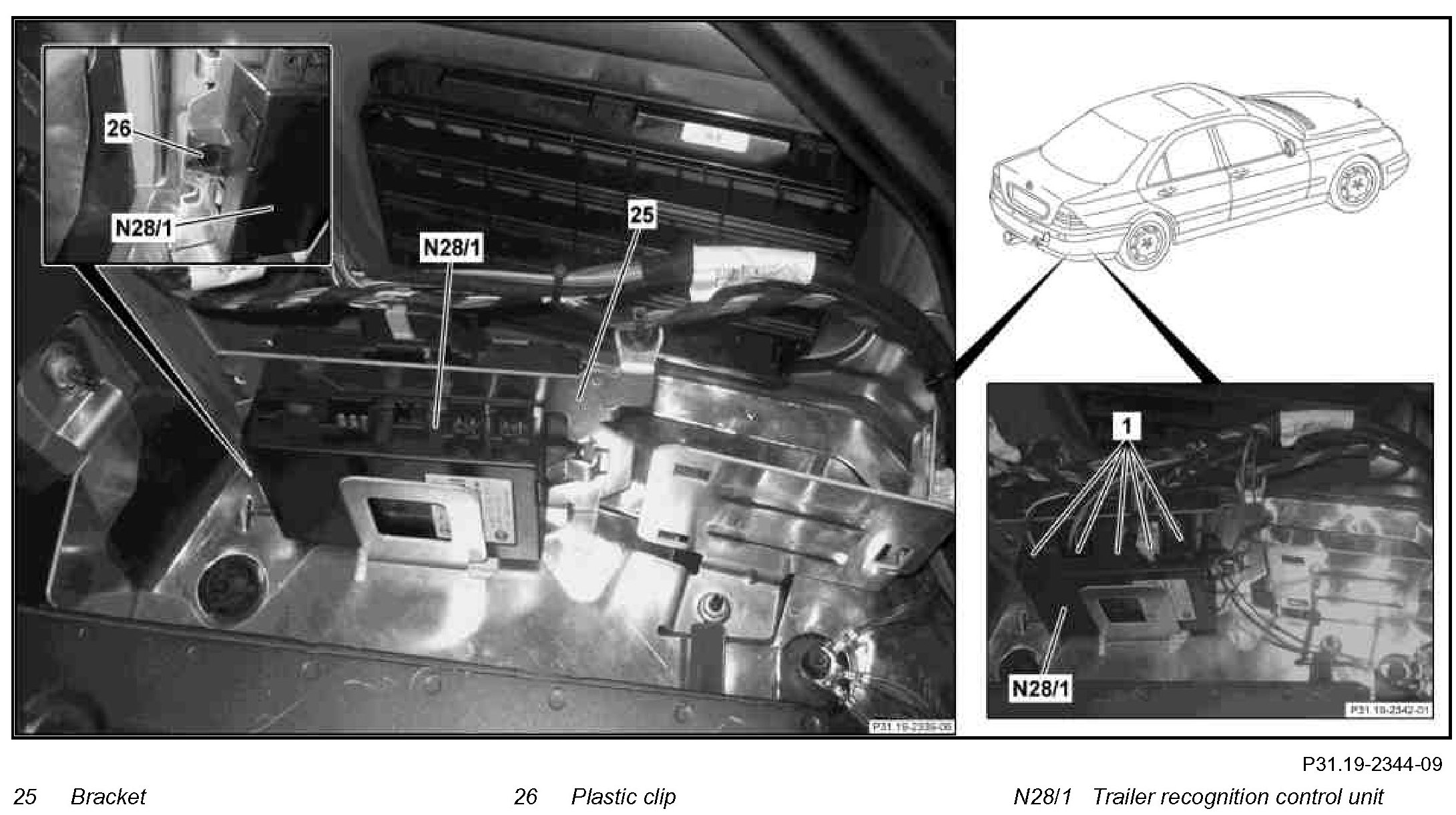

Component Identification:

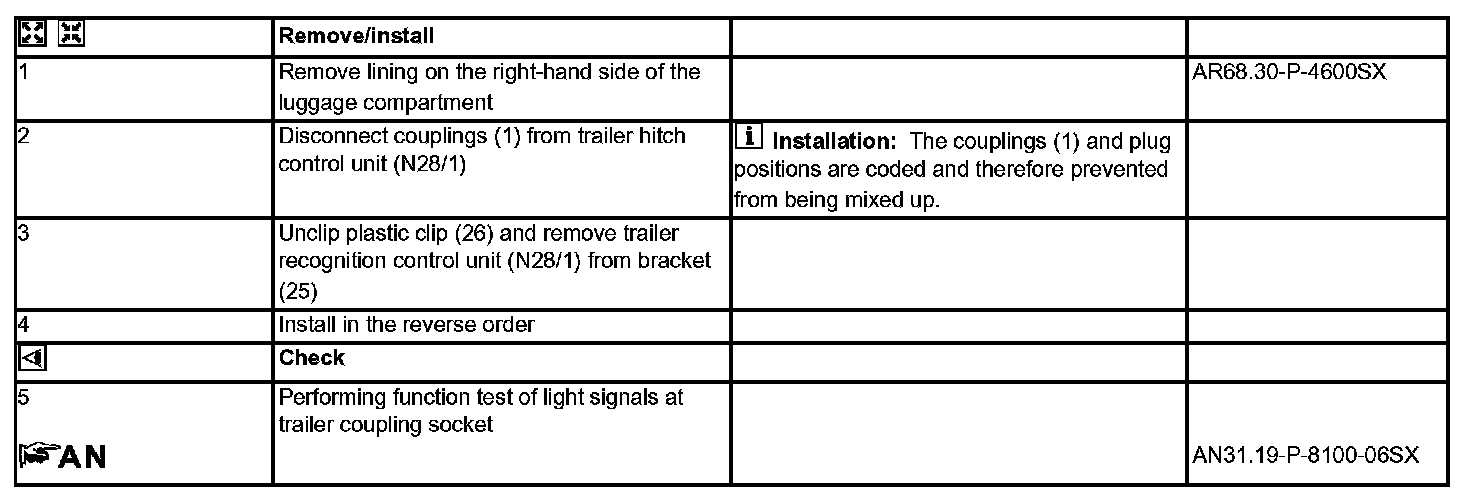

Steps 1 - 5:
