Window Shade: Service and Repair

AR72.12-P-2000SX Remove/Install Side Window Roller Blind
- with CODE (297) Roller sun blinds in rear doors
- except CODE (Z07) Top protection

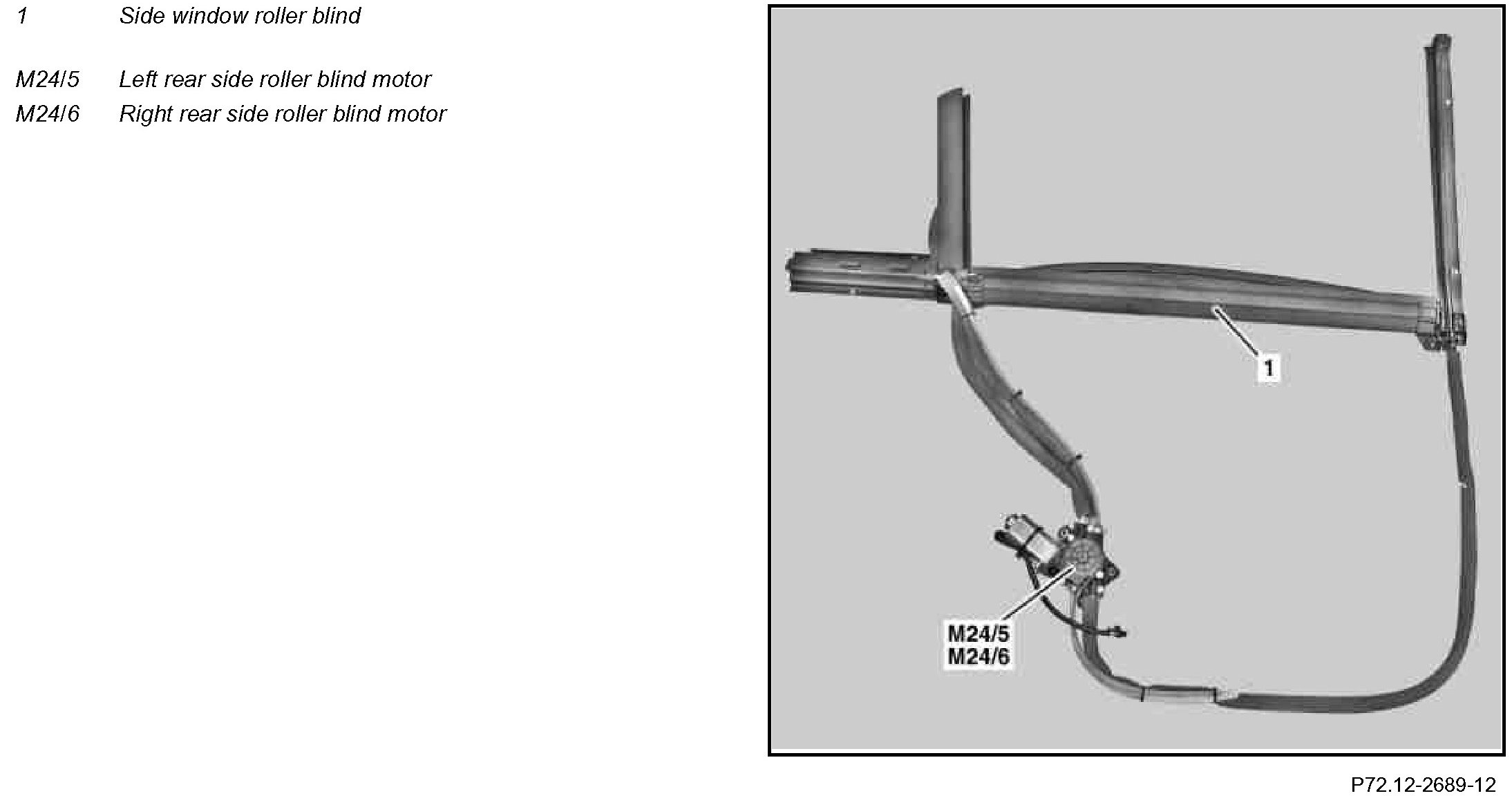

Component Identification:

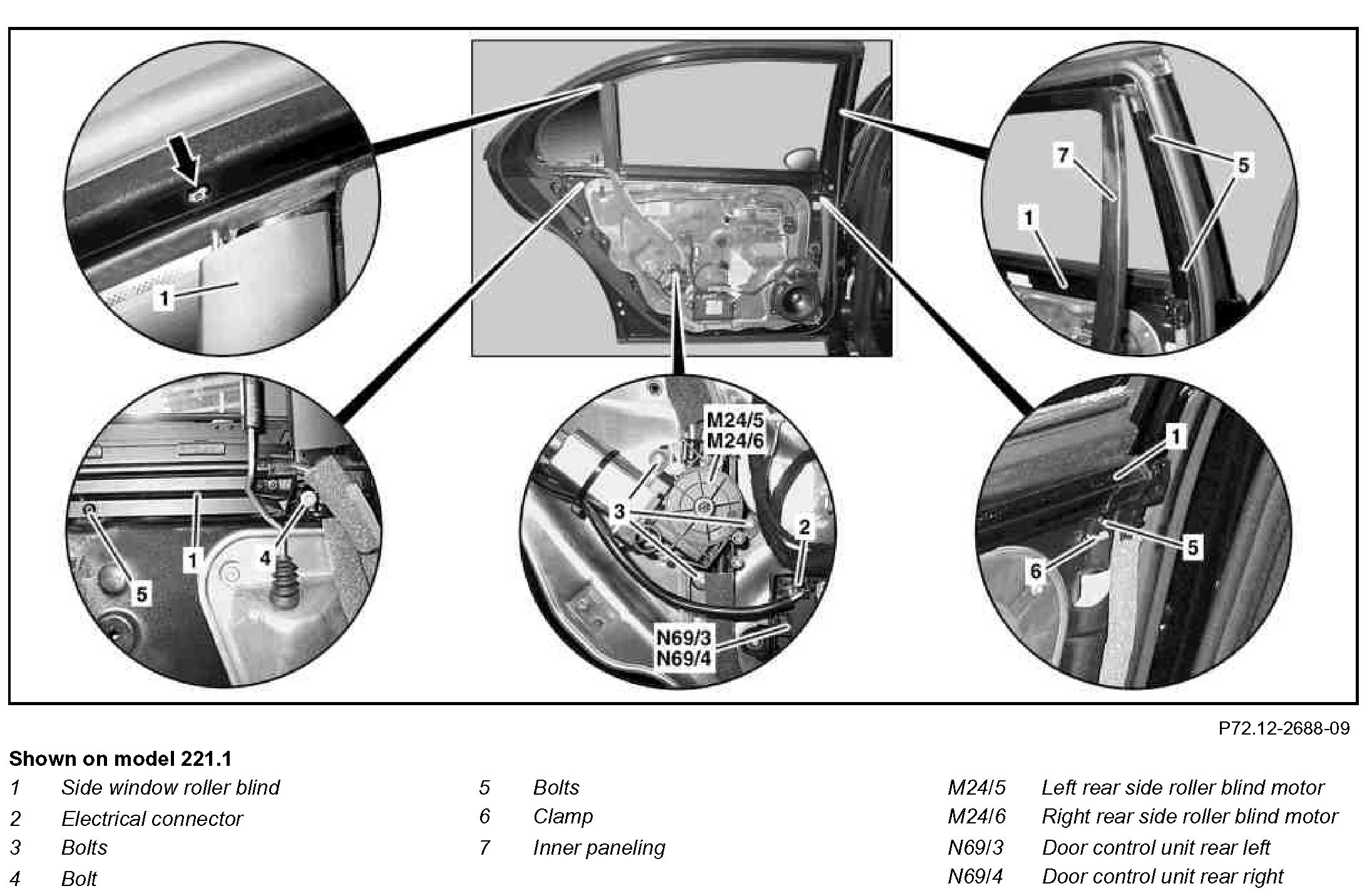

Component Identification:

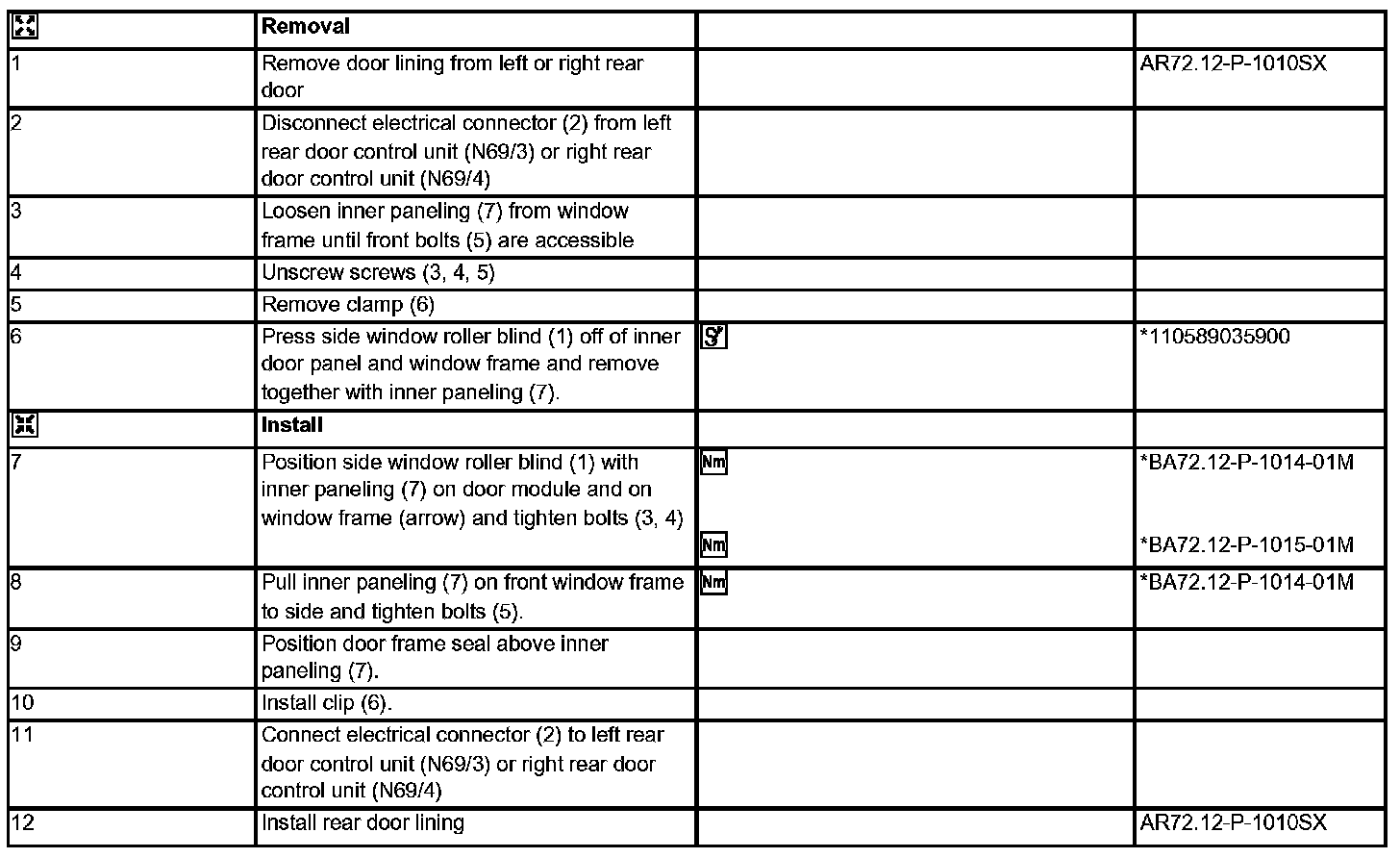

Steps 1 - 12:

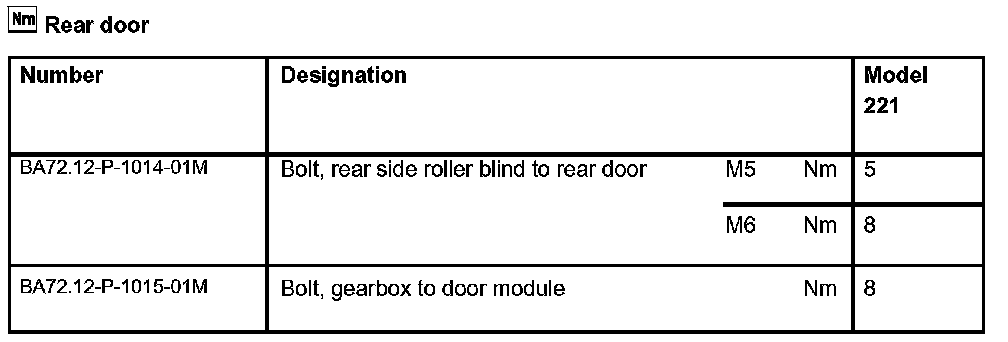

Rear Door:

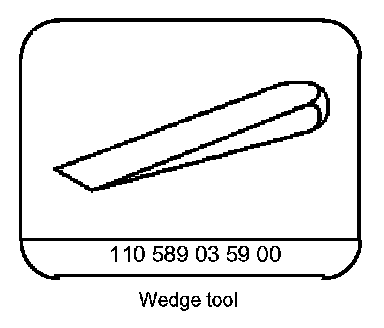

Special Tools:
