Intake Manifold: Service and Repair
AR09.20-P-1961SX Remove, Install Resonance Intake ManifoldComponent Identification:

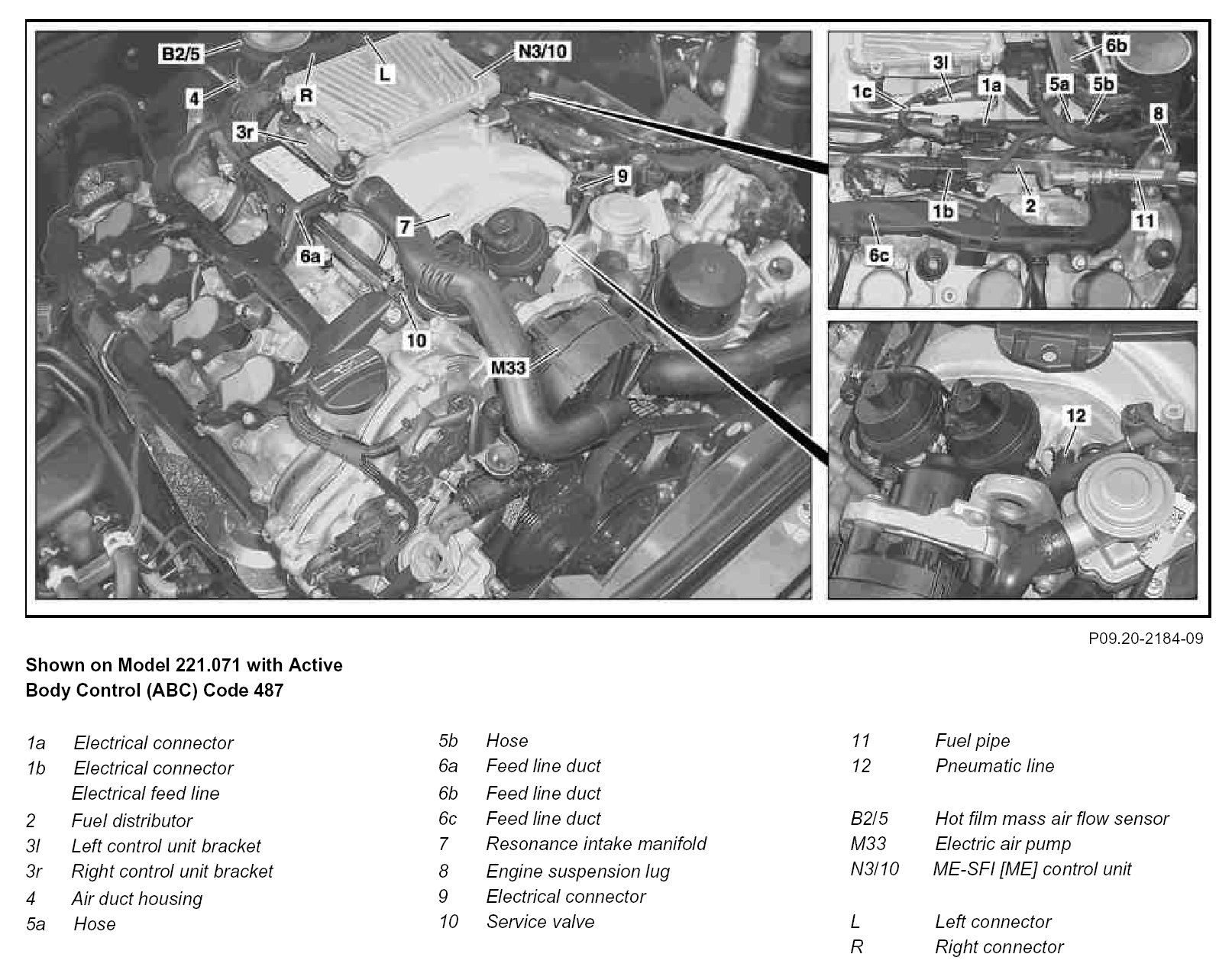

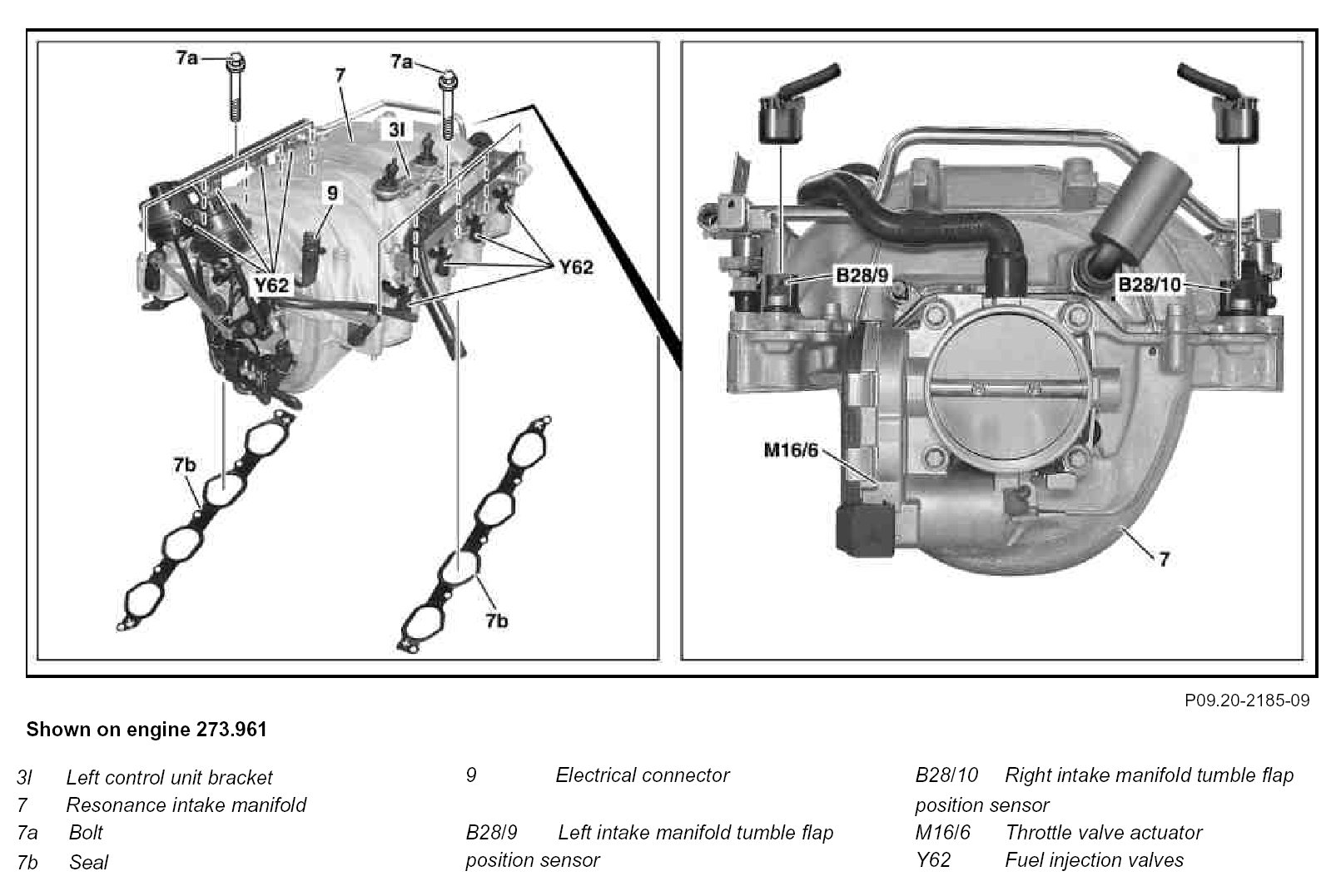

Component Identification:

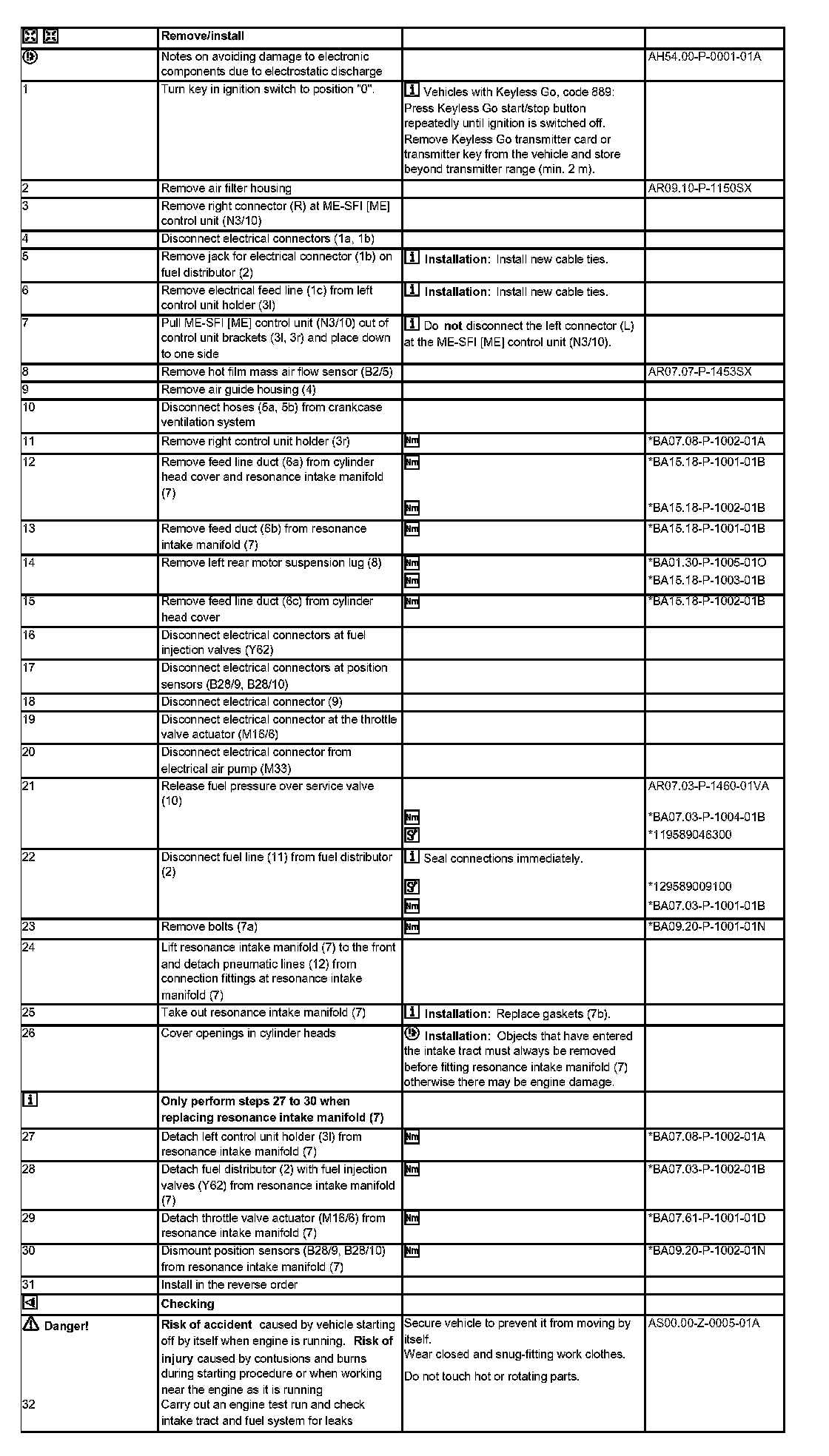

Steps 1 - 32:

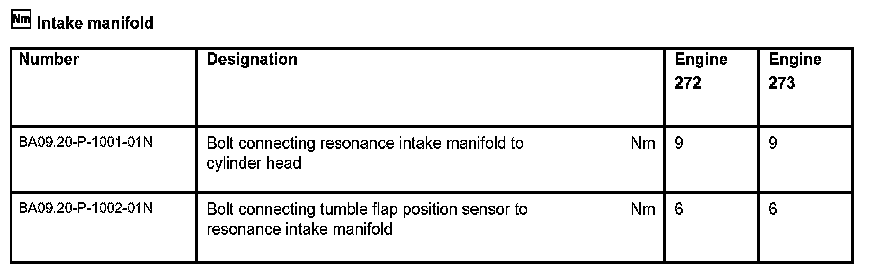

Intake Manifold:

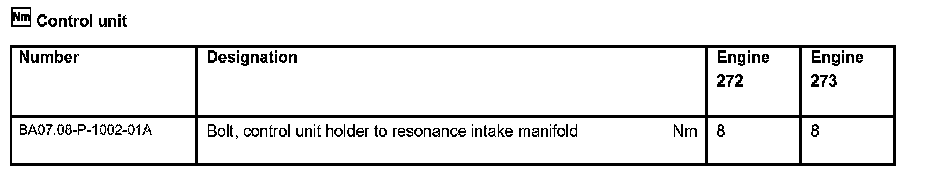

Control Unit:

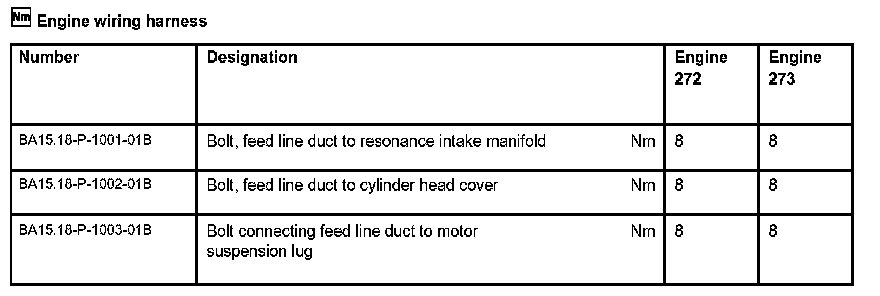

Engine Wiring Harness:

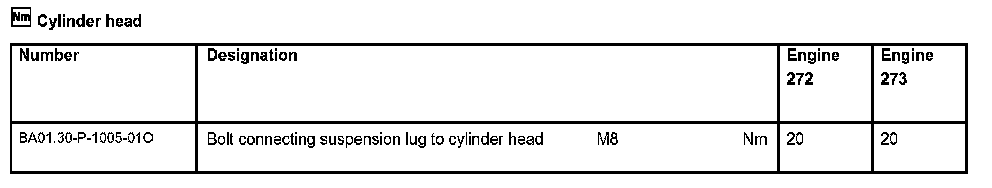

Cylinder Head:

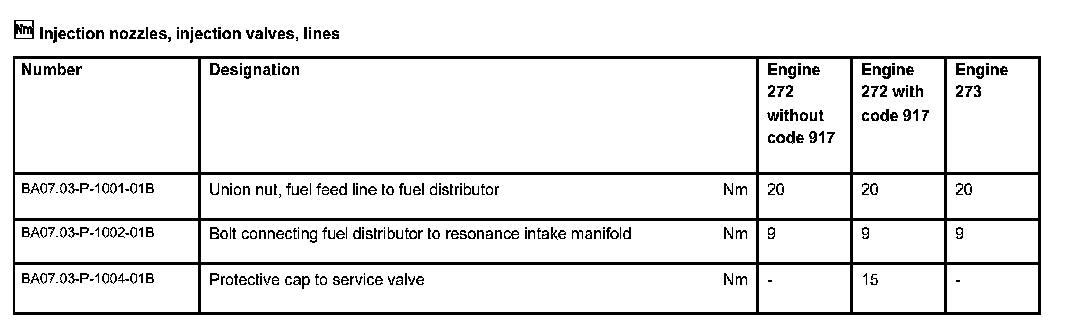

Injection Nozzles, Injection Valves, Lines:

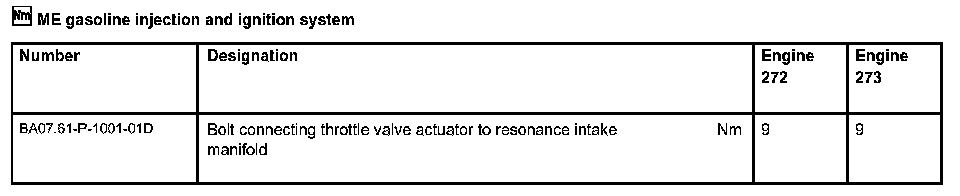

ME Gasoline Injection And Ignition System:
Special Tools:
Special Tools:
