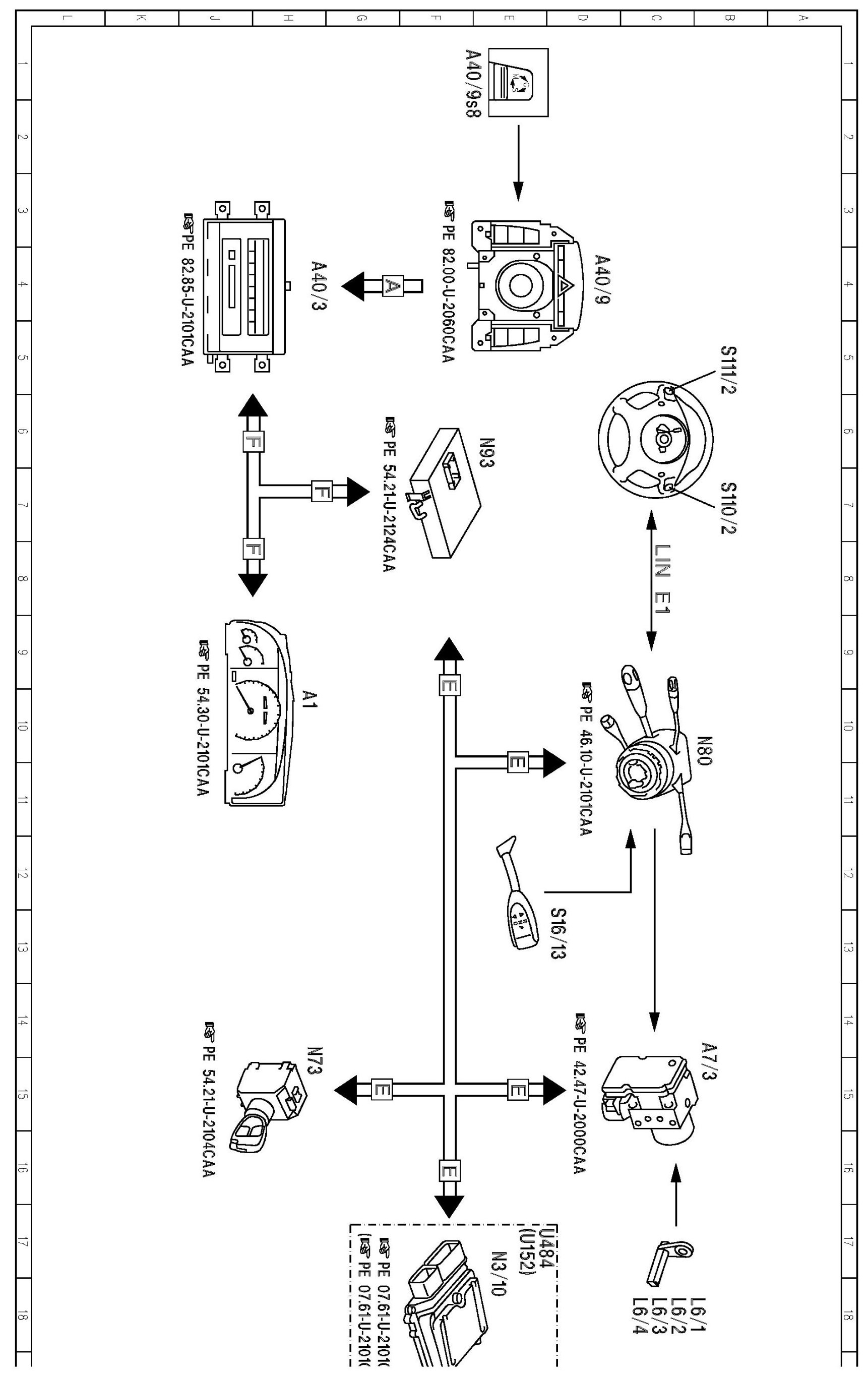

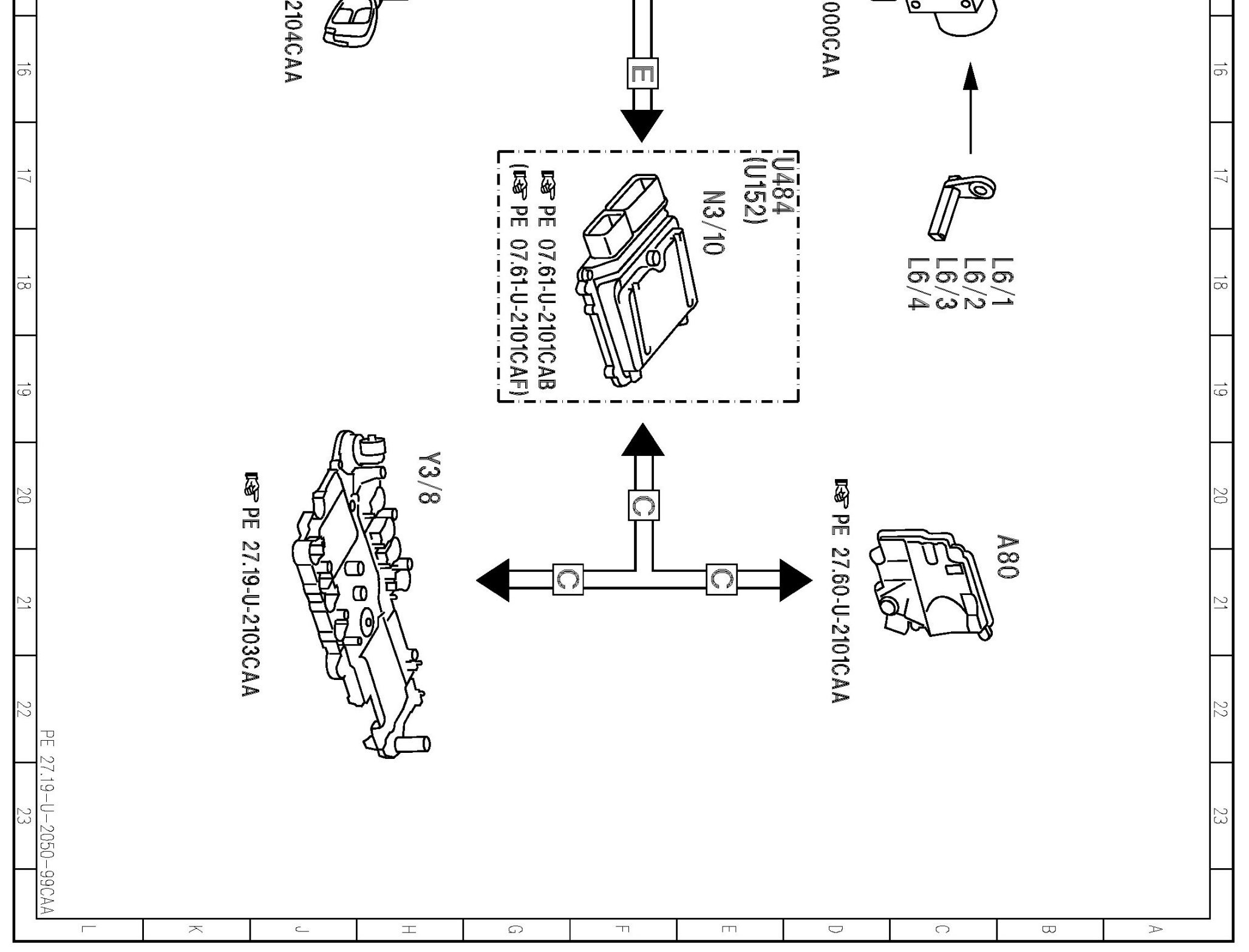

PE27.19-U-2050CAA Function Diagram of Electrical System For Electronic Transmission Control (ETC)

PE27.19-U-2050CAA Function Diagram of Electrical System For Electronic Transmission Control (ETC)

TRANSMISSION 722.9 in MODEL 216.377
- with ENGINE 156.984
- as of 06/01/07
- up to Model Year 2008
TRANSMISSION 722.9 in MODEL 216.371
- with ENGINE 273.961
- up to Model Year 2008















































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
