AR15.12-P-1010SMG Remove/Install Spark Plugs
AR15.12-P-1010SMG Remove/Install Spark Plugs
AR15.12-P-1010SMG Remove/install
spark plugs

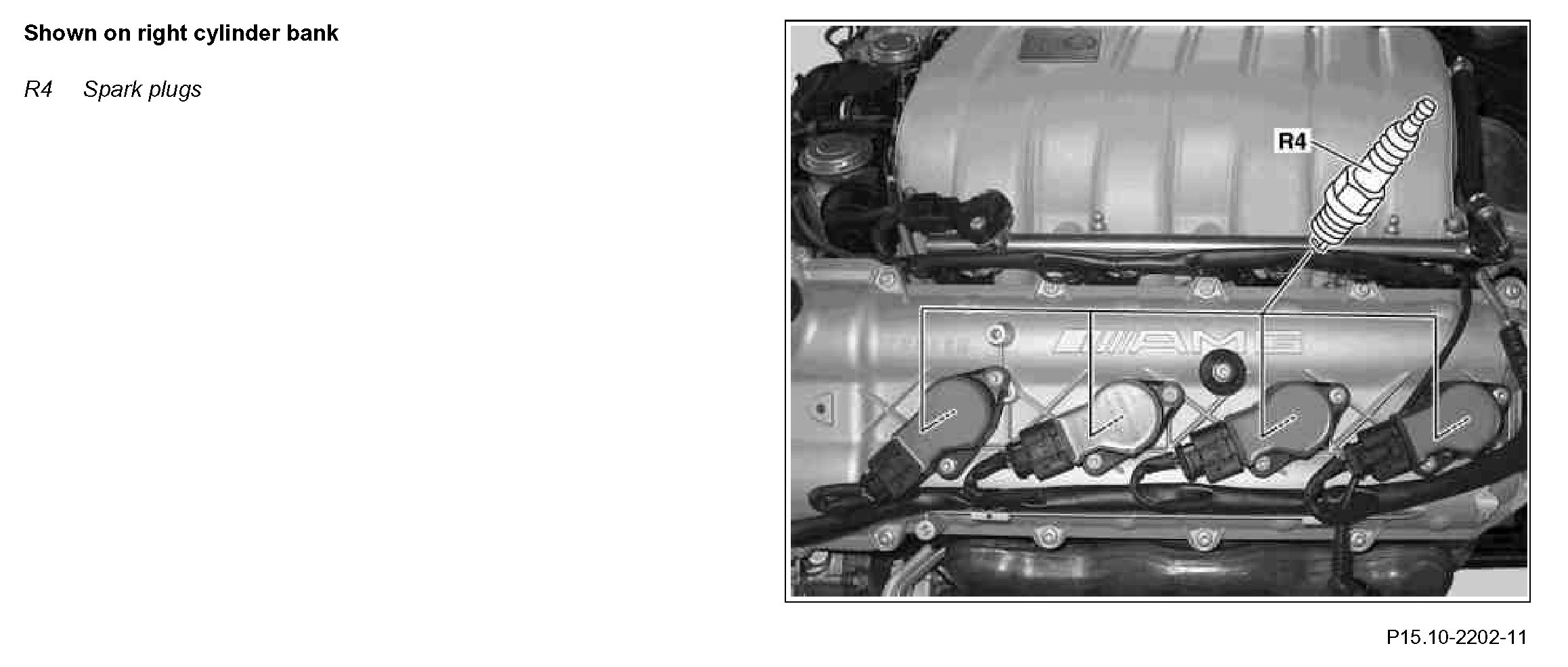

Component Identification:

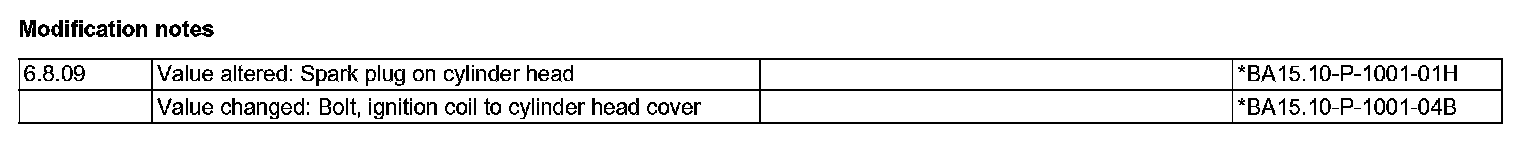

Modification notes:

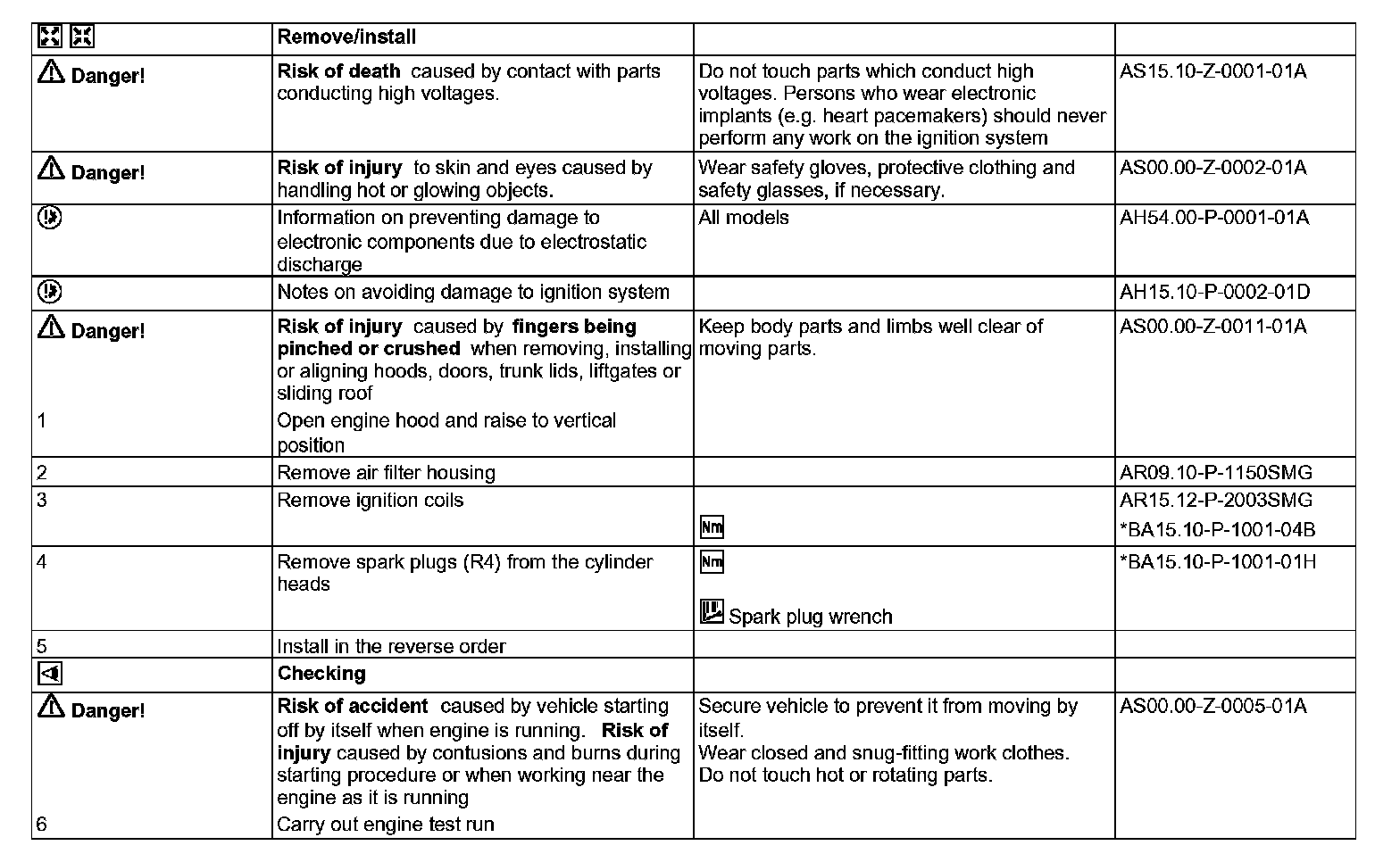

Steps 1-6:

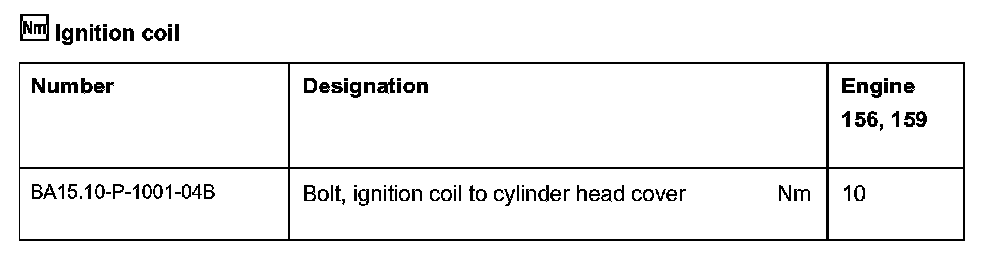

Ignition coil:

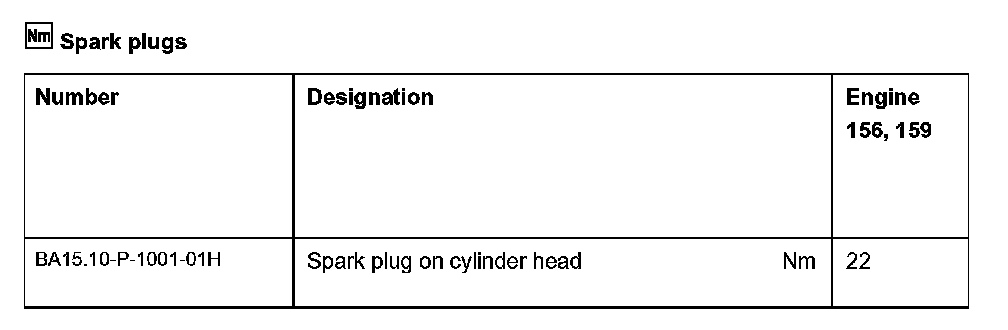

Spark plugs:
