Air Injection Pump: Service and Repair
AR14.30-P-7251SMG Remove, install air pump

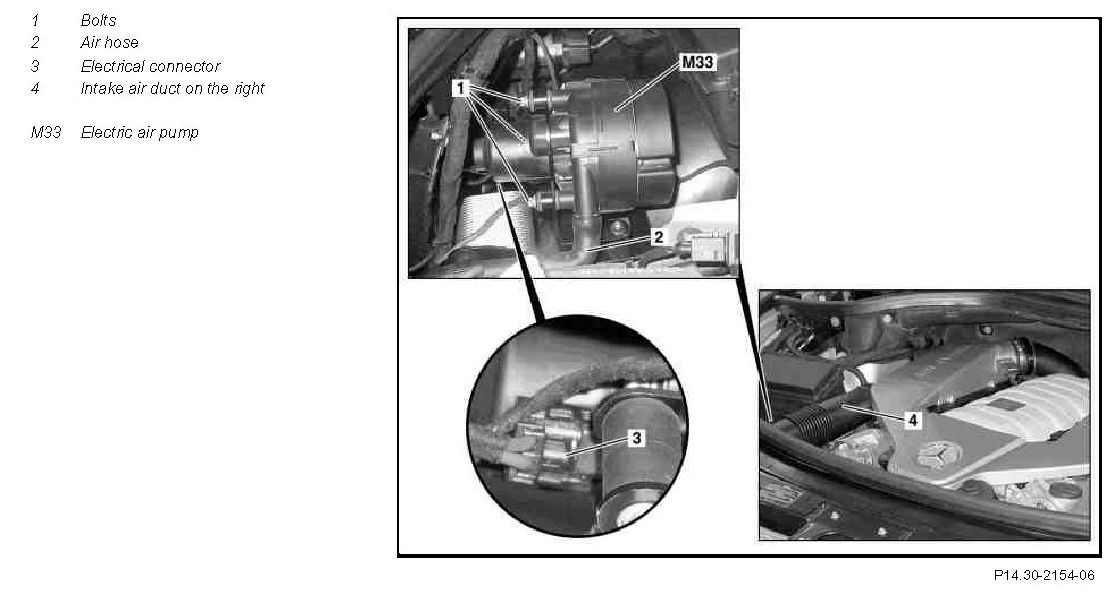

Component Identification:

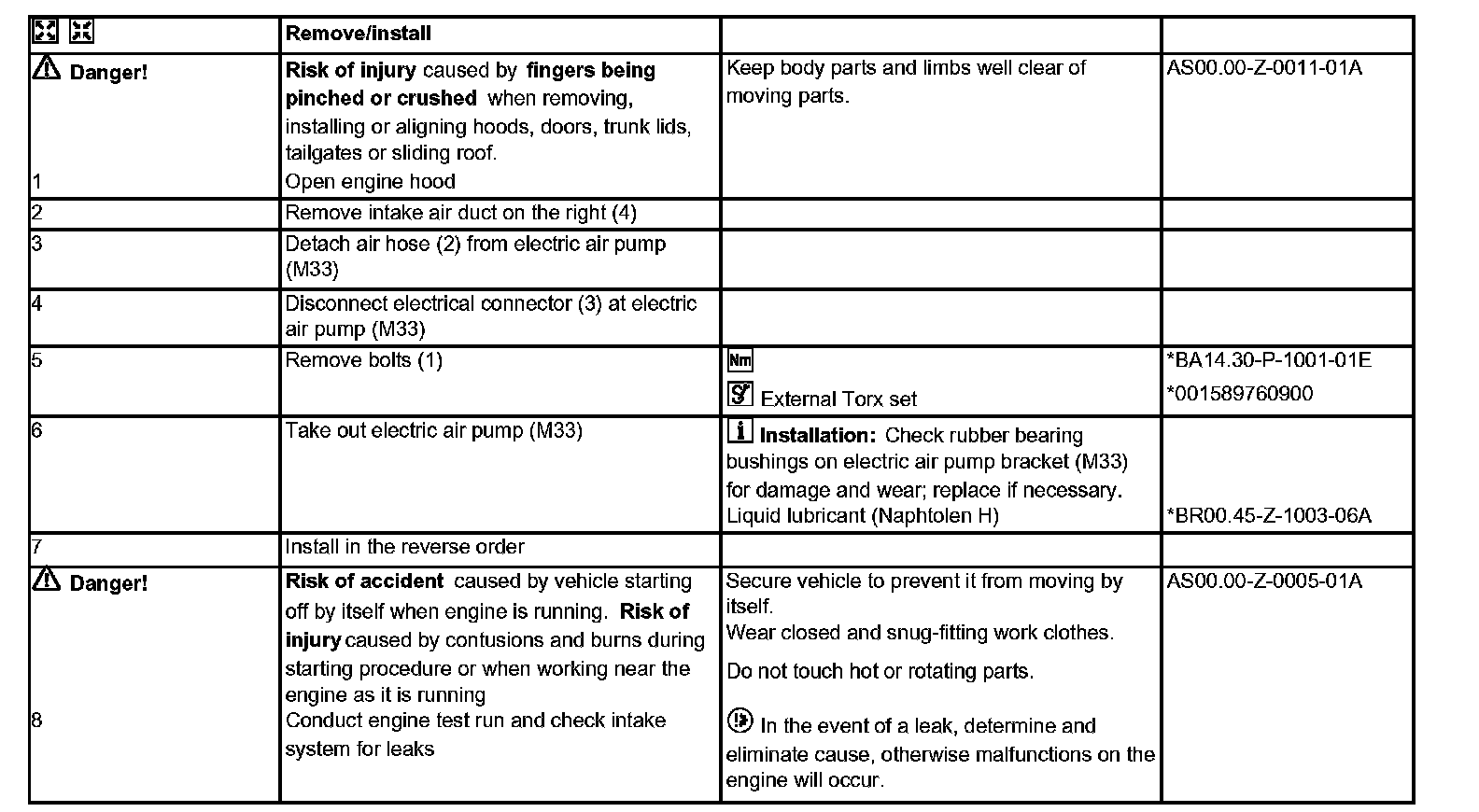

Remove/install Steps 1-8:

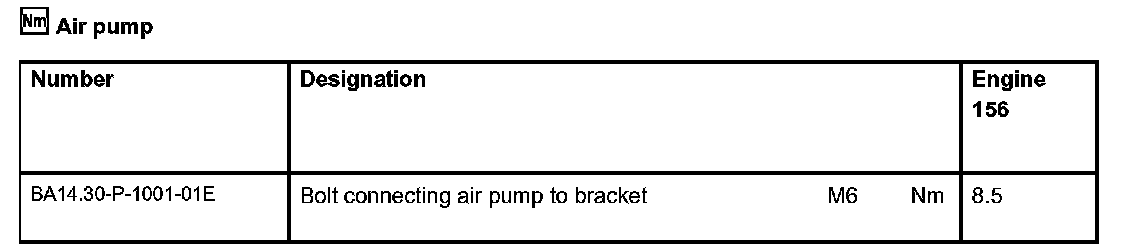

Air pump:

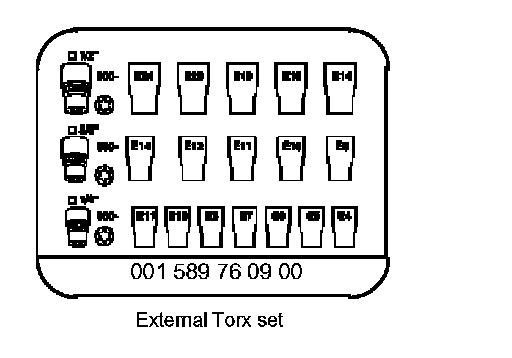

Special Tools:

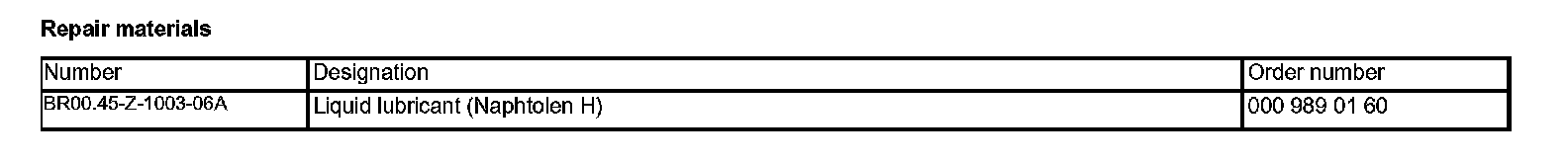

Repair materials:
