PE07.61-U-2050CAC Function Diagram of Electrical System For ME Engine Control

PE07.61-U-2050CAC Function Diagram of Electrical System For ME Engine Control

ENGINE 156.984 in MODEL 216.377
- up to Model Year 2008 ME 9.7

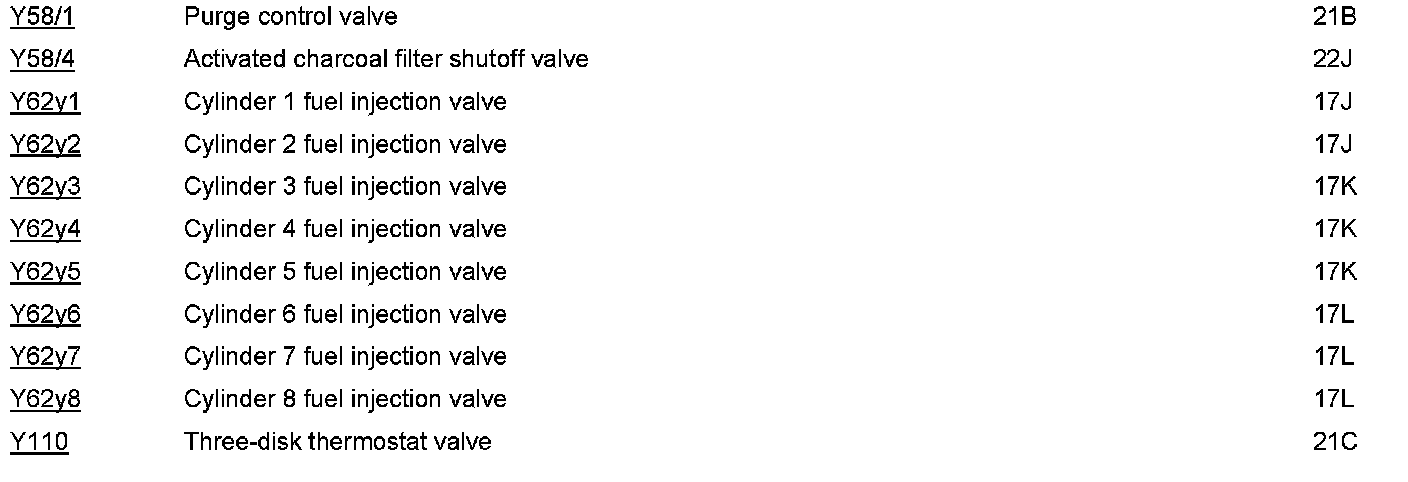

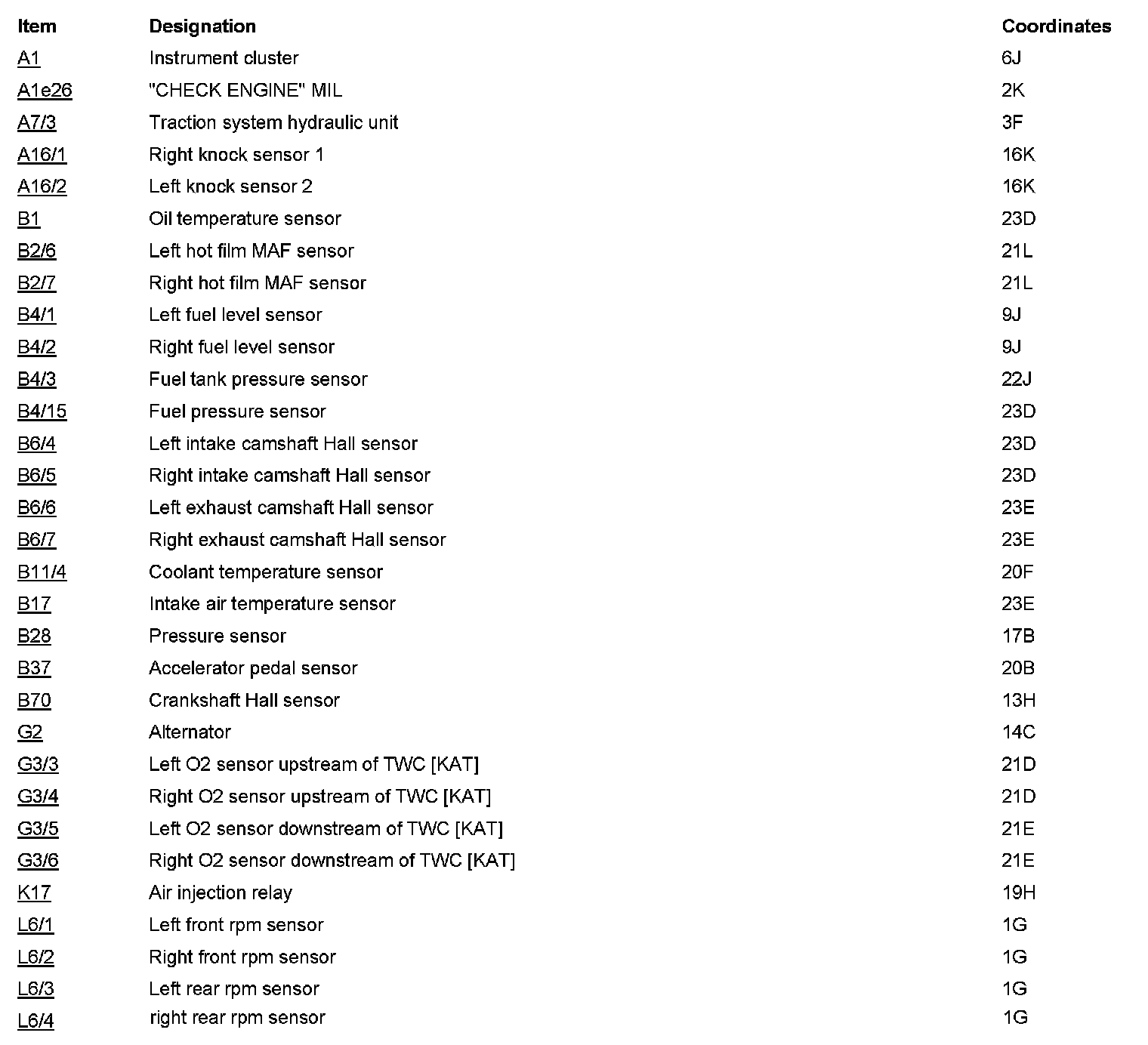

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
