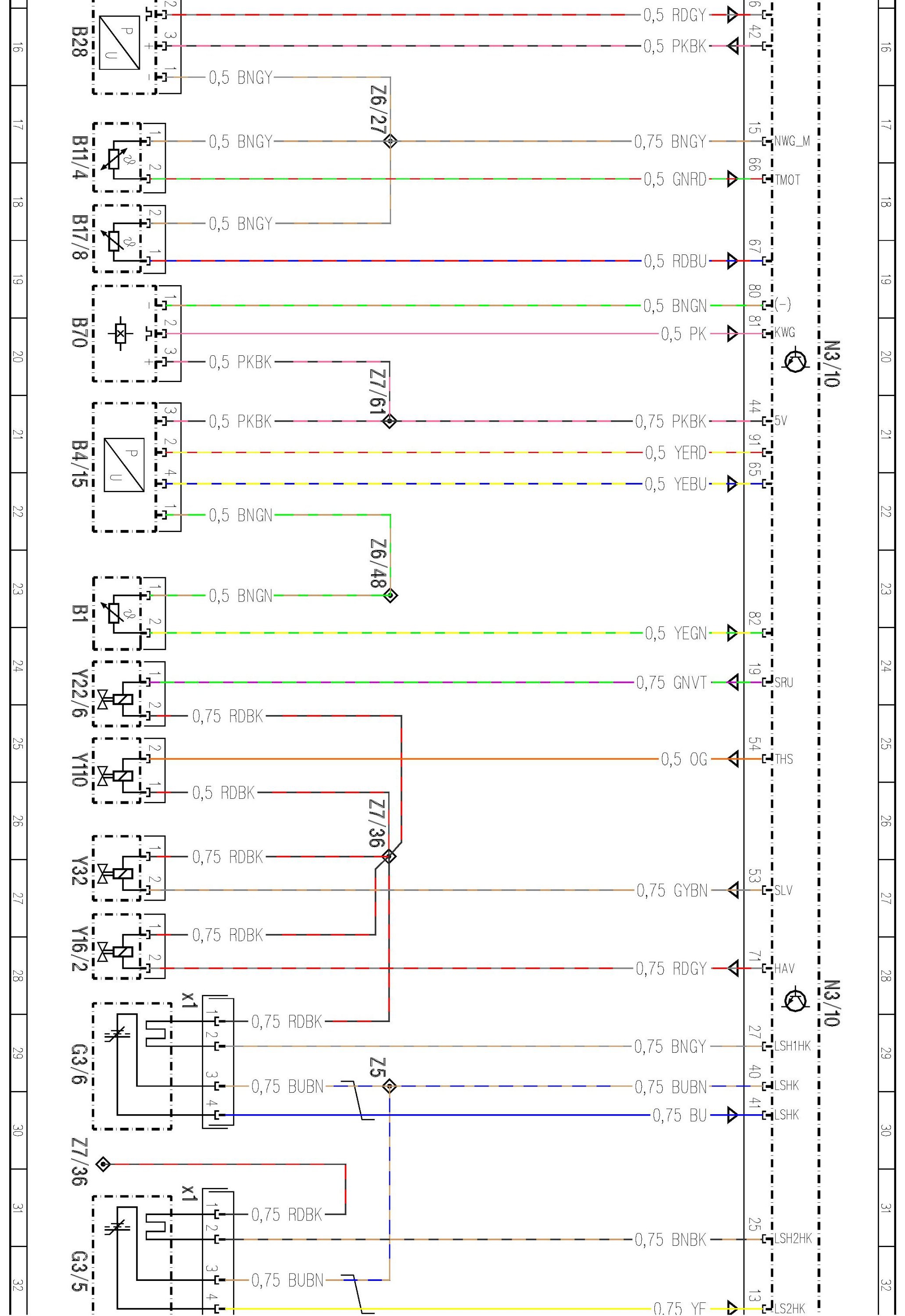

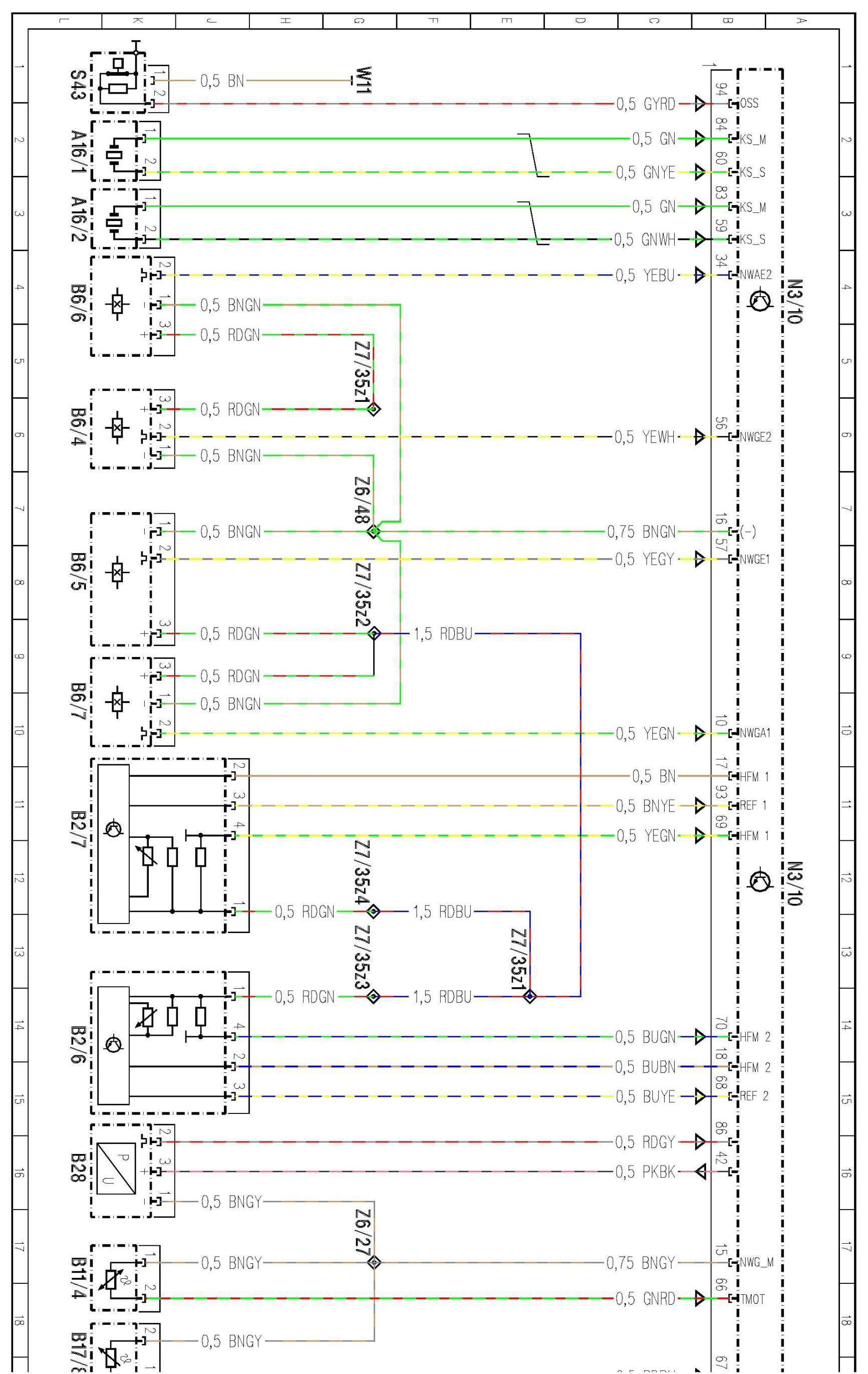

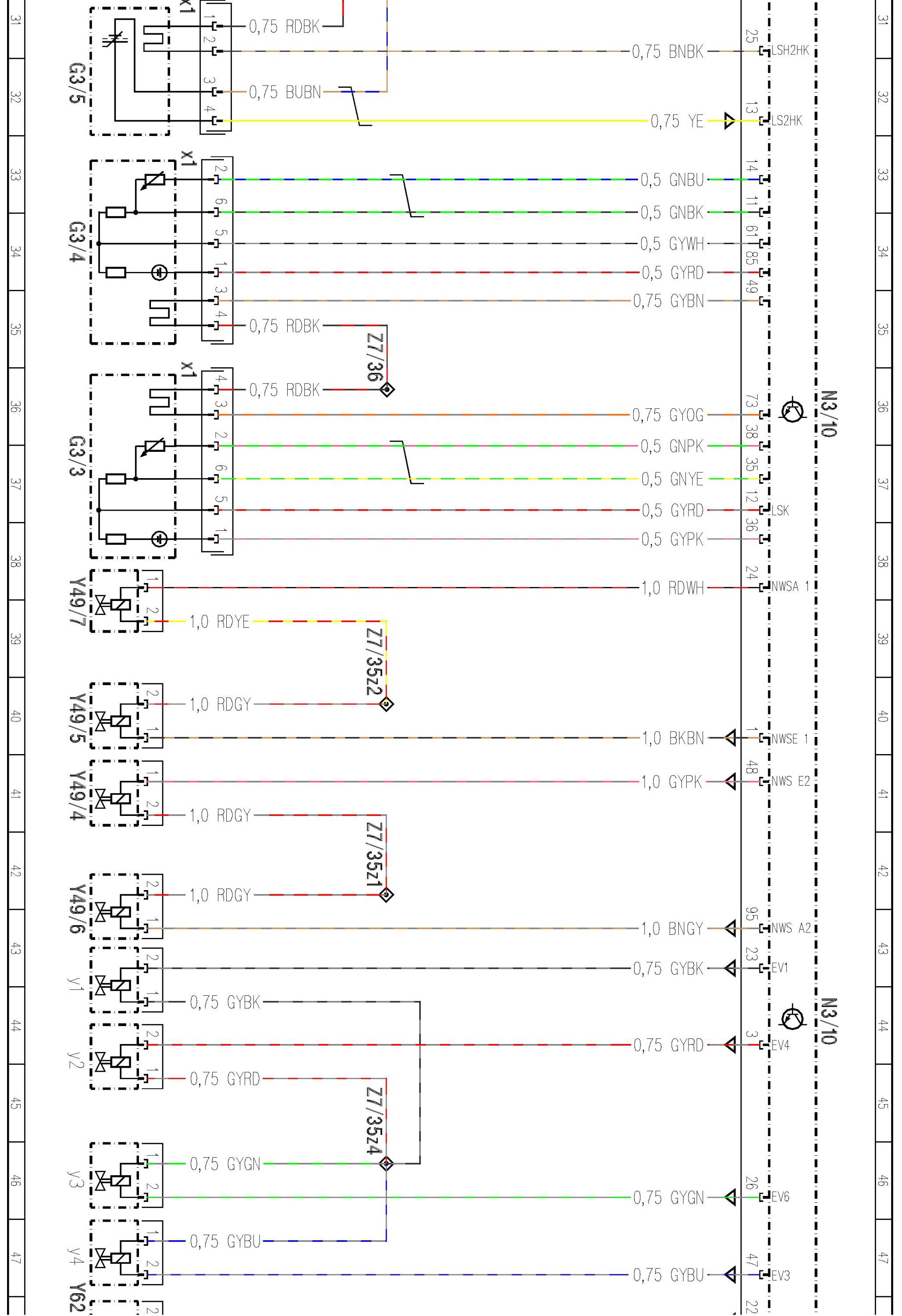

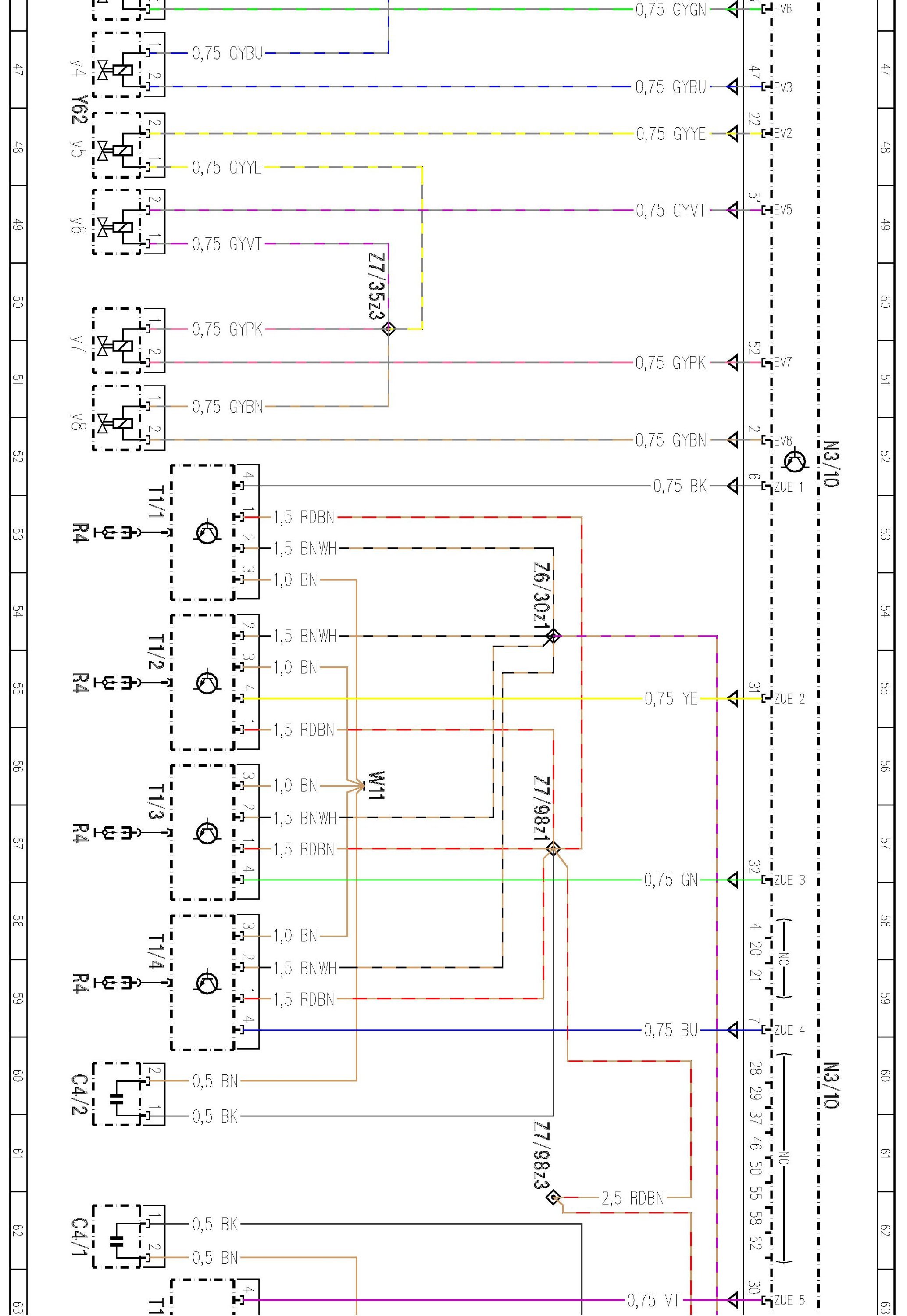

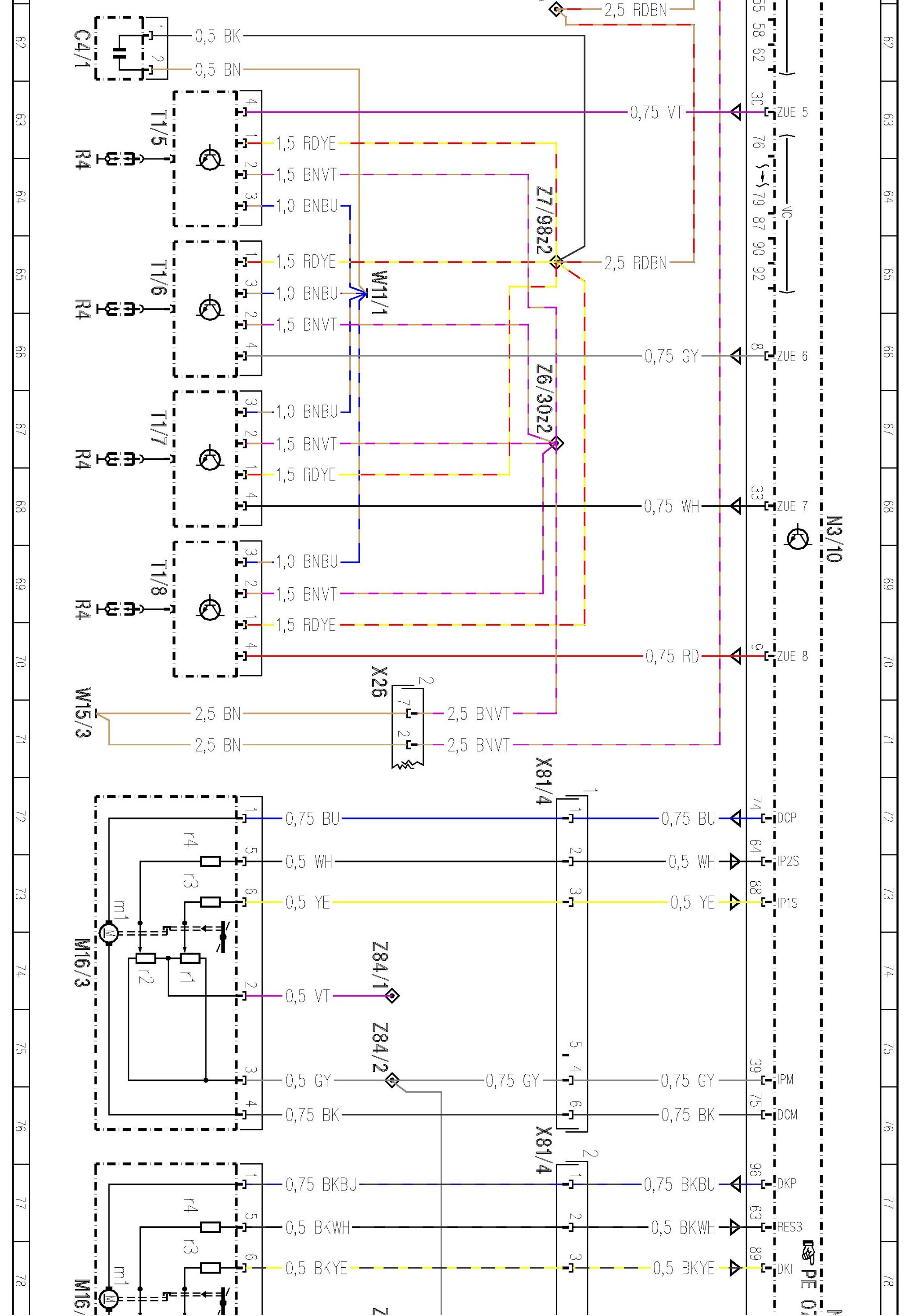

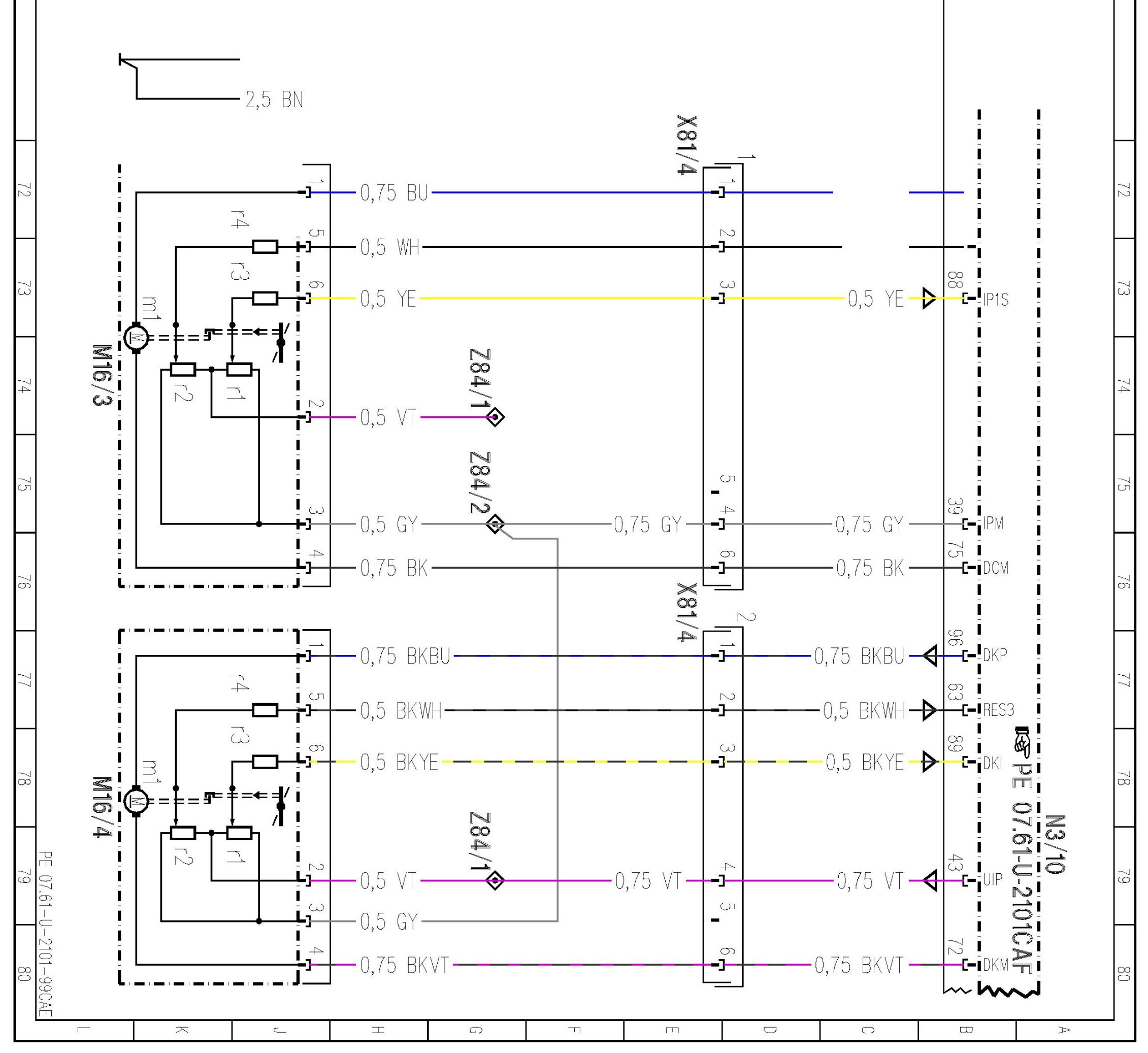

PE07.61-U-2101CAE ME-SFI Fuel Injection and Ignition System Control Module

PE07.61-U-2101CAE ME-SFI Fuel Injection and Ignition System Control Module

ENGINE 156.984 as of 06/01/07 in MODEL 216.377

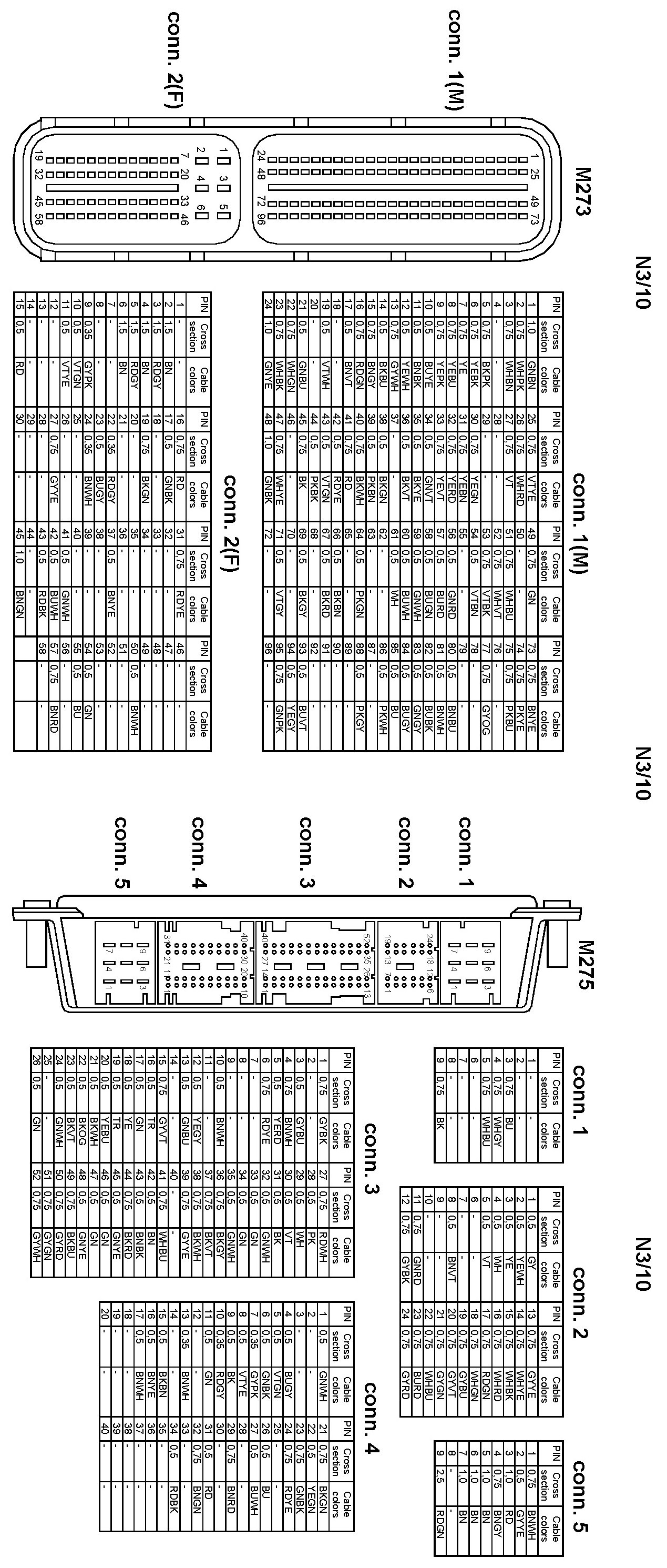

- ME 9.7, Control unit N3/10, engine side



























































Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
