Tire Pressure Sensor: Service and Repair

AR40.15-P-0080SX Remove/install wheel sensor
- with CODE (475) Tire pressure monitor (Siemens)

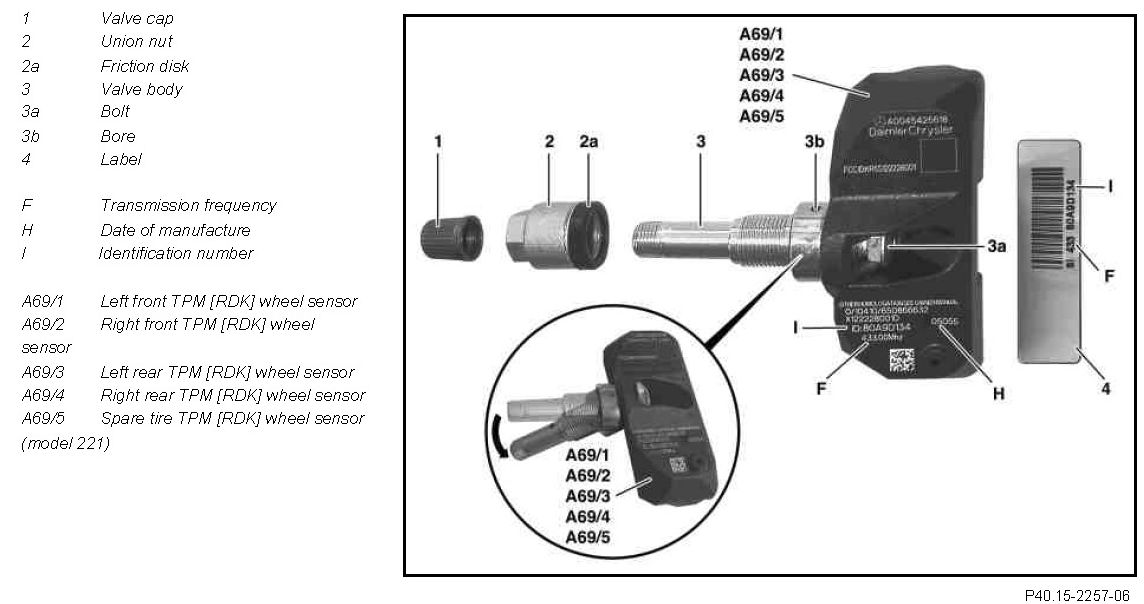

Component Identification:

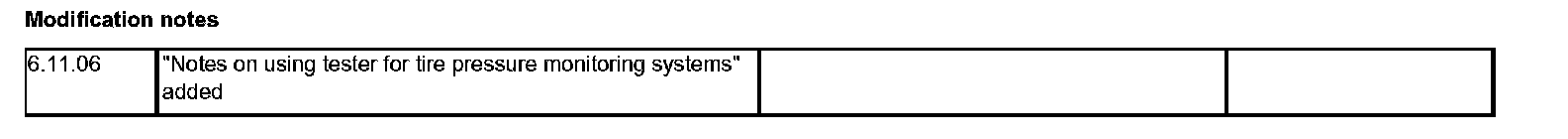

Modification notes:

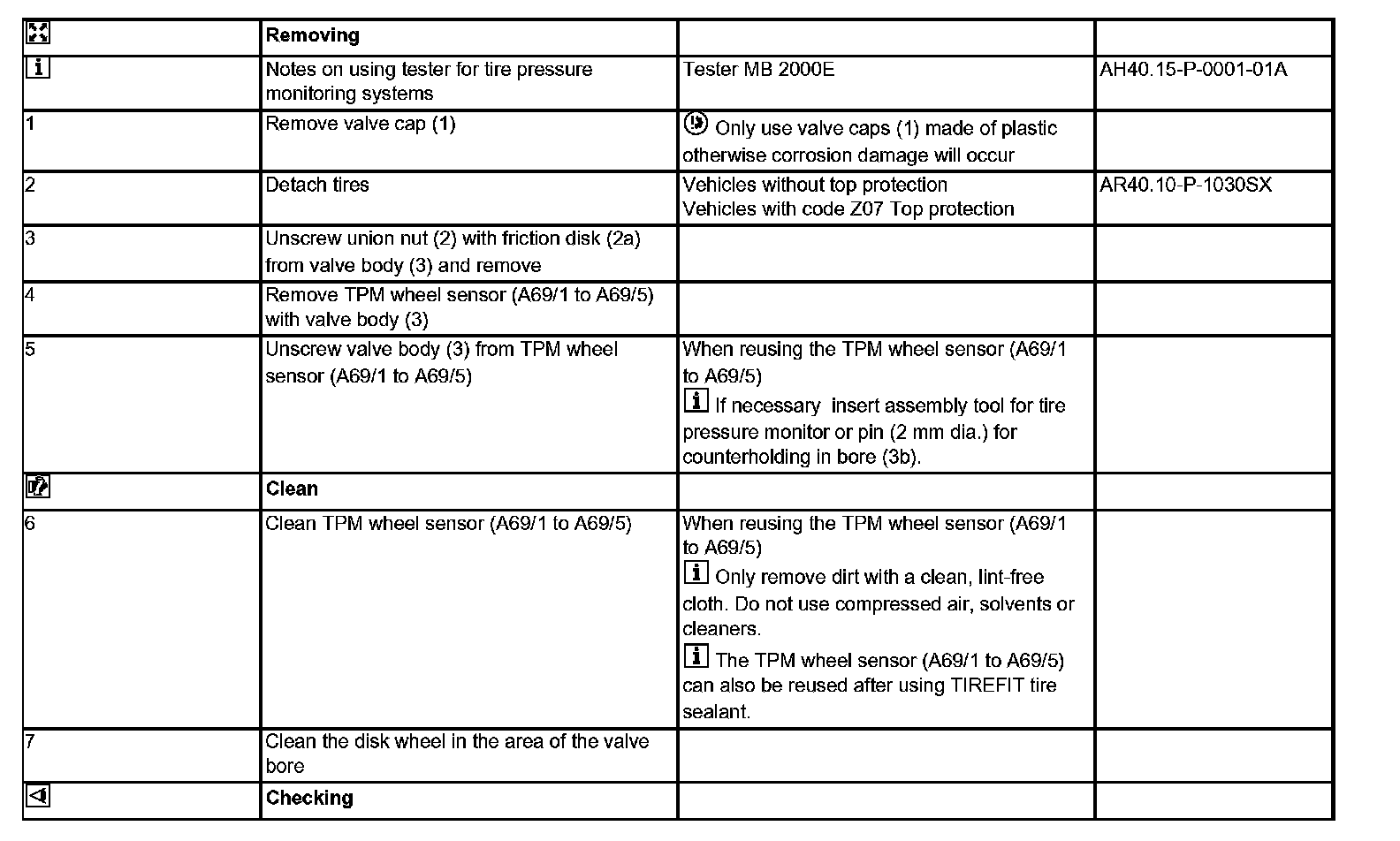

Steps 1-7:

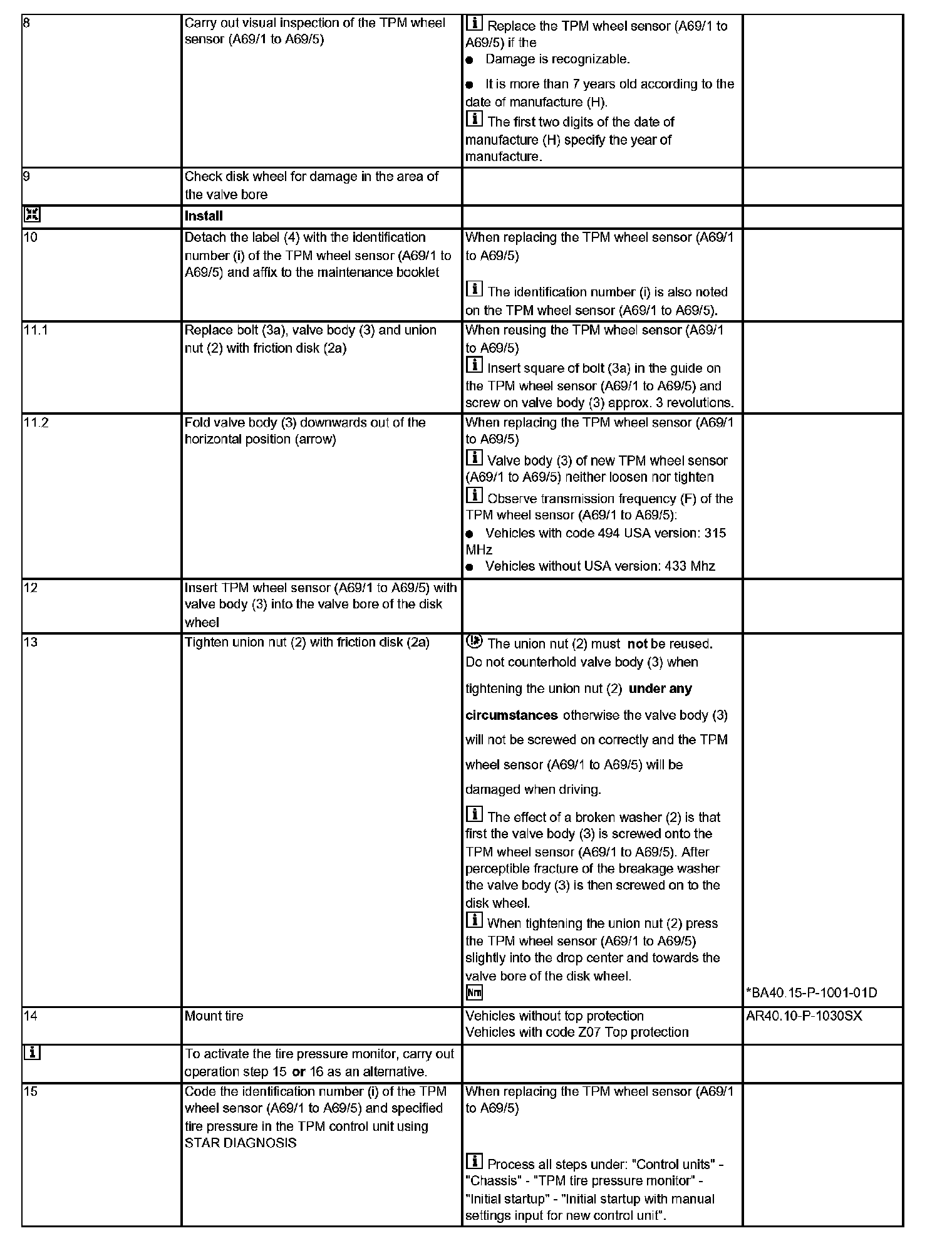

Steps 8-15:

Step 16:

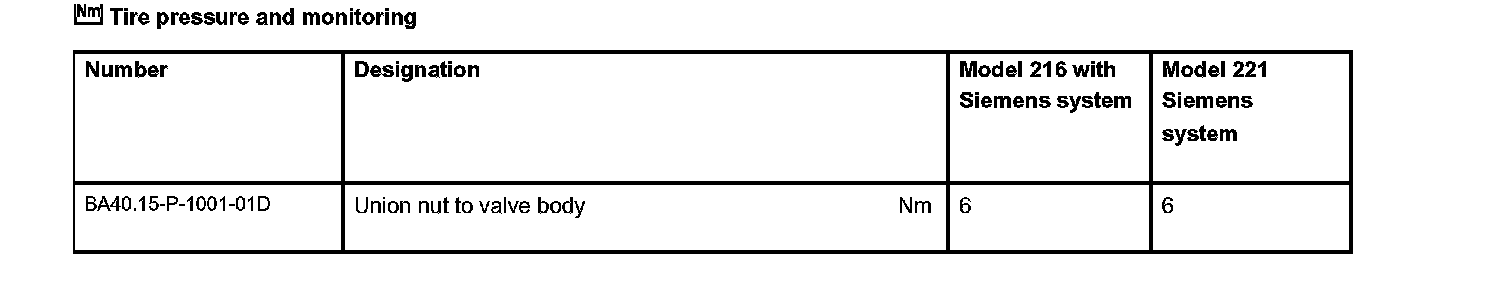

Tire pressure and monitoring:
