AR09.20-P-1310-03AMG Torque Diagram For Intake Manifold Fastening System
AR09.20-P-1310-03AMG Torque Diagram For Intake Manifold Fastening System
Modification Notes:

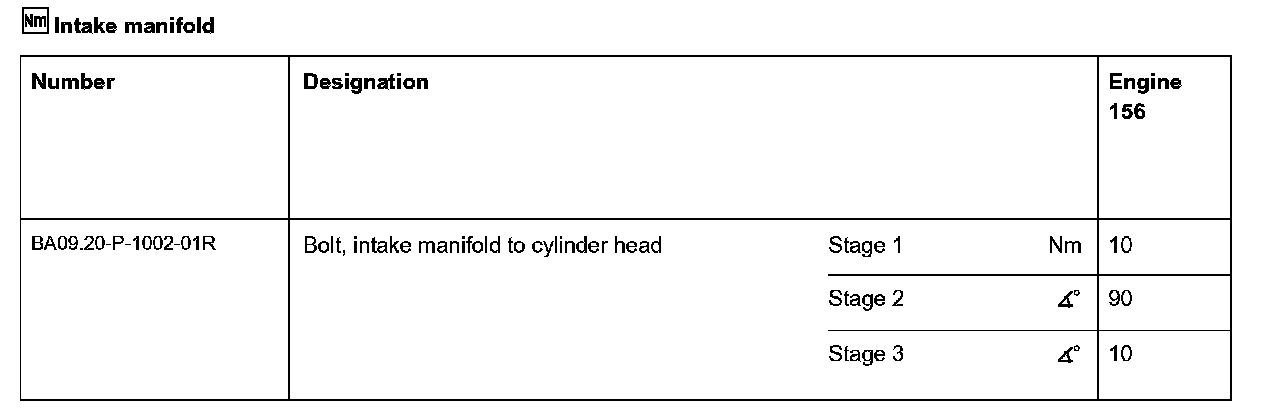

Intake Manifold:

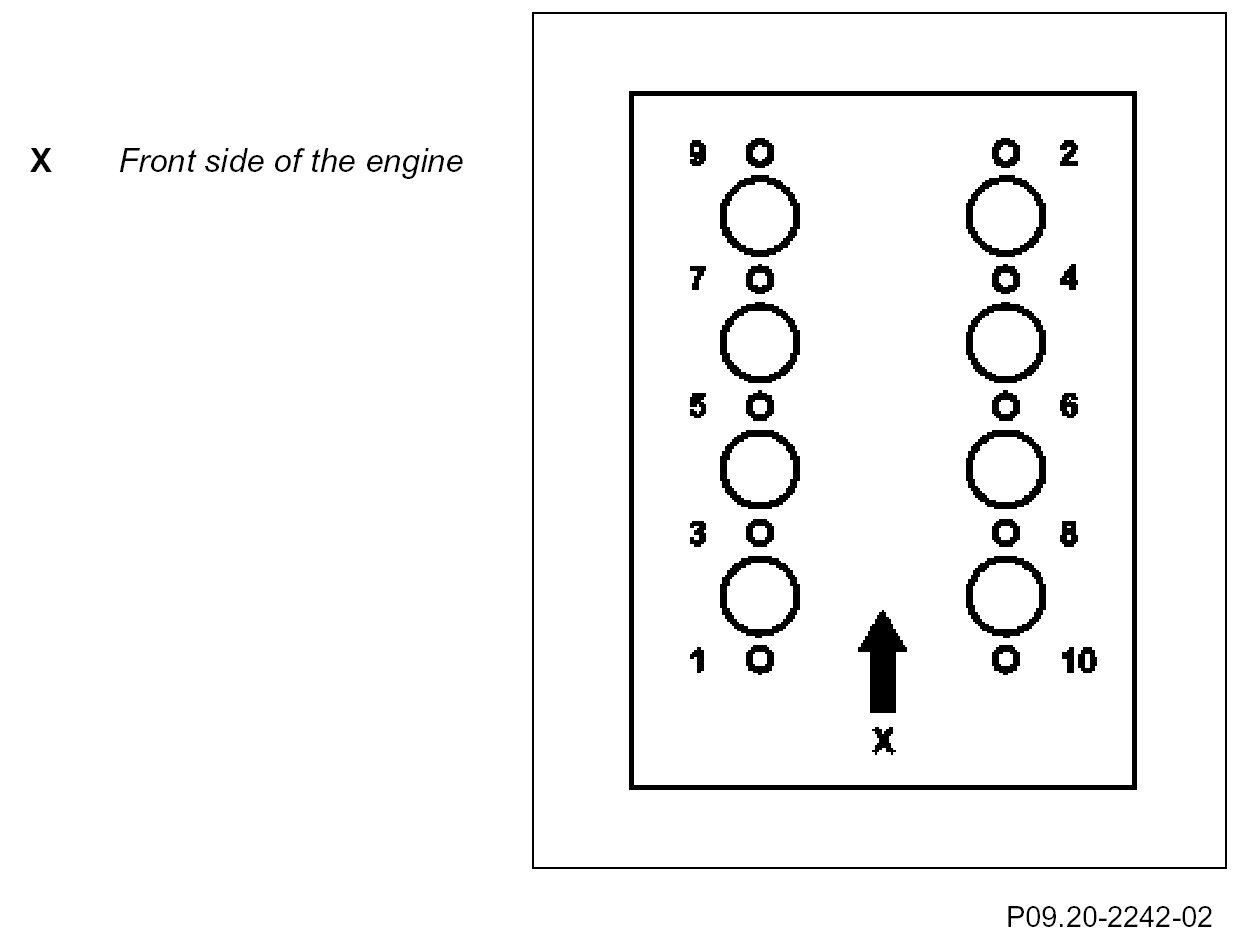

1 Tighten bolts on the intake manifold in numerical sequence.
Component Identification:
