Removal and Replacement

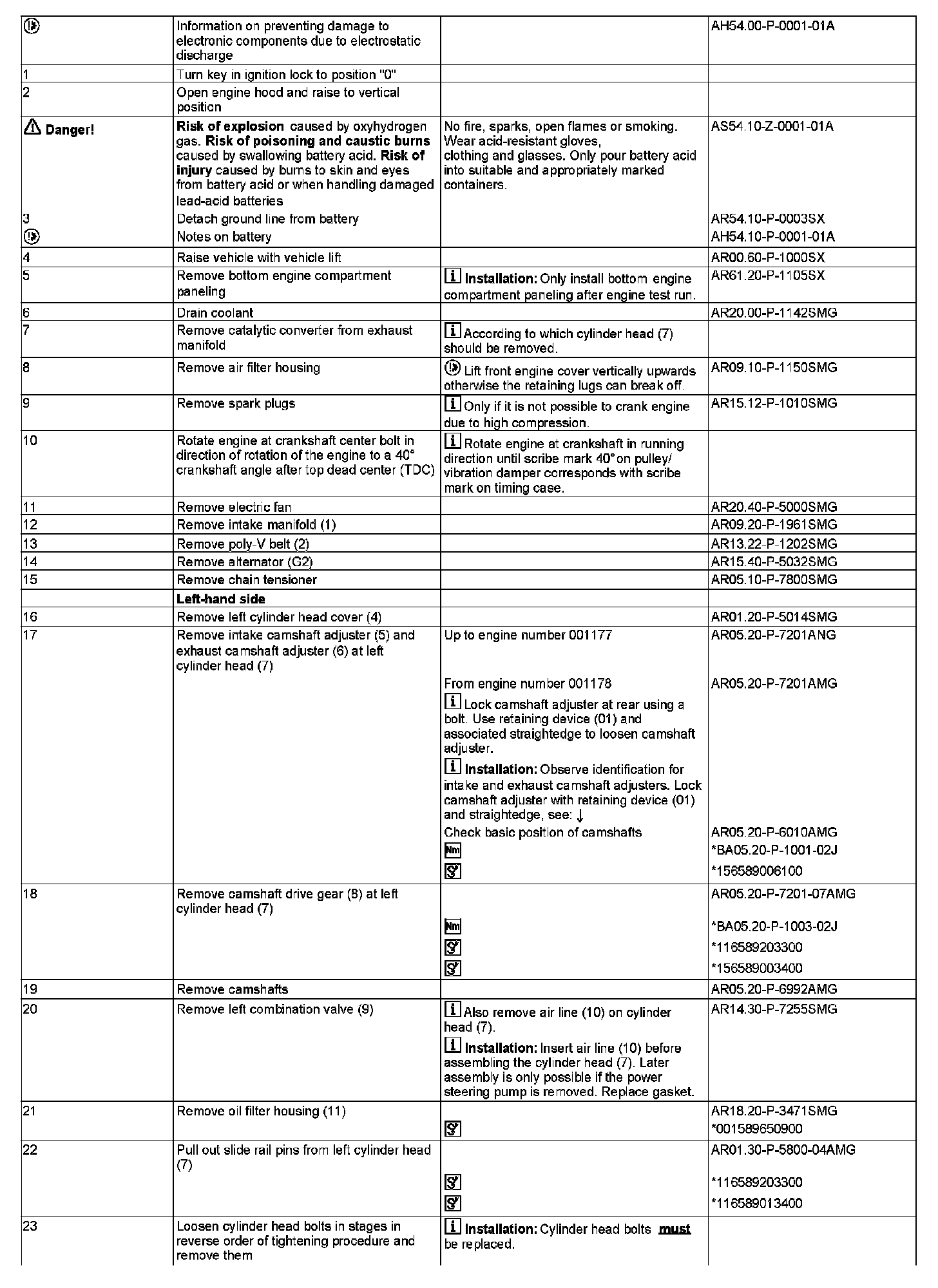

AR01.30-P-5800SMG Remove/Install Cylinder Head
ENGINES 156 in MODEL 216, 221

01 Holding device
1 Intake manifold
2 Poly-V-belt
4 Cylinder head cover
5 Intake camshaft adjuster
6 Exhaust camshaft adjuster
7 Cylinder head
9 Combination valve
10 Air line
11 Oil filter housing
12 Cylinder crankcase
13 Cylinder head cover
14 Combination valve
15 Air line
16 Pulley

G2 Generator
