Home >> Mercedes Benz >> 2008 >> CL 63 AMG (216.377) V8-6.3L (156.984) >> Repair and Diagnosis >> Body and Frame >> Seats >> Power Seat Motor >> Service and Repair >> AR91.29-P-1431SC Remove/Install Backrest Motor For Front Seat

AR91.29-P-1431SC Remove/Install Backrest Motor For Front Seat



AR91.29-P-1431SC Remove/install Backrest Motor For Front Seat
- Backrest angle adjustment motor

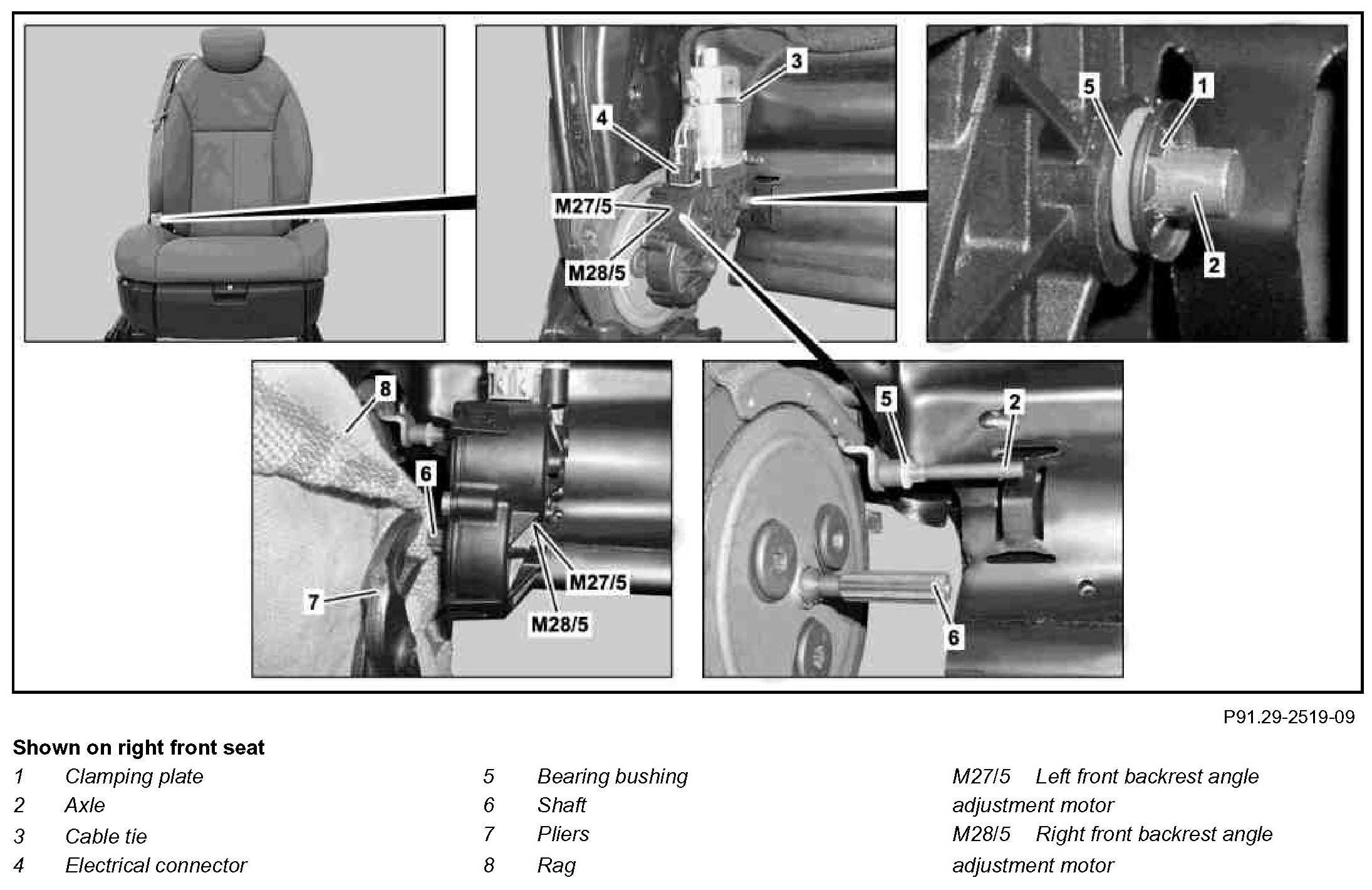

Component Identification:

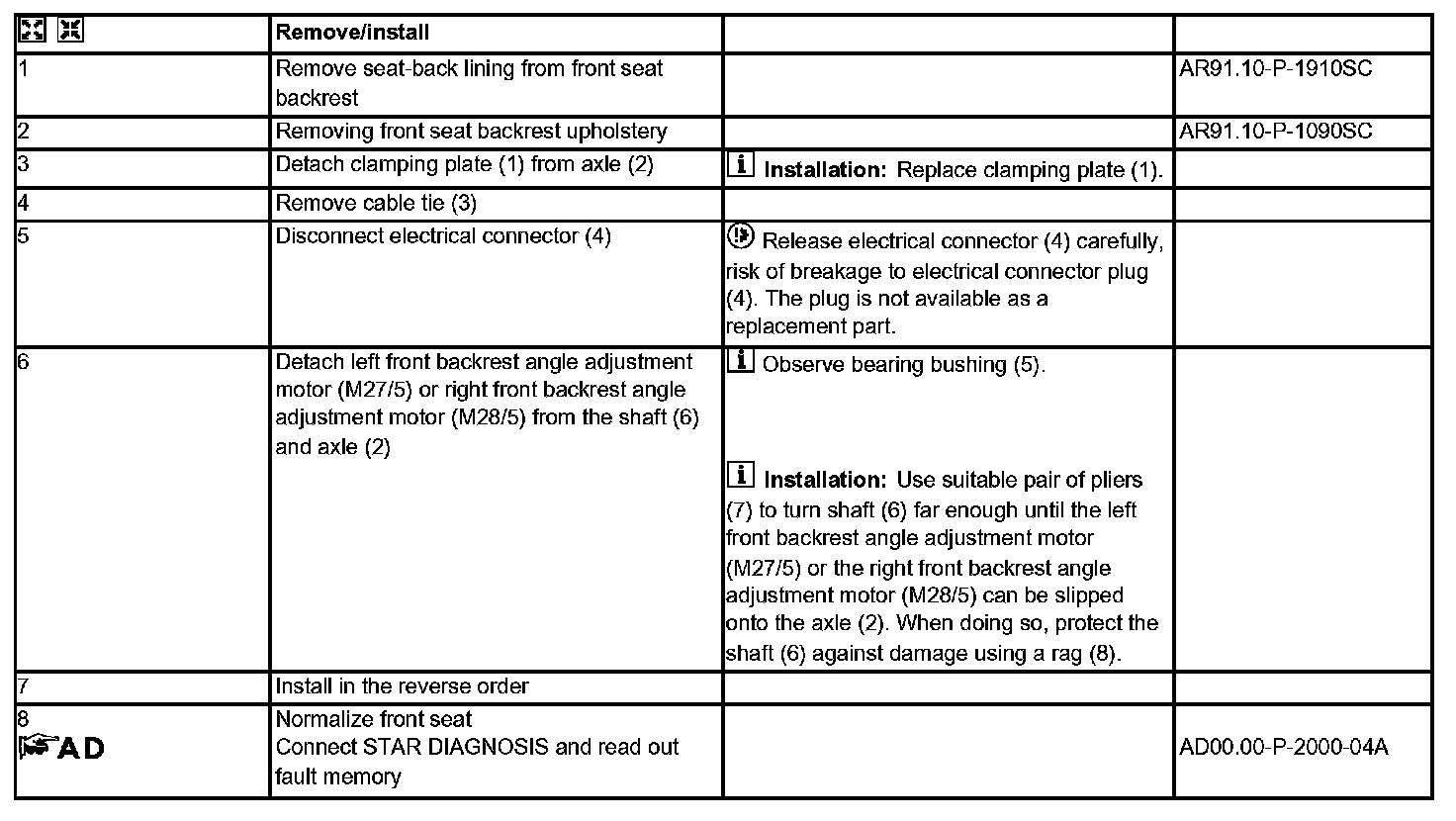

Steps 1-8:
