AR68.10-P-1000SC Remove/Install Dashboard
AR68.10-P-1000SC Remove/Install Dashboard
AR68.10-P-1000SC Remove/install Dashboard

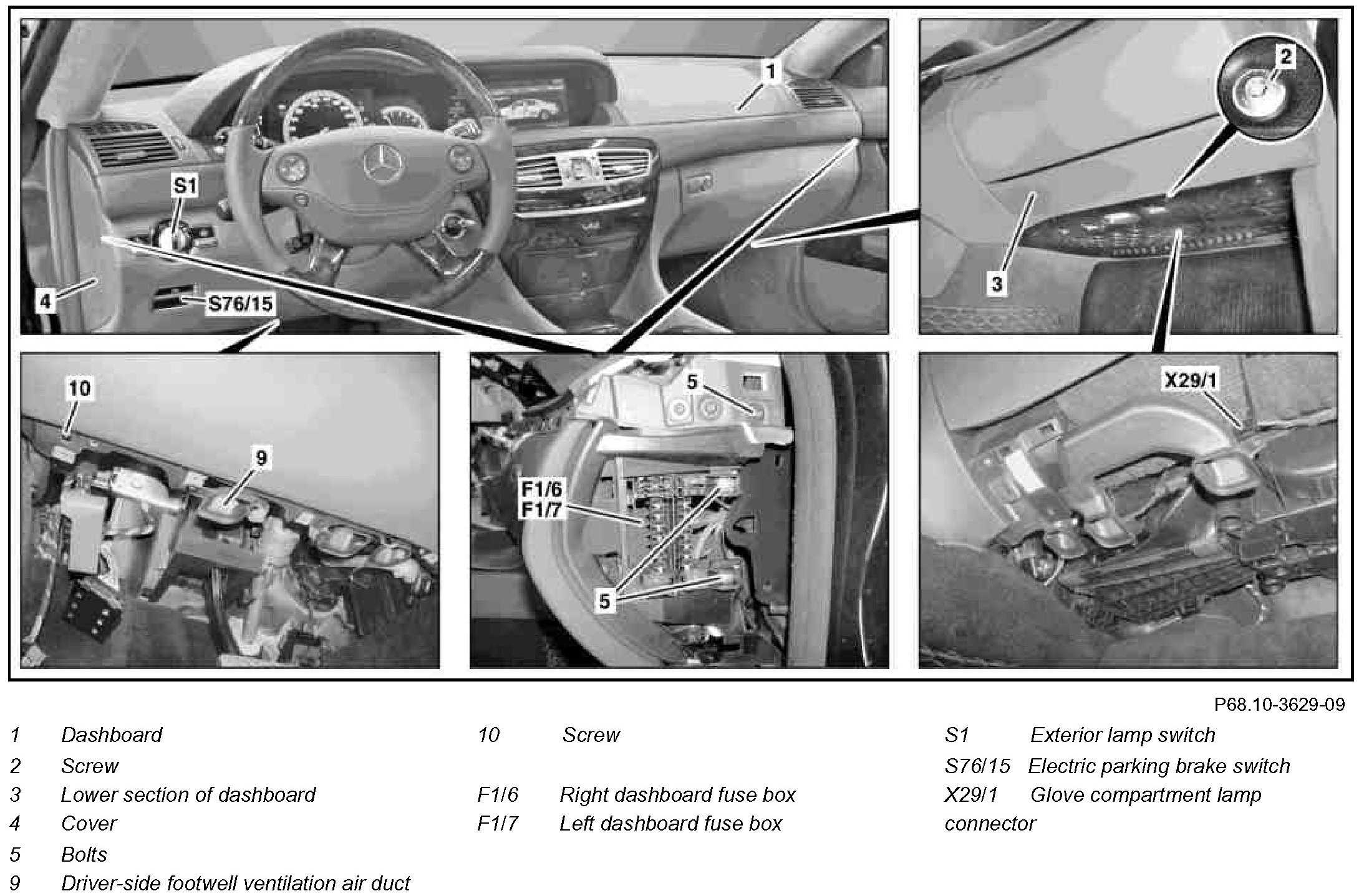

Component Identification:

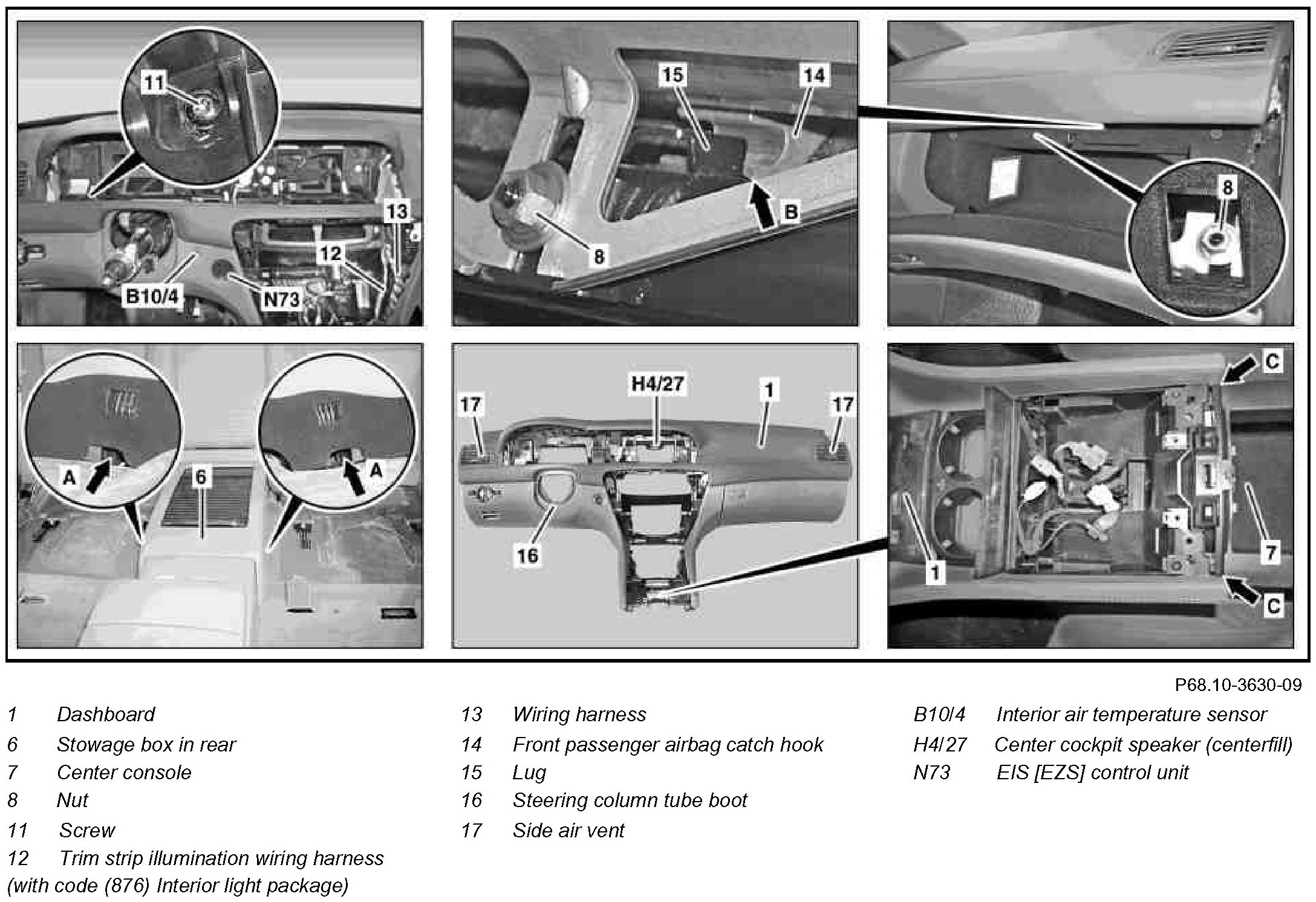

Component Identification:

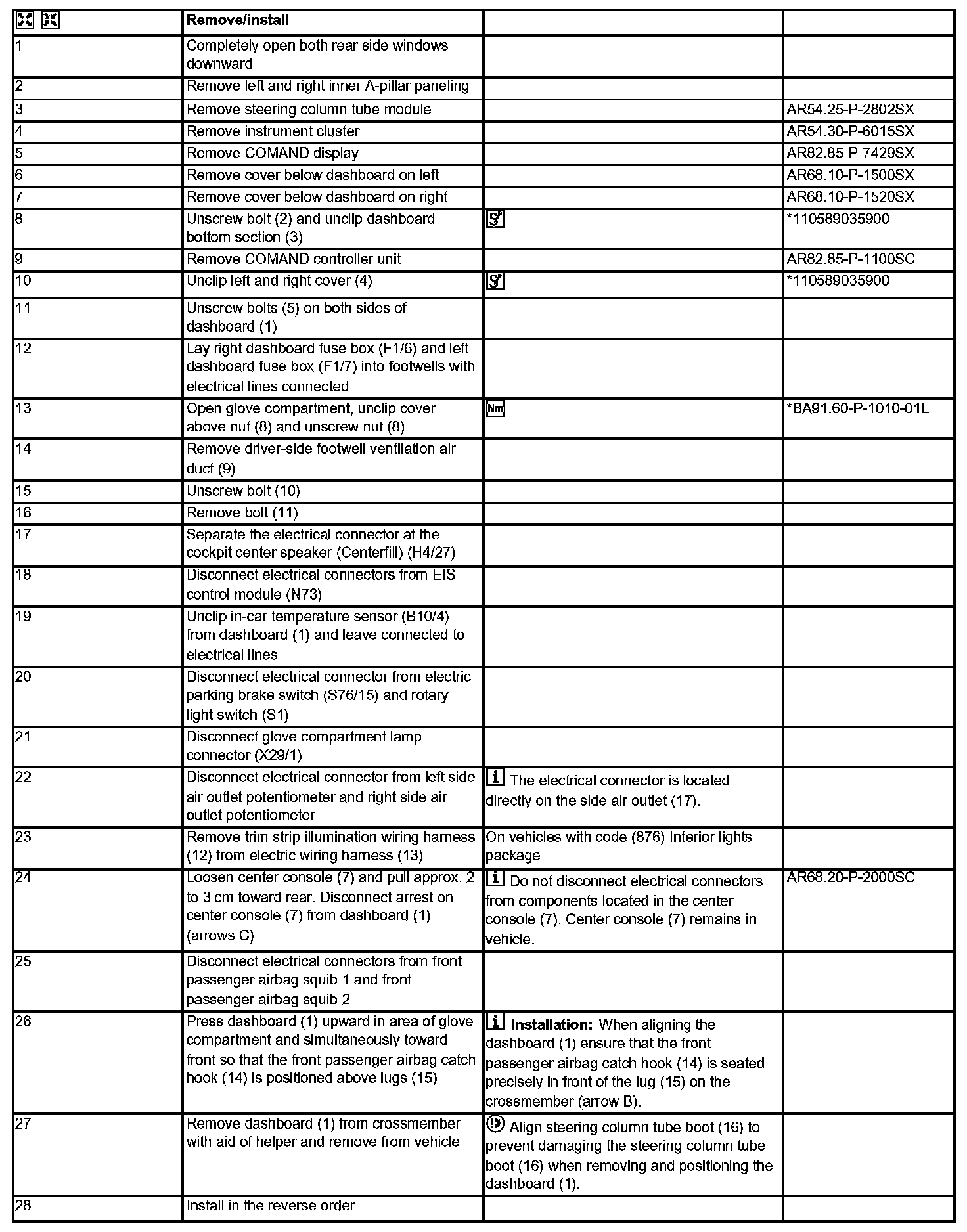

Steps 1-28:

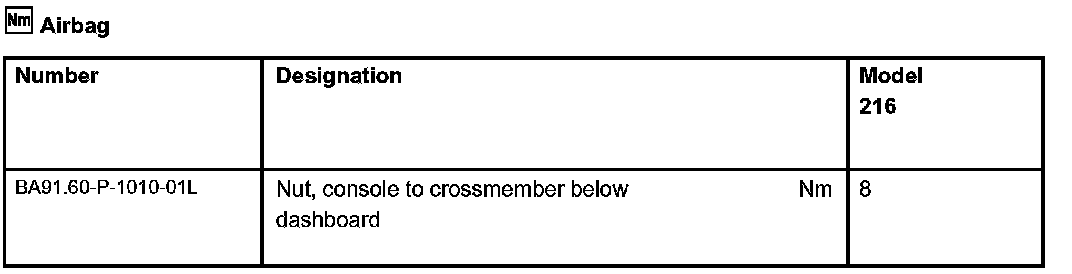

Airbag:
Special Tool:
