AR68.20-P-2350SC Remove/Install Cover on Center Console
AR68.20-P-2350SC Remove/Install Cover on Center Console
AR68.20-P-2350SC Remove/install Cover On Center Console

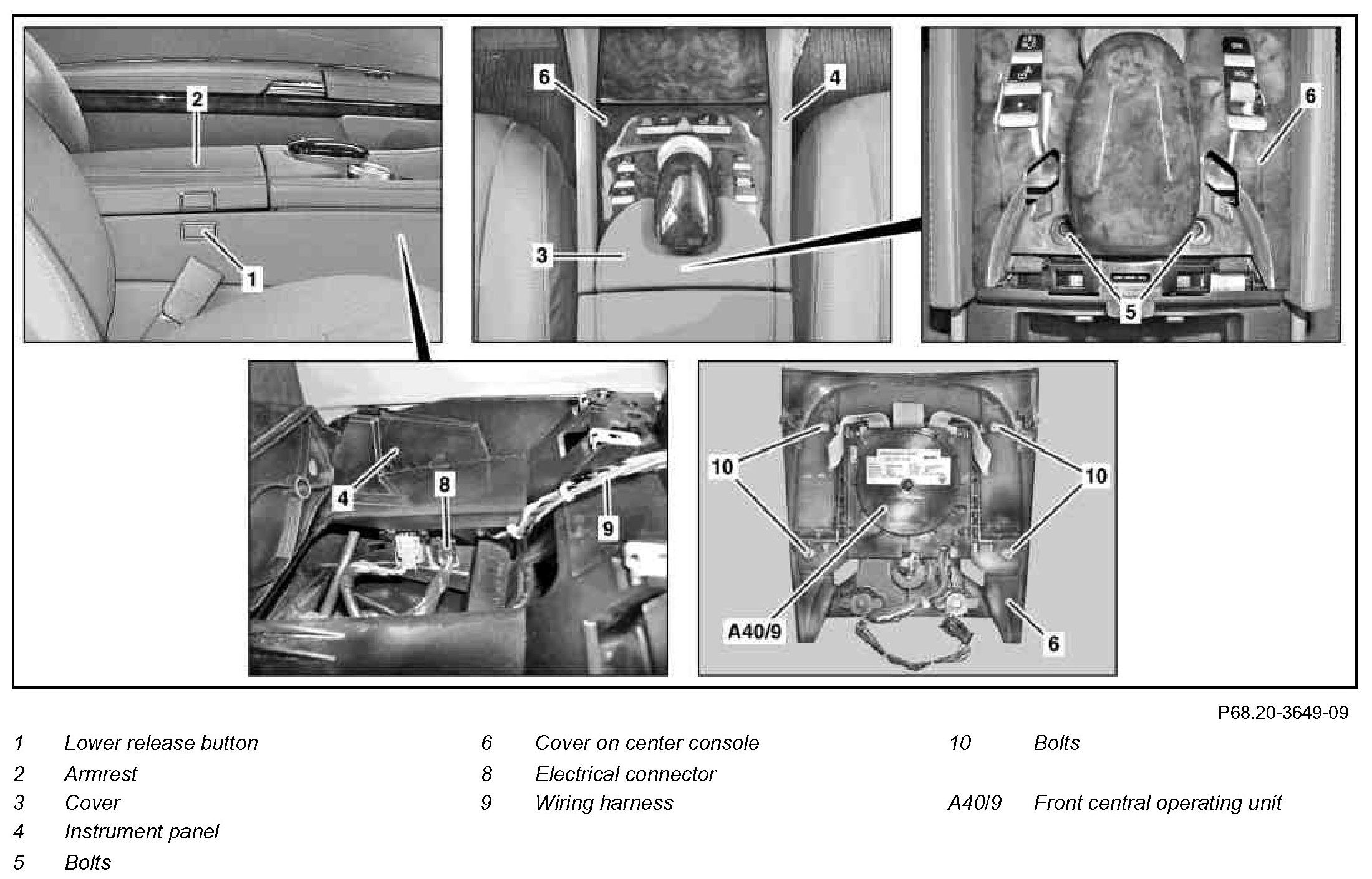

Component Identification:

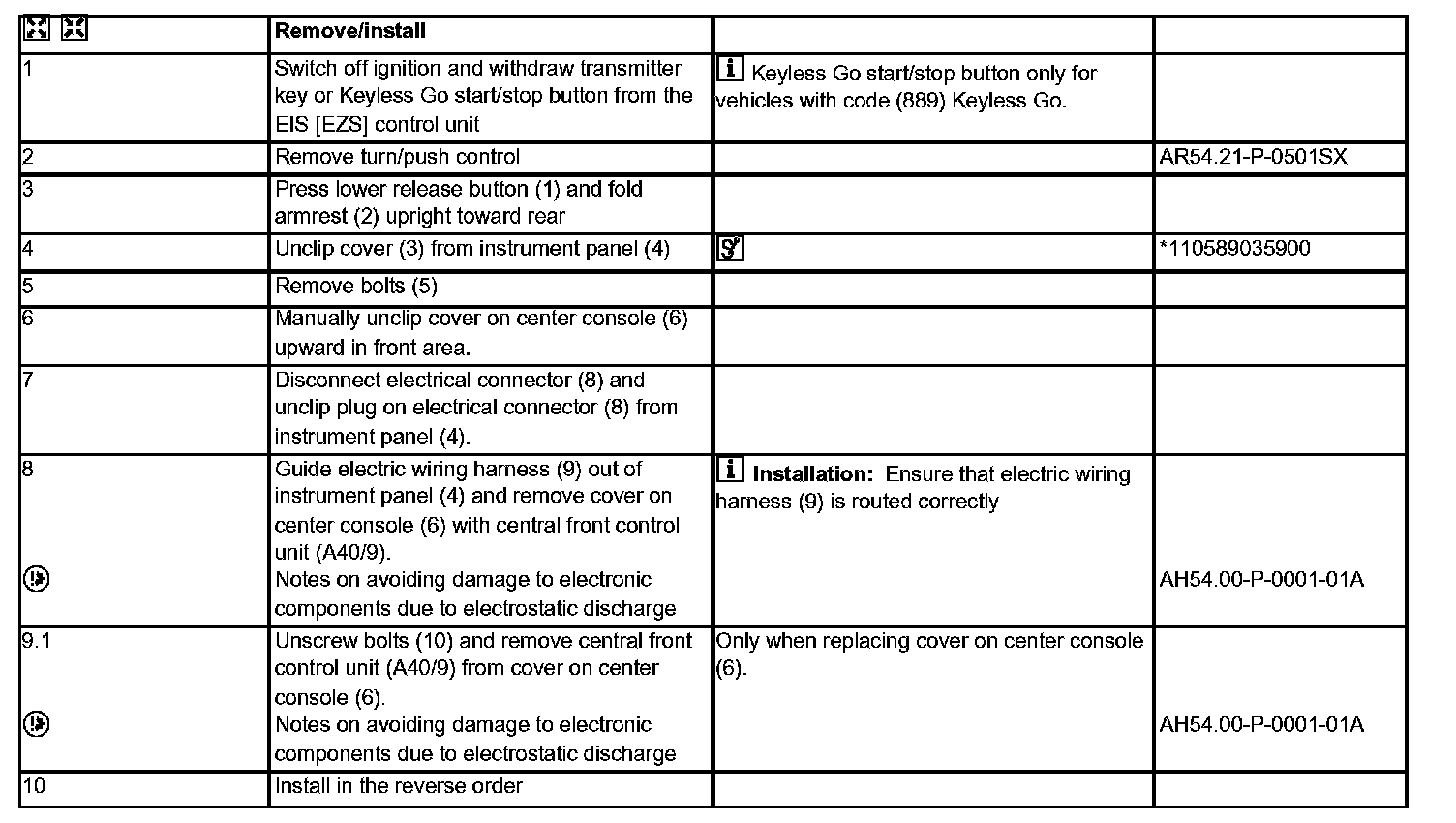

Steps 1-10:

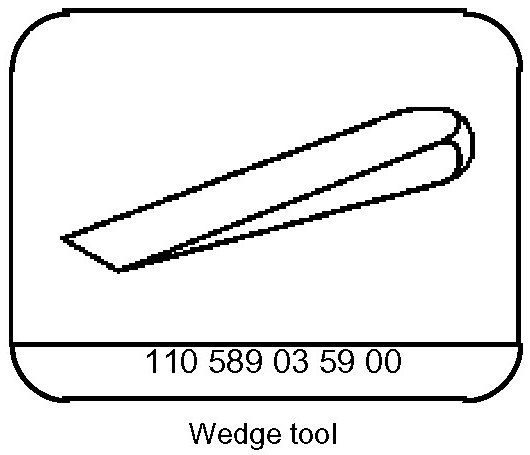

Special Tool:
