Starter Motor: Service and Repair
AR15.30-P-7100CV Remove/install starter

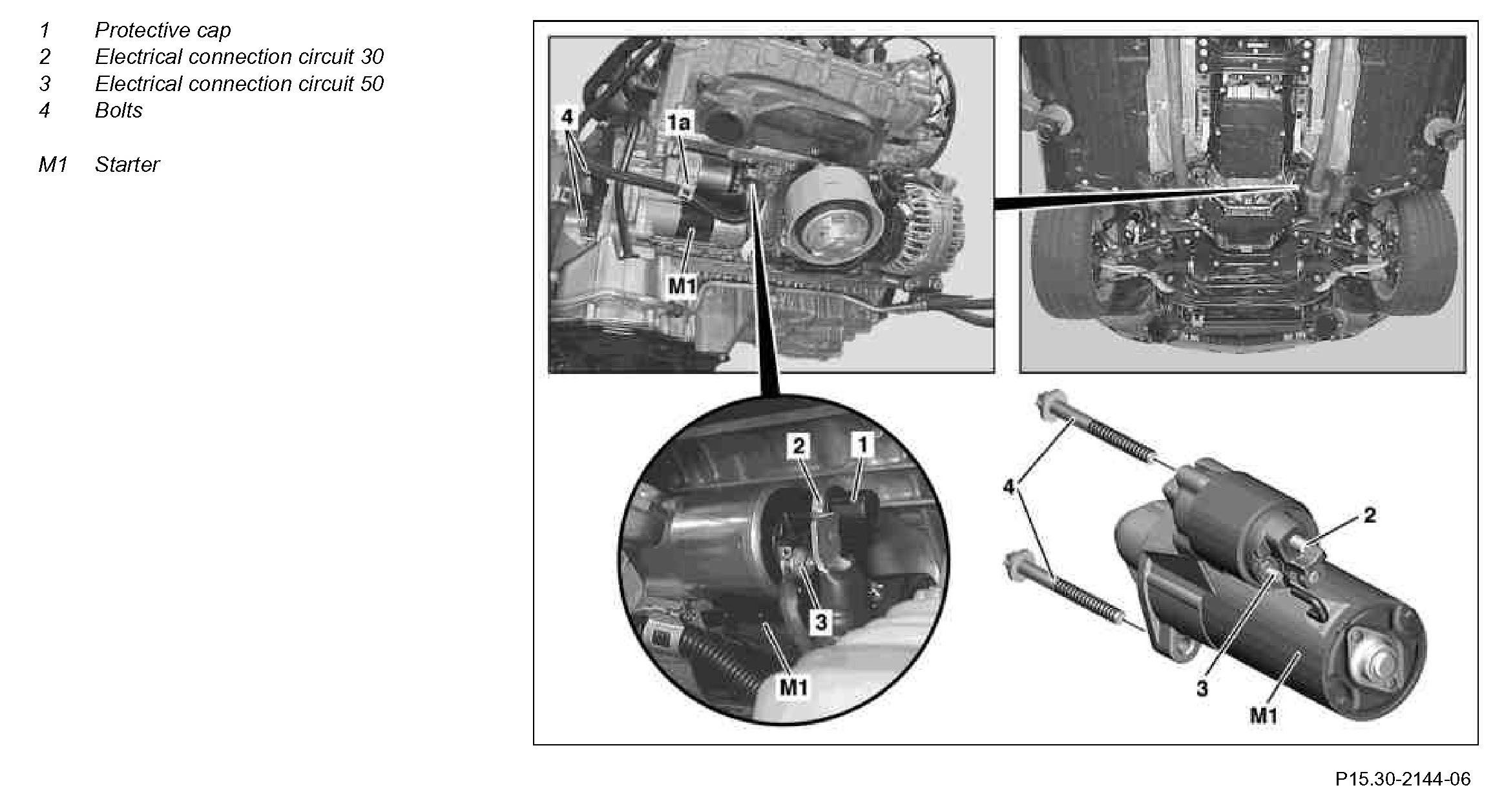

Component Identification:

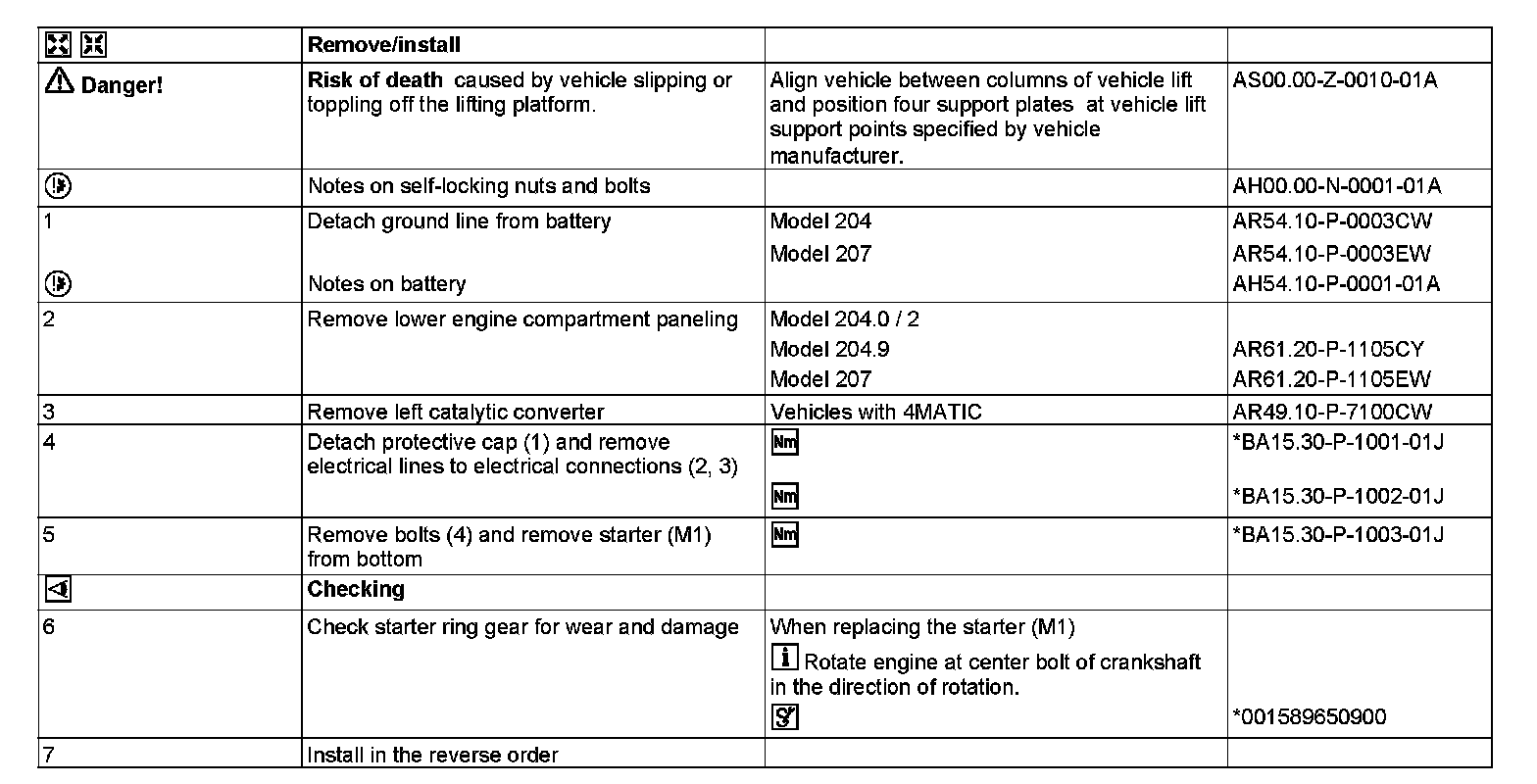

Steps 1-7:

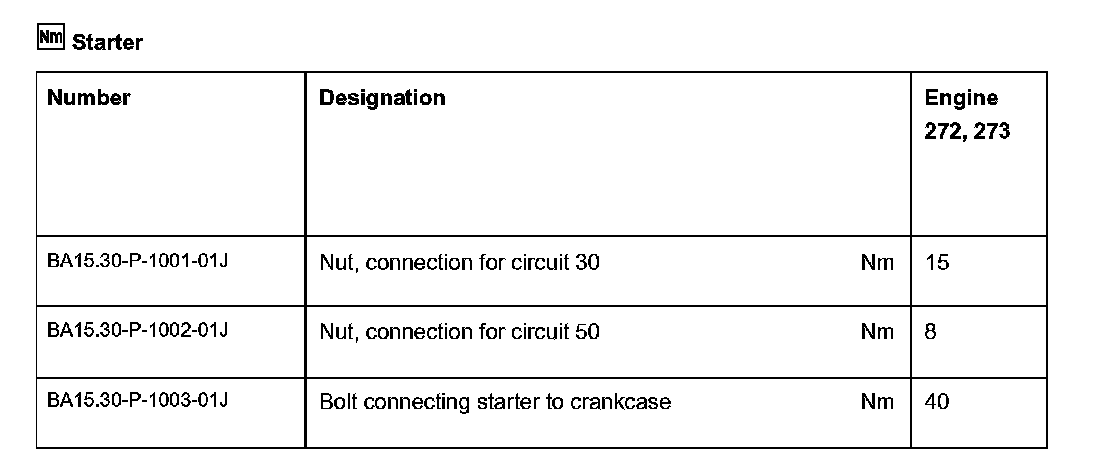

Starter:
Special Tools:
