F. Installing the MHI Control Mod./Ant. Sw. Bracket Assem., Connect MHI Cont. Mod. /Ant. SW.

1. Loosen the four E8 inverted Torx screws securing the Tele Aid control module to the right side of the equipment carrier.

2. Slide the screw slots in the bottom of the bracket for the MHI control module and antenna switch over the screws loosened in step 1, slide the bracket assembly forward until it hits the screws, and then tighten the screws to secure the bracket assembly (Figure 15).

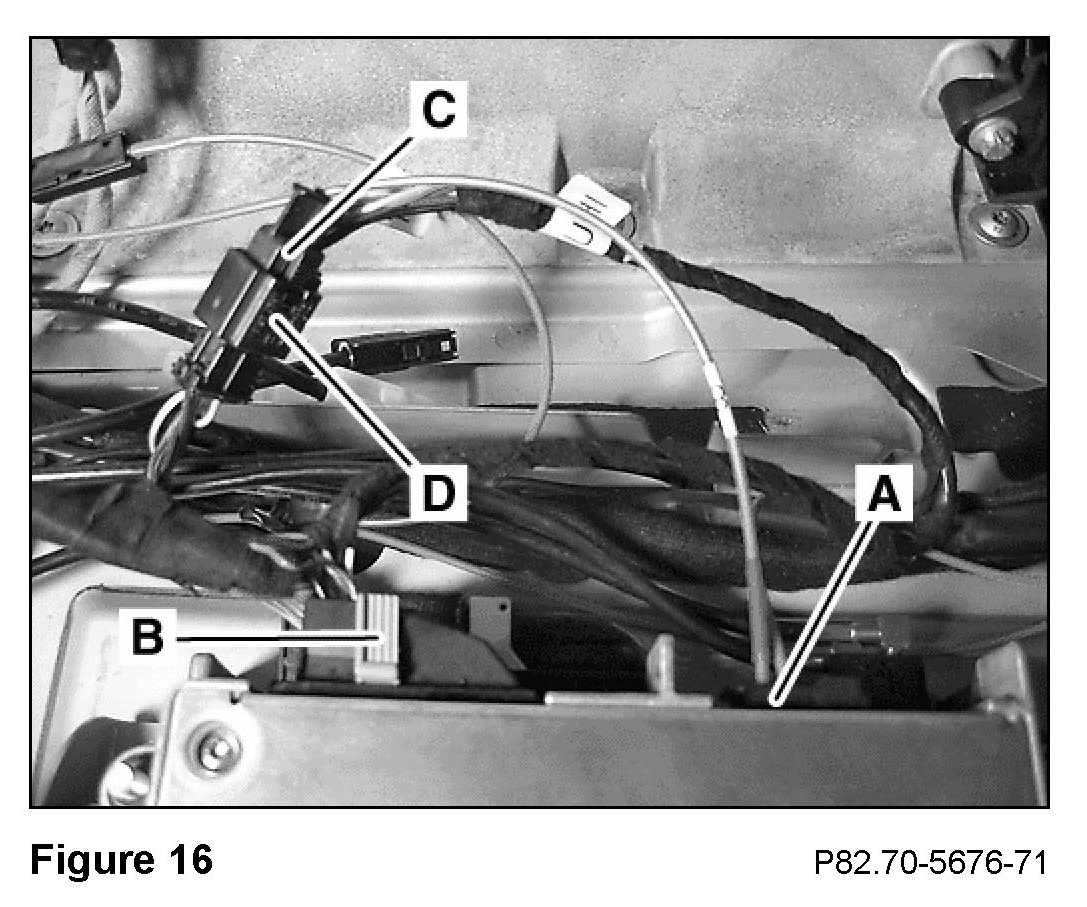

3. Connect the MOST adapter connector to the MHI control module (A, Figure 16).

4. Connect the MHI power supply connector to the MHI control module (B, Figure 16).

5. Connect the MHI microphone array connector (C, Figure 16) to the Tele Aid microphone connector (D, Figure 16).

6. Organize and wire tie loose cabling.





7. Connect the telephone FAKRA female, black connector to the antenna switch jack labeled "BOOSTER" (A, Figure 17).

8. Connect the Tele Aid FAKRA female, white connector to the antenna switch jack labeled "LCT" (B, Figure 17).

9. Connect the main antenna FAKRA male, white connector to the antenna switch jack labeled "ANTENNA" (C, Figure 17).

10. Connect the 2-pin power supply connector to the antenna switch (D, Figure 17).
