Alternator Pulley / Clutch: Service and Repair



AR15.40-P-5710VA Remove/Install Alternator Belt Pulley

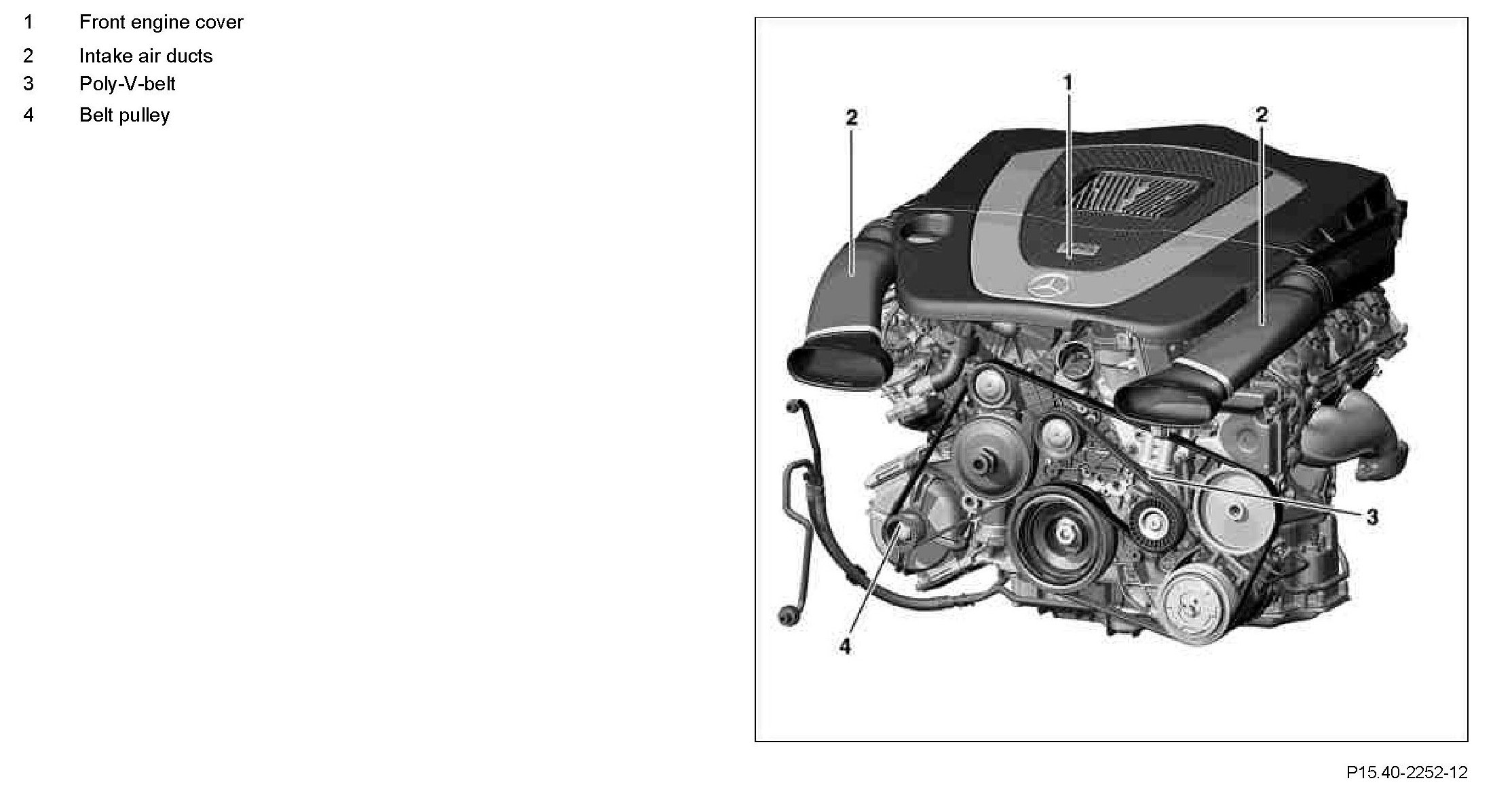

Component Identification:

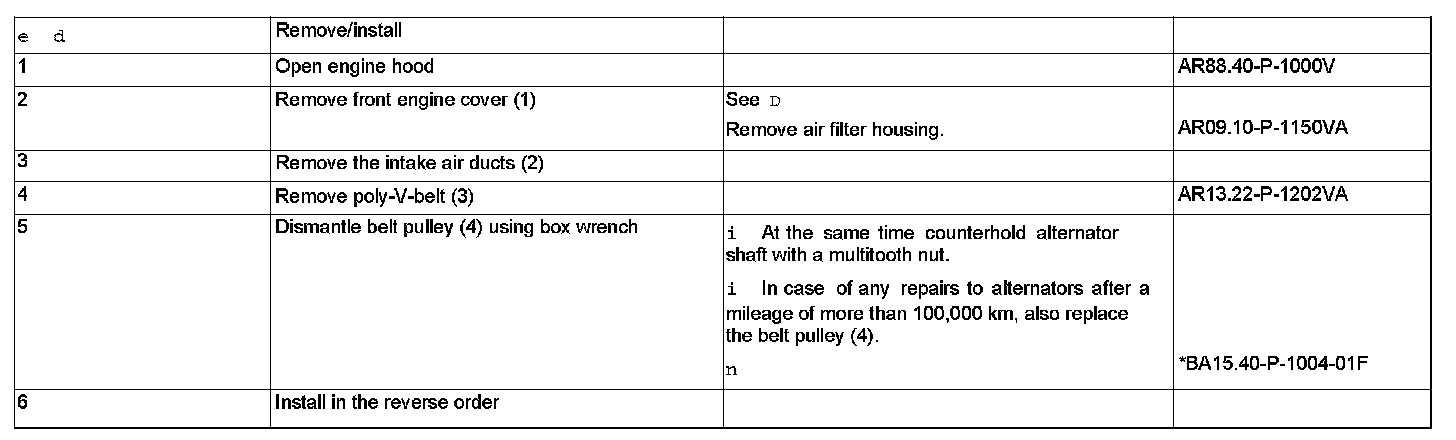

Steps 1 - 6:

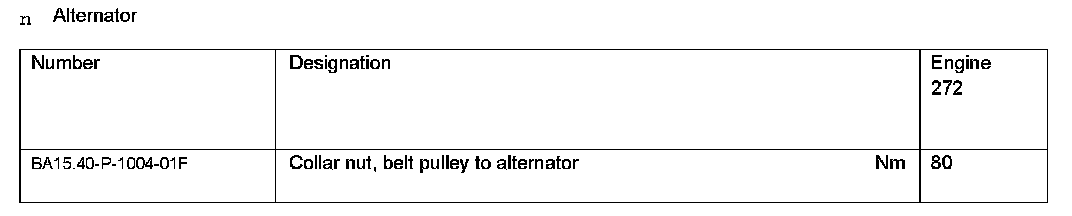

Alternator:
