Negative: Service and Repair



AR54.10-P-0003V Disconnect Ground Cable of Battery, Connect

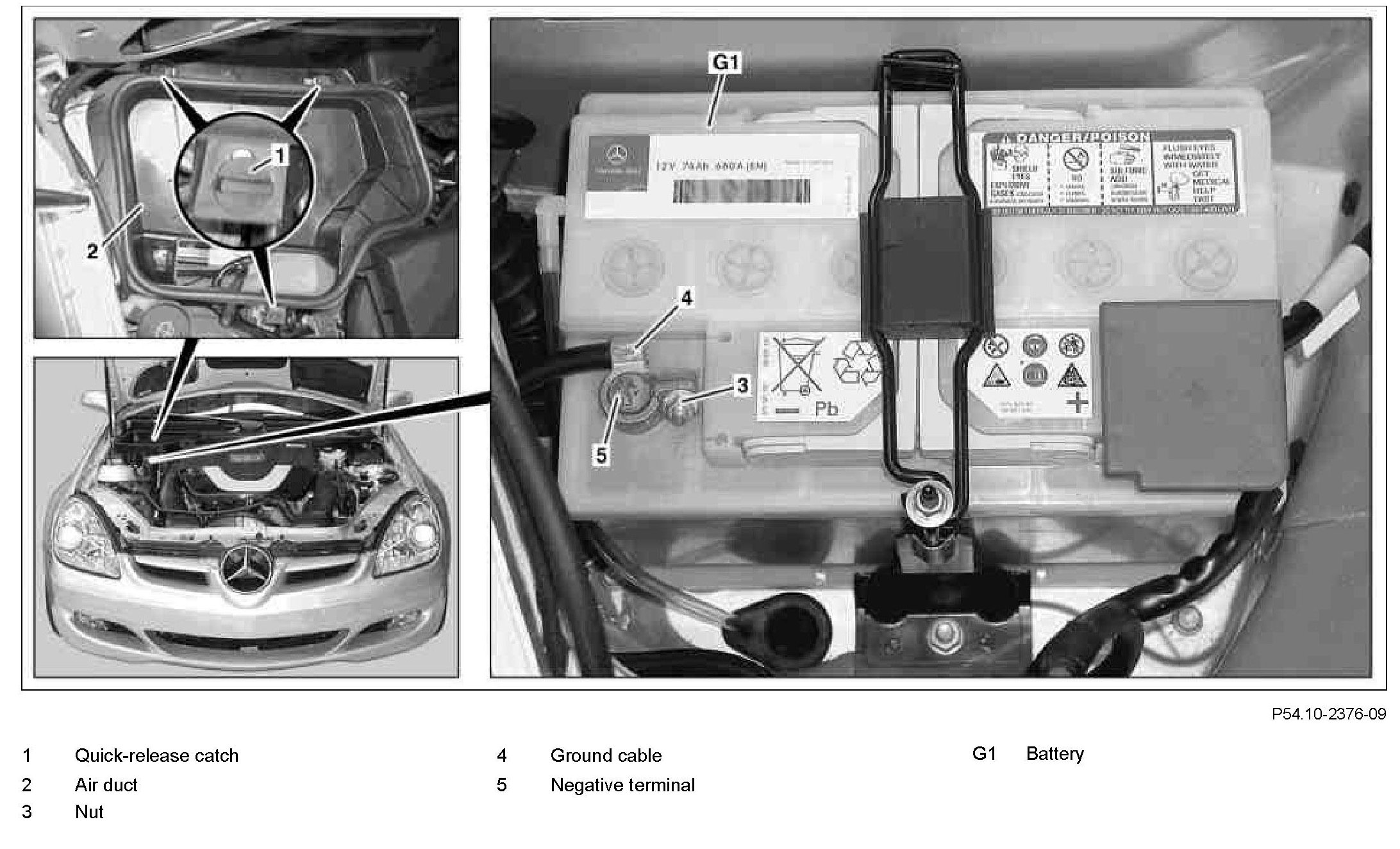

Component Identification:

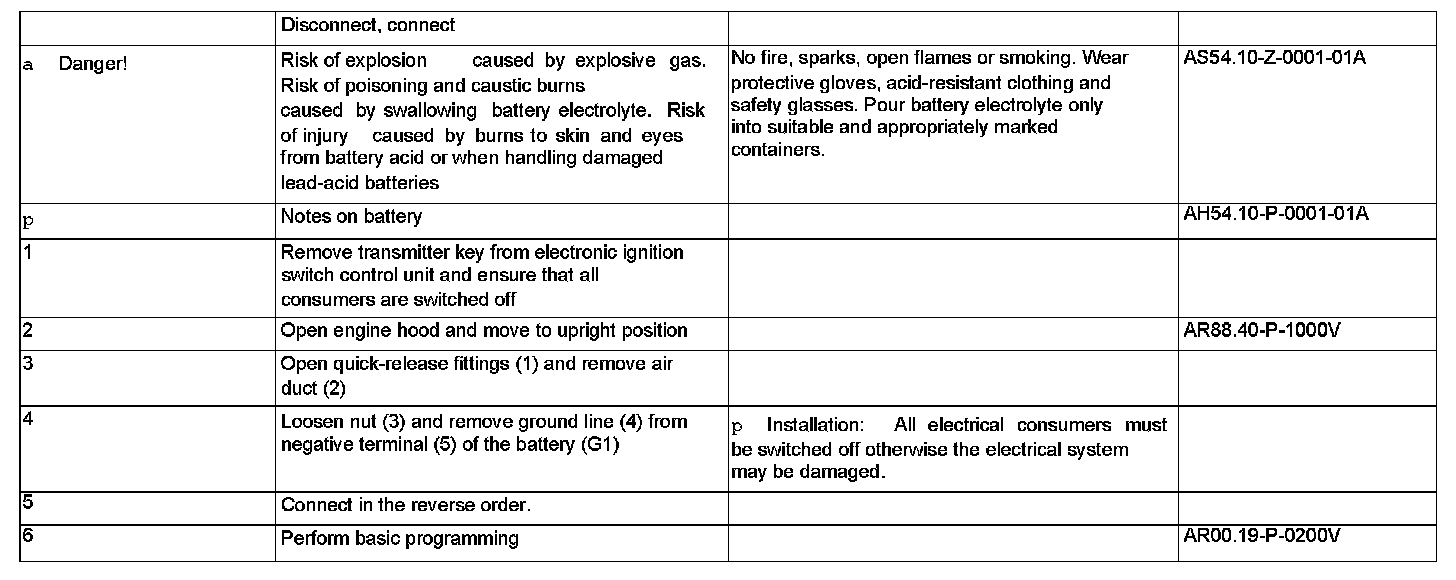

Steps 1 - 6:
