Oil Separator: Service and Repair



AR01.20-P-9750VA Remove/install oil separator

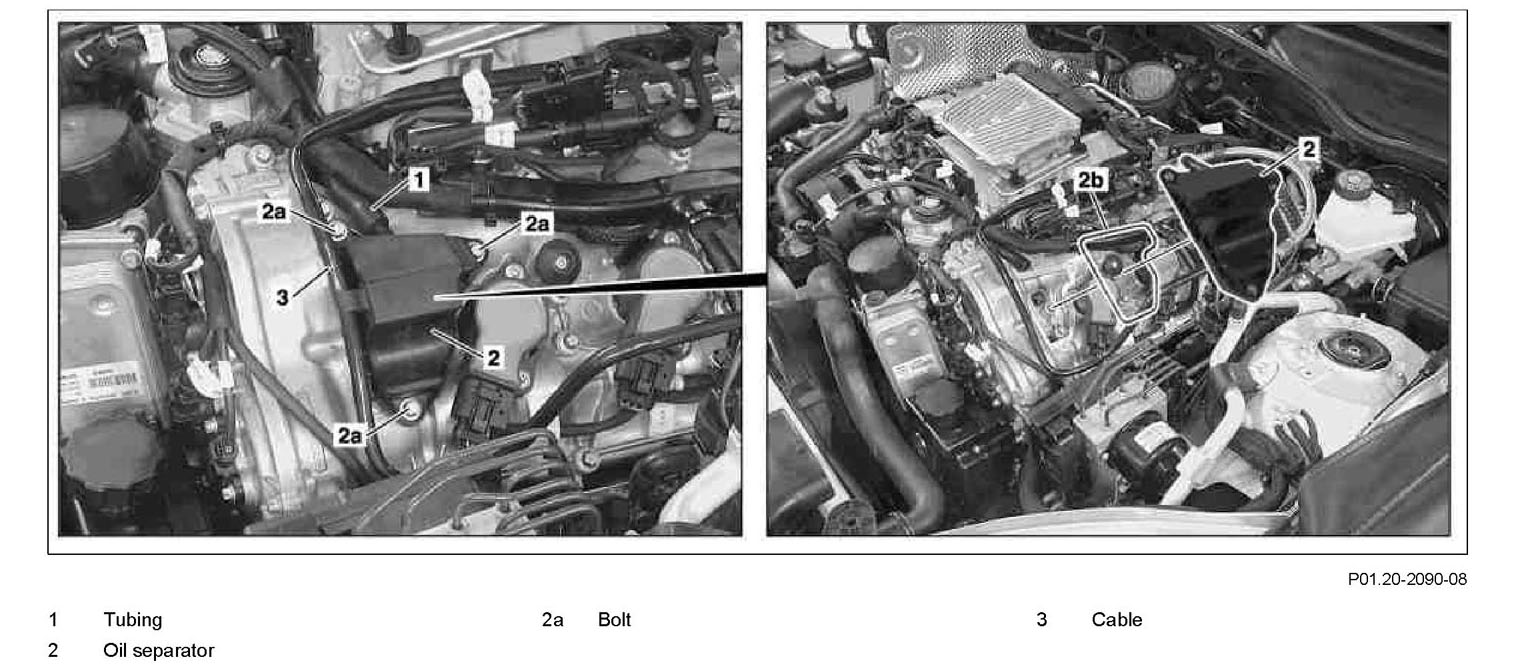

Component Identification:

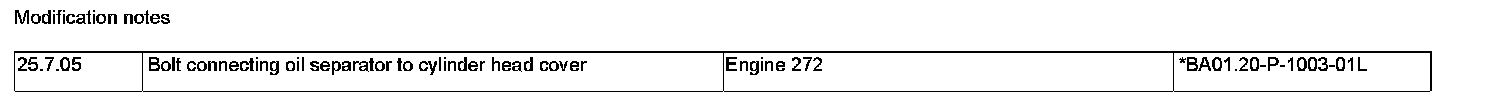

Modification Notes:

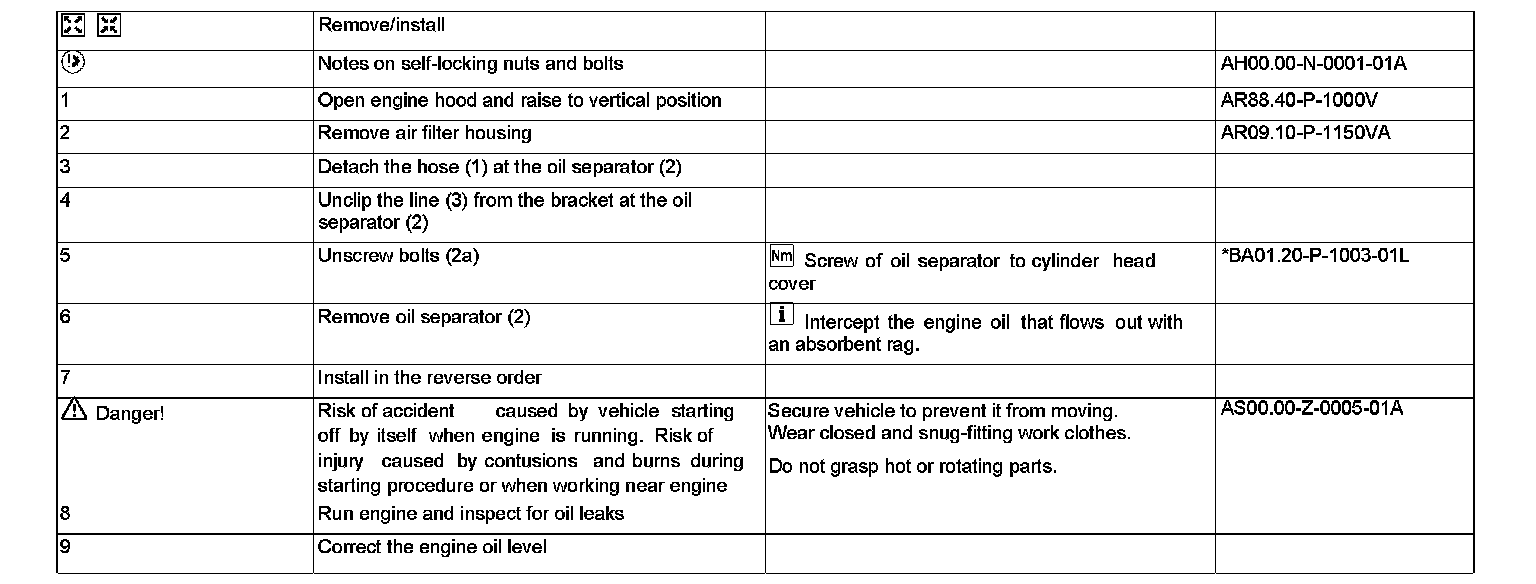

Steps 1-9:

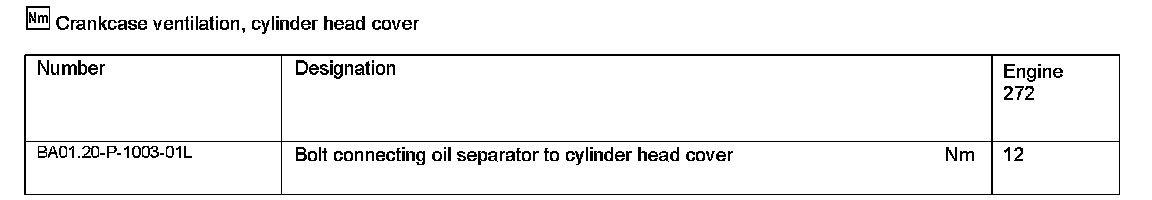

Crankcase Centilation, Cylinder Head Cover:
