AR83.30-P-6522V Remove/Install Service Valve



AR83.30-P-6522V Remove/install Service Valve
- with CODE (580) Automatic air conditioning
- with CODE (581) Convenience automatic air conditioning

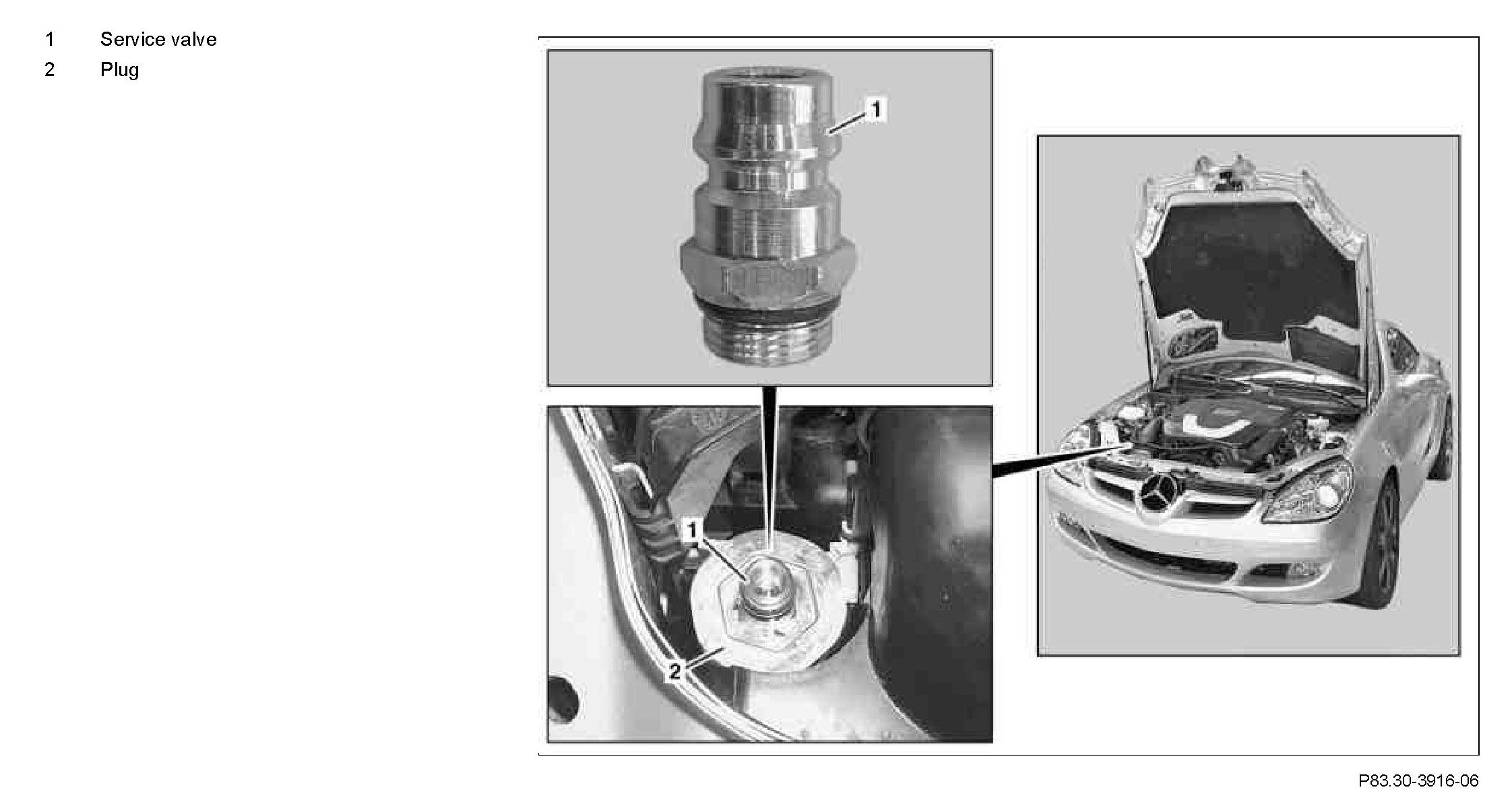

Component Identification:

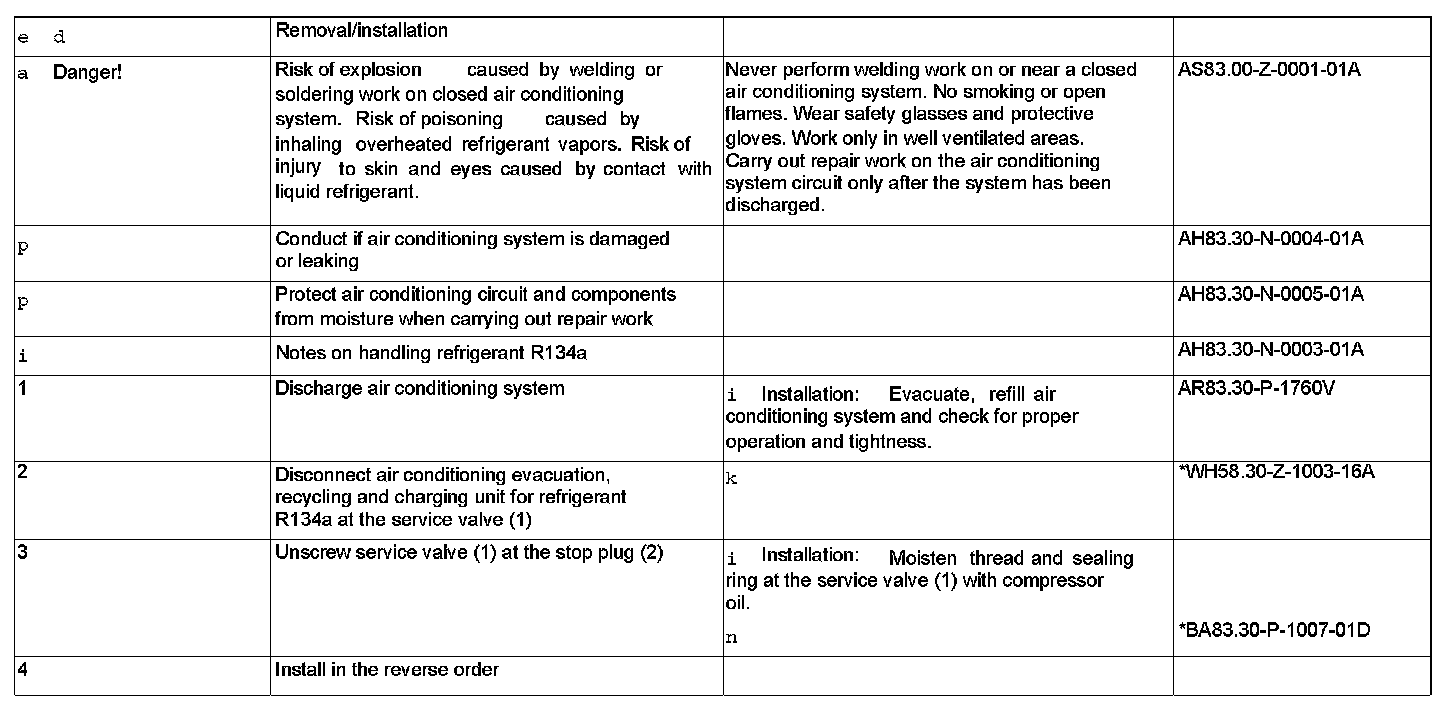

Steps 1 - 4:

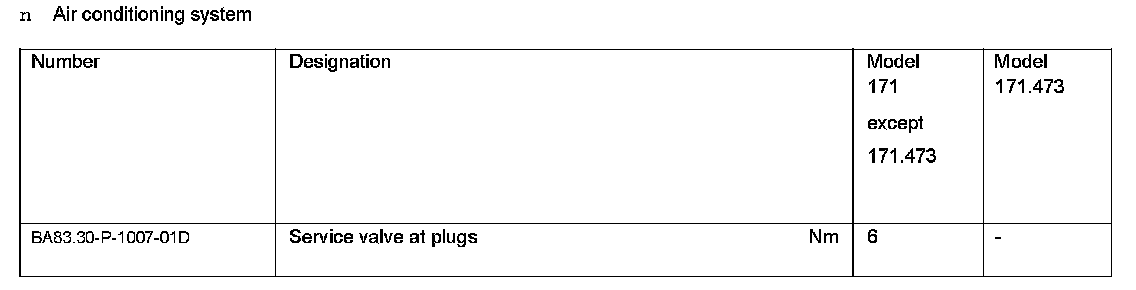

Air Conditioning System:

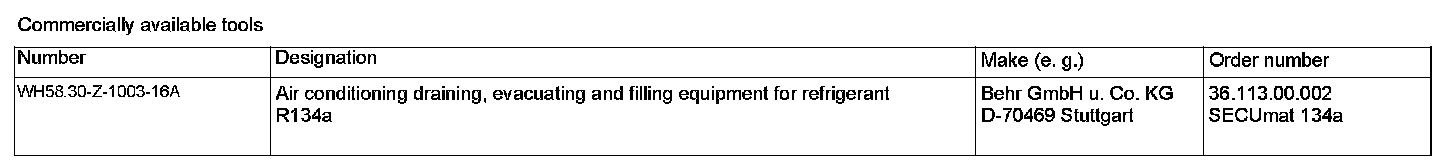

Commercially Available Tools:
