AR83.30-P-5200V Remove/Install AC Housing



AR83.30-P-5200V Remove/install AC Housing
- with CODE (580) Automatic air conditioning
- with CODE (581) Comfort automatic air conditioning

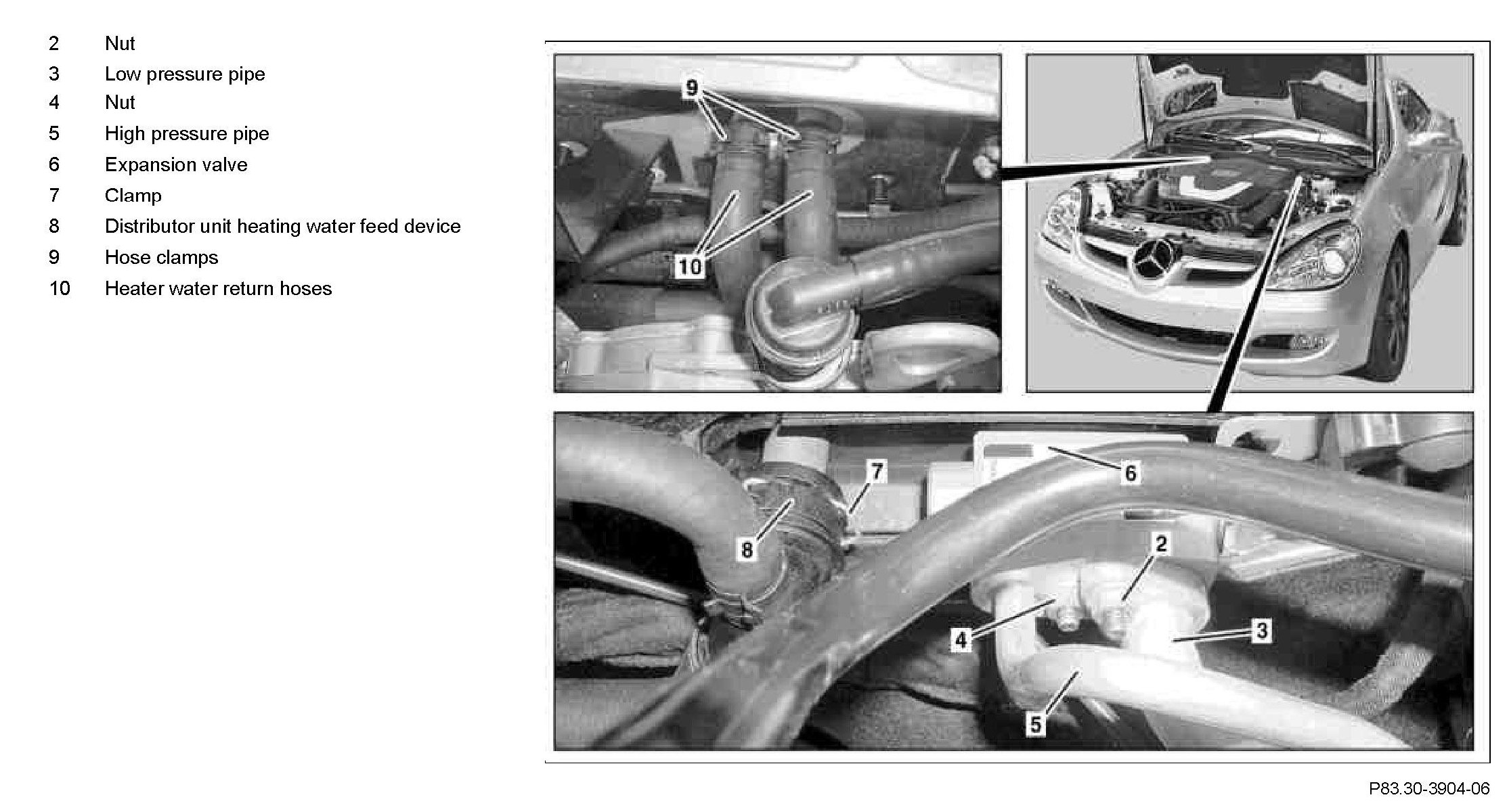

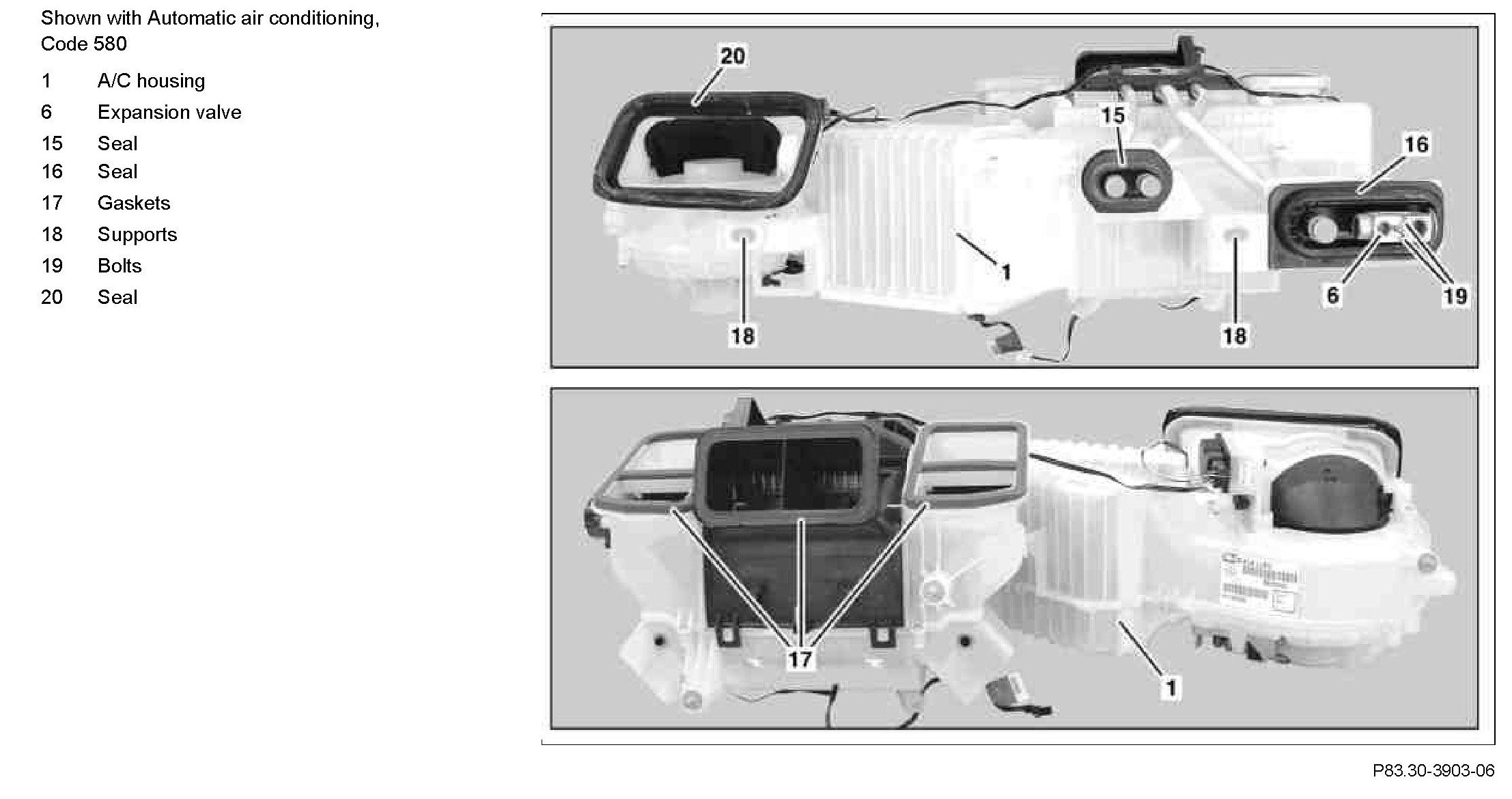

Component Identification:

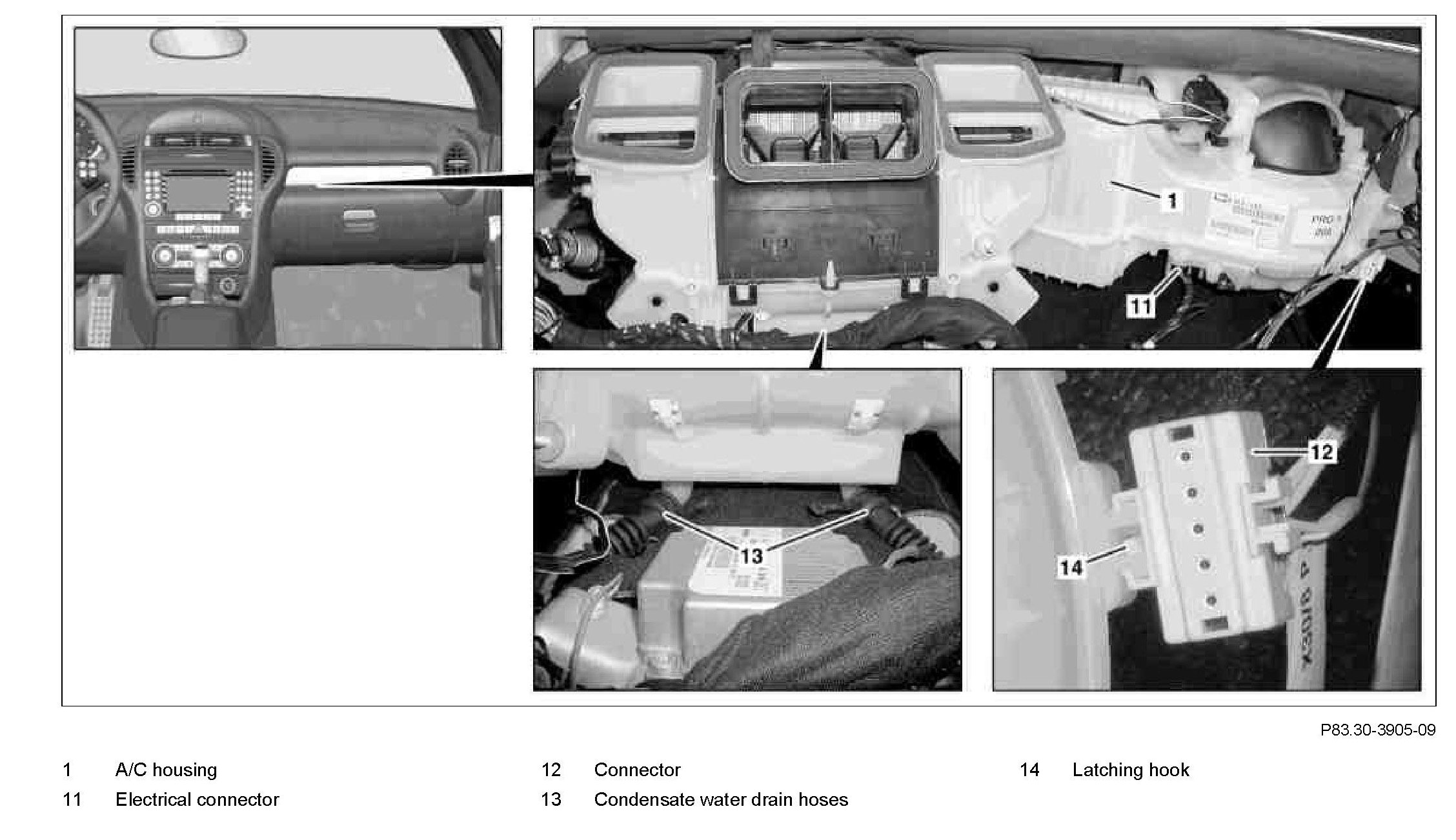

Component Identification:




Component Identification:

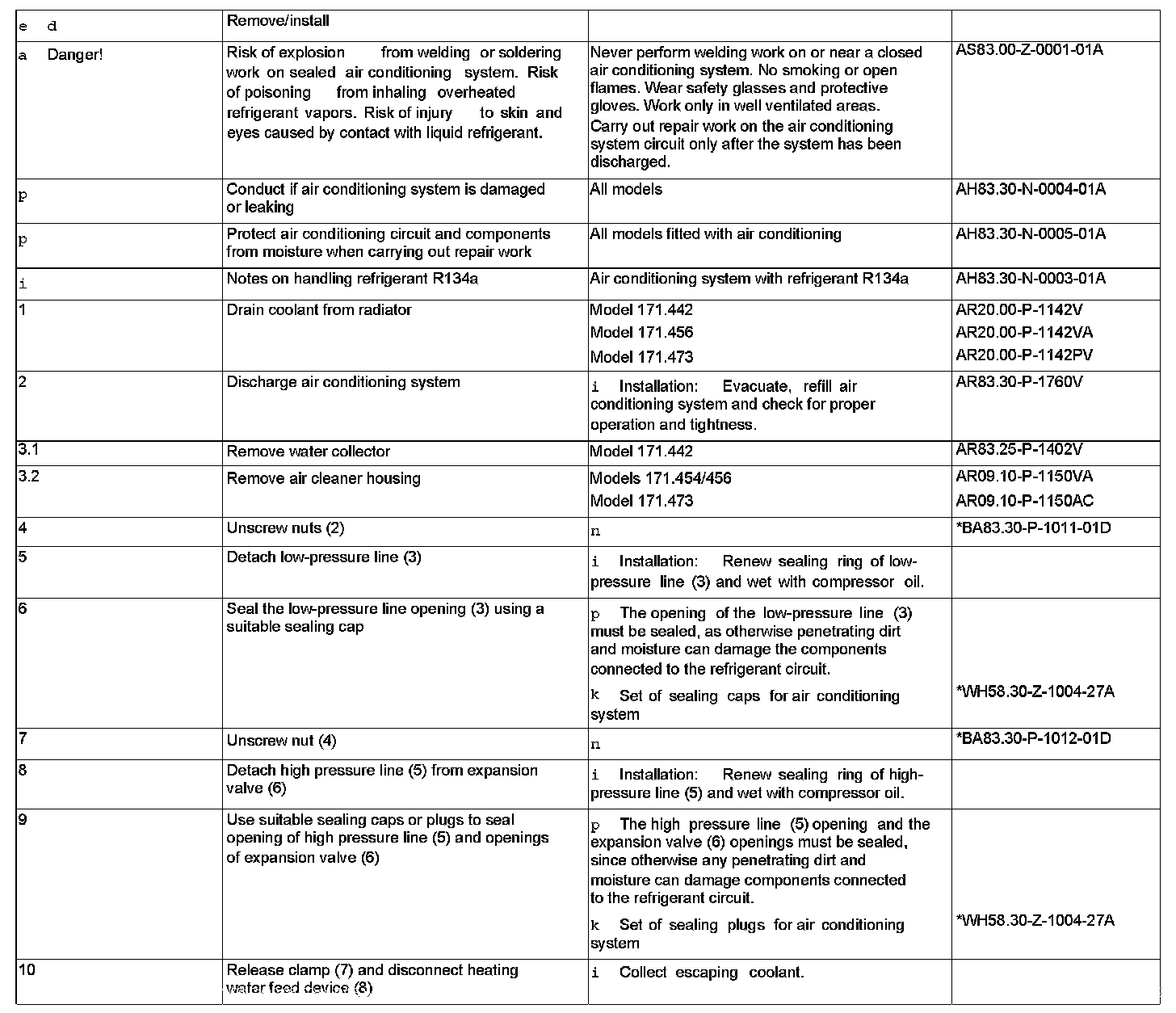

Steps 1 - 10:

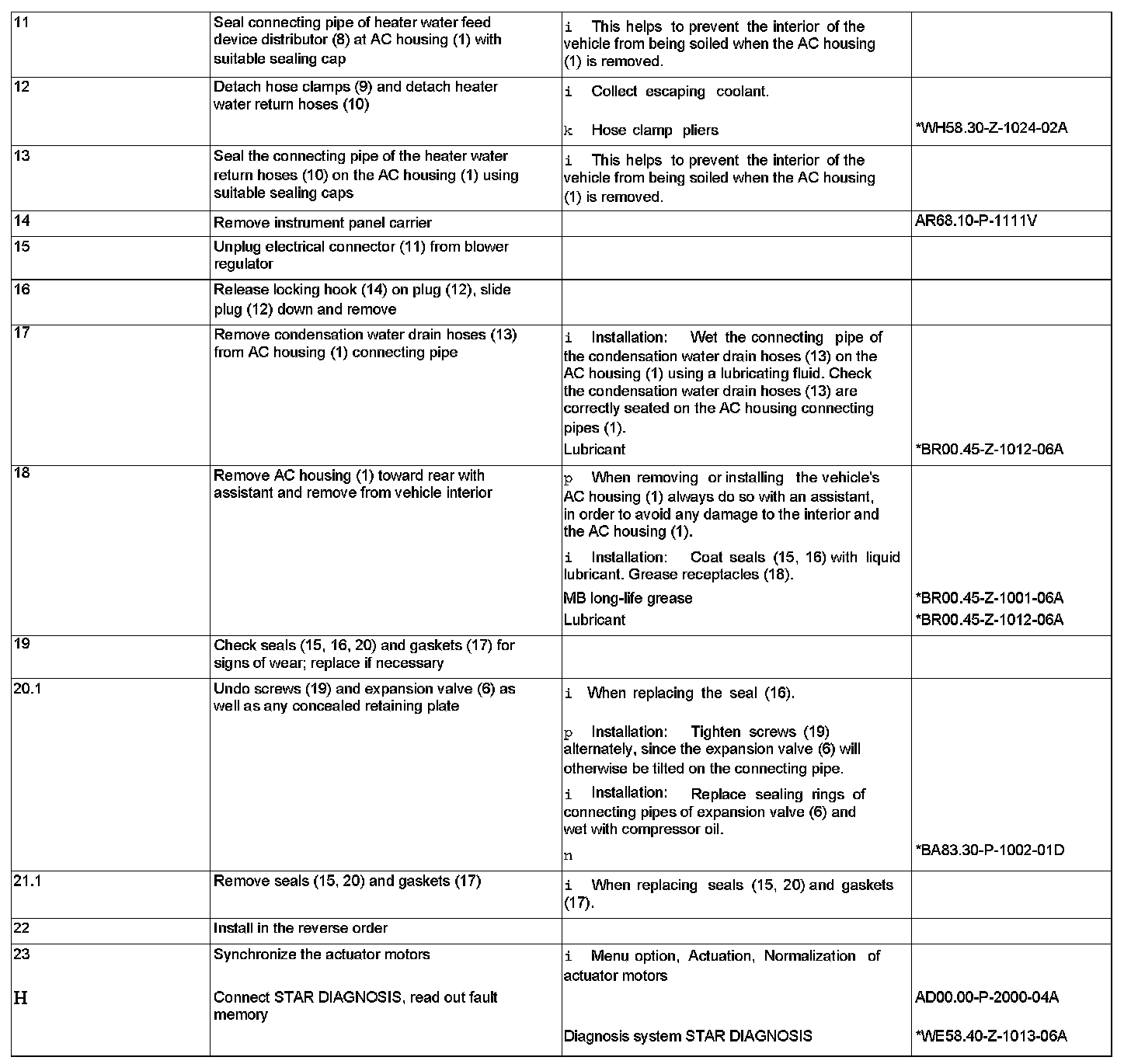

Steps 11 - 23:

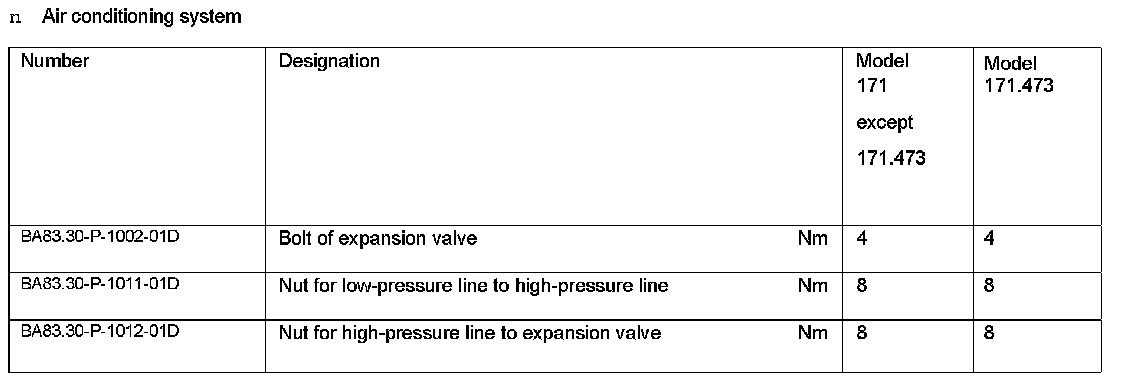

Air Conditioning System:

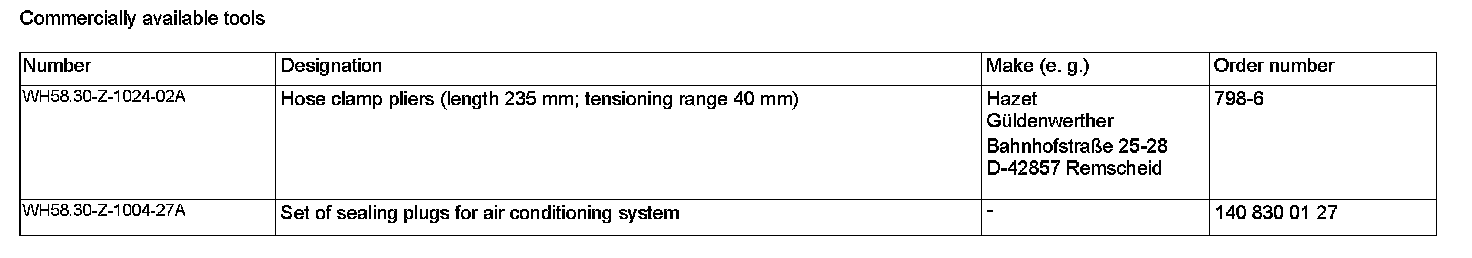

Commercially Available Tools:

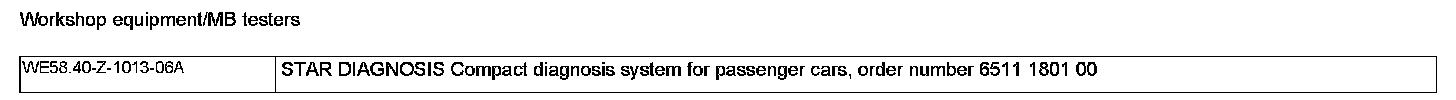

Workshop Equipment/MB Testers:

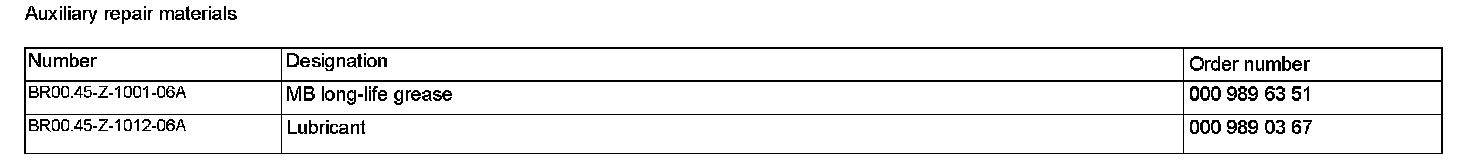

Auxiliary Repair Materials:
