Removal and Replacement



AR83.30-P-5540V Remove/install Evaporator
- with CODE (580) Automatic air conditioning
- with CODE (581) Convenience automatic air conditioning

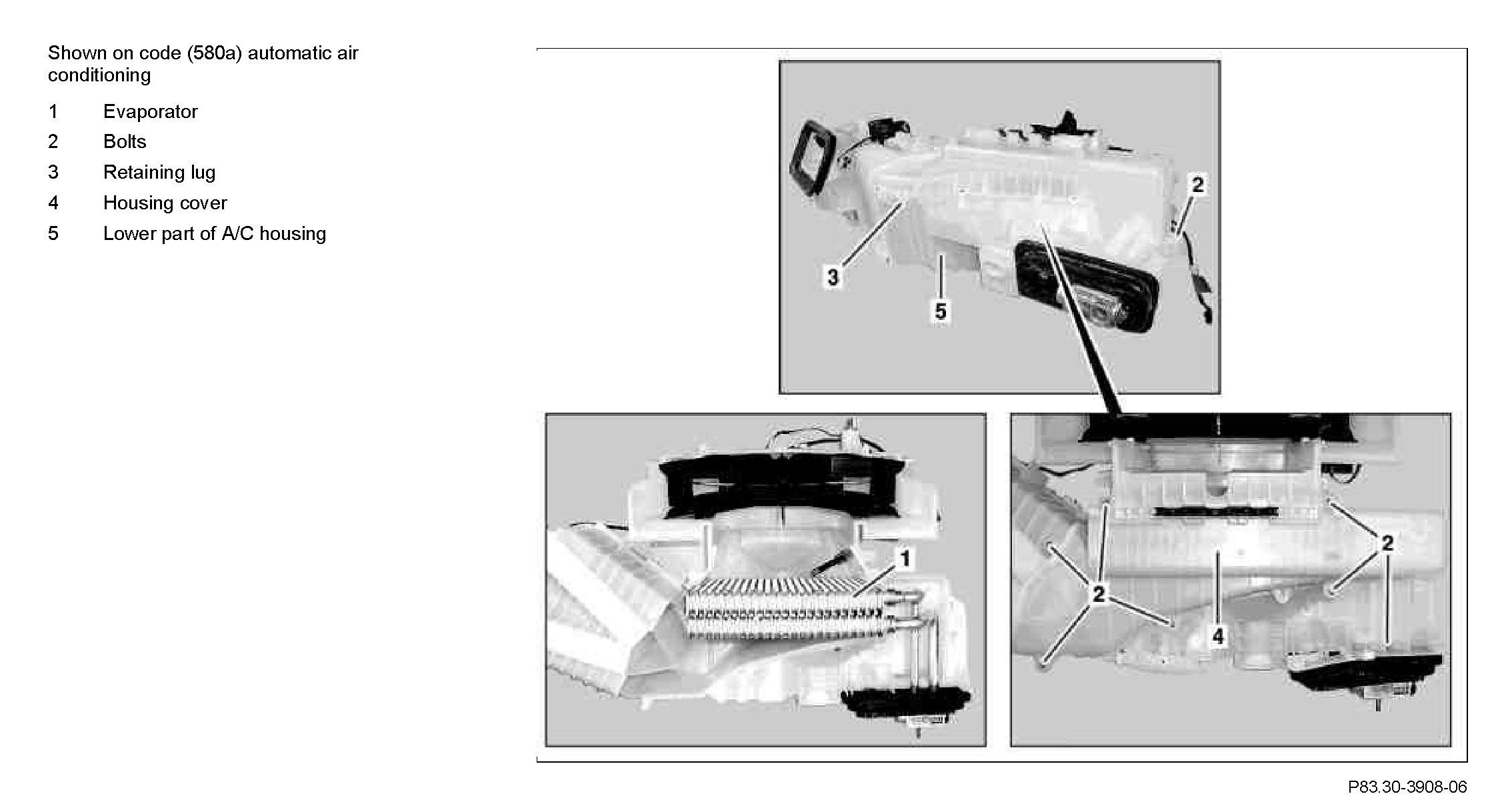

Component Identification:

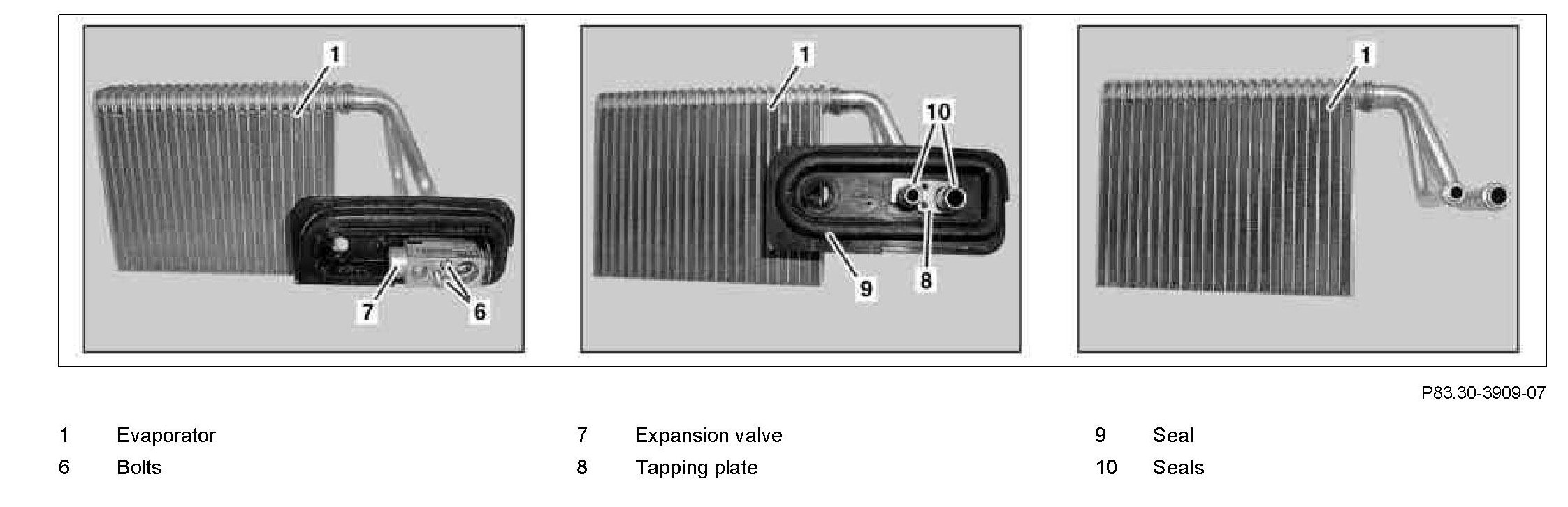

Component Identification:

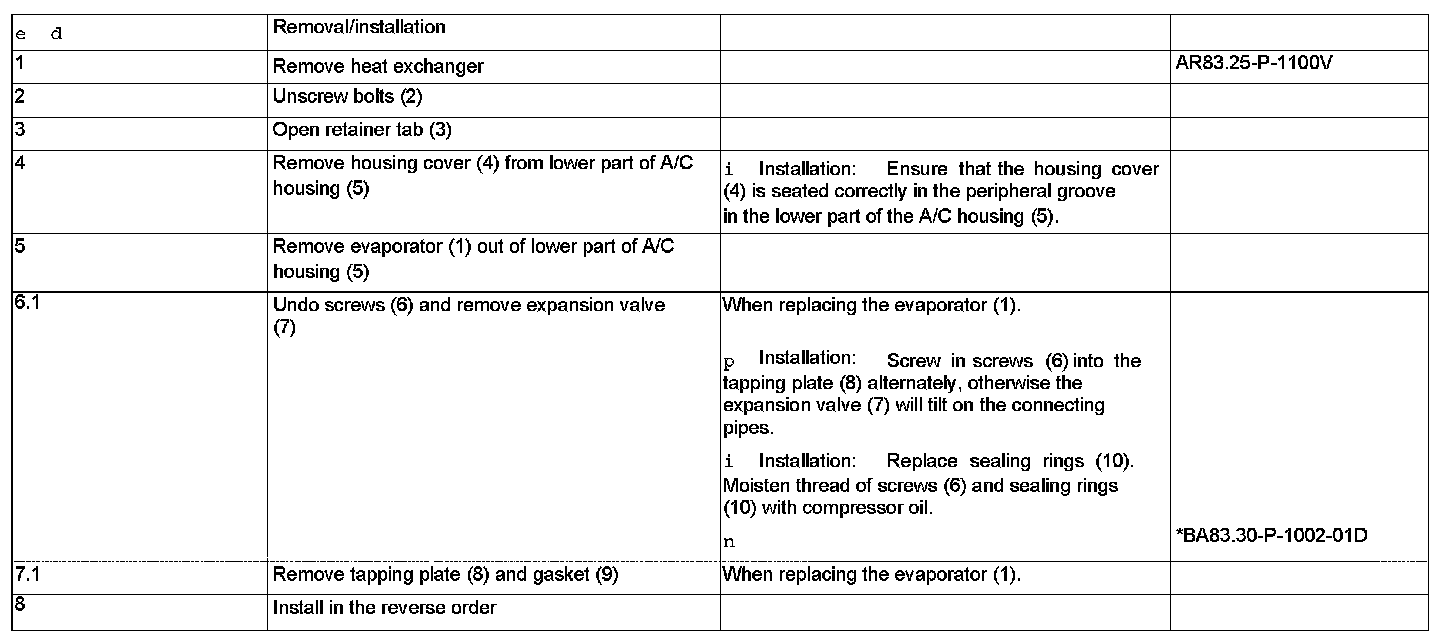

Steps 1 - 8:

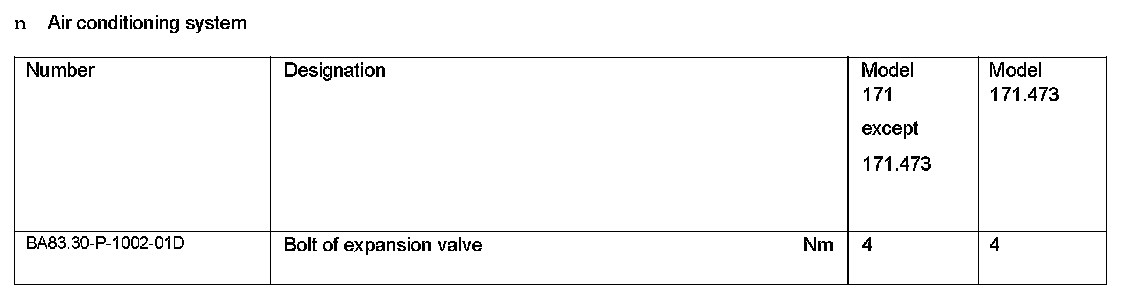

Air Conditioning System:
