AR83.00-P-1000V Remove/Install Combination Filter



AR83.00-P-1000V Remove/install Combination Filter
- with CODE (580a) Automatic air conditioning
- with CODE (581b) Convenience automatic air conditioning

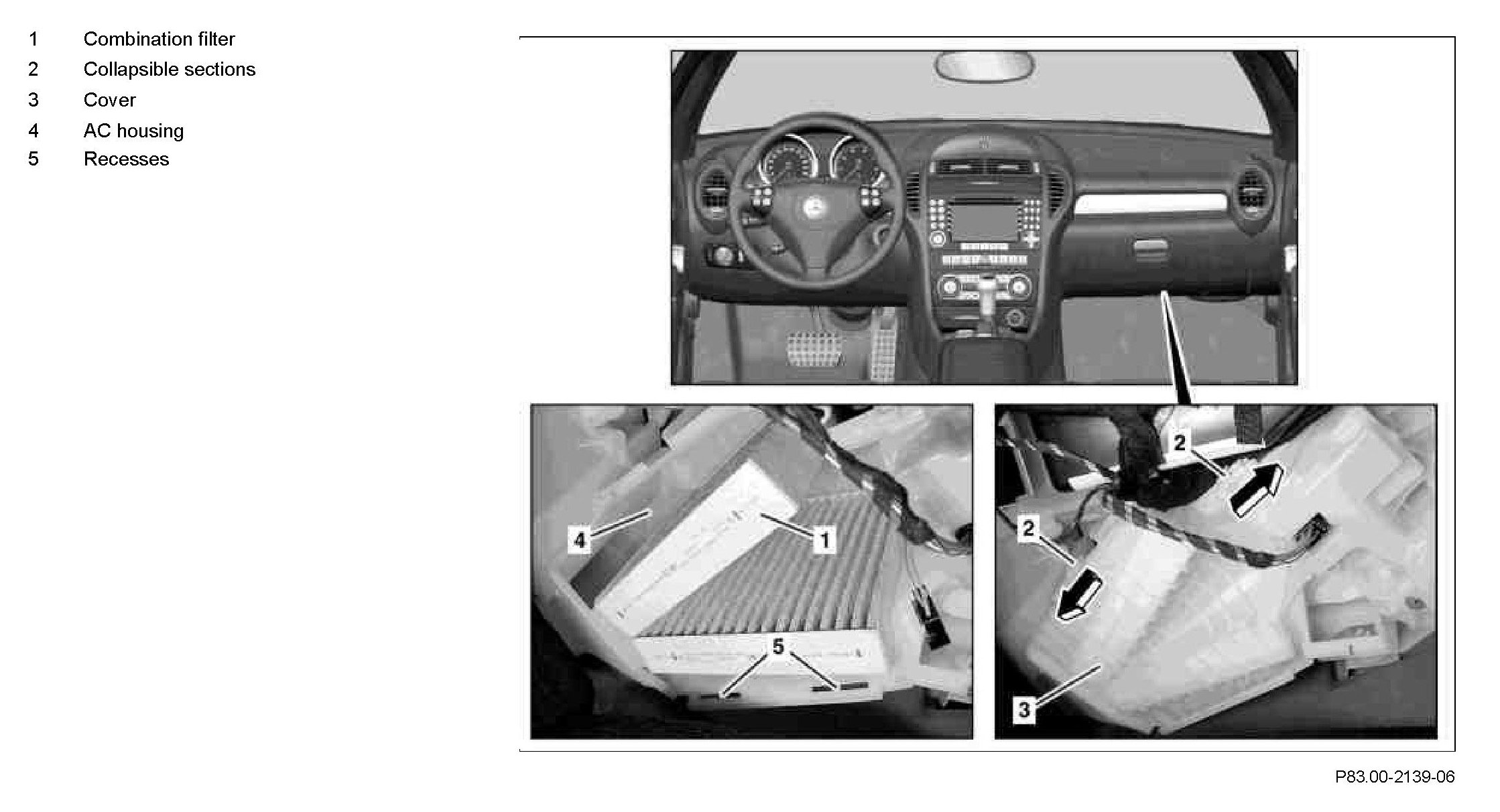

Component Identification:

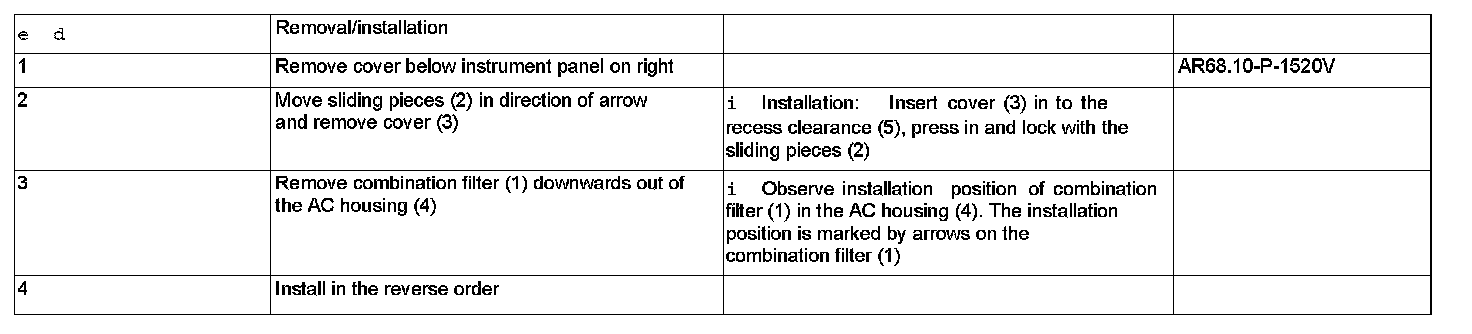

Steps 1- 4:
