SLK 280 (171.454) V6-3.0L (272.942)
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Brake Rotor/Disc
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement
AR42.10-P-0220V Remove/install brake disc

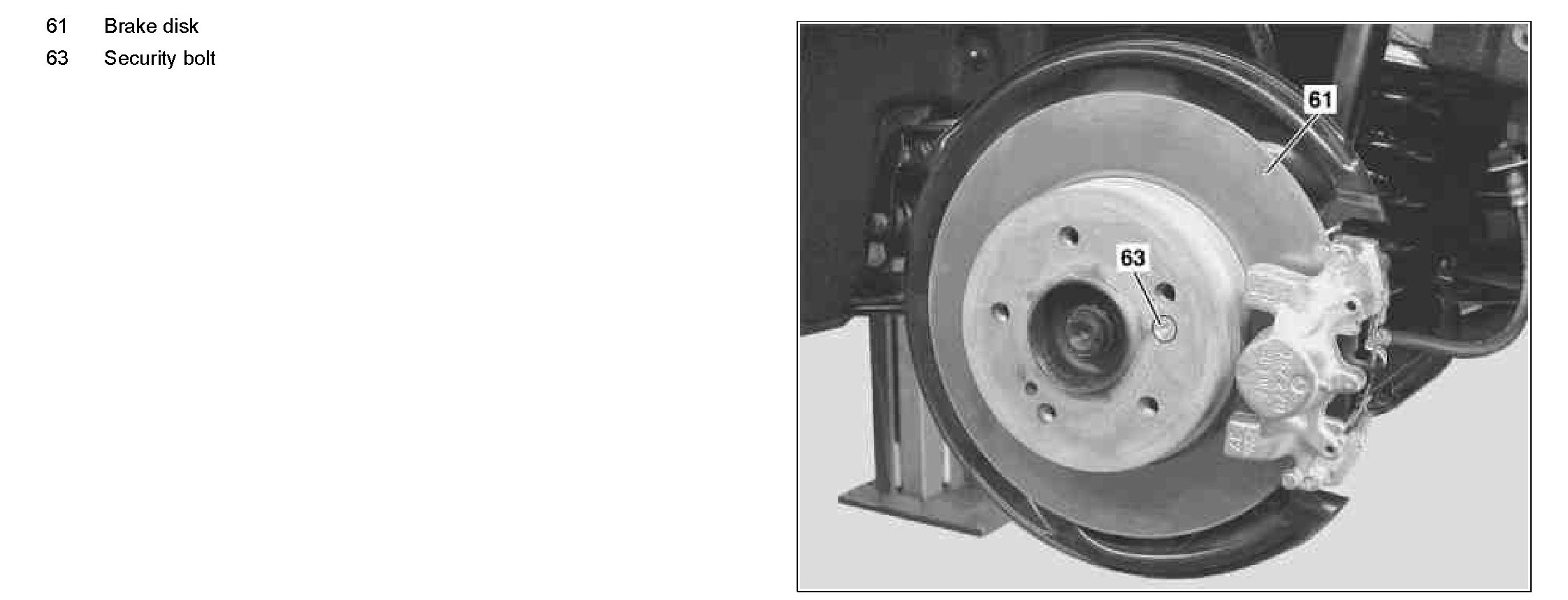

Component Identification:

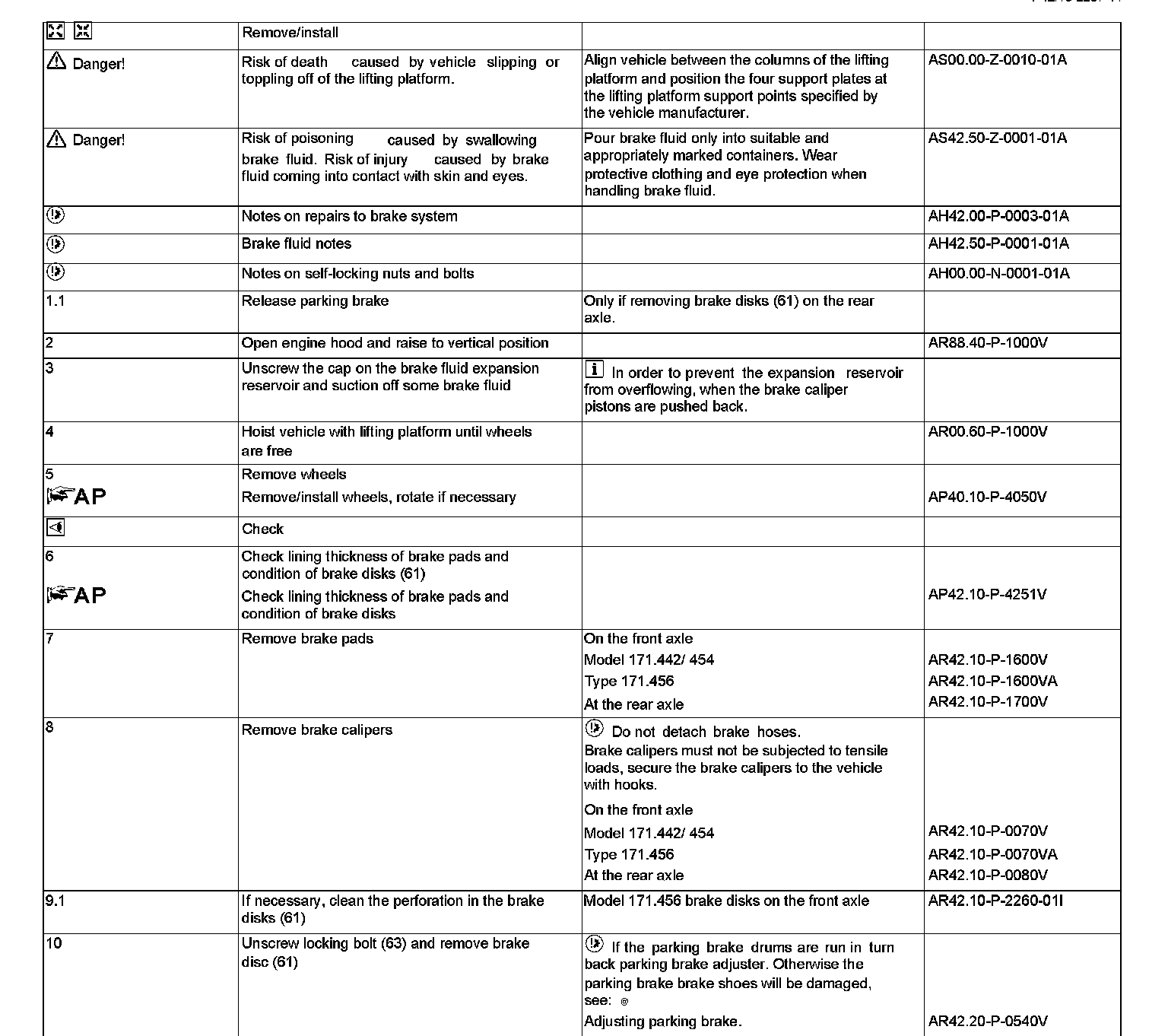

Steps 1-10:

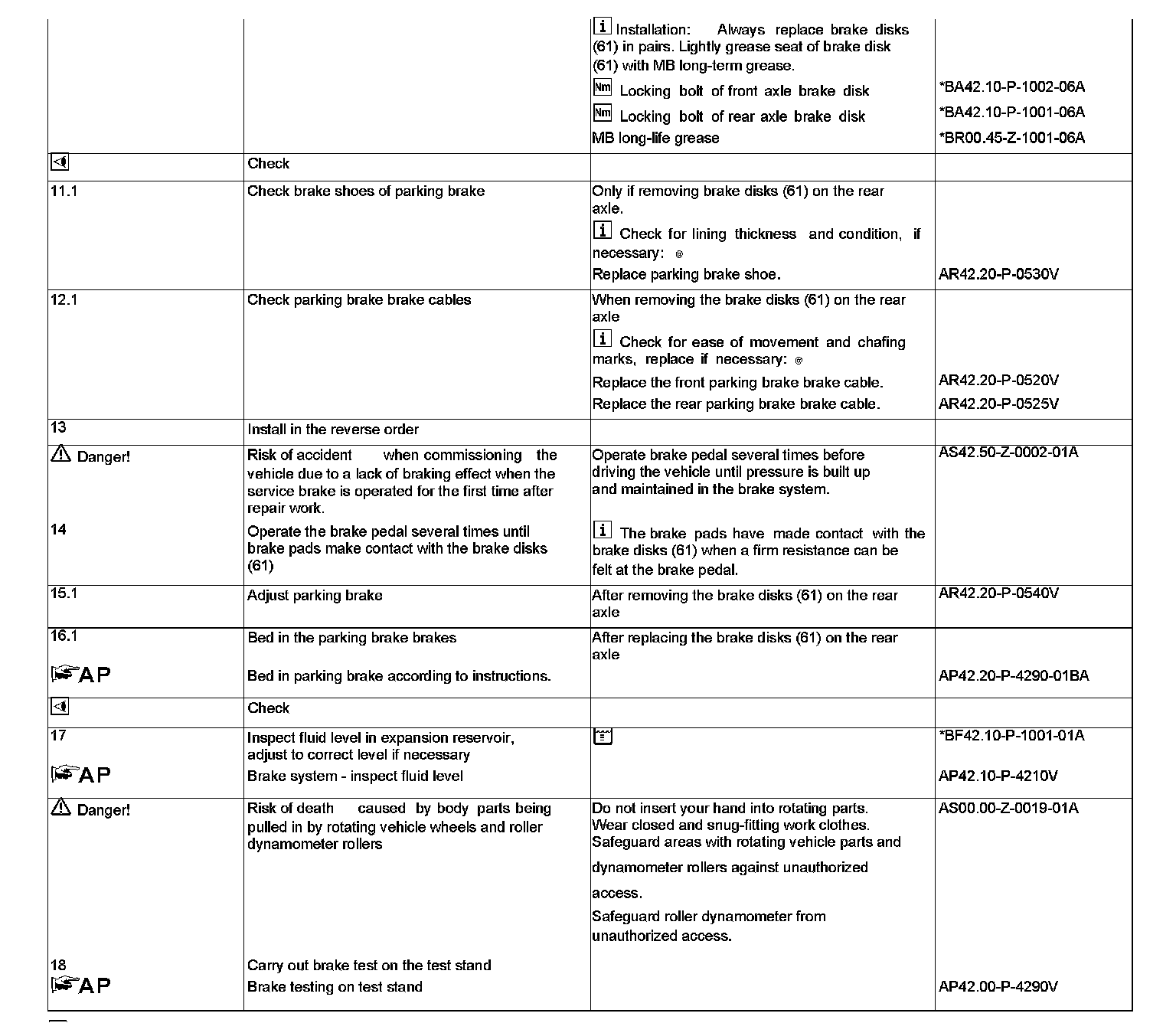

Steps 11-18:

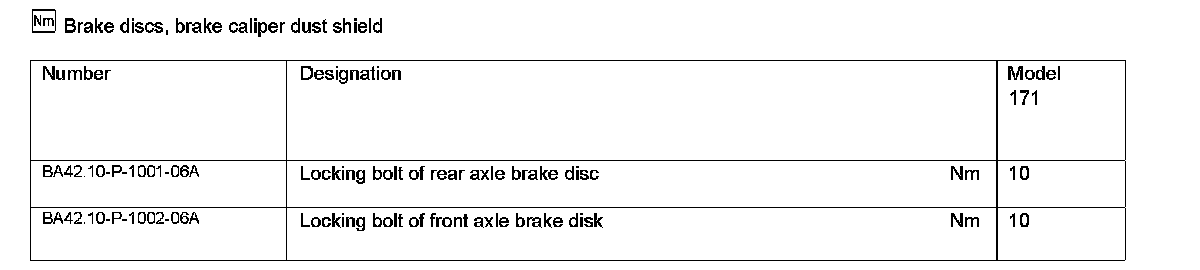

Brake Discs, Brake Caliper Dust Shield:
Brake Fluid:

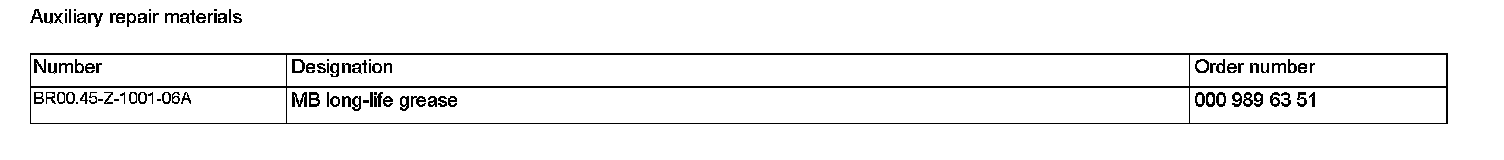

Auxiliary Repair Materials:
