AR42.10-P-0070V Remove/Install Front Axle Brake Caliper



AR42.10-P-0070V Remove/install front axle brake caliper

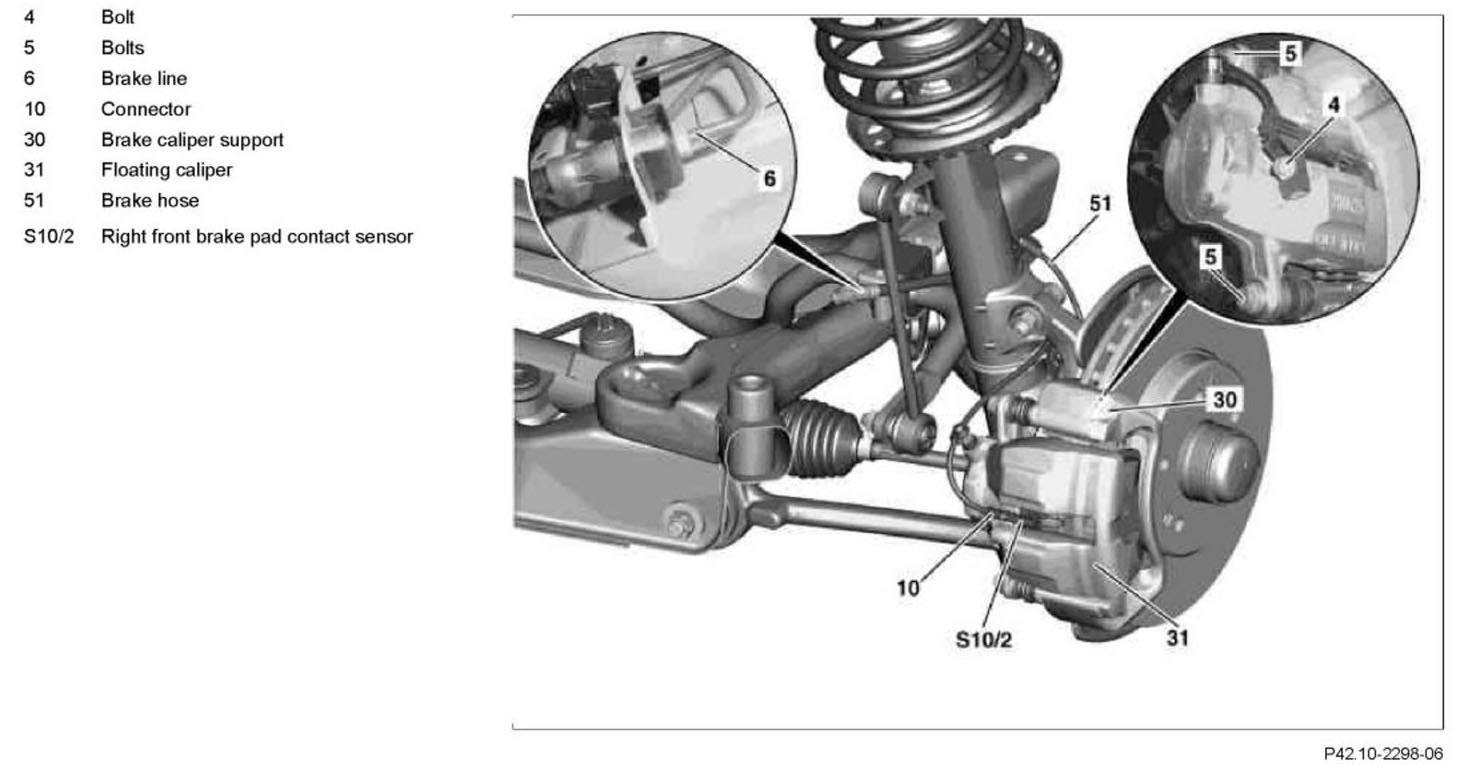

Component Identification:

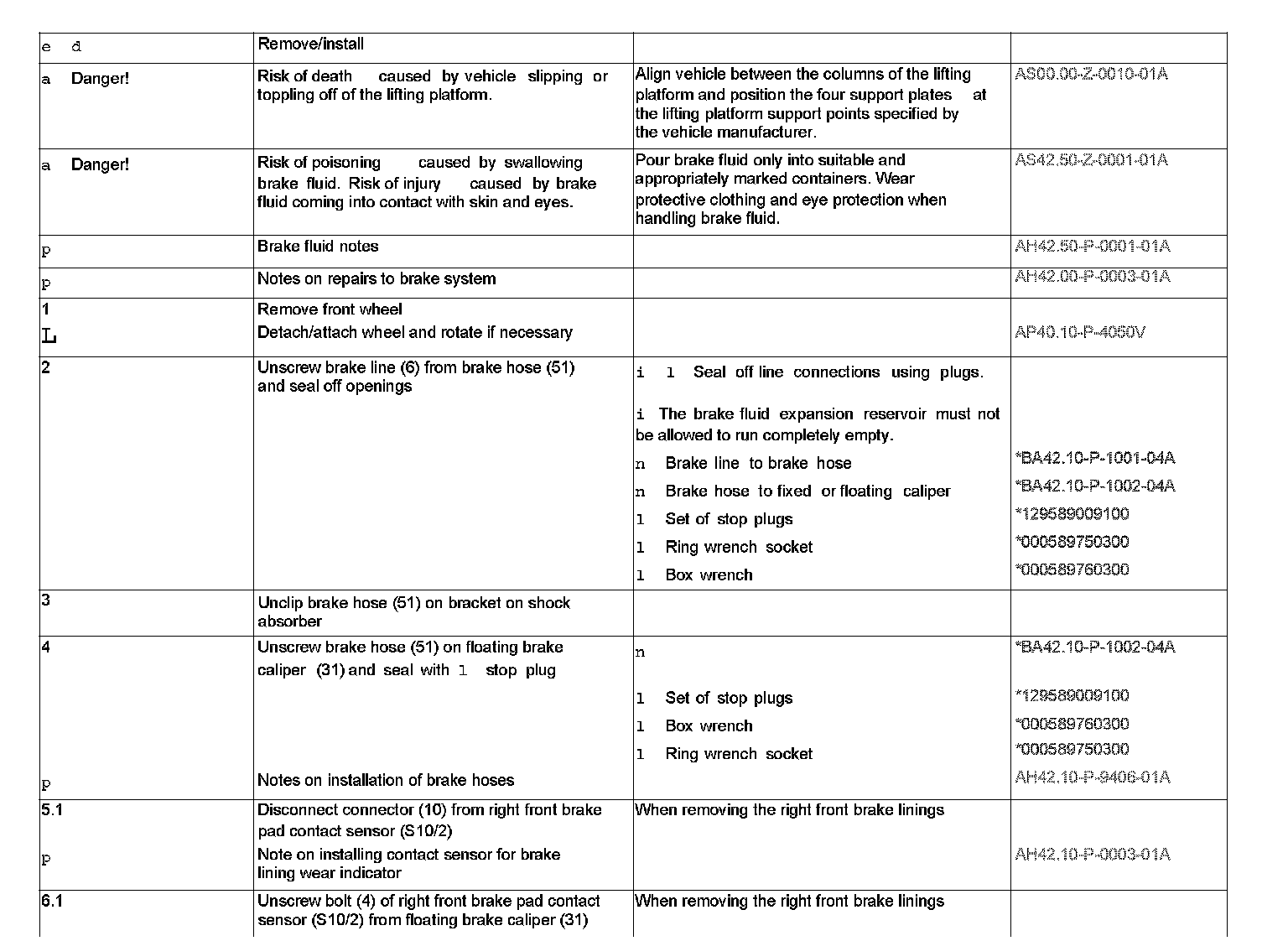

Step 1 - 6.1:

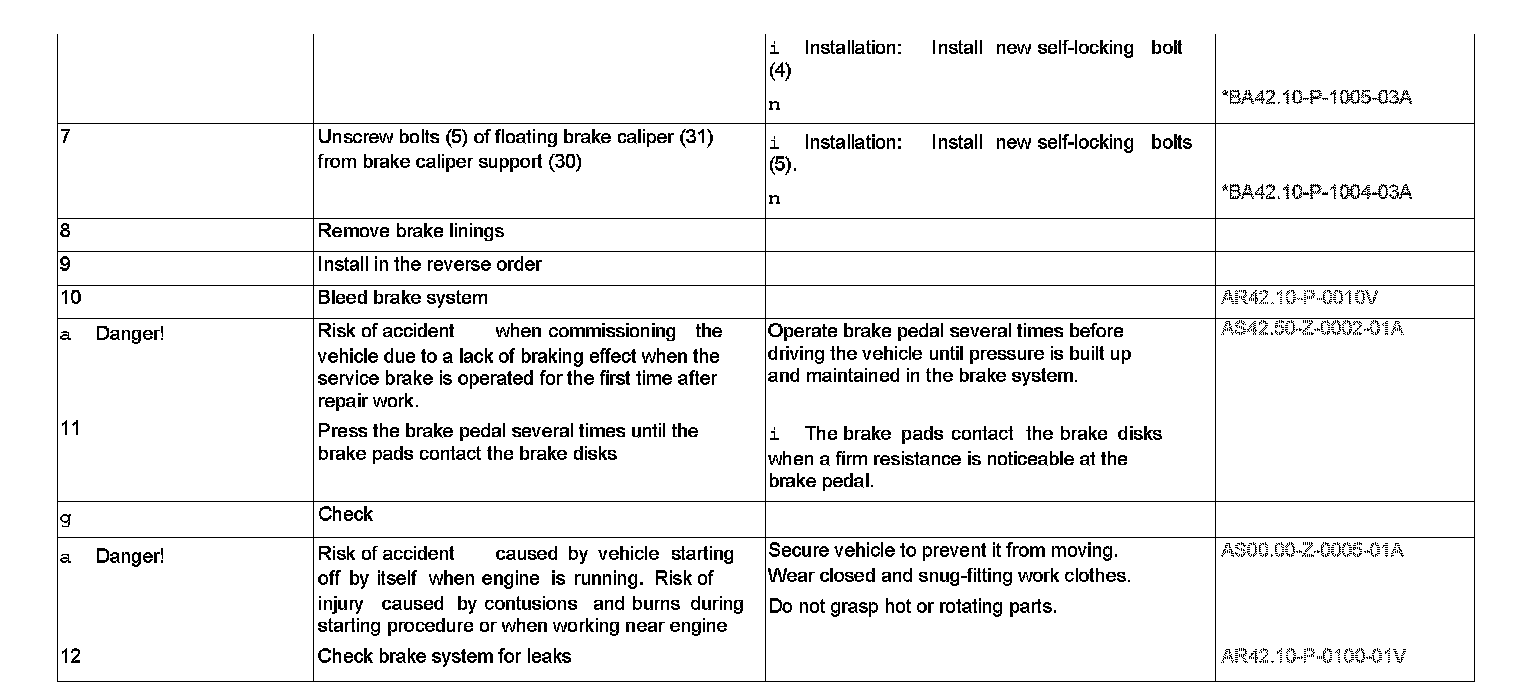

Step 7 - 12:

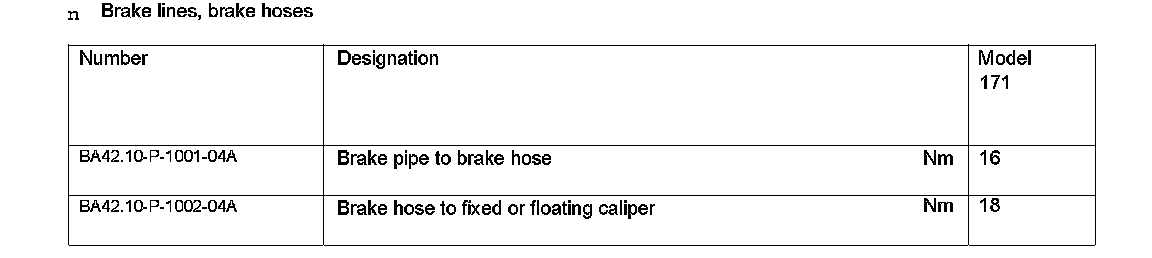

Brake Lines, Brake Hoses:

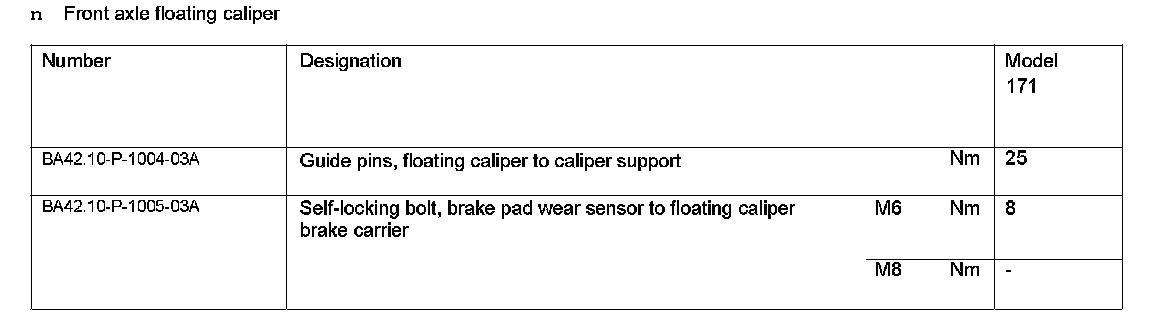

Front Axle Floating Caliper:




Special Tools:
