Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2007
>>
SL 550 (230.471) V8-5.5L (273.965)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Testing and Inspection
>>
AR15.40-P-5011RX Test Alternator Charging Current
AR15.40-P-5011RX Test Alternator Charging Current
AR15.40-P-5011RX Test
alternator
charging current

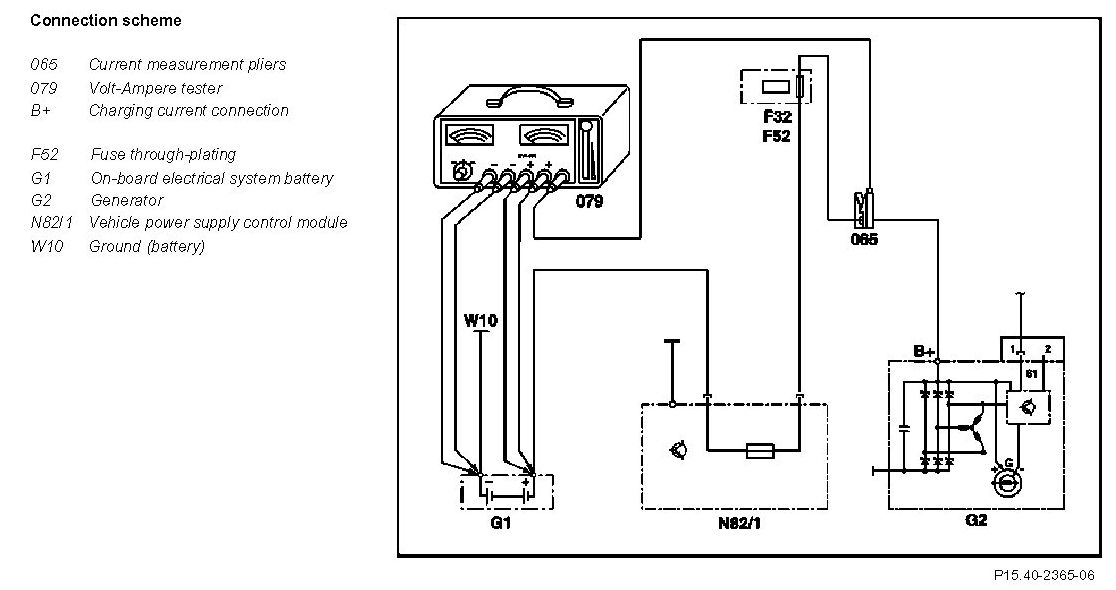

Component Identification:

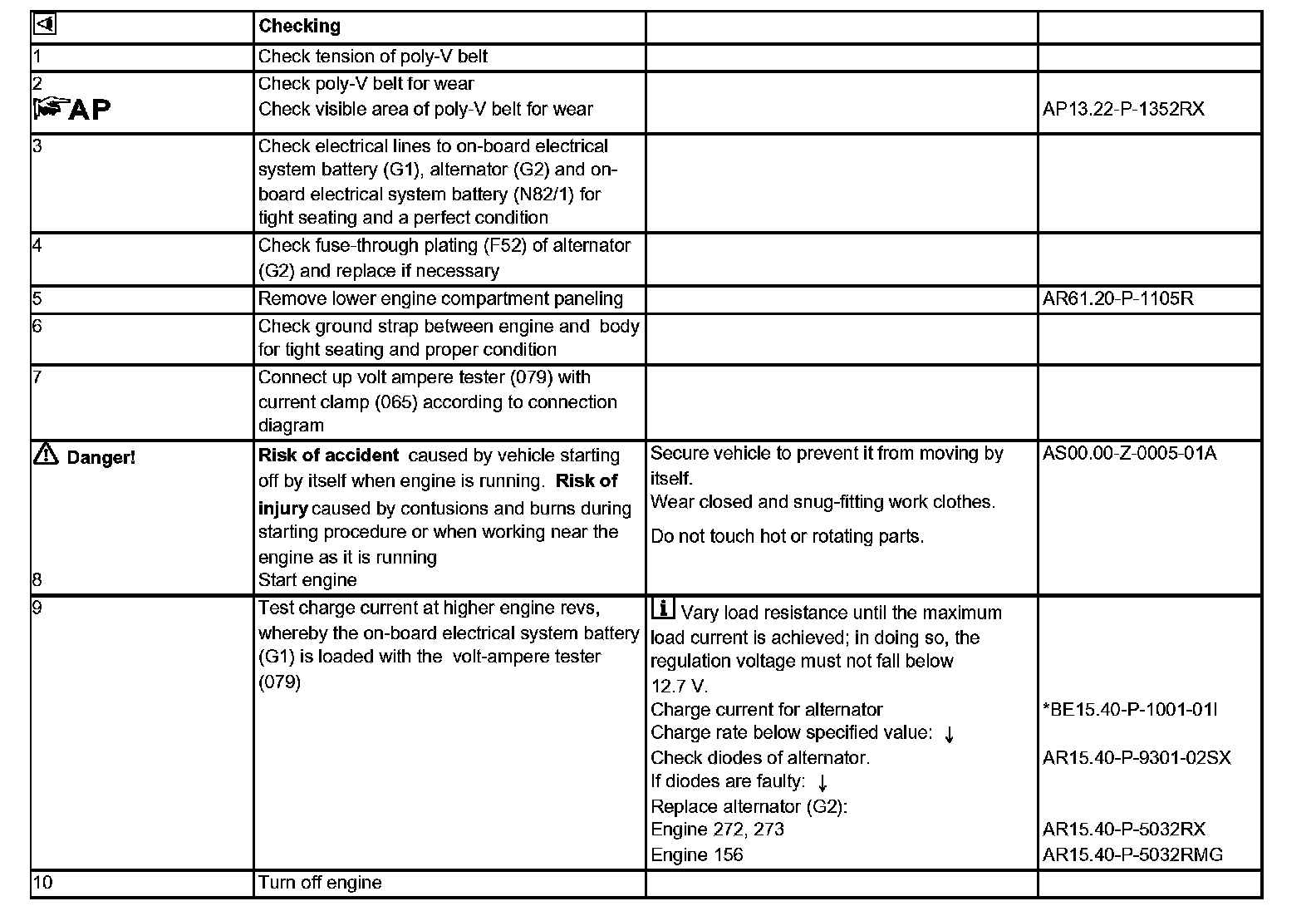

Steps 1-10:
Step 11:

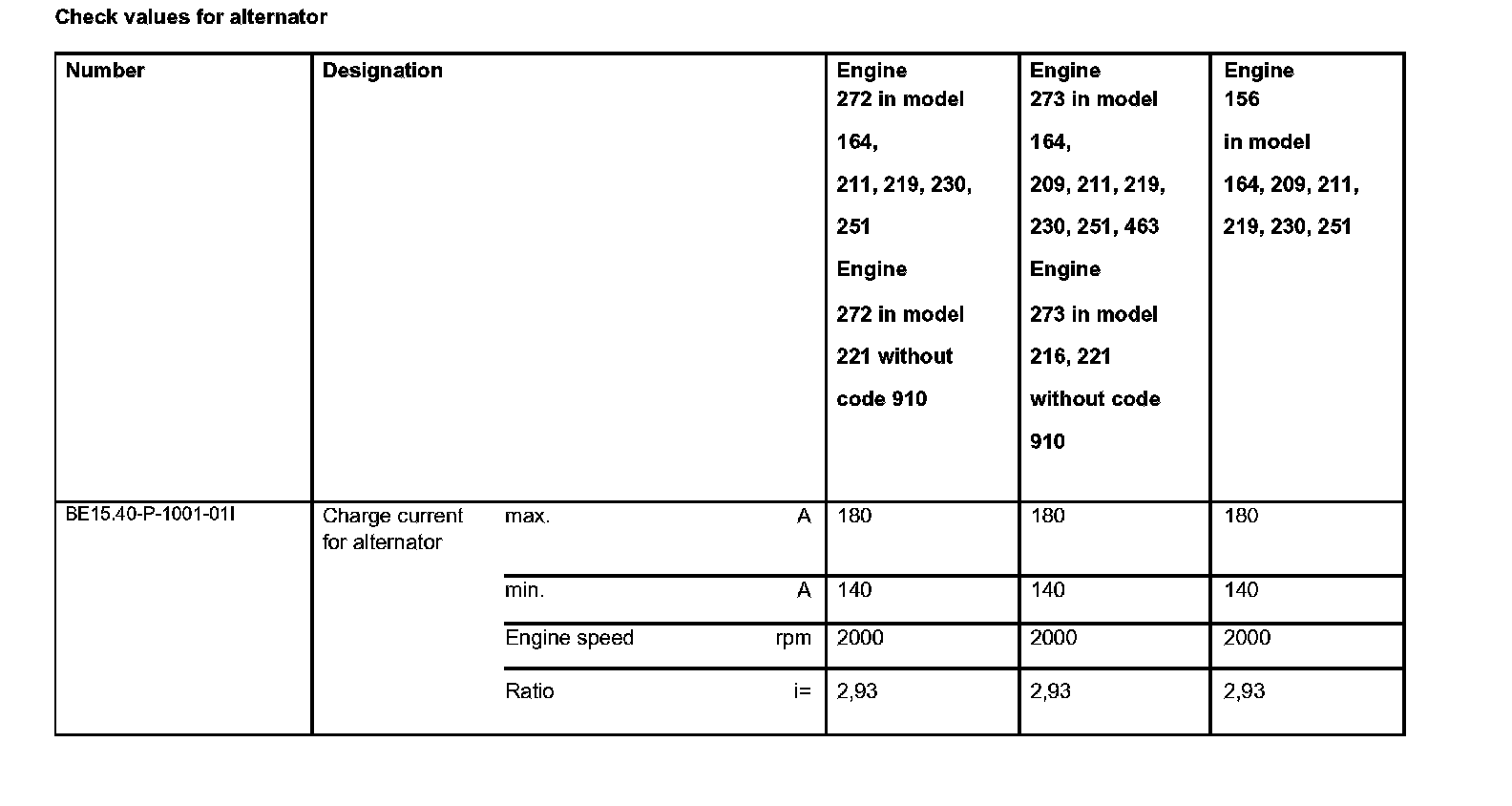

Check values for alternator:
