AR15.40-P-5000RX Checking Regulator and Alternator
AR15.40-P-5000RX Checking Regulator and Alternator
AR15.40-P-5000RX Checking regulator and
alternator

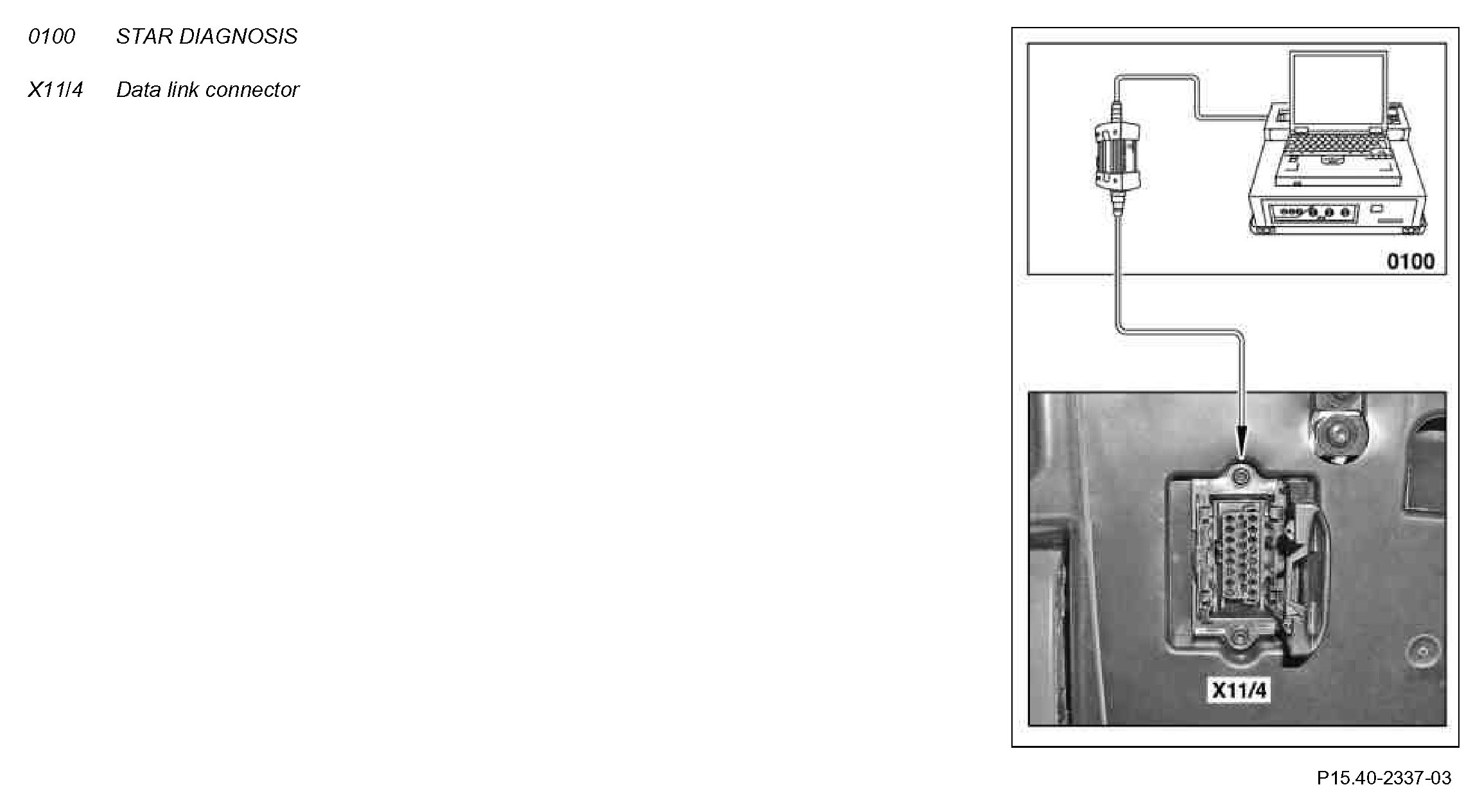

Component Identification:

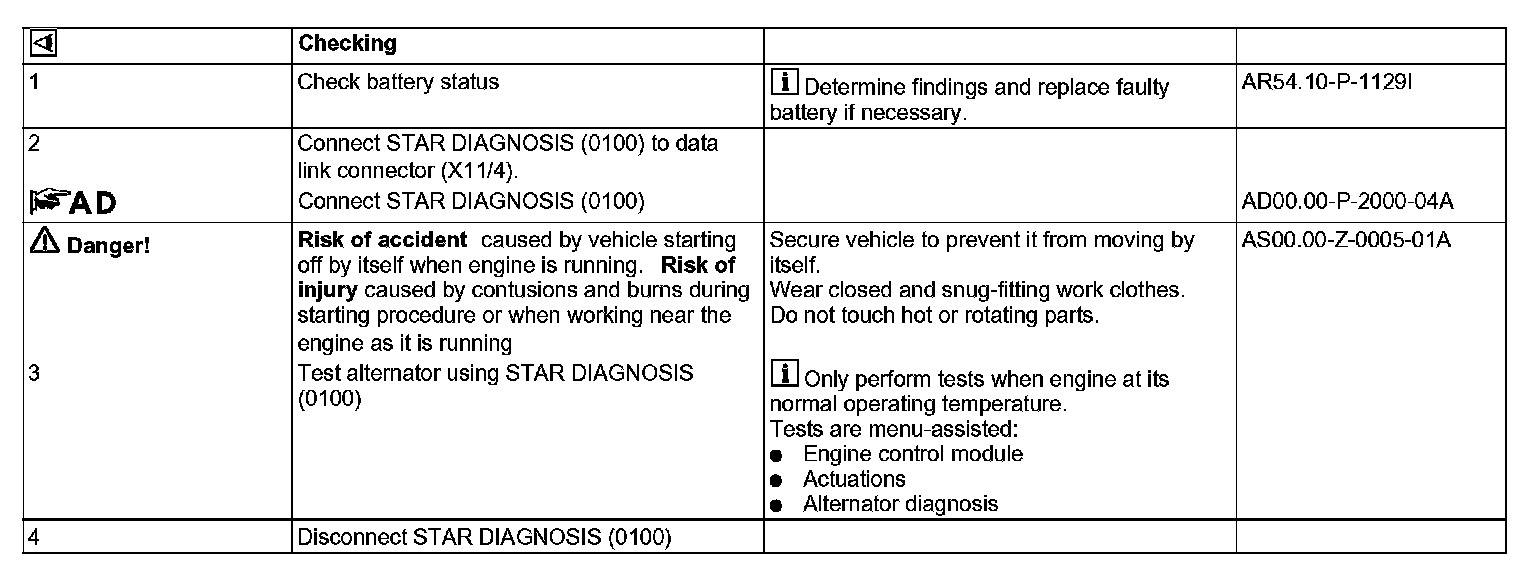

Steps 1-4:
