Alternator Pulley / Clutch: Service and Repair
AR15.40-P-5710RX Remove/install
alternator
belt pulley

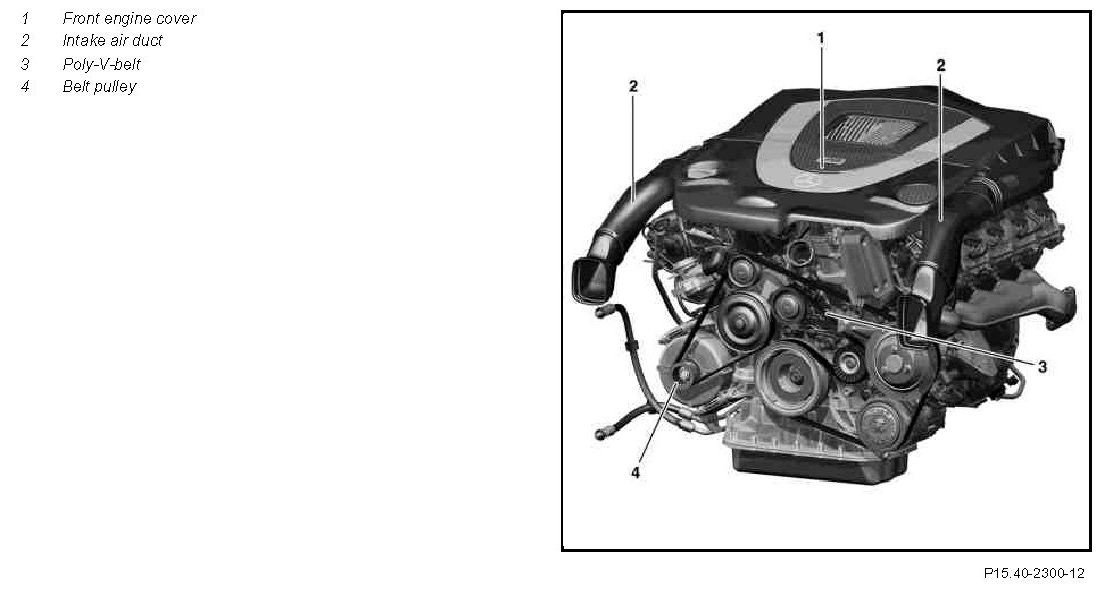

Component Identification:

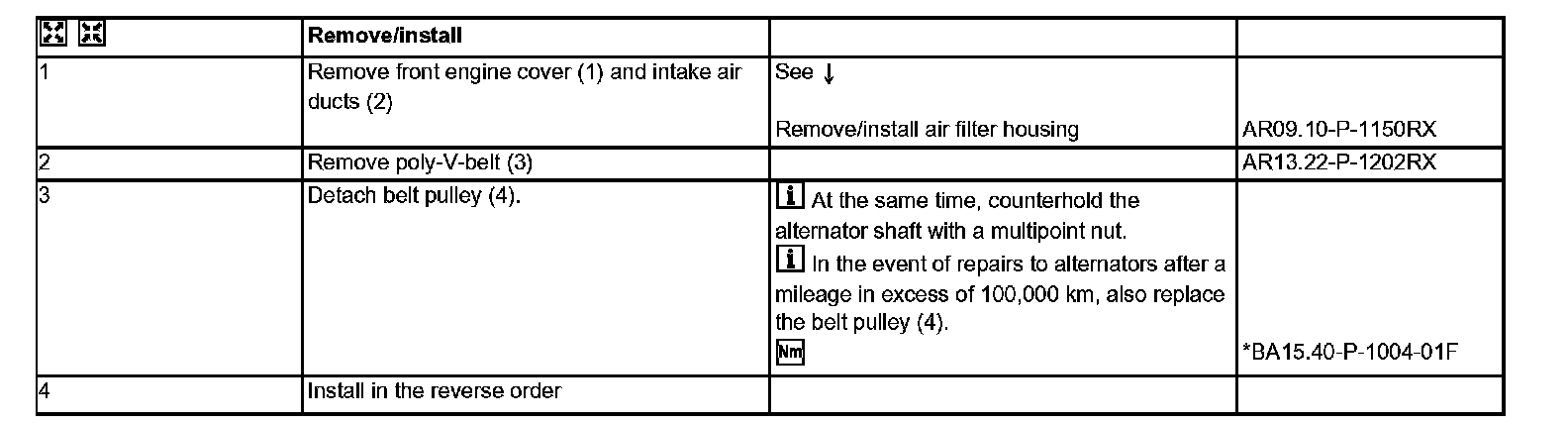

Remove/install Steps 1-4:

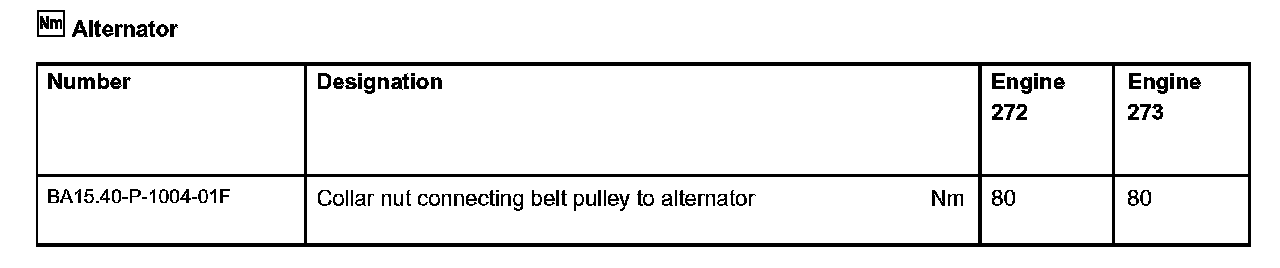

Alternator:
