Air Injection Pump: Service and Repair



AR14.30-P-7251RX Remove/install air pump

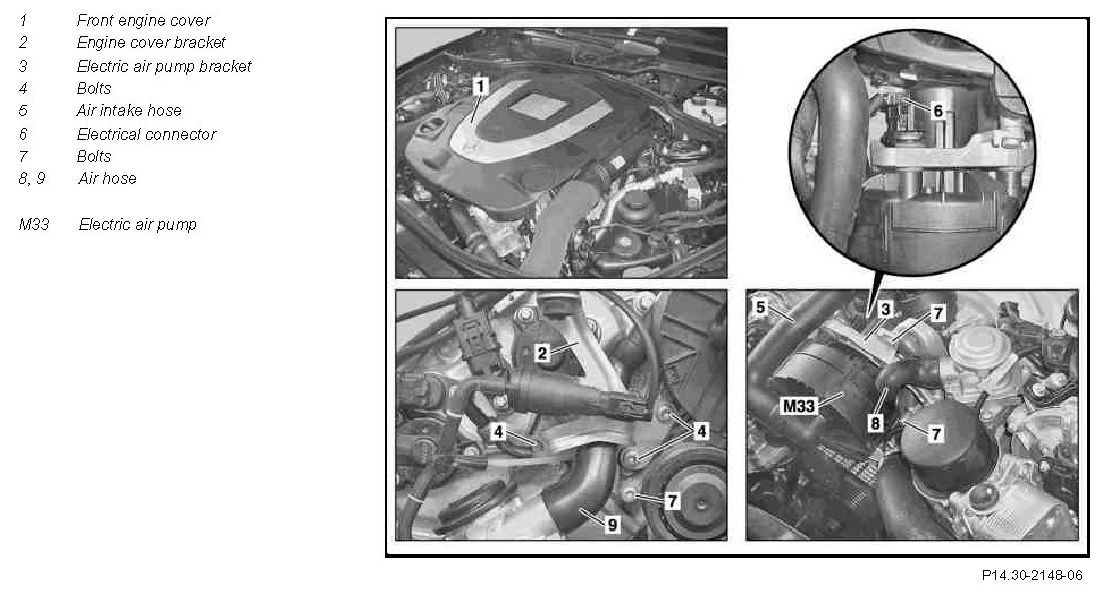

Component Identification:




Remove/install Steps 1-11:

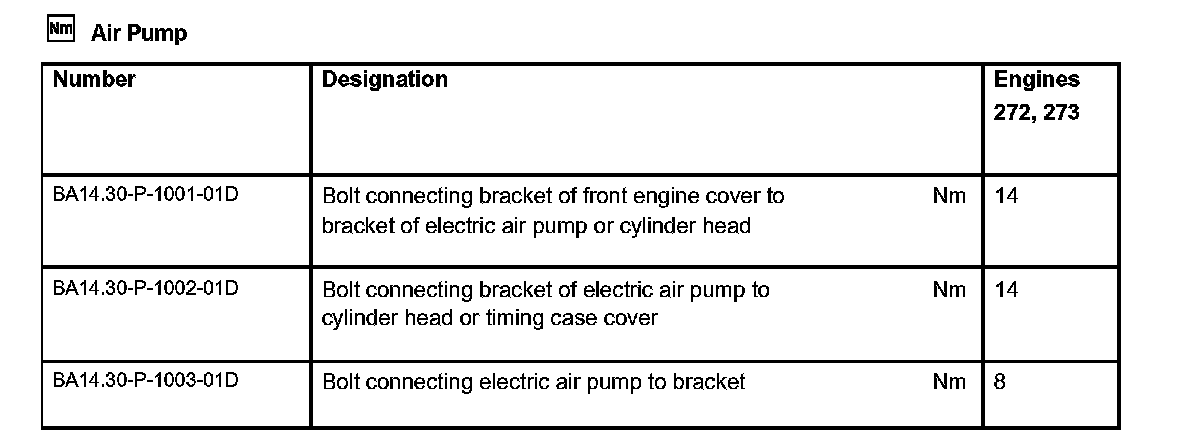

Air Pump:

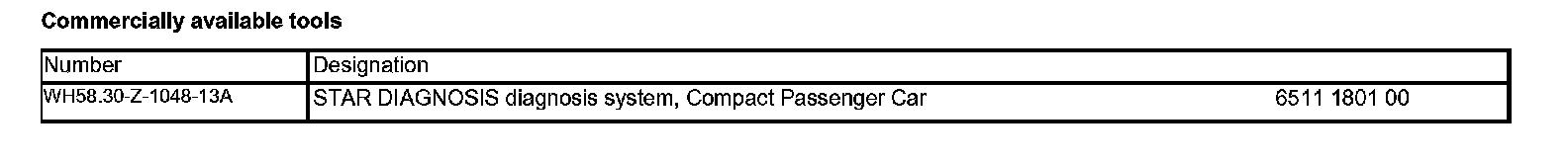

Commercially available tools:
