AR03.10-P-7021RX Remove, install pistons

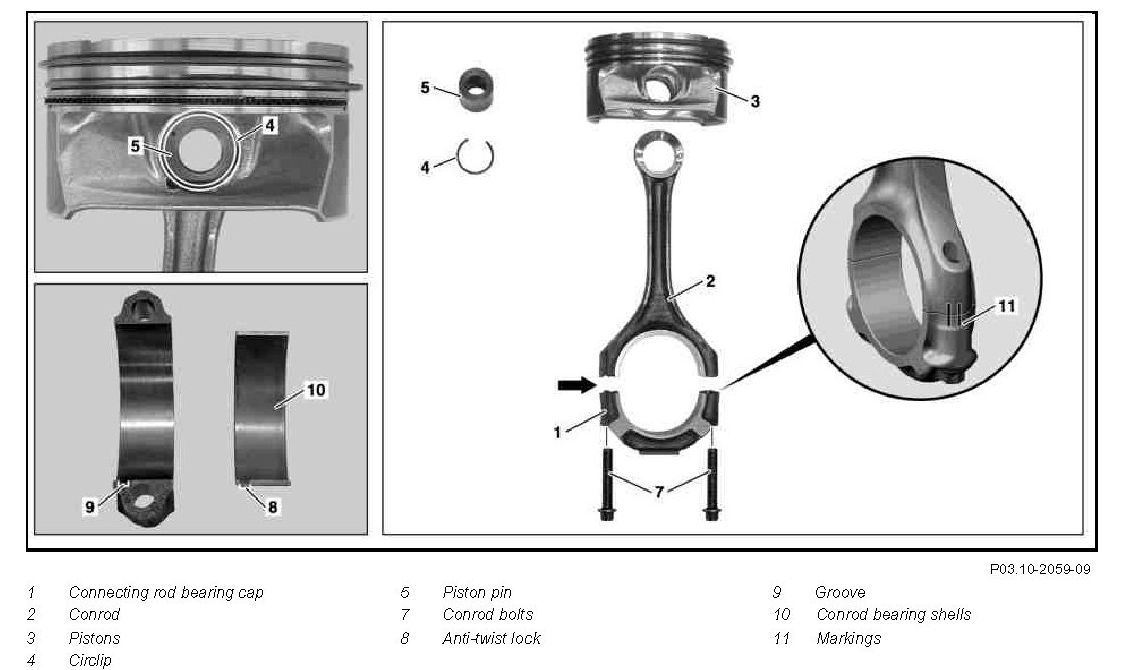

Component Identification:
Component Identification:

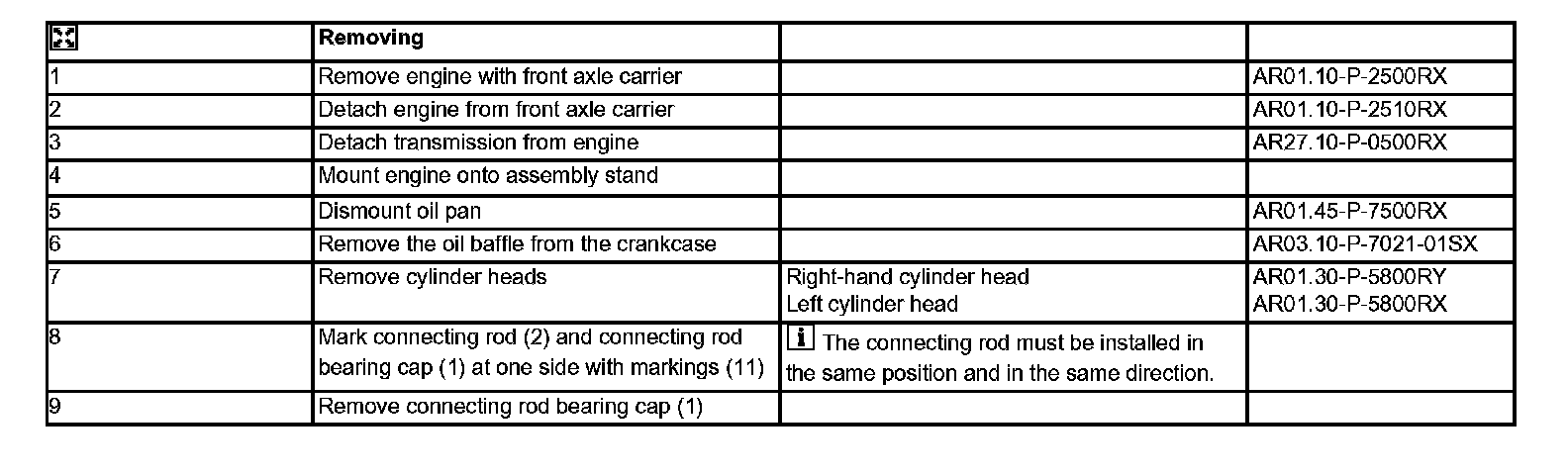

Remove/install Steps 1-9:

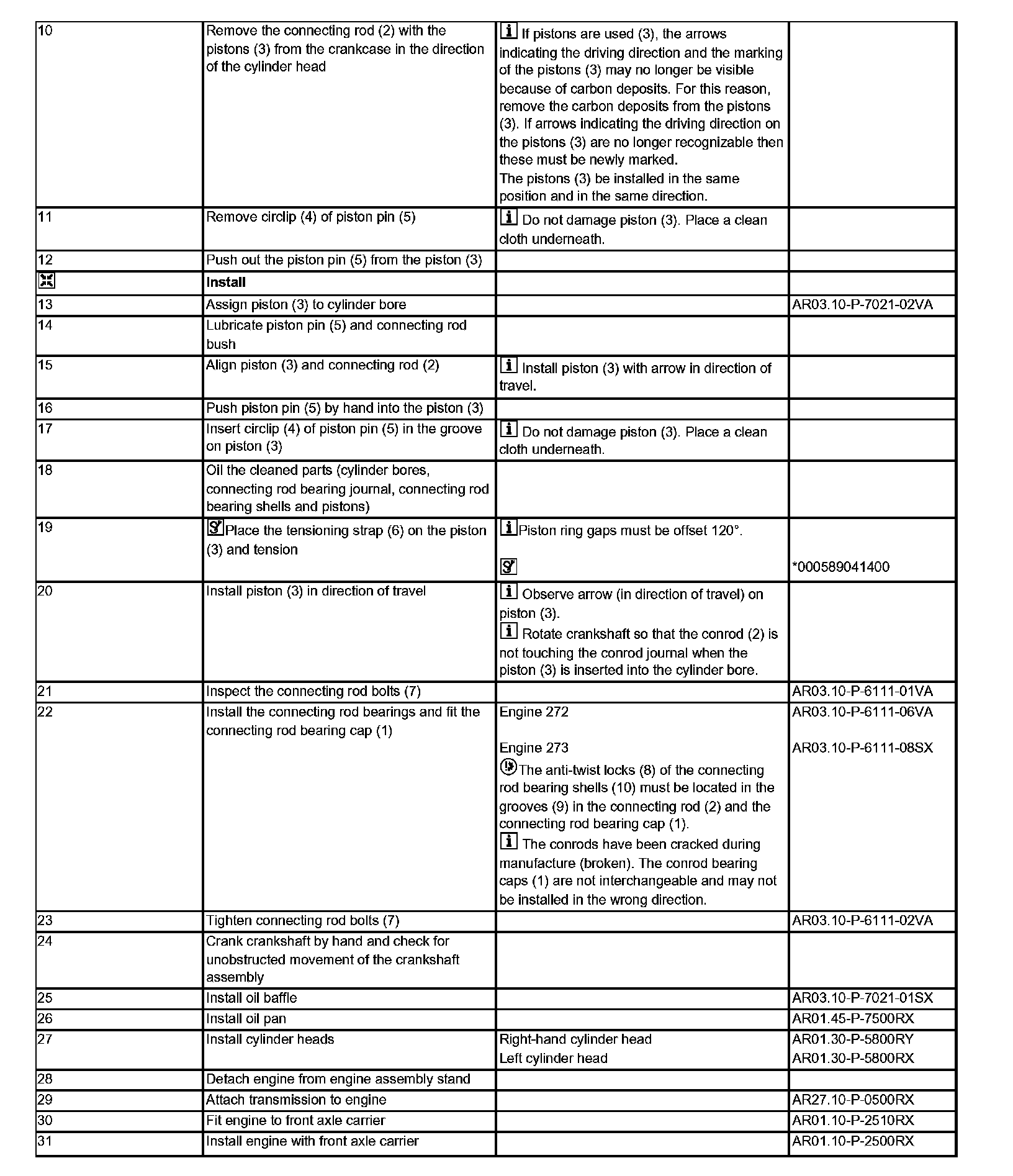

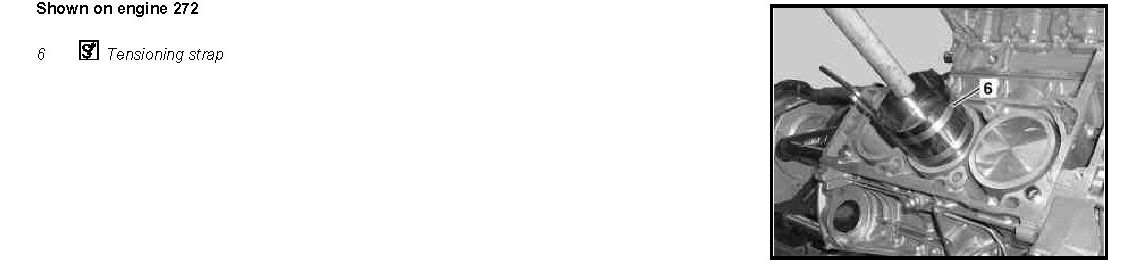

Remove/install Steps 10-31:

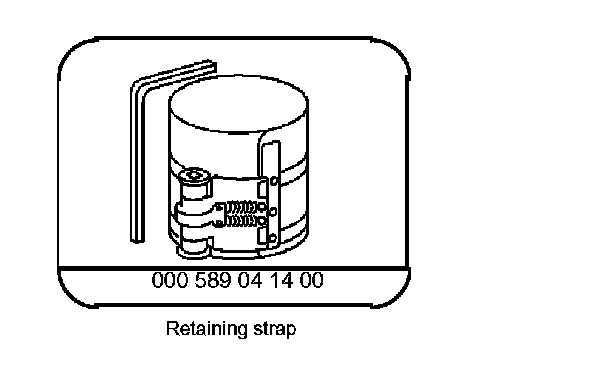

Special Tools:
