Home >> Mercedes Benz >> 2007 >> SL 55 AMG (230.472) V8-5.5L SC (113.995) >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser HVAC >> Service and Repair >> AR83.30-P-6540RBS Remove/Install Condenser

AR83.30-P-6540RBS Remove/Install Condenser



AR83.30-P-6540RBS Remove/install Condenser
- with CODE (P99) Special model "AMG Black Series"

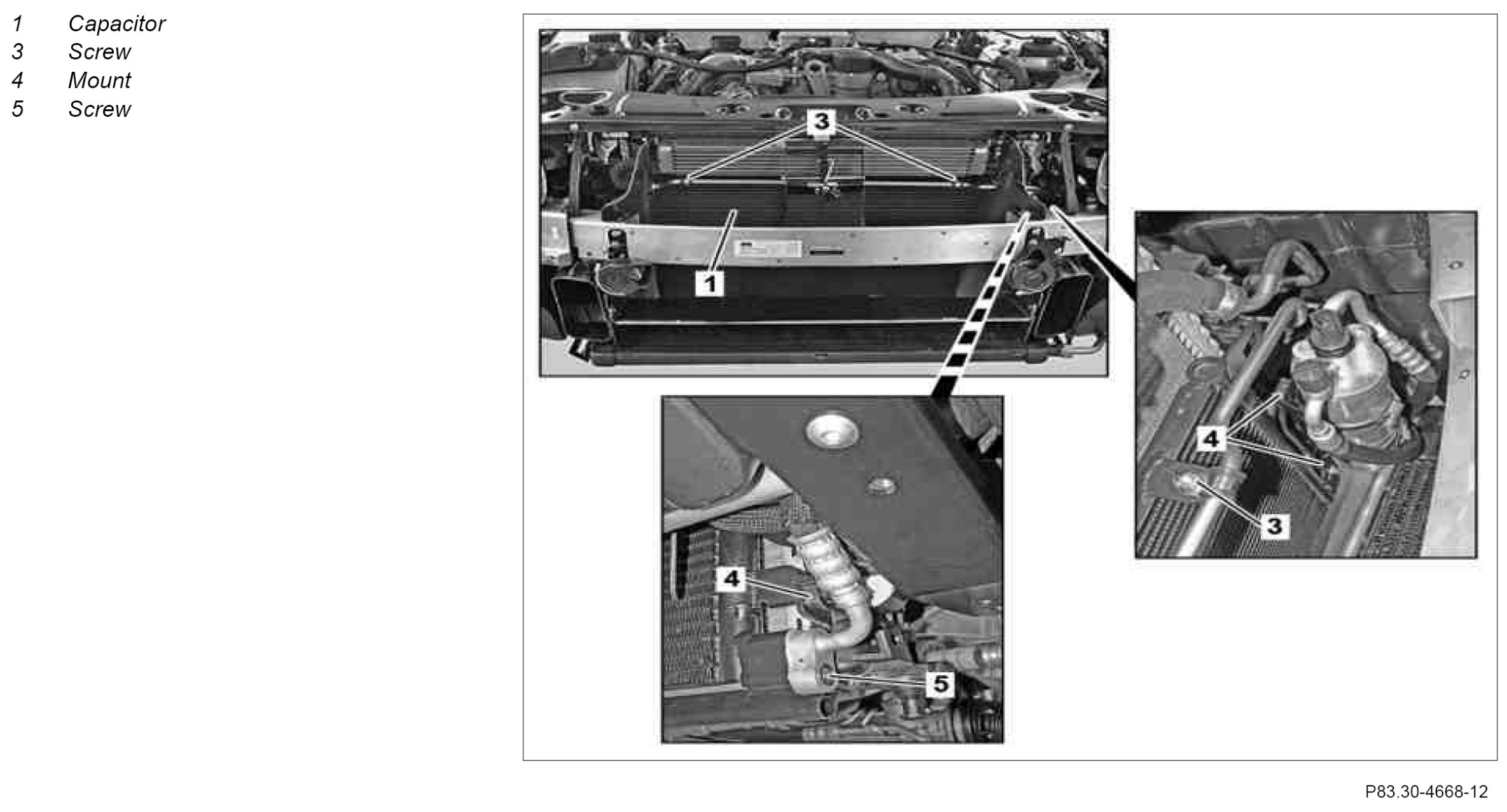

Component Identification:

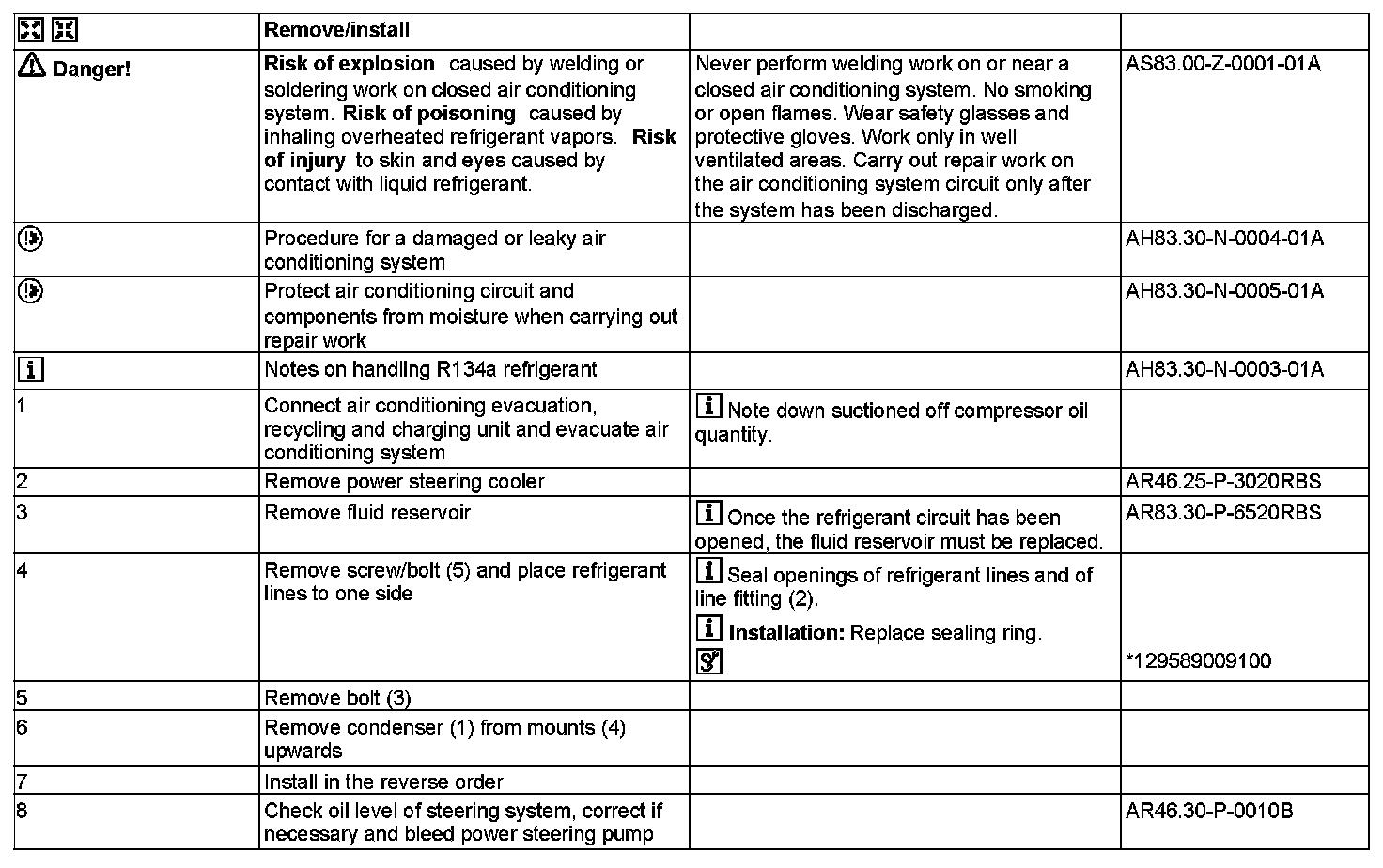

Steps 1-8:

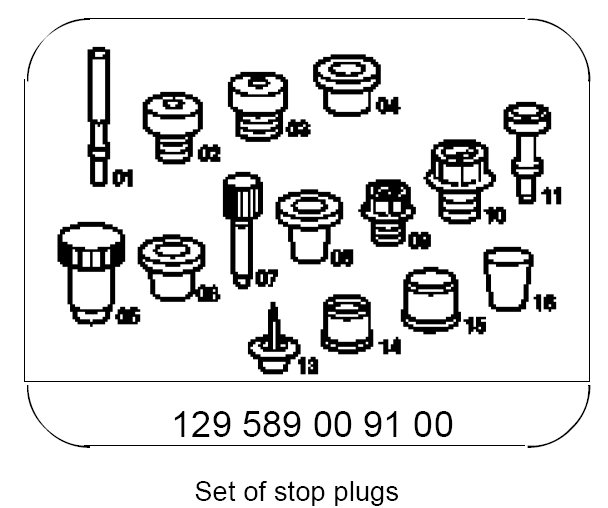

Special Tools:
