AR83.10-P-4718R Remove/Install Defroster Nozzles For Windshield

AR83.10-P-4718R Remove/Install Defroster Nozzles For Windshield

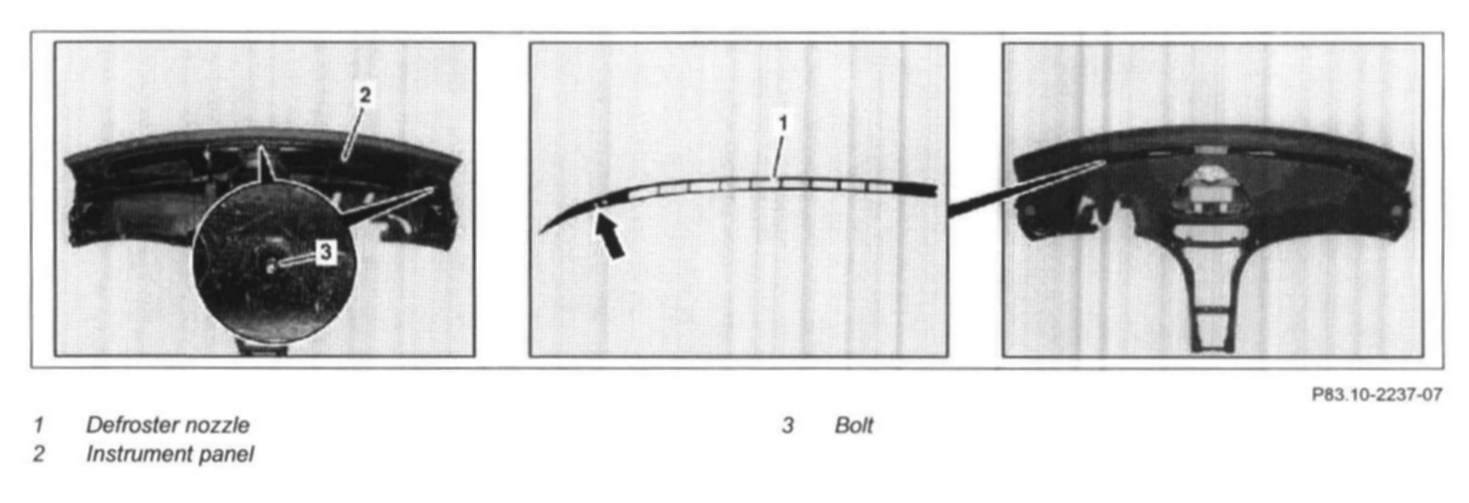

1 Remove instrument panel (2)
2 Unscrew screws (3)
3 Lift defroster nozzle (1) at the opening (arrow) using a pulling hook and simultaneously unclip the defroster nozzle (1) out of the instrument panel (2) using a longitudinal wedge

CAUTION: Risk of cracks and fracture to the defroster nozzle.

NOTE: Installation: The defroster nozzle must audibly latch into the instrument panel.

- See "Special Tools" given below.

4 Install in the reverse order.

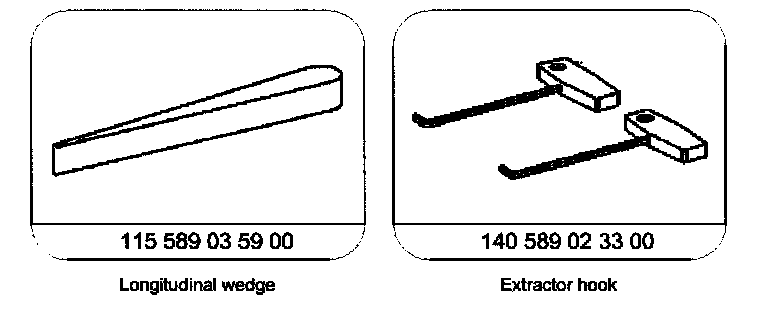

Special Tools

Special Tools:
