A/T - 'M' Program is Not Available

Date: March 22, 2007

Order No.: P-B-27.19/91a

Supersedes: P-B-27.19/91 dated January 18, 2007

Group: 27

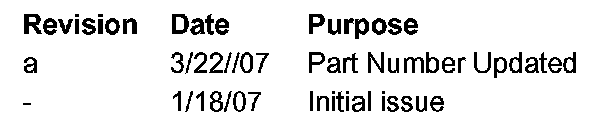

Revision History

SUBJECT:
Model 221.179

Automatic Transmission Program Selector Switch, "M" Program is Not Available

If you receive customer reports in the above model vehicle of the "M" (manual) program mode being unavailable, this is related to the wrong central operating unit being installed (component A4019).

To resolve:

1. Replace the switch block-central operating unit (A4019).

2. Perform a SCN coding of the instrument cluster.

3. Perform a quick test.

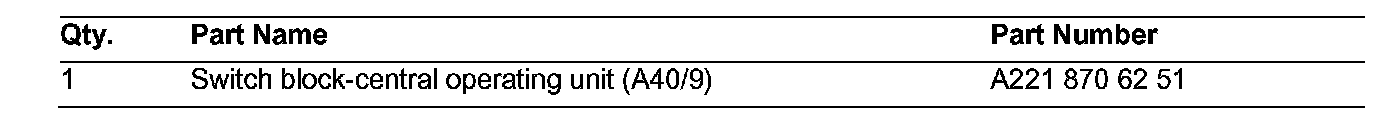

Parts Information

Note:

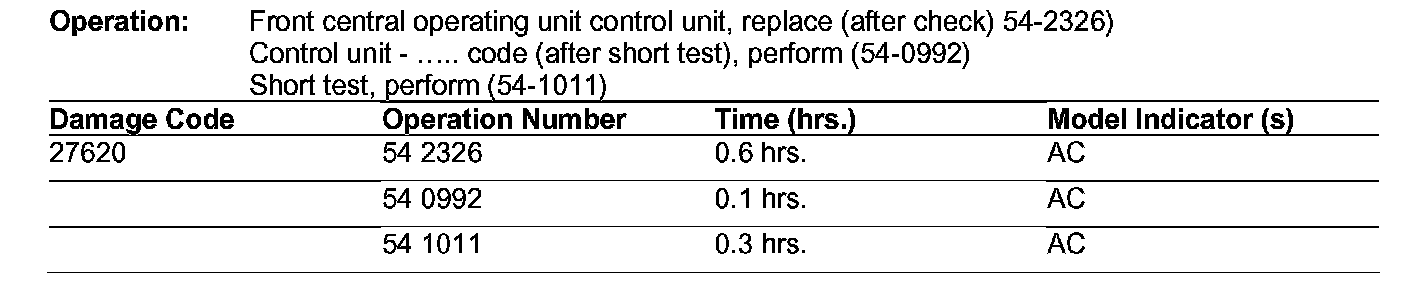

The following allowable labor operations should be used when submitting a warranty claim for this repair





In Case of Warranty
