AR67.10-P-1000SXS Remove/Install Windshield

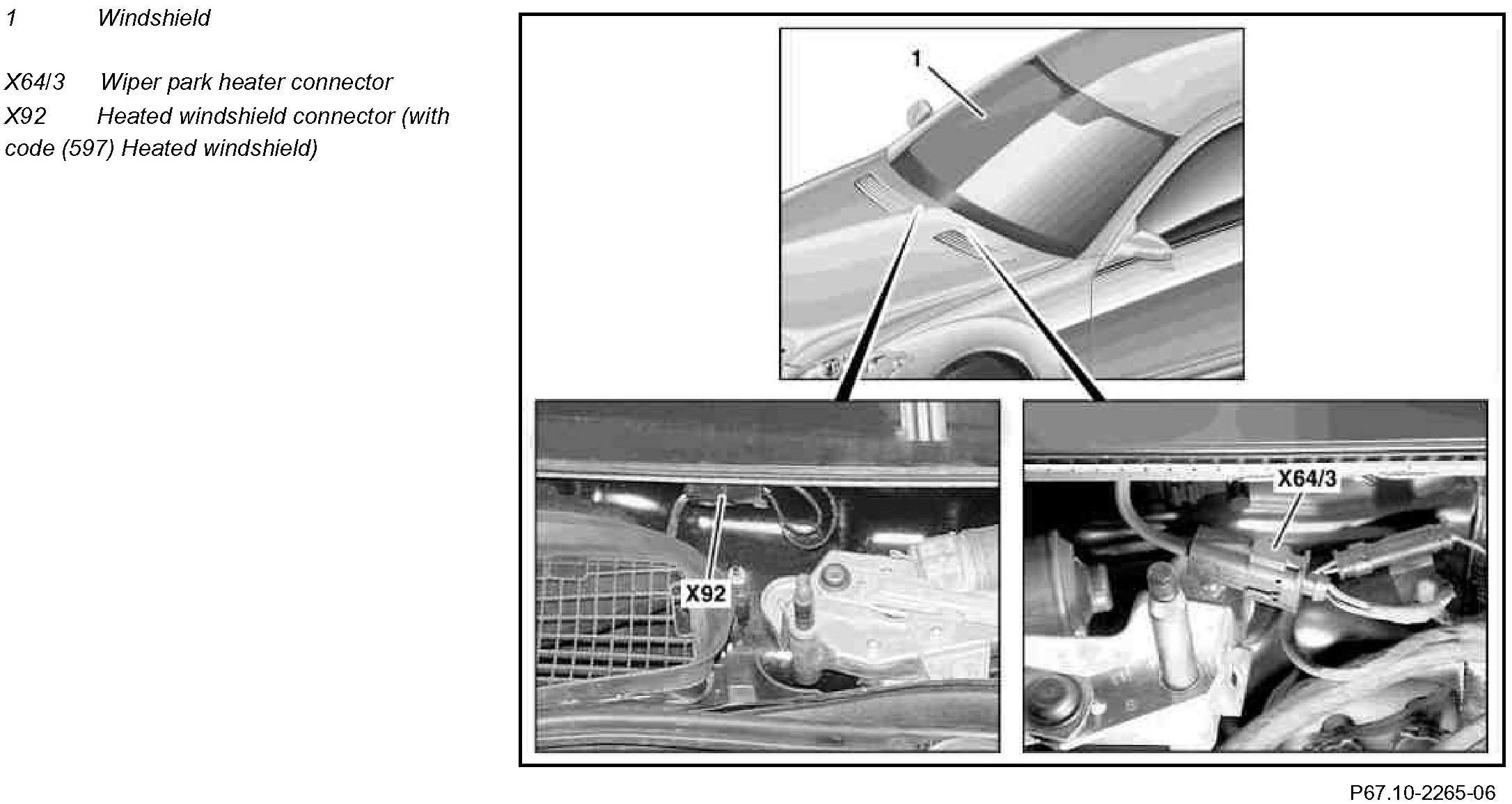

Component Identification:

Component Identification:

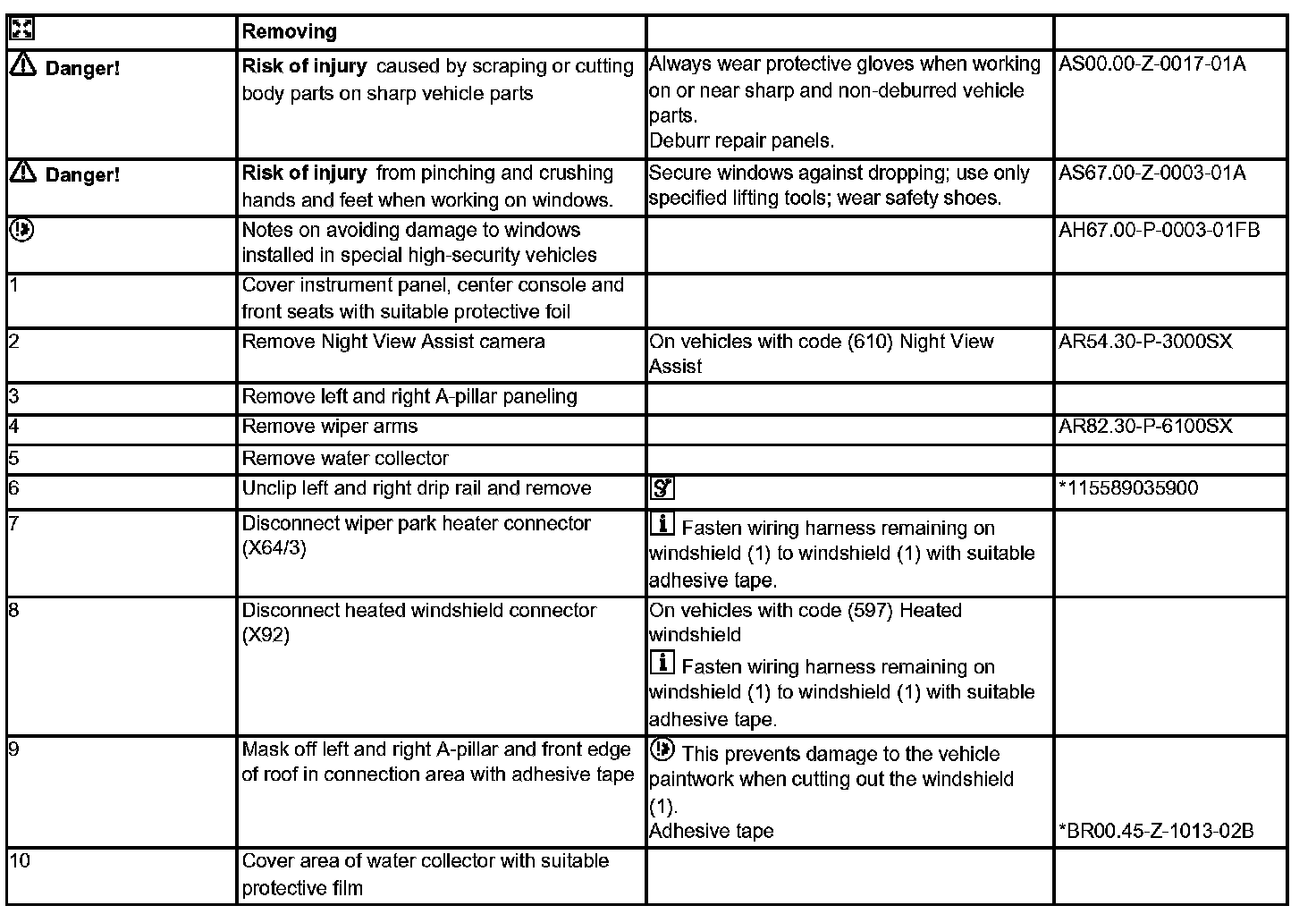

Steps 1 - 10:

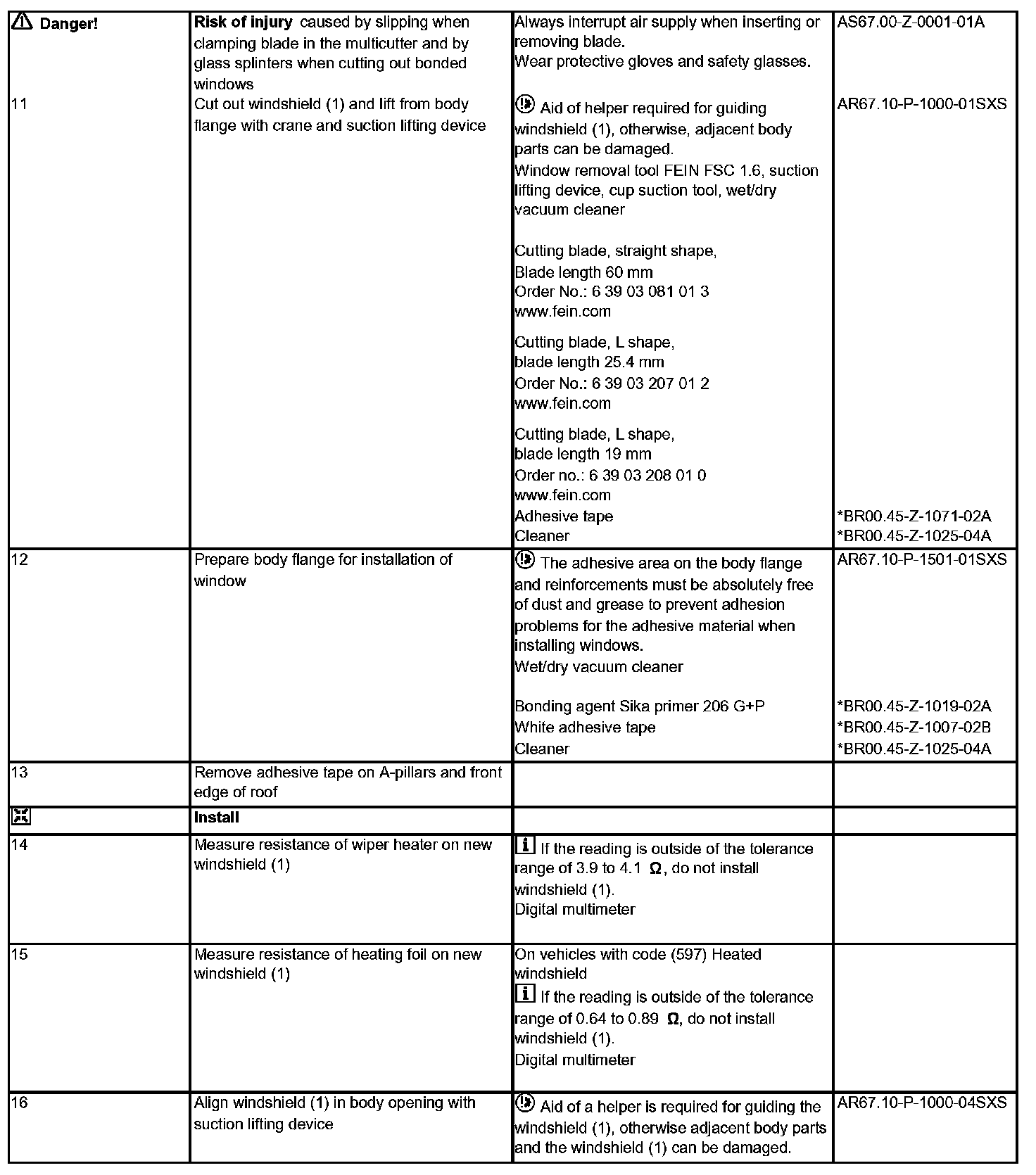

Steps 11 - 16:

Steps 17 - 21:

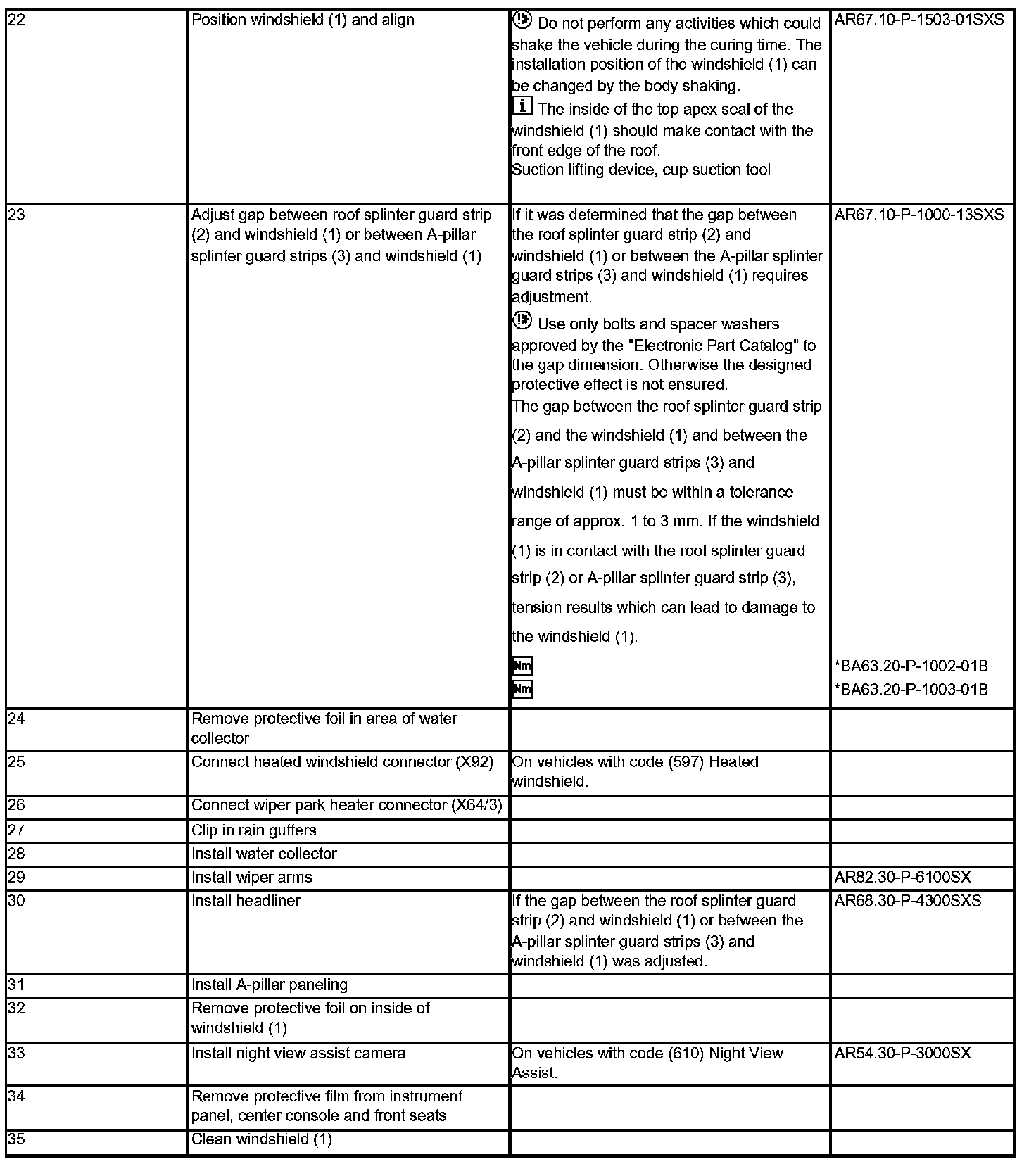

Steps 22 - 35:

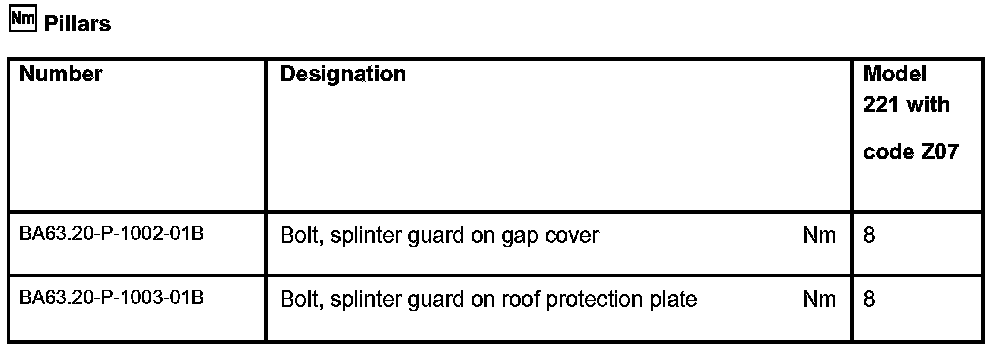

Pillars:

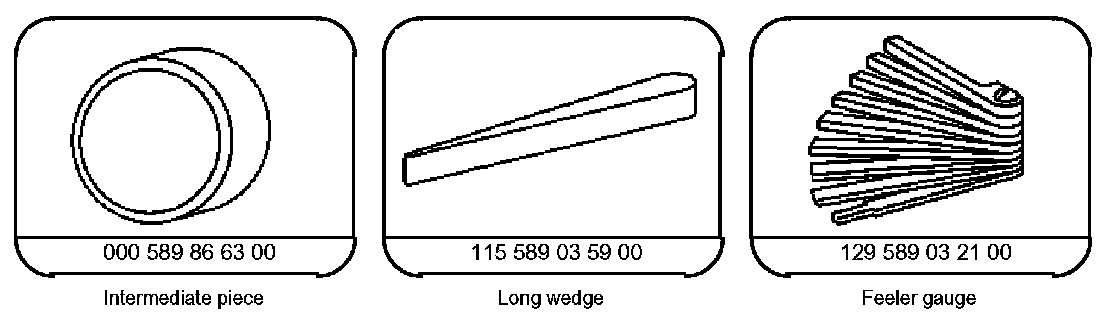

Special Tools:

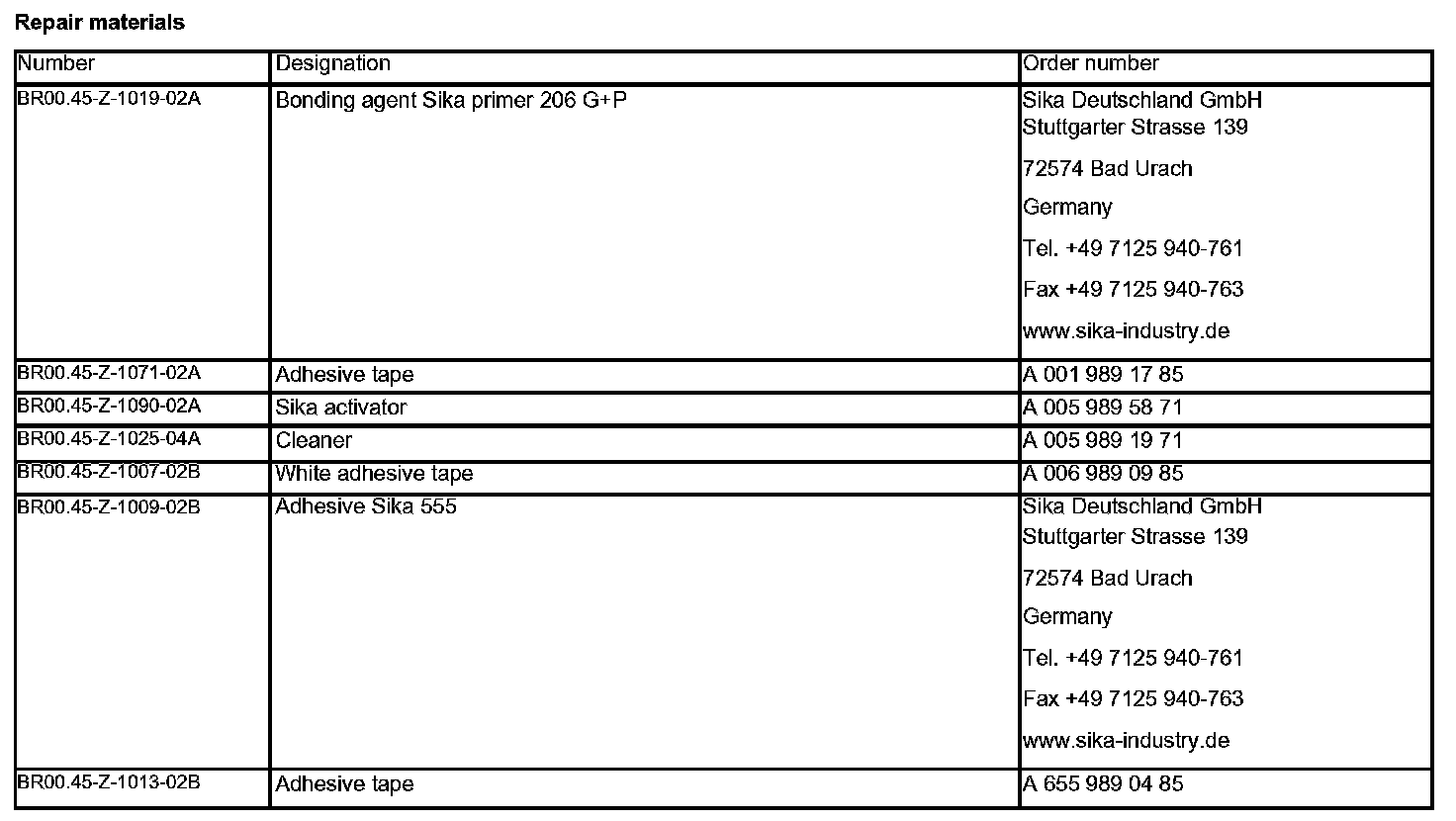

Repair Materials:
