AR54.10-P-1130SX Charge Battery
AR54.10-P-1130SX Charge Battery
AR54.10-P-1130SX Charge Battery

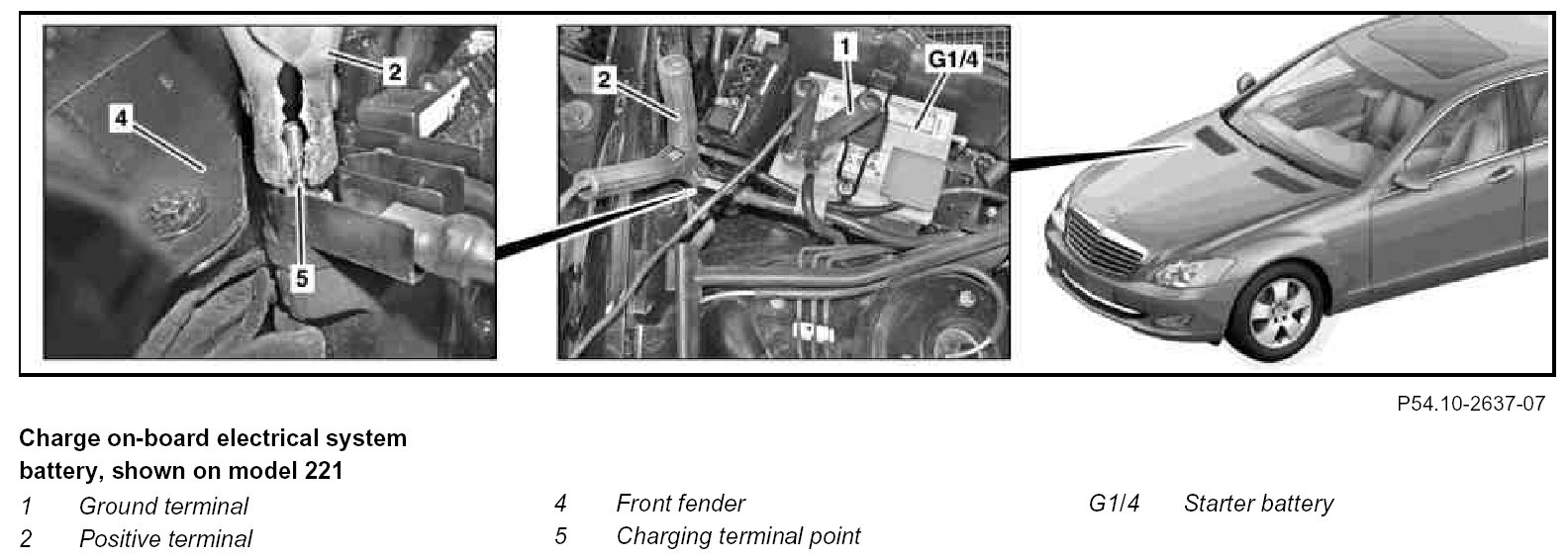

Component Identification:

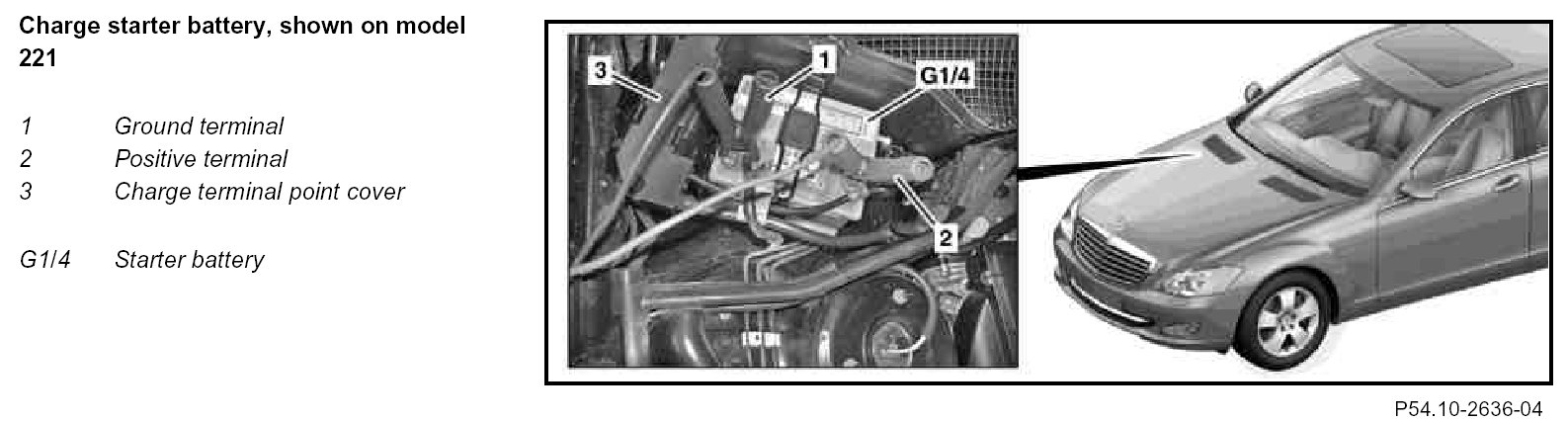

Component Identification:

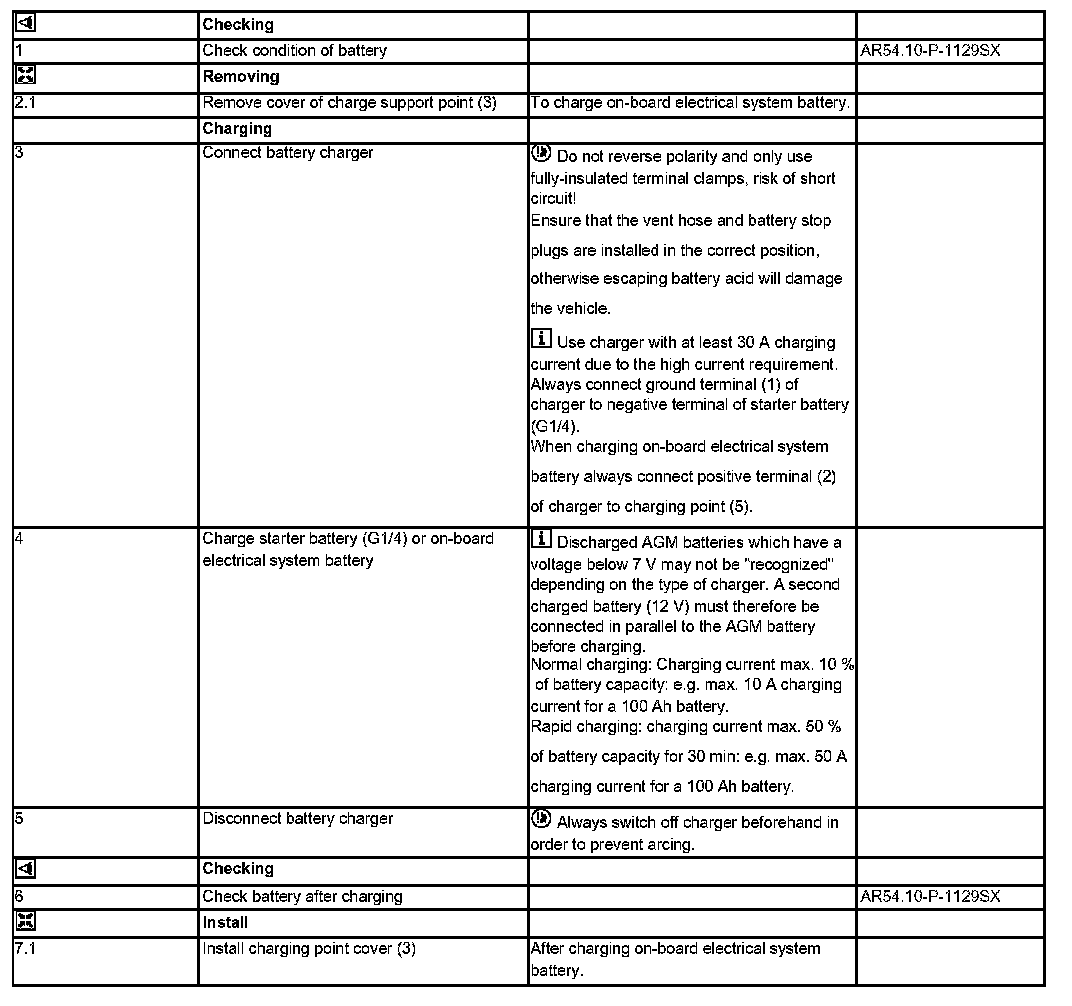

Steps 1 - 7.1:
